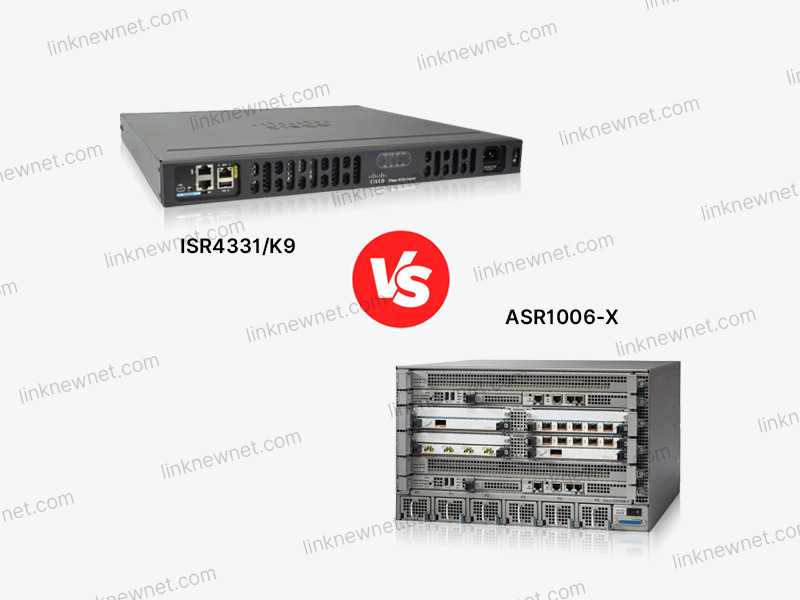

Cisco ASR1006-X vs ISR4331/K9: Carrier-Class Powerhouse vs Enterprise Branch Router

When comparing Cisco's ASR1006-X (a service provider-grade aggregation router) with the ISR4331/K9 (an enterprise branch solution), we're examining two fundamentally different networking devices designed for completely distinct operational environments. This in-depth analysis provides network architects with the critical differentiators needed to make informed infrastructure decisions.

Core Technical Specifications

The ASR1006-X delivers 10-40x greater performance metrics, establishing itself as a true carrier-class aggregation router compared to the branch-focused ISR4331/K9.

Functional Capabilities Breakdown

1. Performance Benchmarks

• Routing Scale:

• ASR1006-X: 20 million routes

• ISR4331: 500,000 routes

• Protocol Handling:

• Basic OSPF/EIGRP

• Small BGP peerings

• Static routing

• Full Internet routing tables

• MPLS/VPLS services

• Large-scale BGP implementations

• ASR1006-X supports:

• ISR4331 optimized for:

2. Advanced Feature Support

Shared Capabilities:

• Cisco IOS-XE operating system

• Basic firewall functionality

• IPsec VPN termination

ASR1006-X Exclusives:

• Segment routing

• EVPN/VXLAN support

• Full NetFlow/sFlow implementation

• BGP FlowSpec

• MPLS-TE with RSVP

Physical Design Comparison

Chassis Architecture:

• ASR1006-X:

• 4RU carrier-grade chassis

• Redundant route processors

• Hot-swappable power and fans

• Front/rear service module access

• ISR4331/K9:

• 1RU compact enterprise design

• Fixed configuration

• Single power domain

• Office-optimized cooling

Environmental Specifications:

• Operating temperature:

• ASR1006-X: 0 to 40°C (precision cooling)

• ISR4331: -5 to 45°C (office environments)

• Physical dimensions:

• ASR1006-X: 4RU, 17.5" deep

• ISR4331: 1RU, 13.5" deep

User Experience Evaluation

Administration & Management:

• Both utilize:

• Cisco DNA Center compatibility

• Common CLI structure

• REST API access

Operational Differences:

• ASR1006-X Advantages:

• Carrier-grade telemetry

• Advanced traffic engineering

• Detailed protocol analytics

• ISR4331 Strengths:

• Simplified branch configuration

• Quick deployment

• Lower administrative overhead

Real-World Performance:

• Route convergence:

• ASR1006-X: <10ms

• ISR4331: 300-500ms

• Configuration complexity:

• ASR1006-X requires specialized training

• ISR4331 offers wizard-driven setup

Pricing & Total Cost Analysis

Acquisition Costs:

• ISR4331/K9: 6,500−8,500

• ASR1006-X: 45,000−60,000

Operational Expenditures:

• Power consumption difference: ~$800/year

• Rack space requirements:

• ASR1006-X needs 4x more space

• Cooling considerations:

• ASR1006-X requires precision cooling

Five-Year TCO Considerations:

• ASR1006-X justified for:

• Service provider edge/aggregation

• Large enterprise core

• Mission-critical applications

• ISR4331 economical for:

• Branch office connectivity

• Small business needs

• Distributed enterprises

Power Efficiency Metrics

Power Specifications:

• Input options:

• Both support AC/DC power

• ASR1006-X offers N+N redundancy

• Energy monitoring:

• Both provide detailed metrics

Efficiency Comparison:

• Performance per watt:

• ASR1006-X: 177 Mbps/W

• ISR4331: 54 Mbps/W

• Idle power draw:

• ASR1006-X: 250W

• ISR4331: 30W

Compatibility & Ecosystem Integration

Third-Party Interoperability:

• Both support:

• Standard SNMP monitoring

• NETCONF/YANG models

• Syslog reporting

ASR1006-X Enhanced Integration:

• Full MPLS ecosystem support

• BGP route server compatibility

• Segment routing integration

• Service provider OSS/BSS integration

Module Support:

• ASR1006-X accommodates:

• 40G/100G interfaces

• Encryption modules

• Service modules

• ISR4331 limited to:

• Single SM-X module

• Basic interface cards

Software Support & Lifecycle

Current Software Features:

• ASR1006-X receives:

• Carrier-grade features

• Advanced routing protocols

• Service provider enhancements

• ISR4331 gets:

• Enterprise branch features

• Basic SD-WAN

• Office-optimized functions

Security Updates:

• Both receive:

• Regular vulnerability patches

• 5+ years of maintenance

• ASR1006-X qualifies for:

• Extended security support

• Critical infrastructure updates

Future Roadmap:

• ASR1006-X positioned for:

• 400G readiness

• Enhanced segment routing

• Cloud-scale networking

• ISR4331 focuses on:

• Branch optimization

• Basic SD-WAN

• Security essentials

Decision Framework

Select ISR4331/K9 When:
✔ Deploying to enterprise branches
✔ Budget under $10,000 required
✔ Basic routing needs only
✔ No service provider requirements

Choose ASR1006-X When:
✔ Operating at network aggregation points
✔ Supporting service provider needs
✔ Requiring carrier-grade features
✔ Can justify 7-8x price premium

Key Selection Criteria:

1. Network role (enterprise vs service provider)

2. Performance and scale requirements

3. Protocol support needs

4. Available infrastructure budget

The ASR1006-X stands as Cisco's mid-range service provider aggregation solution, while the ISR4331/K9 serves as a capable enterprise branch router. These solutions target completely different market segments, with the ASR1006-X being the clear choice for service provider environments and the ISR4331/K9 better suited for typical branch office deployments.

Implementation Tip: Carefully analyze your actual traffic patterns and growth projections before deciding. The performance difference between these platforms becomes most apparent when handling complex routing scenarios or during peak traffic conditions. Consider engaging Cisco's Advanced Services team for proper sizing guidance when evaluating the ASR1006-X for critical deployments.
