Building a High-Performance Small Office Network with Cisco N540X-16Z4G8Q2C-D

25G Uplink | Reliable Enterprise Routing | Scalable Network Architecture

Modern small and medium-sized offices are experiencing a rapid increase in network requirements.
Cloud applications, virtualization, NAS storage, video collaboration, and real-time business systems
all require a network infrastructure that can deliver higher bandwidth, lower latency, and long-term scalability.

This article presents a practical small office network architecture based on the Cisco N540X-16Z4G8Q2C-D.
The topology demonstrates how an enterprise-grade routing platform can connect Internet access, access switches,
servers, and user devices through a structured VLAN-based design.

1. Cisco N540X-16Z4G8Q2C-D Overview

The Cisco N540X-16Z4G8Q2C-D belongs to the Cisco Network Convergence System (NCS) 540 Series.
It is designed for demanding edge networking environments including enterprise connectivity,
service provider access networks, and data center interconnection.

The platform combines high-density Ethernet interfaces with Cisco IOS XR software capabilities,
providing advanced routing, automation, security, and operational flexibility.

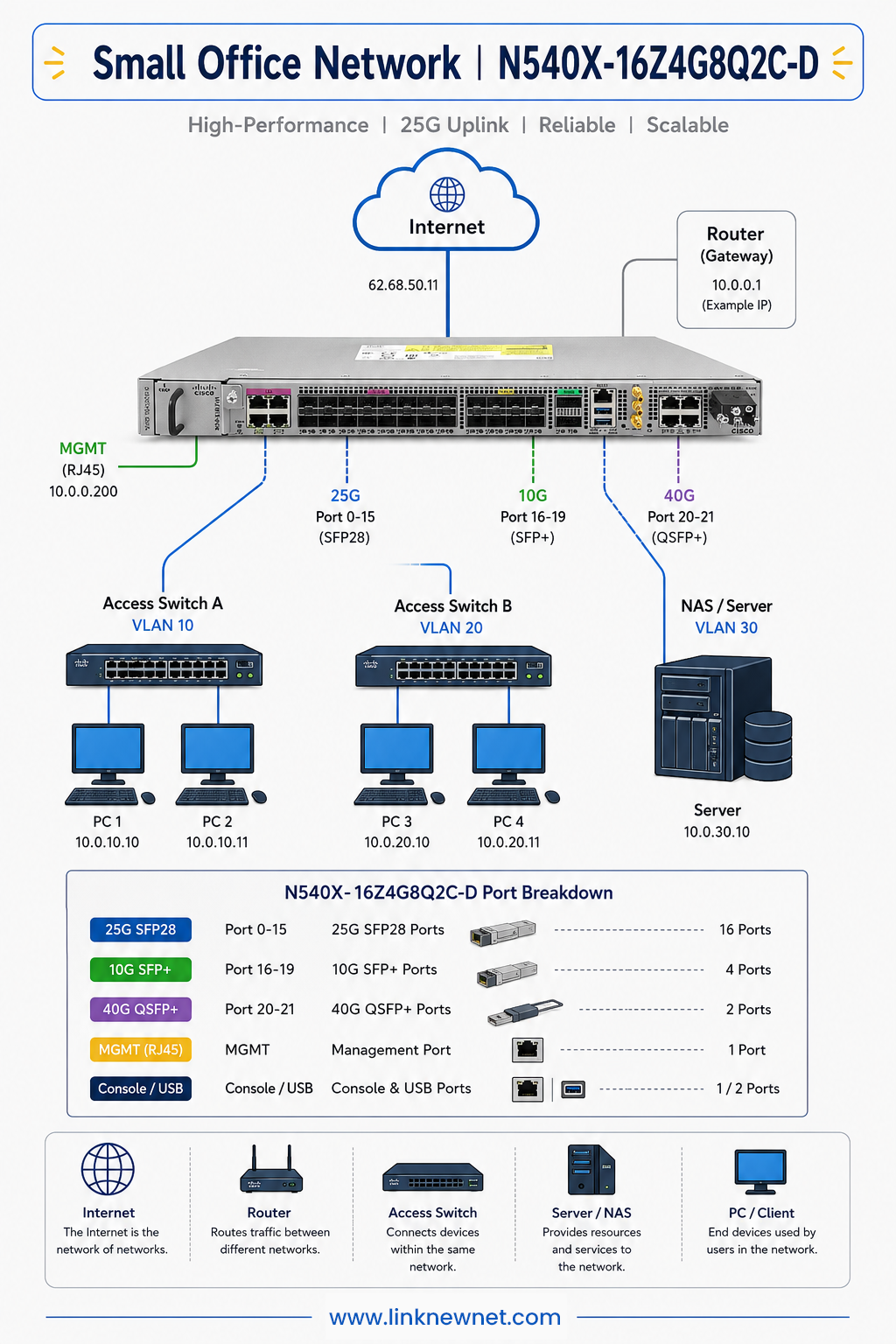

2. Small Office Network Topology Design

The illustrated topology uses the N540X-16Z4G8Q2C-D as the core routing and aggregation device.
The design separates different business services through VLAN segmentation, improving security,
management efficiency, and future expansion capability.

Internet and Gateway Connection

The Internet uplink connects directly to the Cisco N540X-16Z4G8Q2C-D.
In the example design, the Internet address is shown as 62.68.50.11, while the gateway router uses
10.0.0.1 as an example internal routing address.

This architecture allows the Cisco platform to manage high-speed traffic forwarding between external
networks and internal office resources.

3. Interface Allocation and Network Segmentation

4. VLAN-Based Office Network Implementation

The network is divided into multiple VLANs to isolate traffic and improve operational control.

• VLAN 10 – User Access Network: Access Switch A connects office computers. Example clients:
PC1 10.0.10.10 and PC2 10.0.10.11.

• VLAN 20 – Secondary User Network: Access Switch B provides another office segment. Example clients:
PC3 10.0.20.10 and PC4 10.0.20.11.

• VLAN 30 – Server and NAS Network: Dedicated connection for storage and business applications.
The example server address is 10.0.30.10.

This segmentation reduces unnecessary broadcast traffic and creates a cleaner enterprise network structure.

5. Why Choose Cisco N540X-16Z4G8Q2C-D for Small Enterprise Networks?

Although small offices traditionally use entry-level switches and routers, modern applications
often require enterprise-level bandwidth. The N540X-16Z4G8Q2C-D provides several advantages:

1. High-Speed Connectivity
With 16 × 25G SFP28 interfaces and 40G QSFP+ expansion capability, the platform provides sufficient
bandwidth for future network growth.

2. Enterprise Routing Capability
Support for advanced routing protocols such as BGP, OSPF, and IS-IS enables reliable communication
between different network domains.

3. Scalable Architecture
The combination of 10G, 25G, and 40G interfaces allows organizations to connect users, servers,
storage systems, and upstream networks without replacing the core platform.

4. Professional Network Operations
Cisco IOS XR provides automation, monitoring, and operational consistency for enterprise environments.

6. Practical Deployment Scenario

A small enterprise can deploy this architecture as a compact core network:

Internet → Cisco N540X-16Z4G8Q2C-D → Access Switches → PCs / Servers / NAS

The design is suitable for offices requiring reliable connectivity, high-performance storage access,
cloud service integration, and future bandwidth expansion.

Conclusion

The Cisco N540X-16Z4G8Q2C-D provides a powerful foundation for modern enterprise networking.
By combining 25G connectivity, advanced routing capabilities, and flexible interface options,
it enables small offices to build a network architecture with enterprise-level reliability.

The illustrated topology demonstrates how a carefully planned VLAN structure and high-speed backbone
can create a secure, scalable, and efficient business network ready for future growth.

Reference Sources: Cisco NCS 540 Series Documentation and Router-switch product specifications.
