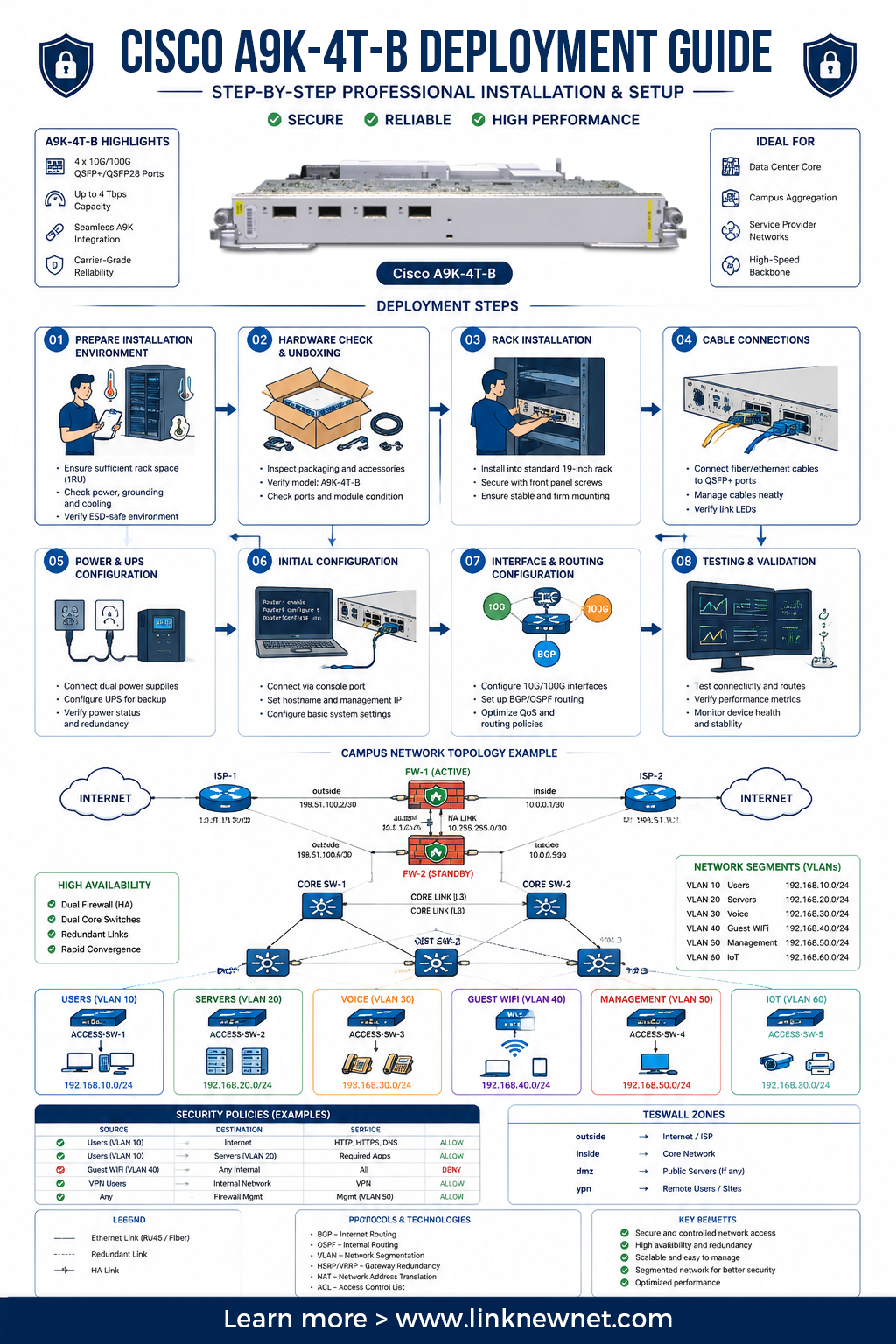

Cisco A9K-4T-B Deployment Guide
High-Performance 10G/100G Network Expansion Solution for Carrier & Data Center Networks

1. Product Overview

Cisco A9K-4T-B is designed for Cisco ASR 9000 Series platforms and serves as a high-performance "
Ethernet line card solution for carrier-grade routing, data center interconnection, campus core aggregation "
and service provider networks.

As network traffic continues to grow due to cloud computing, video services, AI workloads and large-scale "
enterprise applications, traditional 10 Gigabit connectivity is increasingly challenged. The A9K-4T-B provides "
a scalable interface architecture that helps organizations upgrade backbone bandwidth while maintaining "
carrier-class reliability and operational flexibility.

2. Key Technical Specifications

3. Deployment Workflow Analysis

01 Installation Environment Preparation: Confirm rack space, power availability, grounding and cooling conditions.

02 Hardware Inspection: Check packaging, chassis compatibility, modules and optical accessories.

03 Rack Installation: Install into standard rack position and secure the line card properly.

04 Cable Connection: Connect fiber/equipment interfaces and verify link status.

05 Power Configuration: Check redundant power architecture and operational status.

06 Initial Configuration: Complete console access, hostname, management IP and basic settings.

07 Interface & Routing Configuration: Configure interfaces, routing protocols and traffic policies.

08 Testing & Validation: Verify connectivity, performance metrics and system stability.

4. Typical Network Deployment Architecture

The illustrated topology demonstrates a campus/core network architecture using redundant firewalls, "
core switches, VLAN segmentation and high-speed uplinks.

Recommended deployment scenarios include:
• Internet edge aggregation
• Data center core networking
• Service provider backbone expansion
• Enterprise campus backbone upgrades
• High availability routing environments

5. Network Segmentation Example

6. Business Benefits

✓ High-density bandwidth expansion for modern networks

✓ Carrier-grade reliability with Cisco ASR 9000 architecture

✓ Flexible migration path from 10G to higher-speed networking

✓ Improved network scalability for cloud and data center traffic

✓ Enhanced operational efficiency through modular design

Conclusion

Cisco A9K-4T-B provides a powerful foundation for organizations requiring reliable, scalable and "
high-performance network infrastructure. Combined with Cisco ASR 9000 platforms, it enables enterprises, "
carriers and data centers to build resilient backbone networks capable of supporting future bandwidth growth.
