Fortinet FG-200D Firewall Deployment: A Practical Enterprise Security & Network Architecture Case Study

Jul 03 , 2026 8

Fortinet FG-200D Firewall Deployment: A Practical Enterprise Security & Network Architecture Case Study

In today’s always-connected business environment, organizations require a network architecture that is not only fast and scalable, but also resilient against evolving cyber threats. The Fortinet FG-200D firewall provides a robust foundation for building secure, segmented, and highly available enterprise networks.

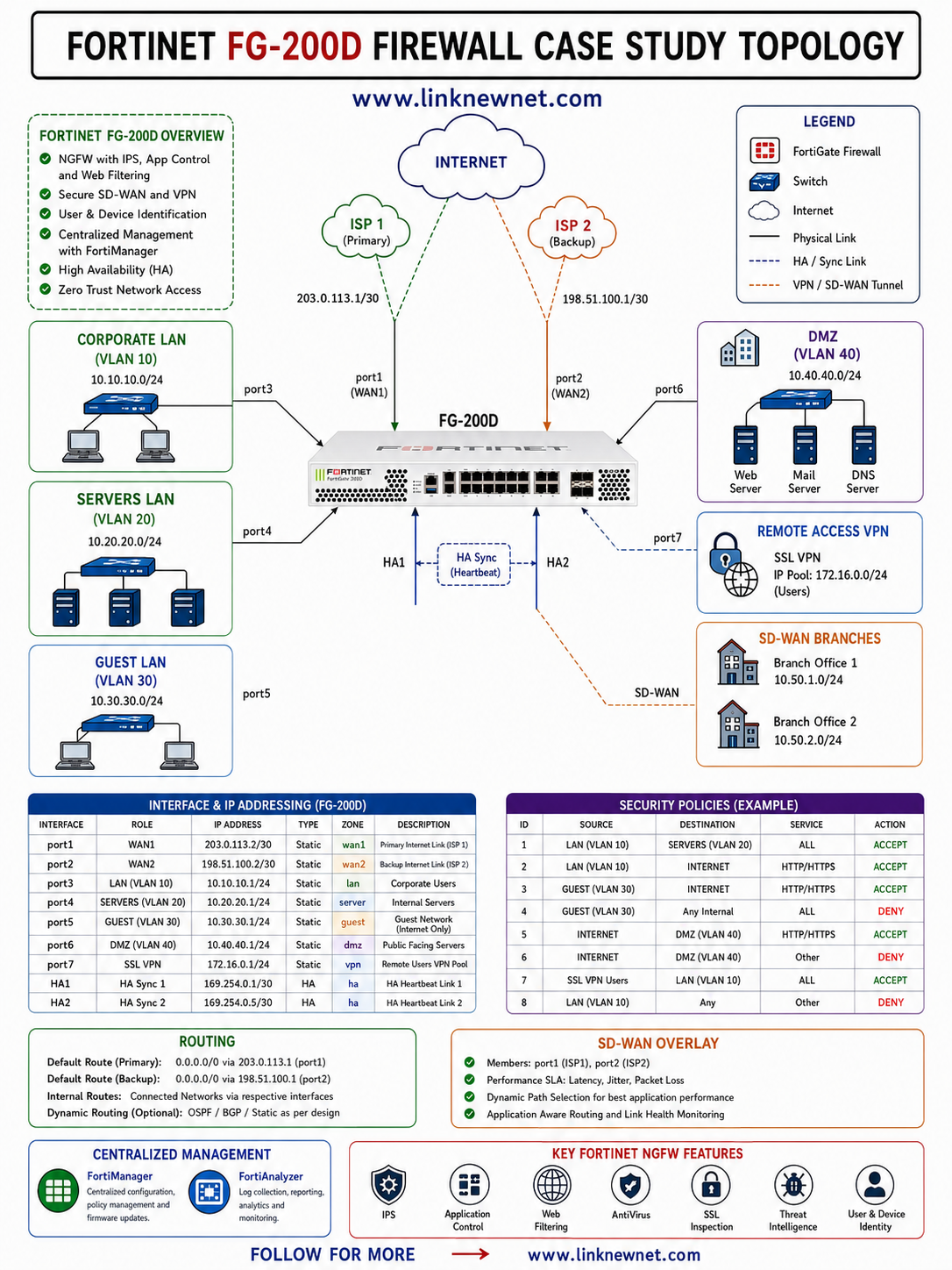

This case study showcases a real-world topology design built around the FG-200D, illustrating how security, performance, and connectivity can be unified into a single integrated framework.

Enterprise-Grade Network Architecture Overview

At the core of the design is the Fortinet FG-200D next-generation firewall, acting as the central security gateway between internal network segments and the internet. The system is engineered with redundancy and segmentation in mind, ensuring uninterrupted operations across multiple business units.

The network is connected to dual ISP links, with ISP 1 serving as the primary uplink and ISP 2 configured as a backup path. This setup ensures continuous internet access even in the event of a primary link failure.

Segmented LAN Design for Operational Efficiency

To improve security and traffic control, the internal environment is divided into multiple VLAN-based zones:

- Corporate LAN (VLAN 10) – Office users and business operations

- Servers LAN (VLAN 20) – Internal application and data servers

- Guest LAN (VLAN 30) – Isolated visitor internet access

- DMZ (VLAN 40) – Public services such as web, mail, DNS servers

Each segment is controlled through firewall policies to ensure secure traffic flow.

High Availability and Business Continuity

The architecture incorporates HA synchronization links, enabling seamless failover between firewall nodes.

Secure Remote Access and SD-WAN Integration

- SSL VPN for remote users

- SD-WAN for branch connectivity and optimized routing

Security Policies and Traffic Control

Strict policies define traffic behavior between zones, ensuring zero-trust enforcement.

Centralized Management and Visibility

- FortiManager for configuration control

- FortiAnalyzer for monitoring and reporting

Built-In NGFW Security Features

- IPS

- Application Control

- Web Filtering

- Antivirus

- SSL Inspection

- Threat Intelligence

- User & Device Identification

Conclusion

This architecture demonstrates a scalable and secure enterprise network design based on Fortinet FG-200D, combining segmentation, redundancy, and centralized management.
