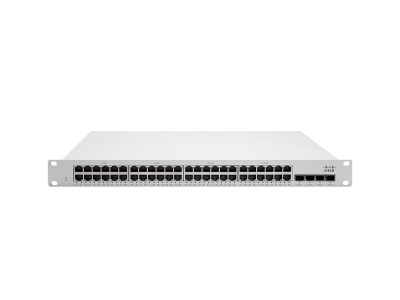

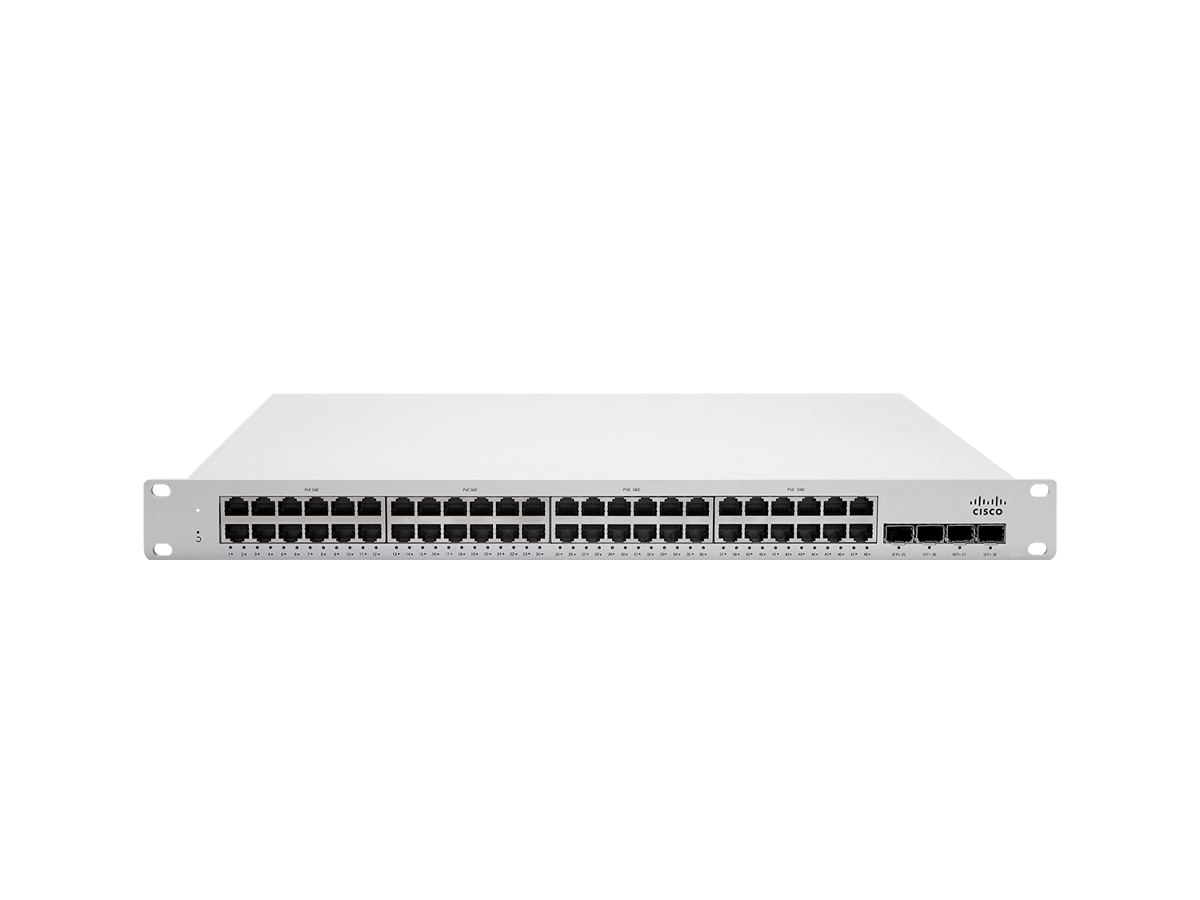

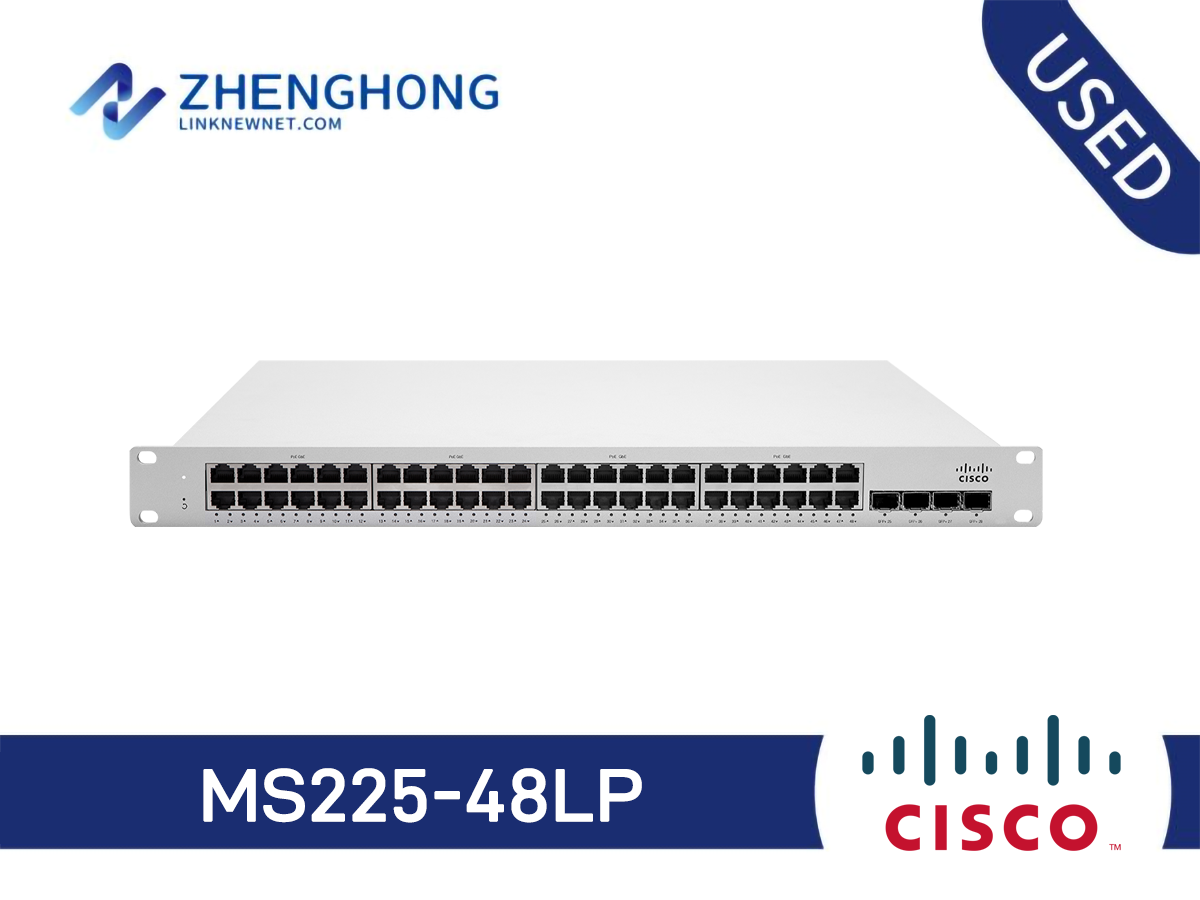

Cisco Meraki MS225-48LP Switch, 48xGigE PoE/370W PoE/L2 Stackable Overview
Cisco Meraki MS225-48LP Switch, 48xGigE PoE/370W PoE/L2 Stackable is a genuine network infrastructure product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco family, the MS225-48LP unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, aggregate capacity of 176 Gbps; 370 W PoE budget. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include general network infrastructure support, general network infrastructure support, and general network infrastructure support. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco Meraki MS225-48LP Switch,48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) PoE+ (370 W)”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the MS225-48LP. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned MS225-48LP
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
Quick Spec
SKU | MS225-48LP-HW |
Interfaces | • 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x SFP+ 10GbE uplink • 2 x stacking ports • RJ45 Management port |
Switching capacity | 176 Gbps |
Stacking Bandwidth | 80G (dual interface) |
Available PoE+ Power | 370 W |
Idle / Full Load Power | 53 / 490 W |
Power Supply Configuration | Fixed internal |
Optional Redundant Power Supply | External RPS |
What’s included | 1 x Mounting screw kit |
Dimensions | 1.72” x 19.08” x 13.39” (4.38 x 48.46 x 34cm) |
Weight | 9.63 lb (4.37 kg) |
Compare to Similar Items
Series | MS210 | MS225 | MS250 | MS350 |
Deployment Type | Branch & Small Campus | Branch & Small Campus | Branch & Small Campus | Campus & Multigigabit |
Interfaces | 24/48 x 1GbE RJ45 | 24/48 x 1GbE RJ45 | 24/48 x 1GbE RJ45 | 24/48 x 1GbE RJ45 8 x XGbE RJ45 (24 x only) |
Uplinks | 4 x 1GbE SFP | 4 x 10GbE SFP+ | 4 x 10GbE SFP+ | 4 x 10GbE SFP+ |
PoE Capabilities | 370W (P, LP models) 740W (FP models) | 370W (P, LP models) 740W (FP models) | 370W (P, LP models) 740W (FP models) | 370W (P, LP models) 740W (24X, FP models) |
Power Configuration | Internal Optional RPS | Internal Optional RPS | Modular Redundant PSU optional | Modular Redundant PSU optional |
Stacking Capabilities | Compatible with MS225 80G physical + virtual | Compatible with MS210 80G physical + virtual | 80G physical + virtual | 160G physical + virtual |
Routing Capabilities | Static only DHCP Relay | Static only DHCP Relay | Static + Dynamic DHCP Server + Relay Warm spare (VRRP) | Static + Dynamic DHCP Server + Relay Warm spare (VRRP) |
Models | MS210-24-HW MS210-24P-HW MS210-48-HW MS210-48LP-HW MS210-48FP-HW | MS225-24-HW MS225-24P-HW MS225-48-HW MS225-48LP-HW MS225-48FP-HW | MS250-24-HW MS250-24P-HW MS250-48-HW MS250-48LP-HW MS250-48FP-HW | MS350-24-HW MS350-24P-HW MS350-24X-HW MS350-48-HW MS350-48LP-HW MS350-48FP-HW |
Cisco MS225-48LP-HW Specification
MS225-48LP-HW Specification | |
Interfaces | • 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x SFP+ 10GbE uplink • 2 x stacking ports • RJ45 Management port |
Switching capacity | 176 Gbps |
Stacking Bandwidth | 80G (dual interface) |
Forwarding rate | 127.98mpps |
Available PoE+ Power | 370 W |
Idle / Full Load Power | 53 / 490 W |
Power Supply Configuration | Fixed internal |
Optional Redundant Power Supply | External RPS |
What’s included | 1 x Mounting screw kit |
Dimensions | 1.72” x 19.08” x 13.39” (4.38 x 48.46 x 34cm) |
Weight | 9.63 lb (4.37 kg) |
Management | • Managed via the Web with the Meraki cloud management platform • Integrated with Meraki Wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMPd and SYSLOG support for integration with other network management solutions • Automatic firmware upgrades with scheduling control
|
Layer 3 | • Static routing • DHCP Relay |
Remote Diagnostics | • Email, SMS and Mobile push notification alerts • Cable testing and link failure detection with alerting • Live remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search |
Power | • Power input: 100 - 240 VAC, 47-63 Hz • Power consumption: 15 - 882W • RPS interface: Requires RPS-2300 chassis |
Stacking | • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration • Stacking-compatible with the MS210 |
Mounting | • 1U Rack-mountable with included rack mount hardware • 2-post front mounting options available • Desktop-mountable with included feet |
Ethernet Switching Capabilities | • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • Broadcast storm control • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 32K |
Environment | • Operating temperature: -5°C to 50°C • Humidity: 5 to 95% non-condensing • MS225-48 feature fanless operation |
Regulatory | • CSA-US (US, Canada) • FCC (USA) • IC (Canada) • CE (Europe) • RCM (Australia/New Zealand) • RoHS |
Security | • Integrated two-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking, Dynamic ARP Inspection • STP Enhancements: BPDU guard, Root guard, Loop guard • IPv4 and IPv6 ACLs |
MTBF Ratings | 381,015 |
