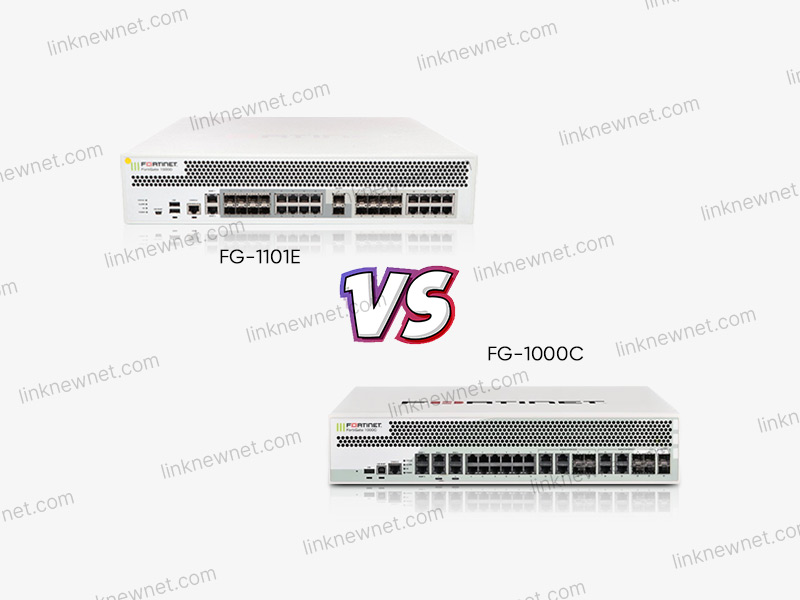

Fortinet FG-1000C vs FG-1101E: Compact vs Enterprise Firewall Performance Evaluation

When selecting network security solutions, organizations must carefully evaluate the Fortinet FG-1000C (compact enterprise firewall) against the FG-1101E (premium enterprise model). This detailed comparison examines their technical specifications, operational capabilities, and ideal deployment scenarios to help security professionals make informed decisions.

Technical Specifications Comparison

The FG-1101E demonstrates 2-4x greater performance across all key metrics, establishing it as Fortinet's superior enterprise solution compared to the compact FG-1000C.

Functional Capabilities Analysis

1. Security Performance

Shared Capabilities:

• AI-powered threat detection

• SSL/TLS inspection

• Advanced malware protection

• SD-WAN with security

• Zero Trust Network Access

FG-1101E Advantages:

• 2.5x higher threat inspection capacity

• Better encrypted traffic handling

• More concurrent security scans

• Higher VPN tunnel capacity

2. Network Performance

• FG-1000C handles:

• 20 Gbps firewall traffic

• 10 Gbps threat inspection

• Suitable for 1,000-2,500 users

• FG-1101E manages:

• 45 Gbps firewall traffic

• 25 Gbps threat inspection

• Ideal for 5,000-10,000 users

Physical Design Comparison

Chassis Architecture:

• FG-1000C:

• 1U rack-mountable

• Fixed configuration

• Standard cooling system

• 14 lbs weight

• FG-1101E:

• 2U rack-mountable

• Tool-less service panels

• Redundant power options

• 28 lbs weight

Environmental Specifications:

• Operating temperature:

• Both: 0°C to 40°C

• Noise level:

• FG-1000C: 52 dBA

• FG-1101E: 62 dBA

• Power input:

• Both: 100-240V AC

User Experience Evaluation

Management Interfaces:

• Both use FortiOS 7.4+

• Web UI and CLI access

• REST API support

• Centralized management options

Operational Differences:

• FG-1101E handles:

• More complex security policies

• Higher connection volumes

• Multiple VPN tunnels simultaneously

• FG-1000C optimized for:

• Space-constrained deployments

• Medium business needs

• Standard security requirements

Pricing & Total Cost Analysis

Acquisition Costs:

• FG-1000C: 15,000−18,000

• FG-1101E: 35,000−42,000

Operational Costs:

• Power consumption difference: ~$150/year

• Support contracts:

• FG-1000C: ~$2,500/year

• FG-1101E: ~$6,500/year

Five-Year TCO Considerations:

• FG-1000C justified for:

• Medium businesses

• Distributed offices

• Cost-sensitive deployments

• FG-1101E economical for:

• Large enterprises

• Data centers

• High-security environments

Power Efficiency Metrics

Energy Consumption:

• FG-1000C:

• Idle: 60W

• Peak: 90W

• FG-1101E:

• Idle: 160W

• Peak: 240W

Efficiency Comparison:

• Performance per watt:

• FG-1000C: 222 Mbps/W

• FG-1101E: 187 Mbps/W

Compatibility & Ecosystem

Third-Party Integration:
Both support:

• SIEM solutions (Splunk, IBM QRadar)

• Cloud platforms (AWS, Azure, GCP)

• Automation tools (Ansible, Terraform)

FG-1101E Advantages:

• 40G interface support

• Enhanced SD-WAN capabilities

• Advanced cloud security features

• SOC integration

Software Support & Roadmap

Current Software Features:

• Both run FortiOS 7.4+

• Same security services

• Identical management features

Future Development:

• FG-1101E prioritized for:

• Quantum-safe cryptography

• Cloud-native security

• AI-driven operations

• FG-1000C receives:

• Core security updates

• Performance enhancements

Final Recommendation

Choose FG-1000C When:
✔ Medium business network
✔ Space-constrained deployment
✔ Need 20G throughput
✔ 1,000-2,500 users

Select FG-1101E When:
✔ Global enterprise network
✔ Need 45G+ throughput
✔ Mission-critical security
✔ 5,000+ users

Key Selection Criteria:

1. Network size and traffic volume

2. Performance requirements

3. Security needs

4. Available budget

Implementation Strategy:
For distributed enterprises, consider deploying FG-1101E at core locations and FG-1000C at branch offices to balance performance and cost efficiency.

Performance Note: While the FG-1101E offers superior capabilities, the FG-1000C provides excellent value for organizations needing enterprise features in a compact form factor. The 2-4x performance difference becomes most apparent during peak traffic periods or when handling complex security policies.
