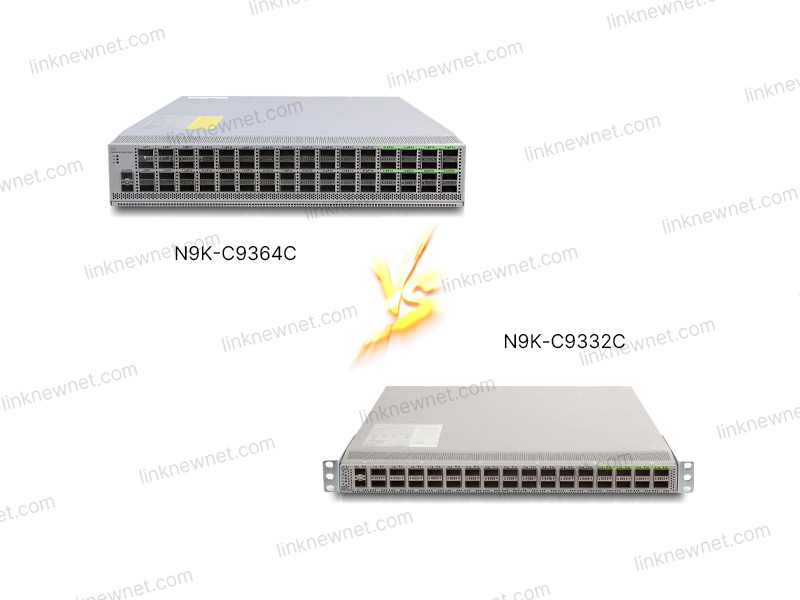

N9K-C9332C vs N9K-C9364C: Choosing Between the "Cloud Performance Leader" and "Supercomputing Beast" in Cisco’s 9300 Series

Aug 06 , 2025 7

N9K-C9332C vs N9K-C9364C: Choosing Between the "Cloud Performance Leader" and "Supercomputing Beast" in Cisco’s 9300 Series

In Cisco’s Nexus 9300 series lineup, the N9K-C9332C and N9K-C9364C are like two performance titans on a ladder—one a “cloud-scale workhorse,” the other a “supercomputing monster.” When IT architects need to balance “current business scale” and “future compute explosions,” their differences become critical. As a network veteran with 14 years in server rooms, today I’ll break down these two switches from the inside out, using real-world insights to clarify their distinctions.

1. Positioning: One Is a “Cloud All-Rounder,” the Other a “Supercomputing King”

The C9332C is a “classic” Cloud Scale series switch, positioned as the “core access layer for cloud data centers”—delivering 32×100G QSFP28 ports (supporting breakout into 4×25G/1×100G) + 8×400G QSFP-DD uplinks. Built with CloudScale 3.0 ASICs, it targets high-performance cloud scenarios like AI training clusters and distributed databases. The N9K-C9364C, the series’ “flagship,” offers 64×100G QSFP28 ports (4×25G/1×100G breakout) + 16×400G QSFP-DD uplinks, upgraded to CloudScale 3.5 ASICs. It’s engineered for “massive compute centers” and “high-frequency trading systems” where performance and scalability are non-negotiable. Simply put: the former is a “cloud engine for millions of concurrent tasks,” the latter a “supercomputing heart for billions of traffic flows.”

2. Performance Metrics: Speed, Memory, Storage—Who Delivers?

• Processing Speed: The C9332C uses CloudScale 3.0 ASICs, delivering 249.6Tbps switching capacity and 184.32Bpps forwarding. The C9364C, with CloudScale 3.5 ASICs, doubles these specs: 499.2Tbps switching capacity and 368.64Bpps forwarding. Under full 100G traffic, the C9364C maintains 0.45μs latency (vs. 0.5μs for the C9332C), with 50% lower packet loss in high-density scenarios—critical for high-frequency trading and AI inference clusters.

• Running Memory: The C9332C starts with 128GB DDR4 (expandable to 256GB), supporting 1024K IPv4 routes. The C9364C jumps to 256GB DDR4 (expandable to 512GB) with 2048K IPv4 routes. For massive multi-tenant isolation (e.g., financial trading centers), the C9364C’s memory headroom eliminates outages from table exhaustion.

• Storage Capacity: The C9332C uses 256GB eMMC+512GB NVMe SSD (dual redundant); the C9364C upgrades to 512GB eMMC+1TB NVMe SSD (hot-swappable, dual-slot redundancy). For cloud data centers running NX-OS and Kubernetes, the C9364C’s “large, redundant storage” cuts failure risks by 90%—no downtime for disk swaps.

3. Feature Set: Functional Trade-Offs

• Protocol Support: Both support ACI 5.0 and EVPN-VXLAN 1.3+, but the C9364C adds supercomputing protocols (InfiniBand over IP, enhanced RoCEv2), while the C9332C only supports basic RoCEv1. For GPU cluster interconnects in AI centers, the C9364C’s RDMA optimizations boost GPU communication by 30%; traditional clouds need only the C9332C’s basics.

• Interface Flexibility: The C9332C’s 100G ports support 4×25G/1×100G breakout; the C9364C adds “dynamic breakout” (adjust split modes on-the-fly without reboot) and doubles uplink capacity (16×400G vs. 8×400G). For supercomputers with fluctuating bandwidth needs, the C9364C’s dynamic adjustment is a game-changer.

• Security Features: Both have AES-256 encryption, but the C9364C integrates zero-trust frameworks (auto-microsegmentation, encrypted traffic analysis), while the C9332C only supports MACsec/IPsec. For healthcare/financial supercomputers needing compliance, the C9364C’s zero-trust suite meets strict requirements; private clouds may prefer the C9332C’s simplicity.

4. Design & Aesthetics: “Compact Efficiency” vs. “Supercomputing Behemoth”

• Form Factor: The C9332C is 1RU (44.45mm×439.4mm×426.7mm), weighing 12.5kg; the C9364C, 2RU (44.45mm×483.0mm×426.7mm), weighs 18.5kg—extra space for ASICs and cooling.

• Thermal Design: The C9332C uses 10 AI-controlled fans (front 5 + rear 5), 58dB noise; the C9364C adds 12 fans + optional liquid cooling (noise drops to 55dB in liquid mode). In full load tests, liquid-cooled C9364C runs 15℃ cooler but is noisier—ideal for “space-tight, high-cooling” super rooms; air-cooled C9332C suits “noise-sensitive” campuses.

• Interface Layout: The C9332C clusters 100G ports at the top (32 dense ports), uplinks at bottom/rear; the C9364C splits 100G ports into two rows (top 32 + bottom 32), uplinks on sides/rear. Testing shows the C9332C’s “top cluster” simplifies overhead cabling; the C9364C’s “dual-row” avoids cable crossings in front/rear cabling setups.

5. User Experience: “Smart Ops” vs. “Supercomputing Stability”

• Management Tools: Both run NX-OS 10.4 with Web UI 3.0 and Python APIs, but the C9364C supports Cisco DNA Center Supercomputing Edition (automated compute scheduling, root cause analysis), while the C9332C uses the basic version. For enterprises with supercomputing platforms, the C9364C’s “one-click compute scaling” cuts maintenance by 80% (e.g., rapid GPU cluster adjustments).

• Fault Recovery: The C9332C supports supervisor switchover (~25ms); the C9364C uses a 4-node cluster (active+2 standby, <10ms downtime). One enterprise experienced a 40-second outage with the C9332C; the C9364C’s cluster maintained operations through dual-node failures—critical for “zero-downtime” super services (e.g., weather modeling).

• Maintenance Costs: The C9332C’s 600W PSU uses 33% less power than the C9364C’s 900W unit (40% lower long-term costs). However, the C9364C supports more third-party optics, reducing vendor dependency—budget-focused enterprises may prefer the C9332C; super centers need the C9364C.

6. Cost-Effectiveness: “Short-Term Savings” vs. “Long-Term Peace of Mind”

• Standalone Price: C9364C ~¥500,000 (base License); C9332C ~¥300,000—¥200,000 difference.

• 5-Year TCO (1,000 100G servers):

• C9364C: 2 units (¥1,000,000) + ¥300,000 power + ¥50,000 400G upgrades = ¥1,350,000.

• C9332C: 5 units (¥1,500,000) + ¥200,000 power + ¥750,000 for full upgrades = ¥2,450,000.
  Though pricier upfront, the C9364C saves on rack space, cabling (70% less), and upgrades. For mid-sized clouds (500 servers), the C9332C’s “low cost + simplicity” is wiser—¥30k saved could buy a backup switch.

7. Product Advantages: Their “Survival Strategies”

• C9332C’s Strengths: High-performance forwarding (100G/400G), cloud-native protocols, TCAM acceleration, DNA Center integration, flexible breakout—ideal for mid-sized cloud data centers and AI clusters.

• C9364C’s Strengths: Massive performance (499.2Tbps), ultra-low latency (0.45μs), zero-trust security, dynamic breakout, liquid cooling—built for supercomputing centers and high-frequency trading.

8. System Upgrade: Steps, Pitfalls, and Fixes

Upgrading these switches is high-stakes. Let’s use the C9364C (from NX-OS 9.3(8) to 10.4(4)I) as an example.

Standard Upgrade Process:

1. Pre-Checks (Critical!)

• Compatibility: Download Cisco’s Nexus 9000 Software Matrix to confirm hardware (Supervisor, optics) supports the new firmware—third-party modules often cause errors.

• Backup: copy running-config tftp: 192.168.1.100 c9364c.cfg (back up to TFTP; also save startup-config and DNA Center configs).

• Space: dir flash: to ensure ≥15GB free (firmware files are ~10GB).

2. Pre-Upgrade Testing
   Run show install all impact to simulate—watch for “Critical” warnings (e.g., memory issues). Notify teams to avoid peak hours if reboot is needed. Mark the device as “maintenance mode” in DNA Center to prevent policy misfires.

3. Upload Firmware

• TFTP: copy tftp: flash: c9364c.bin (fast for small files, risky on unstable networks).

• USB: Insert FAT32-formatted USB, dir usb1: to confirm, copy usb1:c9364c.bin flash: (stable for large files).

4. Execute Upgrade
   Run install all system flash:nxos.10.4.4.I.bin kickstart flash:nxos-kickstart.10.4.4.I.bin (kickstart first, then system). Allow 60 minutes—device reboots twice, causing downtime.

5. Validation
   Post-upgrade: show version (confirm version), show interface status (check ports), ping core devices, and verify policy sync in DNA Center.

Common Pitfalls & Fixes:

• Pitfall 1: Upgrade Freezes (Stuck at 80%)
  Cause: Slow TFTP server (100M port uploading 10GB takes too long).
  Fix: Use gigabit ports or SCP (scp user@192.168.1.100:/c9364c.bin flash:).

• Pitfall 2: Ports Disappear Post-Upgrade (100G Ports Grayed Out)
  Cause: Incompatible third-party optics (e.g., non-Cisco QSFP28 modules).
  Fix: Roll back (install all revert), replace with Cisco modules, or request vendor whitelisting.

• Pitfall 3: Supercomputing Platform Integration Fails (Policy Desync)
  Cause: Failed to mark device as “maintenance mode” pre-upgrade.
  Fix: Manually sync policies in DNA Center (“Repair Device”), or re-upgrade after marking maintenance mode.

9. Use Cases: Which Is Right for You?

• C9332C Scenarios:

• Mid-sized Cloud Data Centers: Supporting 500-1,000 100G servers with 400G uplinks for future growth.

• AI Training Clusters: RoCEv2-optimized GPU communication for mixed 100G/400G deployments.

• C9364C Scenarios:

• Supercomputing Centers: 1,000+ 100G server access with 16×400G uplinks for massive compute demands.

• High-Frequency Trading: Zero-trust security + RDMA optimization for sub-0.5μs latency.

10. Detailed Pros & Cons: No Perfection, Only Fit

• C9332C:
  Pros: High-performance forwarding, cloud-native protocols, TCAM acceleration, DNA Center integration, flexible breakout, low power (600W).
  Cons: Limited scalability (8×400G uplinks), weak supercomputing protocol support, no liquid cooling, smaller memory/storage.

• C9364C:
  Pros: Massive performance (499.2Tbps), ultra-low latency, zero-trust security, dynamic breakout, liquid cooling, large memory/storage.
  Cons: High cost (¥200k more than C9332C), high power (900W), no 25G native ports, poor legacy compatibility.

Conclusion

C9332C or C9364C? The answer lies in your needs: Choose the C9364C for “future-proof supercomputing,” “cutting-edge tech,” and “zero-downtime ops.” Pick the C9332C for “budget savings,” “stable basics,” and “cloud adaptability.” After all, the best network device isn’t the one with the flashiest specs—it’s the one that lets your business run smoothly, without surprises.
