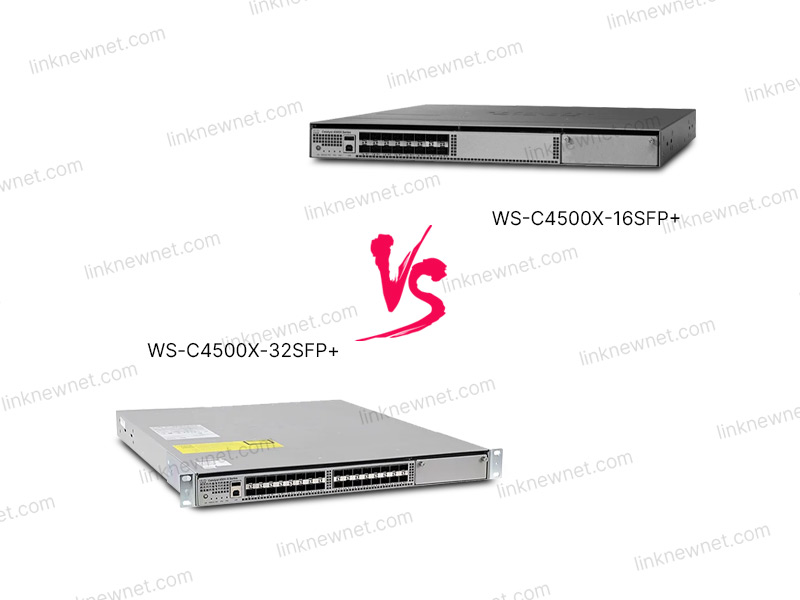

WS-C4500X-32SFP+ vs WS-C4500X-16SFP+: A Guide to Density vs. Cost in Gigabit Aggregation Layers

In enterprise aggregation layer network construction, "choosing high-density ports or cost control" is a common dilemma for IT leaders. Two classic Cisco devices—WS-C4500X-32SFP+ (32-port Gigabit aggregation) and WS-C4500X-16SFP+ (16-port Gigabit aggregation)—exemplify this dynamic. The former focuses on "high-density expansion," while the latter emphasizes "cost optimization"; the former suits "horizontal scaling" for large enterprises, and the latter meets "precise adaptation" for medium-sized networks. This article breaks down their differences and application logic from technical specs to real-world scenarios, helping enterprises find the "cost-effective" solution.

1. Performance Differences: Hard Metrics Divide Due to Port Count

Processing Speed: Switching Capacity and Forwarding Rate

Both devices use Cisco’s Catalyst 4500-X ASIC architecture, but performance parameters vary slightly due to port count (latest firmware):

• WS-C4500X-32SFP+: 480 Gbps switching capacity, 361.44 Mpps forwarding rate, supporting wire-speed forwarding. Ideal for high-traffic aggregation in large data centers or enterprise cores.

• WS-C4500X-16SFP+: 360 Gbps switching capacity, 270.96 Mpps forwarding rate. Suitable for medium-sized enterprise aggregation with standard traffic demands.

Memory & Storage: Backbone for Multi-Service Loads

Memory impacts ACL/QoS/routing support; storage affects log/configuration retention:

• WS-C4500X-32SFP+: 8 GB DDR4 RAM (expandable to 64 GB) + 16 GB flash (expandable to 256 GB). Supports complex routing (OSPFv3, BGP) and advanced ACLs (200+ rules).

• WS-C4500X-16SFP+: 8 GB DDR4 RAM (expandable to 32 GB) + 8 GB flash (expandable to 128 GB). Supports static routing, basic ACLs (50+ rules), and sufficient for most medium networks.

2. Functional Features: "High-Density Expansion" vs. "Cost Adaptation"

Interfaces & Expansion: From "High-Density Coverage" to "Precise Adaptation"

• WS-C4500X-32SFP+:

• 32×10G SFP+ ports (1G/10G configurable), no built-in PoE;

• Virtual Switching System (VSS) (max 2 units, 160 Gbps bandwidth) for high availability;

• 2×40G QSFP28 expansion slots (optional modules) for future 40G/100G migration.

• WS-C4500X-16SFP+:

• 16×10G SFP+ ports (1G/10G configurable), no built-in PoE;

• Basic stacking (max 2 units, 80 Gbps bandwidth);

• No 40G expansion slots, limited scalability.

Security & Management: From "Deep Policies" to "Basic Protection"

• WS-C4500X-32SFP+:

• Advanced ACLs (port/protocol/user-based filtering), DHCP Snooping, IP Source Guard;

• Integrates with Cisco ISE for multi-factor authentication (802.1X+MAC+user).

• WS-C4500X-16SFP+:

• Basic ACLs (MAC/IP filtering), 802.1X authentication;

• Suited for simple security needs (e.g., SME office networks).

3. Design & Appearance: Industrial Design for Scene Adaptation

Both are rack-mounted, but details reflect their roles:

• WS-C4500X-32SFP+:

• Size: 44.5×44.7×8.7 cm, 13.2 kg, redundant fans for cooling;

• Front: 32 hot-swappable SFP+ slots; rear: 2×10G SFP+ uplinks + 2×40G QSFP28 slots;

• Designed for "high reliability" in data centers.

• WS-C4500X-16SFP+:

• Size: 44.5×44.7×7.5 cm, 11.5 kg, side vents for cooling;

• Front: 16 hot-swappable SFP+ slots; rear: 2×10G SFP+ uplinks;

• Designed for "compact deployment" in medium enterprise machine rooms.

4. User Experience: Real Feedback from Deployment to O&M

Deployment Efficiency: Time Difference Between "Many Ports" and "Few Ports"

• WS-C4500X-32SFP+:

• Requires pre-planning: 32-port link setup, VSS configuration, routing protocol tuning. Initial setup takes 2-3 hours.

• Suited for enterprises with dedicated network engineers.

• WS-C4500X-16SFP+:

• Simpler deployment: 16-port link setup, basic stacking. Initial setup takes 1 hour.

• Suited for non-dedicated IT teams (e.g., outsourced运维).

O&M Difficulty: "Deep Policies" vs. "Basic Maintenance"

• WS-C4500X-32SFP+:

• Proactive maintenance: Cisco Prime Infrastructure monitors traffic trends and predicts congestion.

• Suited for business-sensitive networks (e.g., e-commerce, video conferencing).

• WS-C4500X-16SFP+:

• Reactive maintenance: Basic log viewing (port errors). Troubleshooting relies on experience.

• Suited for stable networks (e.g., internal office networks).

5. Cost-Performance Comparison: "Invest by Need" Trumps "Blindly Chasing High-End"

Assuming prices: WS-C4500X-32SFP+ ~¥45,000; WS-C4500X-16SFP+ ~¥28,000.

• Choose WS-C4500X-32SFP+: For large enterprises (≥500 terminals) needing high-density aggregation, 40G upgrades, or advanced security (e.g., financial branches, hospitals). Long-term cost-effective.

• Choose WS-C4500X-16SFP+: For medium enterprises (100-300 terminals) with simple needs (aggregation + basic security) and no 3-year upgrade plans (e.g., retail regional centers). Saves 37% budget.

6. Product Advantages: "Expertise Wins"

• WS-C4500X-32SFP+:
  ✅ 32-port high-density 10G, VSS stacking, 40G expansion for future-proofing;
  ✅ Advanced security and policy support for complex networks.

• WS-C4500X-16SFP+:
  ✅ 16-port 10G for medium aggregation;
  ✅ Affordable, compact, easy to deploy and maintain.

7. System Upgrade: Steps, Issues, and Fixes (Key)

System upgrades are critical for stability. Below is a practical guide:

Pre-Upgrade: 3 Must-Dos

• Backup Config:

• WS-C4500X-32SFP+: Use archive download-sw /backup or Cisco Prime backup;

• WS-C4500X-16SFP+: Use copy running-config tftp:.

• Check Compatibility:

• Verify firmware compatibility with hardware (SFP+ modules, stacking modules) on Cisco Software Download.

• 32SFP+: Ensure VSS members have matching firmware;

• 16SFP+: Confirm basic stacking support in the firmware.

• Choose Method:

• Recommend batch upgrade via DNA Center/Prime or CLI:

  # WS-C4500X-32SFP+
  archive download-sw /overwrite tftp://192.168.1.100/ws-c4500x-universalk9.17.06.02.SPA.bin

  # WS-C4500X-16SFP+
  archive download-sw /overwrite tftp://192.168.1.100/ws-c4500x-universalk9.17.06.02.SPA.bin

Upgrade Process: 3 Common Issues & Solutions

• Issue 1: Power Loss Mid-Upgrade

• Symptom: Device reboots to "rommon 1 >"; firmware corrupted.

• Fix: Use a FAT32 USB drive with renamed firmware, boot via boot system usbflash0:filename.bin.

• Issue 2: Service Disruption Post-Upgrade

• Symptom: ACLs/routing protocols fail, or 10G ports not recognizing transceivers.

• Fix: Test in a lab (Cisco VIRS); roll back via configure replace flash:old_config.txt; check transceiver drivers.

• Issue 3: Unsynchronized Stack Upgrade (32SFP+ Only)

• Symptom: Master upgrades, but slave shows "Member 2: Failed."

• Fix: Disconnect slave uplinks pre-upgrade; manually upgrade master→slave; confirm "Ready" status via show switch.

8. Product Use Cases: Scenarios Define the "Best Fit"

• WS-C4500X-32SFP+: A provincial data center uses 32-port switches to aggregate 20 access-layer switches, supporting OSPF/BGP and VSS for 99.99% availability. Strength: "High scalability + reliability" for large networks.

• WS-C4500X-16SFP+: A retail chain’s regional HQ uses 16-port switches to aggregate 8 store POS/camera traffic, with basic ACLs for isolation. Strength: "Low cost + easy deployment" for standardized medium networks.

9. Detailed Pros & Cons: A Clear Choice List

10. Conclusion: Match Needs, Not Specs

The core difference between WS-C4500X-32SFP+ and WS-C4500X-16SFP+ is "aggregation scalability" vs. "cost control." Enterprises should align with their needs: choose 32-port for "high-density + future upgrades" or 16-port for "cost-efficiency + basic aggregation." The value of network devices lies in supporting business, not chasing specs.
