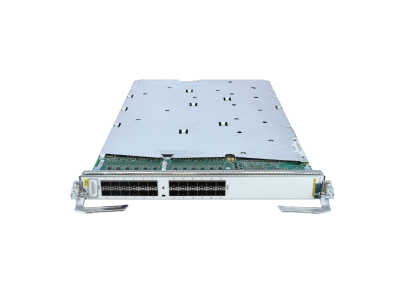

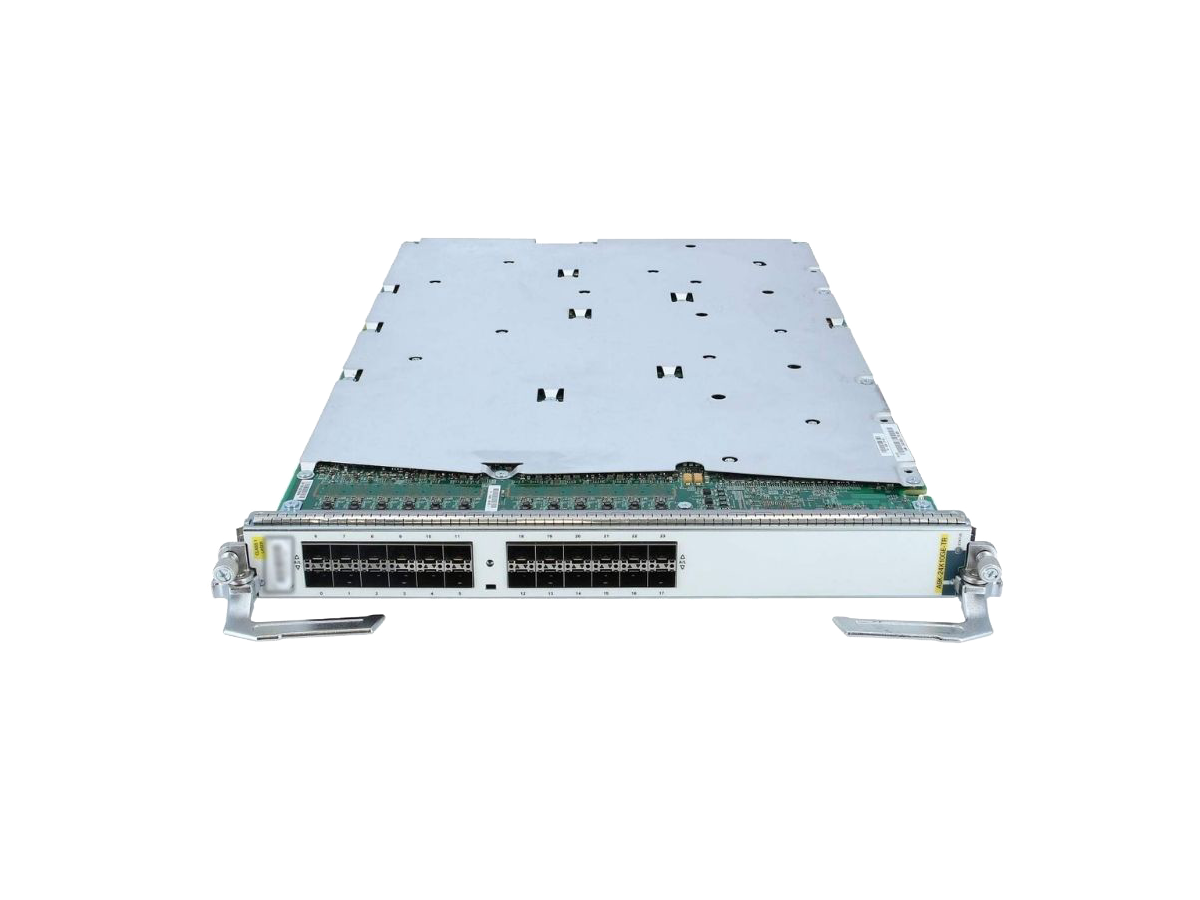

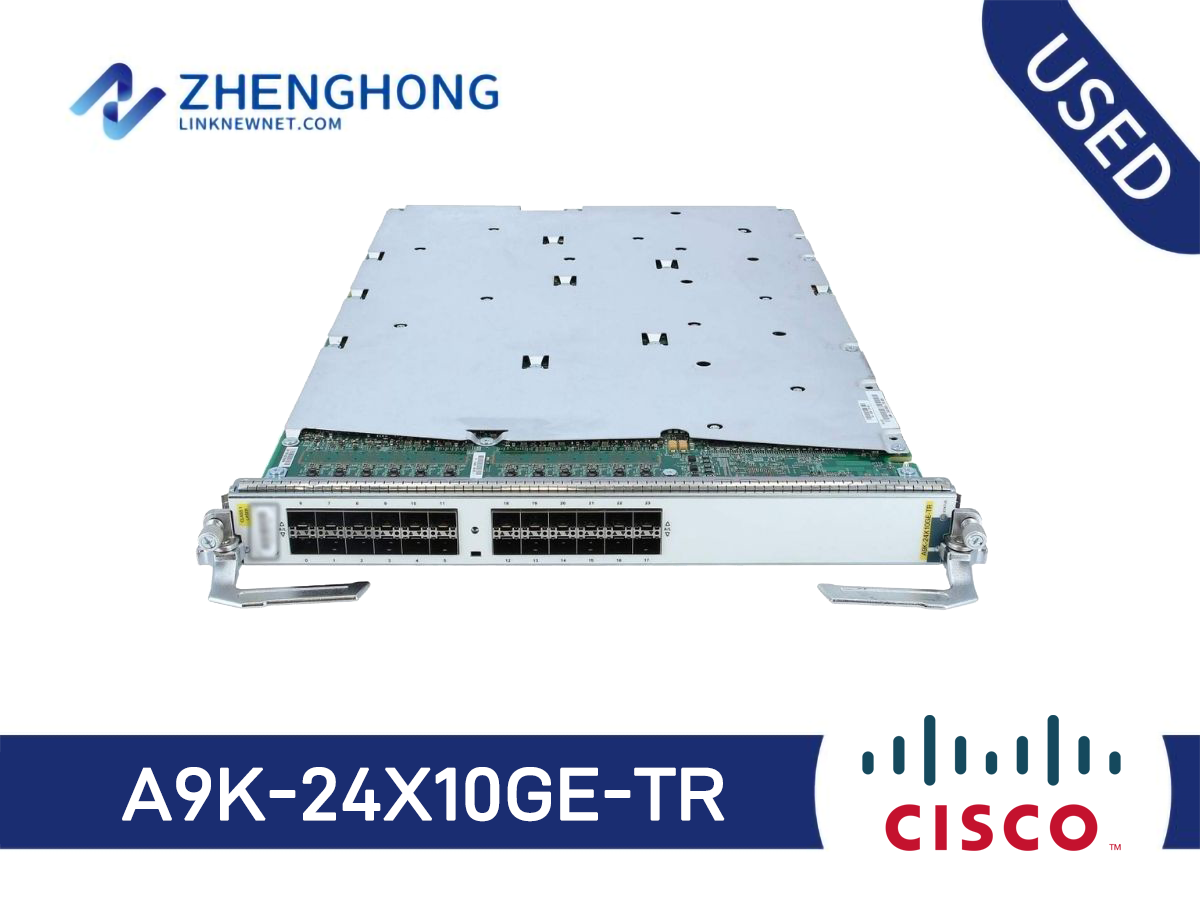

A9K-24X10GE-TR - Cisco ASR 9000 Series Line card

A9K-24X10GE-TR Specification

Part Number

A9K-24X10GE-TR

Product Description

Cisco ASR 9000 24-Port 10GE Packet Transport Optimized Line Card, requires SFP+ optics

Chassis compatibility

Compatible with the Cisco ASR 9000 Series 22-slot, 10-slot, and 6-slot chassis

Port density

24 ports of 10 Gigabit Ethernet per line card

Ethernet

●  10-Gbps IEEE 802.3 compliant

●  10 Gigabit Ethernet PHY monitoring

●  IEEE 802.x flow control

●  Full-duplex operation

●  Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets

Performance

●  10-Gbps line-rate throughput per port

Options

Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card

Reliability and availability

Line card online insertion and removal (OIR) support without system impact

Physical dimensions (H x W x D); weight

14 x 1.72 x 20.5 in.; 14 lb (35.56 x 4.37 x 52.07 cm; 6.35 kg)

Network Equipment Building Standards (NEBS)

Cisco ASR 9000 Series Routers are designed to meet:

●  SR-3580: NEBS Criteria Levels (Level 3)

●  GR-1089-CORE: NEBS EMC and Safety

●  GR-63-CORE: NEBS Physical Protection

Operating temperature (nominal)

41 to 104ºF (5 to 40ºC)

Operating temperature (short-term)

23 to 131ºF (–5 to 55ºC)

Note: Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period).

Operating humidity (nominal) (relative humidity)

10 to 85%

Storage temperature

-40 to 158ºF (-40 to 70ºC)

Storage (relative humidity)

5 to 95%

Note: Not to exceed 0.024 kg of water per kg of dry air

Operating altitude

-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements)

ETSI standards

Cisco ASR 9000 Series Routers are designed to meet:

●  EN300 386: Telecommunications Network Equipment (EMC)

●  ETSI 300 019 Storage Class 1.1

●  ETSI 300 019 Transportation Class 2.3

●  ETSI 300 019 Stationary Use Class 3.1

●  EN55022: Information Technology Equipment (Emissions)

●  EN55024: Information Technology Equipment (Immunity)

●  EN50082-1/EN-61000-6-1: Generic Immunity Standard

EMC standards

Cisco ASR 9000 Series Routers are designed to meet:

●  FCC Class A

●  ICES 003 Class A

●  AS/NZS 3548 Class A

●  CISPR 22 (EN55022) Class A

●  VCCI Class A

●  BSMI Class A

●  IEC/EN 61000-3-2: Power Line Harmonics

●  IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

Immunity

Cisco ASR 9000 Series Routers are designed to meet:

●  IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)

●  IEC/EN-61000-4-3: Radiated Immunity (10V/m)

●  IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)

●  IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)

●  IEC/EN-61000-4-5: Signal Ports (1kV)

●  IEC/EN-61000-4-5: Surge DC Port (1kV)

●  IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)

●  IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)

●  IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations

Safety

Cisco ASR 9000 Series Routers are designed to meet:

●  UL/CSA/IEC/EN 60950-1

●  IEC/EN 60825 Laser Safety

●  ACA TS001

●  AS/NZS 60950

●  FDA – Code of Federal Regulations Laser Safety
