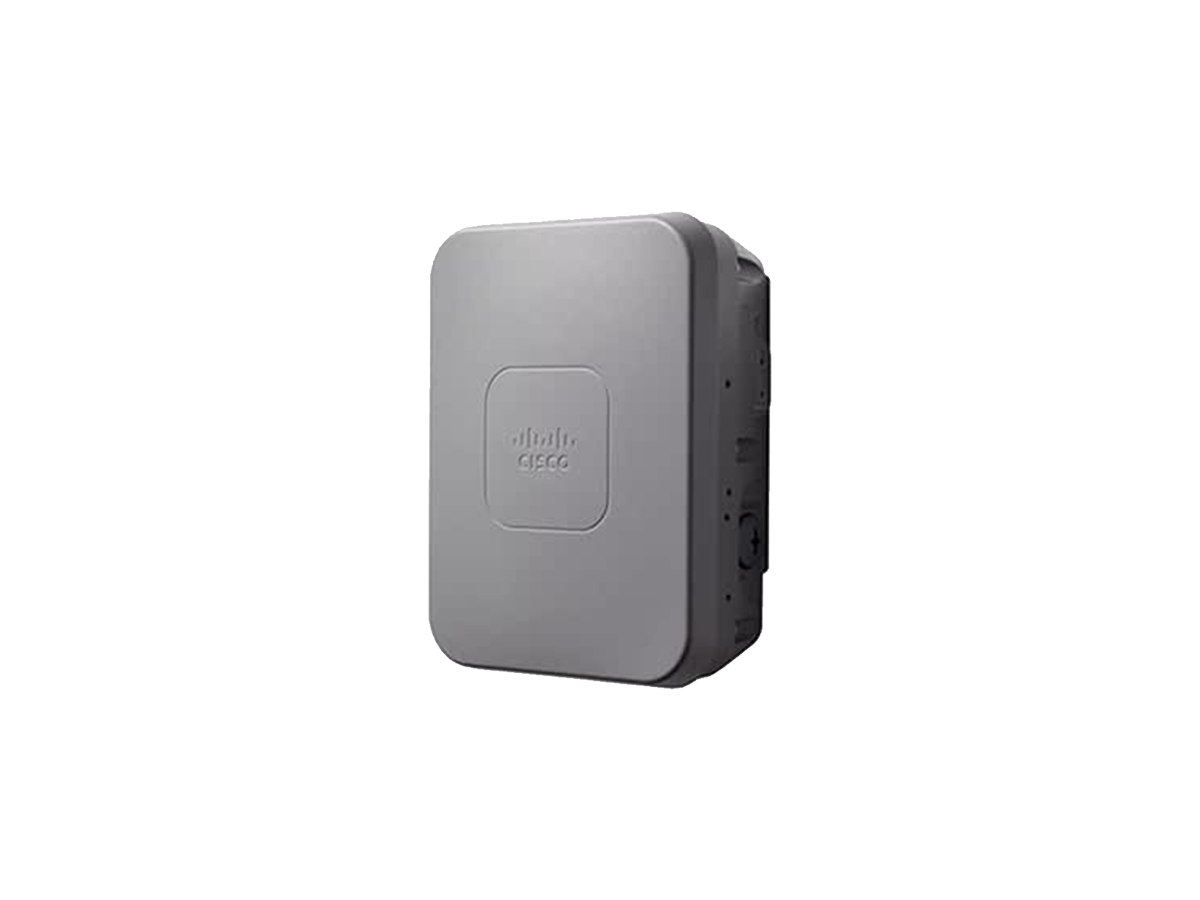

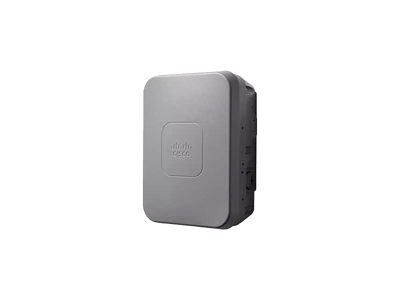

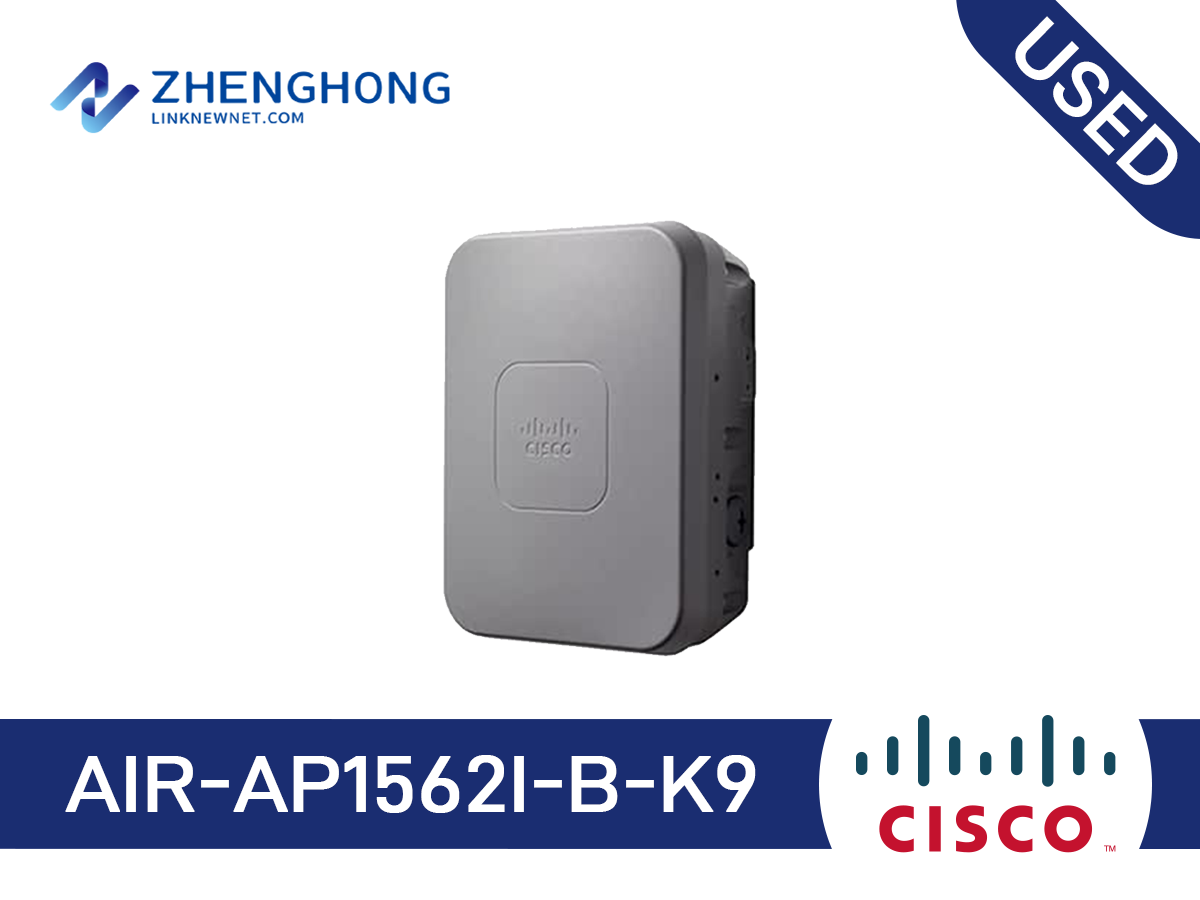

AIR-AP1562I-B-K9 - Cisco Aironet 1562I Outdoor Access Point

802.11ac Wave 1 and 2 capabilities

●  1562I: 3 x 3 MIMO with three spatial streams

●  1562E/D 2 x 2 MIMO with two spatial streams

●  Multi- and single-user MIMO

●  Maximal Ratio Combining (MRC)

●  802.11ac beamforming (transmit beamforming)

●  20-, 40-, and 80-MHz channels

●  PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic-Shift-Diversity (CSD) support

802.11n
(and related) capabilities

●  1562I: 3 x 3 MIMO with three spatial streams

●  1562E/D: 2 x 2 MIMO with two spatial streams

●  MRC

●  20- and 40-MHz channels

●  PHY data rates up to 450 Mbps

●  Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)

●  802.11 DFS

●  CSD support

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 and 5 GHz:

MCS Index

GI4 = 800 ns

GI = 400 ns

20-MHz Rates (Mbps)

40-MHz Rates (Mbps)

20-MHz Rates (Mbps)

40-MHz Rates (Mbps)

0

6.5

13.5

7.2

15

1

13

27

14.4

30

2

19.5

40.5

21.7

45

3

26

54

28.9

60

4

39

81

43.3

90

5

52

108

57.8

120

6

58.5

121.5

65

135

7

65

135

72.2

150

8

13

27

14.4

30

9

26

54

28.9

60

10

39

81

43.3

90

11

52

108

57.8

120

12

78

162

86.7

180

13

104

216

115.6

240

14

117

243

130

270

15

130

270

144.4

300

16

19.5

40.5

21.7

45

17

39

81

43.3

90

18

58.5

121.5

65

135

19

78

162

86.7

180

20

117

243

130

270

21

156

324

173.3

360

22

175.5

364.5

195

405

802.11ac Data Rates (5 GHz)

Spatial Streams

MCS

GI = 800 ns

GI = 400 ns

20 MHz

40 MHz

80 MHz

20 MHz

40 MHz

80 MHz

1

0

6.5

13.5

29.3

7.2

15

32.5

1

1

13

27

58.5

14.4

30

65

1

2

19.5

40.5

87.8

21.7

45

97.5

1

3

26

54

117

28.9

60

130

1

4

39

81

175.5

43.3

90

195

1

5

52

108

234

57.8

120

260

1

6

58.5

121.5

263.3

65

135

292.5

1

7

65

135

292.5

72.2

150

325

1

8

78

162

351

86.7

180

390

1

9

–

180

390

–

200

433.3

2

0

13

27

58.5

14.4

30

65

2

1

26

54

117

28.9

60

130

2

2

39

81

175.5

43.3

90

195

2

3

52

108

234

57.8

120

260

2

4

78

162

351

86.7

180

390

2

5

104

216

468

115.6

240

520

2

6

117

243

526.5

130

270

585

2

7

130

270

585

144.4

300

650

2

8

156

324

702

173.3

360

780

2

9

–

360

780

–

400

866.7

3

0

19.5

40.5

87.8

21.7

45

97.5

3

1

39

81

175.5

43.3

90

195

3

2

58.5

121.5

263.3

65

135

292.5

3

3

78

162

351

86.7

180

390

3

4

117

243

526.5

130

270

585

3

5

156

324

702

173.3

360

780

3

6

175.5

364.5

–

195

405

–

3

7

195

405

877.5

216.7

450

975

3

8

234

486

1053

260

540

1170

3

9

260

540

1170

288.9

600

1300

Frequency band and 20-MHz operating channels (regulatory domains)

B:

2.412 to 2.462 GHz, 11 channels

5.180 to 5.240 GHz, 4 channels

5.260 to 5.320 GHz, 4 channels

5.500 to 5.720 GHz, 12 channels

5.745 to 5.825 GHz, 5 channels

Maximum number of nonoverlapping channels

2.4 GHz

●  802.11b/g:

●   20 MHz: 3

●  802.11n:

●   20 MHz: 3

●   40 MHz: 1 (hardware capable)

5 GHz

●  802.11a:

●   20 MHz: 27

●  802.11n:

●   20 MHz: 27

●   40 MHz: 13

●  802.11ac:

●   20 MHz: 27

●   40 MHz: 13

●   80 MHz: 6

Note: This number varies by regulatory domain. Refer to the product documentation f or specific details for each regulatory domain.

Maximum conducted transmit power

1562I

●  2.4 GHz: 29 dBm with 3 antennas

●  5 GHz: 29 dBm with 3 antennas

1562D

●  2.4 GHz: 27 dBm with 2 antennas

●  5 GHz: 27 dBm with 2 antennas

1562E

●  2.4 GHz: 27 dBm with 2 antennas

●  5 GHz: 27 dBm with 2 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Interfaces

●  WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in

●  SFP port (fiber or electrical)

●  Management console port (RJ-45)

●  Multicolor LED

●  DC power input

●  Reset button

Uplink options

Ethernet, SFP, and wireless mesh

Dimensions
(L x W x D)

1562I: 9.0 x 6.8 x 3.9 in.                   (22.9 x 17.1 x 9.8 cm)

1562D: 9.0 x 6.8 x 4.3 in.                 (22.9 x 17.1 x 10.9 cm)

1562E:: 9.0 x 6.8 x 3.9 in.                 (22.9 x 17.1 x 9.8 cm)

Weight

1562I: 5.6 lb (2.5 kg)

1562D: 5.7 lb (2.6 kg)

1562E: 5.6 lb (2.5 kg)

Environmental

Operating temperature:

●  –40 to 65°C (–40 to 149°F) ambient air with no solar loading

●  –40 to 55°C (–40 to 131°F) ambient air with solar loading

Storage temperature: –40 to 85°C (–40 to 185°F)

Humidity: 5 - 95%, non-condensing

Wind resistance:

●  Up to 100-mph sustained winds

●  Up to 165-mph wind gusts

Environmental ratings

●  IEC 60529 IP67

●  NEMA Type 4X

●  Icing protection            NEMA 250-2008

●  Corrosion                    NEMA 250-2008 (600 hours)

●  Solar radiation             EN 60068-2-5 (1200 W/ m2)

●  Vibration MIL-STD-810

Antennas

●  Integrated dual-band semi-omnidirectional antenna radome, (1562I) 7 dBi (2.4 GHz), 4 dBi (5 GHz)

●  Integrated dual-band directional antenna radome, (1562D) 9 dBi (2.4 GHz), 10 dBi (5 GHz)

●  Dual Band

●   AIR-ANT2568VG-N             6 dBi (2.4 GHz),        8 dBi (5 GHz)                                           Omni

●   AIR-ANT2547VG-N             4 dBi (2.4 GHz),        7 dBi (5 GHz)                                           Omni

●   AIR-ANT2547V-N                4 dBi (2.4 GHz),        7 dBi (5 GHz)                                           Omni

●   AIR-ANT2588P3M-N=         8 dBi (2.4 GHz),        8 dBi (5 GHz)                                           Directional

●   AIR-ANT2513P4M-N=         13 dBi (2.4 GHz),      13 dBi (5 GHz)                                           Directional

●  Single Band

2.4 GHz

●   AIR-ANT2450V-N=              5 dBi (2.4 GHz),        Omni

●   AIR-ANT2450VG-N=           5 dBi (2.4 GHz),        Omni, vertical polarized

●   AIR-ANT2450HG-N=           5 dBi (2.4 GHz),        Omni, horizontal polarized

●   AIR-ANT2480V-N=              8 dBi (2.4 GHz),        Omni

●   AIR-ANT2413P2M-N=         13 dBi (2.4 GHz),      Directional, dual polarized

5 GHz

●   AIR-ANT5150VG-N=            5 dBi (5GHz),            Omni, vertical polarized

●   AIR-ANT5150HG-N=           5 dBi (5GHz),            Omni, horizontal polarized

●   AIR-ANT5180V-N=              8 dBi (5GHz),            Omni

●   AIR-ANT5114P2M-N=         14 dBi (5GHz),          Directional, dual polarized

Powering options

●  AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter)

●  44–57 VDC input

●  Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at

●  Cisco power injectors:

AIR-PWRINJ-60RGD1= (outdoor rated, 60W, with NEMA 5-15 AC plug)

AIR-PWRINJ-60RGD2= (outdoor rated, 60W, unterminated AC cable)

AIR-PWRINJ6= (indoor, 802.3at)

Note: If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.

Power consumption

1562I            32 W (3x3:3, full power)

1562D/E        25 W

Compliance

Safety

●  UL60950, 2nd Edition

●  CAN/CSA-C22.2 No. 60950, 2nd Edition

●  IEC 60950, 2nd Edition

●  EN 60950, 2nd Edition

Immunity

●  <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform

●  ANSI/IEEE C62.41

●  EN61000-4-5 Level 4 AC Surge Immunity

●  EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity

●  EN61000-4-3 Level 4 EMC Field Immunity

●  EN61000-4-2 Level 2 ESD Immunity

●  EN60950 Overvoltage Category IV

Radio Approvals

●  FCC Part 15.247, 15.407

●  FCC Bulletin OET-65C

●  RSS-247

●  RSS-102

●  AS/NZS 4268.2003

●  ARIB-STD 66 (Japan)

●  ARIB-STD T71 (Japan)

●  EN 300 328

●  EN 301 893

EMI and Susceptibility

●  FCC part 15.107, 15.109

●  ICES-003

●  EN 301 489-1, -17

Security

●  Wireless bridging/mesh (future availability)

●  X.509 digital certificates

●  MAC address authentication

●  Advanced Encryption Standard (AES)

Wireless Access

●  802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA

●  802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module - (EAP-SIM), and Cisco LEAP

●  VPN pass-through

●  IP Security (IPsec)

●  Layer 2 Tunneling Protocol (L2TP)

●  MAC address filtering
