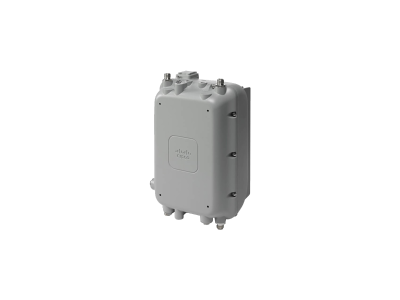

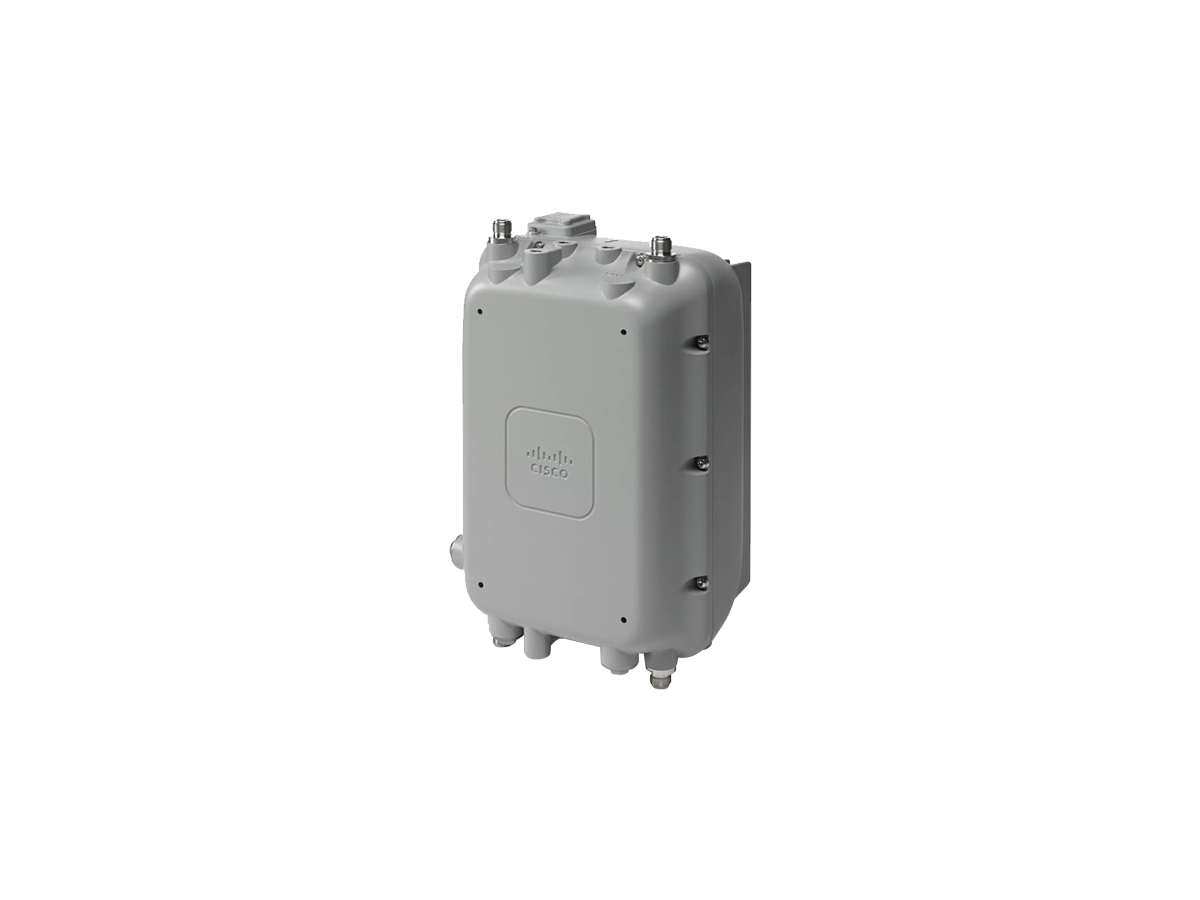

AIR-AP1572EAC-H-K9 Specification | ||||||||||||||
802.11n Version 2.0 capabilities | ● 4x4 MIMO with three spatial streams (3SS) ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g Beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support | |||||||||||||
802.11ac Wave 1 capabilities | ● 4x4 MIMO with three spatial streams (3SS) ● Maximum Ratio Combining (MRC) ● 802.11ac Beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support | |||||||||||||
DOCSIS 3.0 Capabilities | DOCSIS3.0 with up to 8x4, 16x8, and 24x8 Downstream (DS) x Upstream (US) channel bonding capability for Hybrid Fiber-Coaxial (HFC) Cable Modem (CM) options. The CM protocols include NA-DOCSIS3.0, Euro-DOCSIS3.0 and Japan-DOCSIS3.0. The NA-DOCSIS3.0 is offered with either (42/88 MHz or 85/108 MHz) diplexer split. The Euro and Japan DOCSIS are offered with (65/108 MHz) diplexer split. NA-DOCSIS3.0, Euro-DOCSIS3.0 24x8 cable modem provides up to: ● Twenty f our (24) bonded channels on the downstream with total throughput of up to 912 and 1200 Mbps respectively (maximum usable throughput without overhead) ● Eight (8) bonded channels on the upstream with total throughput of up to 216 Mbps (maximum usable throughput without overhead) ● Designed to meet DOCSIS 3.0 specifications as well as backward compatibility with existing DOCSIS2.0 networks ● Enhanced packet processing technology to maximize performance Channel-bonded cable modems must be used in conjunction with a Cable Modem Termination System (CMTS) that supports channel bonding per the DOCSIS3.0 specifications. When used with a non-channel-bonded CMTS, channel-bonded cable modems function as conventional DOCSIS 2.0 cable modems. | |||||||||||||
Data Rates Supported | 2.4 GHz - 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps | |||||||||||||
2.4 GHz - 802.11n: | ||||||||||||||
Spatial Streams | MCS Index | GI = 800 ns | GI = 400 ns | |||||||||||
|
| 20 MHz Rate (Mbps) | 20 MHz Rate (Mbps) | |||||||||||
1 | 0 | 6.5 |
|
| 7.2 |
|
| |||||||
1 | 1 | 13 |
|
| 14.4 |
|
| |||||||
1 | 2 | 19.5 |
|
| 21.7 |
|
| |||||||
1 | 3 | 26 |
|
| 28.9 |
|
| |||||||
1 | 4 | 39 |
|
| 43.3 |
|
| |||||||
1 | 5 | 52 |
|
| 57.8 |
|
| |||||||
1 | 6 | 58.5 |
|
| 65 |
|
| |||||||
1 | 7 | 65 |
|
| 72.2 |
|
| |||||||
2 | 8 | 13 |
|
| 14.4 |
|
| |||||||
2 | 9 | 26 |
|
| 28.9 |
|
| |||||||
2 | 10 | 39 |
|
| 43.3 |
|
| |||||||
2 | 11 | 52 |
|
| 57.8 |
|
| |||||||
2 | 12 | 78 |
|
| 86.7 |
|
| |||||||
2 | 13 | 104 |
|
| 115.6 |
|
| |||||||
2 | 14 | 117 |
|
| 130 |
|
| |||||||
2 | 15 | 130 |
|
| 144.4 |
|
| |||||||
3 | 16 | 19.5 |
|
| 21.7 |
|
| |||||||
3 | 17 | 39 |
|
| 43.3 |
|
| |||||||
3 | 18 | 58.5 |
|
| 65 |
|
| |||||||
3 | 19 | 78 |
|
| 86.7 |
|
| |||||||
3 | 20 | 117 |
|
| 130 |
|
| |||||||
3 | 21 | 156 |
|
| 173.3 |
|
| |||||||
3 | 22 | 175.5 |
|
| 195 |
|
| |||||||
3 | 23 | 195 |
|
| 216.7 |
|
| |||||||
| 5 GHz - 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps | |||||||||||||
5 GHz - 802.11n: | ||||||||||||||
Spatial Streams | MCS Index | GI = 800 ns | GI = 400 ns | |||||||||||
| 20 MHz Rate (Mbps) | 40 MHz Rate (Mbps) |
| 20 MHz Rate (Mbps) | 40 MHz Rate (Mbps) |
| ||||||||
1 | 0 | 6.5 | 13.5 |
| 7.2 | 15 |
| |||||||
1 | 1 | 13 | 27 |
| 14.4 | 30 |
| |||||||
1 | 2 | 19.5 | 40.5 |
| 21.7 | 45 |
| |||||||
1 | 3 | 26 | 54 |
| 28.9 | 60 |
| |||||||
1 | 4 | 39 | 81 |
| 43.3 | 90 |
| |||||||
1 | 5 | 52 | 108 |
| 57.8 | 120 |
| |||||||
1 | 6 | 58.5 | 121.5 |
| 65 | 135 |
| |||||||
1 | 7 | 65 | 135 |
| 72.2 | 150 |
| |||||||
2 | 8 | 13 | 27 |
| 14.4 | 30 |
| |||||||
2 | 9 | 26 | 54 |
| 28.9 | 60 |
| |||||||
2 | 10 | 39 | 81 |
| 43.3 | 90 |
| |||||||
2 | 11 | 52 | 108 |
| 57.8 | 120 |
| |||||||
2 | 12 | 78 | 162 |
| 86.7 | 180 |
| |||||||
2 | 13 | 104 | 216 |
| 115.6 | 240 |
| |||||||
2 | 14 | 117 | 243 |
| 130 | 270 |
| |||||||
2 | 15 | 130 | 270 |
| 144.4 | 300 |
| |||||||
3 | 16 | 19.5 | 40.5 |
| 21.7 | 45 |
| |||||||
3 | 17 | 39 | 81 |
| 43.3 | 90 |
| |||||||
3 | 18 | 58.5 | 121.5 |
| 65 | 135 |
| |||||||
3 | 19 | 78 | 162 |
| 86.7 | 180 |
| |||||||
3 | 20 | 117 | 243 |
| 130 | 270 |
| |||||||
3 | 21 | 156 | 324 |
| 173.3 | 360 |
| |||||||
3 | 22 | 175.5 | 364.5 |
| 195 | 405 |
| |||||||
3 | 23 | 195 | 405 |
| 216.7 | 450 |
| |||||||
5 GHz - 802.11ac: | ||||||||||||||
Spatial Streams | MCS Index | GI = 800 ns | GI = 400 ns | |||||||||||
| 20 MHz Rate (Mbps) | 40 MHz Rate (Mbps) | 80 MHz Rate (Mbps) | 20 MHz Rate (Mbps) | 40 MHz Rate (Mbps) | 80 MHz Rate (Mbps) | ||||||||
1 | 0 | 6.5 | 13.5 | 29.3 | 7.2 | 15 | 32.5 | |||||||
1 | 1 | 13 | 27 | 58.5 | 14.4 | 30 | 65 | |||||||
1 | 2 | 19.5 | 40.5 | 87.8 | 21.7 | 45 | 97.5 | |||||||
1 | 3 | 26 | 54 | 117 | 28.9 | 60 | 130 | |||||||
1 | 4 | 39 | 81 | 175.5 | 43.3 | 90 | 195 | |||||||
1 | 5 | 52 | 108 | 234 | 57.8 | 120 | 260 | |||||||
1 | 6 | 58.5 | 121.5 | 263.3 | 65 | 135 | 292.5 | |||||||
1 | 7 | 65 | 135 | 292.5 | 72.2 | 150 | 325 | |||||||
1 | 8 | 78 | 162 | 351 | 86.7 | 180 | 390 | |||||||
1 | 9 | - | 180 | 390 | - | 200 | 433.3 | |||||||
| 2 | 0 | 13 | 27 | 58.5 | 14.4 | 30 | 65 | ||||||
2 | 1 | 26 | 54 | 117 | 28.9 | 60 | 130 | |||||||
2 | 2 | 39 | 81 | 175.5 | 43.3 | 90 | 195 | |||||||
2 | 3 | 52 | 108 | 234 | 57.8 | 120 | 260 | |||||||
2 | 4 | 78 | 162 | 351 | 86.7 | 180 | 390 | |||||||
2 | 5 | 104 | 216 | 468 | 115.6 | 240 | 520 | |||||||
2 | 6 | 117 | 243 | 526.5 | 130 | 270 | 585 | |||||||
2 | 7 | 130 | 270 | 585 | 144.4 | 300 | 650 | |||||||
2 | 8 | 156 | 324 | 702 | 173.3 | 360 | 780 | |||||||
2 | 9 | - | 360 | 780 | - | 400 | 866.7 | |||||||
3 | 0 | 19.5 | 40.5 | 87.8 | 21.7 | 45 | 97.5 | |||||||
3 | 1 | 39 | 81 | 175.5 | 43.3 | 90 | 195 | |||||||
3 | 2 | 58.5 | 121.5 | 263.3 | 65 | 135 | 292.5 | |||||||
3 | 3 | 78 | 162 | 351 | 86.7 | 180 | 390 | |||||||
3 | 4 | 117 | 243 | 526.5 | 130 | 270 | 585 | |||||||
3 | 5 | 156 | 324 | 702 | 173.3 | 360 | 780 | |||||||
3 | 6 | 175.5 | 364.5 | - | 195 | 405 | - | |||||||
3 | 7 | 195 | 405 | 877.5 | 216.7 | 450 | 975 | |||||||
3 | 8 | 234 | 486 | 1053 | 260 | 540 | 1170 | |||||||
3 | 9 | 260 | 540 | 1170 | 288.9 | 600 | 1300</ |
