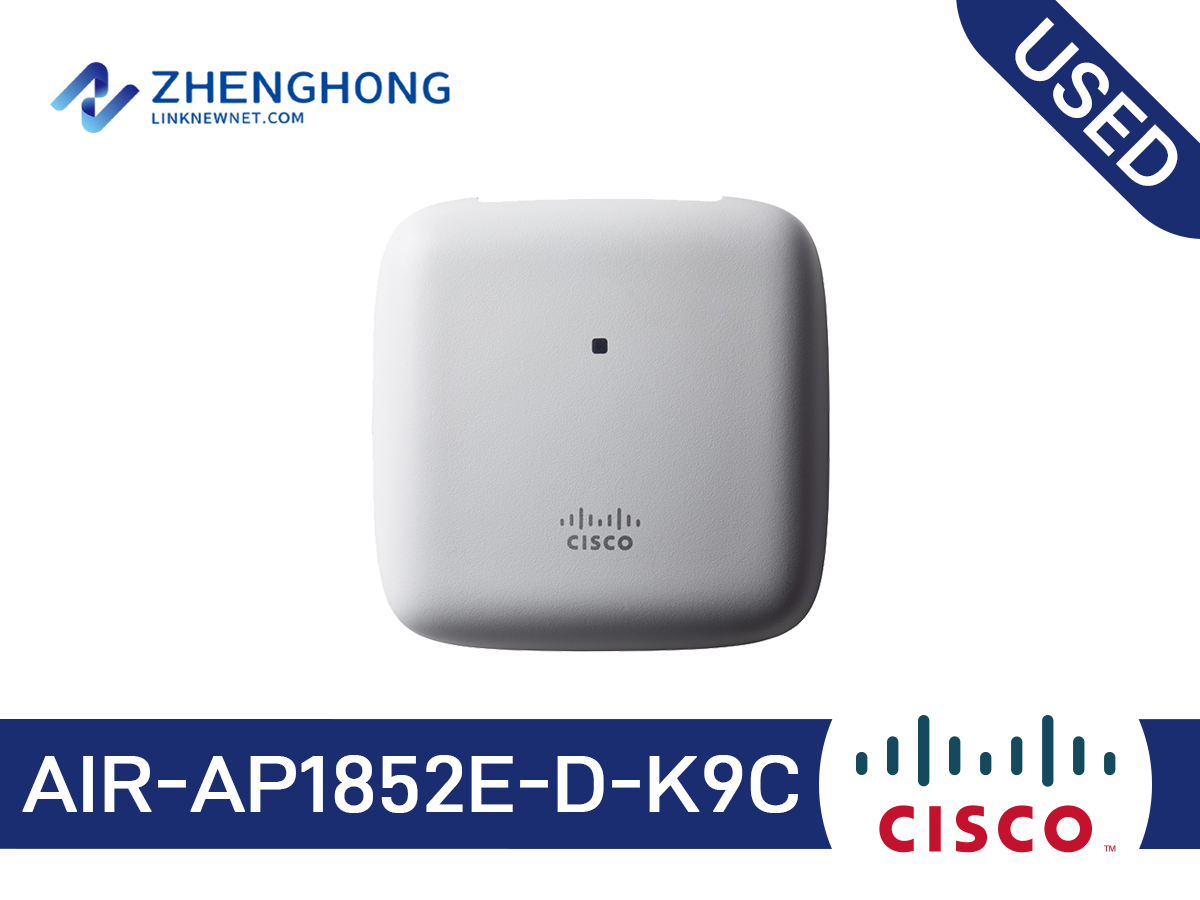

Cisco Aironet 1852E Access Point - AIR-AP1852E-D-K9C

Model: AIR-AP1852E-D-K9C

Detail: 802.11ac Wave 2 Access Point, 4x4:4, External-Ant, D Regulatory Domain, Configurable

Condition: USED

List Price: $1697 Price: $1018

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-AP1852E-D-K9C Specification
Description	802.11ac Wave 2 Access Point, 4x4:4, External-Ant, D Regulatory Domain ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Software	Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1 MR1 or later for the Cisco Aironet 1850 Series Access Points
Regulatory Domain	D (D regulatory domain): - 2.412 to 2.462 GHz; 3 channels - 5.180 to 5.320 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels
Deployment modes	Centralized local, Standalone, Sniffer, Cisco FlexConnect, Monitor, OfficeExtend, Mesh
Supported wireless LAN controllers	Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 5760 Series Wireless Controllers, Cisco Catalyst 3650/3850 Series switch with integrated controller Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	4x4 MIMO with four spatial streams Maximal ratio combining (MRC) 20- and 40-MHz channels PHY data rates up to 600 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 and 2 capabilities	4x4 MIMO with four spatial streams, single-user MIMO 4x4 MIMO with three spatial streams, multiuser MIMO MRC 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support Rogue device detection
External antenna (sold separately)	Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Interfaces	1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) Management console port (RJ-45) USB 2.0 (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight	3.12 lb (1.41 kg)
Environmental	Cisco Aironet 1850e Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1 GB DRAM 256 MB Flash
Input power requirements	AP1850: 44 to 57 VDC Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz
Power draw	20.9W Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.
Powering options	802.3at Enhanced PoE Cisco power injector, AIR-PWRINJ4= Cisco local power supply, AIR-PWR-C= Cisco power injector, AIR-PWRINJ5= (Note: this injector supports 802.3af only) 802.3af Note: If 802.3af PoE is the source of power, (1) the 1852e 2.4-GHz radio will shift to 2x3 from 3x4, (2) The USB port and AUX Ethernet port are disabled on both the 1852i and 1852e.
Warranty	Limited lifetime hardware warranty

Q&A

What accessories are available for the AIR-AP1852E-D-K9C?

Available accessories for the AIR-AP1852E-D-K9C include external antennas, PoE injectors, mounting brackets, and power adapters.

How does the AIR-AP1852E-D-K9C compare to other 802.11ac Wave 2 access points?

The AIR-AP1852E-D-K9C offers competitive performance with its 4x4:4 MU-MIMO capabilities, external antennas, and support for up to 2.6 Gbps, comparable to other high-end access points in the market.

What common troubleshooting steps should I follow for the AIR-AP1852E-D-K9C?

Common troubleshooting steps include checking the power and Ethernet connections, updating the firmware, and performing a factory reset if necessary.

How can I optimize the performance of the AIR-AP1852E-D-K9C?

To optimize performance, ensure proper placement of the AIR-AP1852E-D-K9C, regularly update the firmware, configure appropriate channels, and reduce interference from other wireless devices.

What is the difference between Cisco APs and Aruba APs?

These two brands of APs focus on different areas.

There are so many APs in the market, how can I select?

Consider your budget, and what you need AP to do.

What is the difference between Huawei wireless and Cisco wireless?

These two brands of wireless products focus on different areas.

How cost-effective is the AIR-AP1852E-D-K9C for small businesses?

The AIR-AP1852E-D-K9C offers advanced 802.11ac Wave 2 technology at a reasonable price, making it ideal for small to medium-sized enterprises seeking robust and scalable wireless solutions.

What are the key features of the AIR-AP1852E-D-K9C?

The AIR-AP1852E-D-K9C features 4x4:4 MU-MIMO, external antennas, and support for up to 2.6 Gbps, ensuring high-performance Wi-Fi coverage and connectivity.

What application scenarios are best suited for the AIR-AP1852E-D-K9C?

The AIR-AP1852E-D-K9C is ideal for high-density environments such as offices, educational institutions, and retail stores that require consistent and high-speed wireless connectivity.

How can I install the AIR-AP1852E-D-K9C?

The AIR-AP1852E-D-K9C can be mounted on ceilings or walls and requires connection to a PoE+ switch or injector for both power and data transmission.

Does the AIR-AP1852E-D-K9C require regular firmware upgrades?

Yes, to ensure optimal performance and security, it is recommended to regularly check for firmware updates for the AIR-AP1852E-D-K9C on the Cisco website.

Are there alternative products to the AIR-AP1852E-D-K9C?

Alternatives to the AIR-AP1852E-D-K9C include the Cisco AIR-AP1832I-B-K9 and the Cisco AIR-AP2802E-B-K9, each offering different performance and feature sets.
