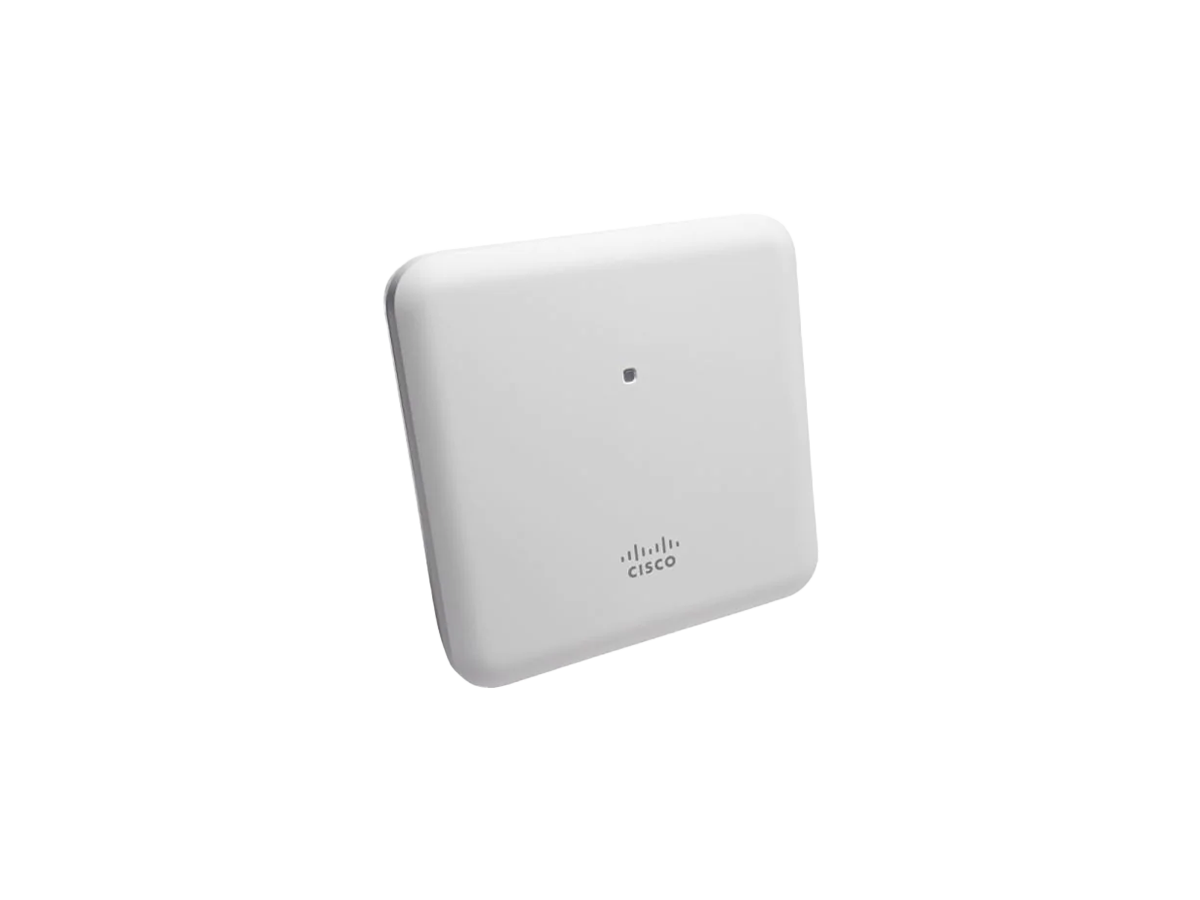

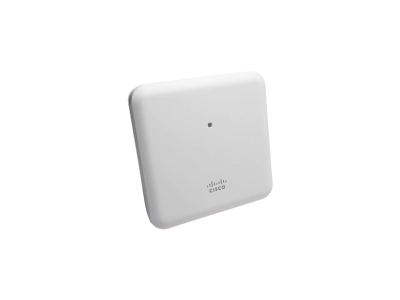

AIR-AP2802I-BK910C - Cisco 2800 Access Point

Model: AIR-AP2802I-BK910C

Detail: 802.11ac Wave 2 10 AP w/CleanAir, 4x4:3, Internal Antenna, 2xGbE, B Regulatory Domain, Configurable

Condition: USED

List Price: $12688 Price: $7613

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-AP2802I-BK910C Specification
Software	Cisco Unified Wireless Network Software Release 8.2.111.0 or later Cisco IOS^®XE Software Release 16.3
Supported wireless LAN controllers	Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst^®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex^® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches Cisco Mobility Express
802.11n version 2.0 (and related) capabilities	4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities	4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
802.11ac Wave 2 capabilities	4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Integrated antenna	Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
External antenna (sold separately)	2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios
Smart antenna connector	Available on the 2802e Series access points only Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio
Interfaces	2802I/E ◦ 2x100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45) USB 2.0 (enabled via future software)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50”
Weight	Cisco Aironet 2802i 3.53 lb (1.6 kg) Cisco Aironet 2802e 4.6 lb (2.09 kg)
Input power requirements	802.3at PoE+, Cisco Universal PoE (Cisco UPOE^®) 802.3at power injector (AIR-PWRINJ6=)
Power draw	26W at the PSE with all features enabled except for the USB 2.0 port 30W at the PSE with the USB 2.0 port enabled
Environmental	Cisco Aironet 2802i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft. Cisco Aironet 2802e Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1024 MB DRAM 256 MB flash
Warranty	Limited lifetime hardware warranty

Q&A

What should I do if there are connectivity issues with AIR-AP2802I-BK910C?

Perform a power cycle, check for firmware updates, verify cable connections, and consult the user manual for troubleshooting steps.

What accessories are available for AIR-AP2802I-BK910C?

Accessories include mounting kits, PoE injectors, and external antennas for extended coverage.

How does AIR-AP2802I-BK910C compare with similar products?

The AIR-AP2802I-BK910C provides a cost-effective solution with advanced features like CleanAir and dual GbE ports, making it competitive against similar models.

Is AIR-AP2802I-BK910C easy to use?

Yes, the AIR-AP2802I-BK910C is user-friendly with a straightforward installation process and intuitive configuration interface.

What is the difference between Cisco APs and Aruba APs?

These two brands of APs focus on different areas.

There are so many APs in the market, how can I select?

Consider your budget, and what you need AP to do.

What is the difference between Huawei wireless and Cisco wireless?

These two brands of wireless products focus on different areas.

How cost-effective is the AIR-AP2802I-BK910C?

The AIR-AP2802I-BK910C offers advanced features like 802.11ac Wave 2, CleanAir technology, and dual GbE ports, providing excellent value for its price.

What are the main features of AIR-AP2802I-BK910C?

Its main features include 802.11ac Wave 2 technology, CleanAir, 4x4:3 MIMO, internal antenna, and dual GbE ports.

What are the common application scenarios for AIR-AP2802I-BK910C?

It is ideal for high-density environments like schools, offices, and hospitals requiring robust and reliable wireless connectivity.

How do I install the AIR-AP2802I-BK910C?

Installation involves securing the device to a ceiling or wall mount, connecting the Ethernet cables to a PoE switch, and following the setup guide.

Does AIR-AP2802I-BK910C require regular upgrades?

Yes, it's recommended to regularly check for firmware updates from Cisco to ensure optimal performance and security.

Are there alternative products to the AIR-AP2802I-BK910C?

Alternatives include the Cisco 3800 Series Access Points, which also support 802.11ac Wave 2 and offer more advanced features.
