AIR-AP3802E-E-K9C|LinkNewNet

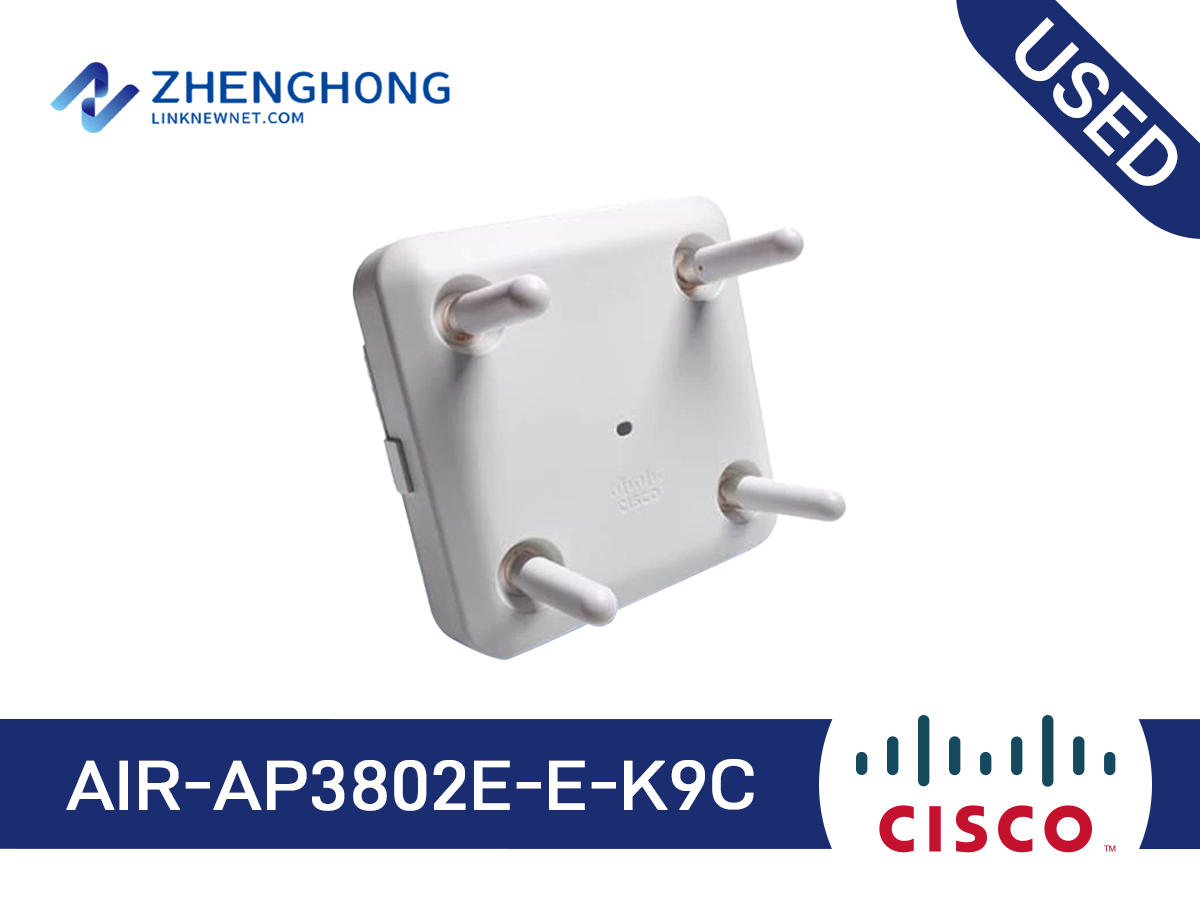

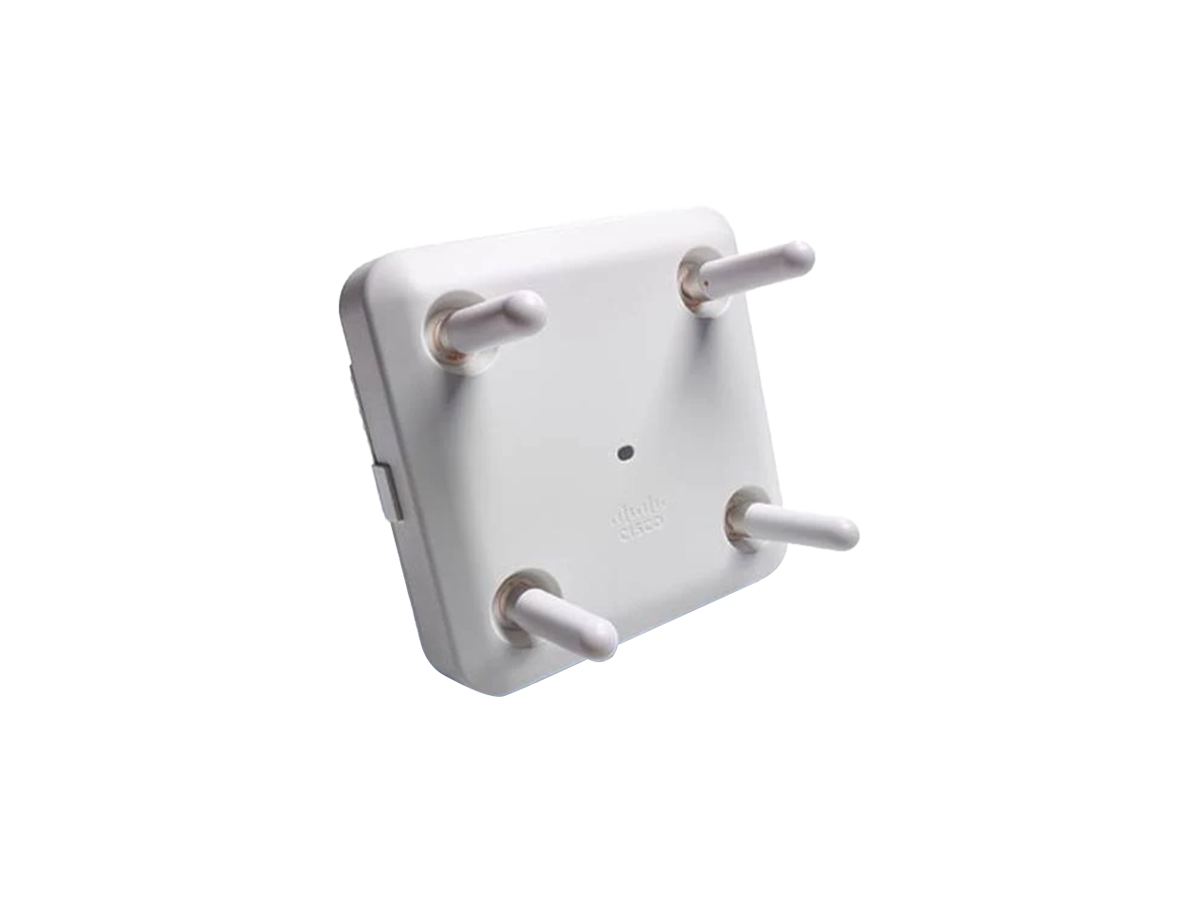

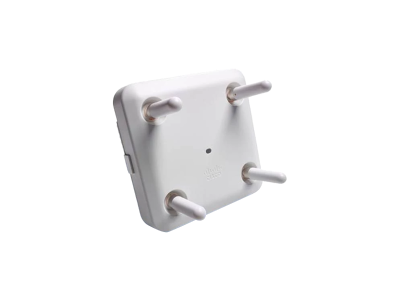

AIR-AP3802E-E-K9C - Cisco Aironet 3802E Access Point

Model: AIR-AP3802E-E-K9C

Detail: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain, Configurable

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-AP3802E-E-K9C Specification
Software and supported wireless LAN controllers	Cisco Unified Wireless Network Software Release 8.2.MR1 or later Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst^®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex^® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco IOS^®XE Software Release 16.3 – Target Q3 CY2016 Cisco Catalyst 3850 Series and 3650 Series Switches
802.11n version 2.0 (and related) capabilities	4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz). Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities	4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
802.11ac Wave 2 capabilities	4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Integrated antenna	Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
External antenna (sold separately)	3802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) 3802p Series access points are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N=antenna Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Smart Antenna Connector	Available on the 3802e Series and 3802p Series access points only Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point Required when running the flexible radio as either a: ◦ Second 5-GHz serving radio ◦ Wireless Security Monitoring radio
Interfaces	◦ 2 Ethernet ports ◦ 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ◦ 100/1000BASE-T autosensing (RJ-45 - AUX port) ◦ Management console port (RJ-45)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting brackets): 3802I: 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm), 3802E: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm), 3802P: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)
Weight	4.6 lb (2.09 kg)
Input power requirements	802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE^®) 802.3at power injector (AIR-PWRINJ6=) 50W power supply (AIR-PWR-50=)
Power draw	30W at the PSE with all features enabled except for the USB 2.0 port 34W at the PSE with the USB 2.0 port enabled
Environmental	Cisco Aironet 3800i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% percent (noncondensing) Operating altitude test: 40˚C, 9843 ft. Cisco Aironet 3800e Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft. Cisco Aironet 3800p Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1024 MB DRAM 256 MB flash
Warranty	Limited lifetime hardware warranty
Frequency band and 20-MHz operating channels	E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

Q&A

What accessories are available for the AIR-AP3802E-E-K9C?

Accessories for the AIR-AP3802E-E-K9C include external antennas, mounting brackets, and power injectors to assist in various installation requirements.

How does the AIR-AP3802E-E-K9C compare to similar products?

Compared to similar products, the AIR-AP3802E-E-K9C offers advanced features like CleanAir, modular design, and multi-gigabit Ethernet support, providing superior performance.

What common troubleshooting steps can I take with the AIR-AP3802E-E-K9C?

Common troubleshooting includes checking power connections, ensuring firmware is up to date, verifying network connections, and restarting the device to resolve issues.

Is the AIR-AP3802E-E-K9C easy to use for system integrators and distributors?

Yes, the AIR-AP3802E-E-K9C is user-friendly with intuitive configuration options via Cisco controllers, making it easy for system integrators and distributors to deploy and manage.

What is the difference between Cisco APs and Aruba APs?

These two brands of APs focus on different areas.

There are so many APs in the market, how can I select?

Consider your budget, and what you need AP to do.

What is the difference between Huawei wireless and Cisco wireless?

These two brands of wireless products focus on different areas.

How cost-effective is the AIR-AP3802E-E-K9C for large enterprises?

The AIR-AP3802E-E-K9C offers robust features like 802.11ac Wave 2, 4x4:3 MIMO, and mGig support, making it highly cost-effective for large enterprises requiring high-performance Wi-Fi.

What are the standout characteristics of the AIR-AP3802E-E-K9C?

The AIR-AP3802E-E-K9C features 802.11ac Wave 2, CleanAir technology, 4x4:3 MIMO, modular design, and supports external antennas for enhanced performance and flexibility.

What application scenarios are ideal for the AIR-AP3802E-E-K9C?

The AIR-AP3802E-E-K9C is ideal for high-density environments like universities, hospitals, and large offices needing reliable, high-speed wireless connectivity.

How do I install the AIR-AP3802E-E-K9C access point?

Installation involves mounting the access point, connecting it to a power source and network via Ethernet, and configuring it through the web interface or Cisco controller.

Does the AIR-AP3802E-E-K9C require regular upgrades?

Regular firmware upgrades are recommended for the AIR-AP3802E-E-K9C to maintain optimal performance, security, and compatibility with latest features.

Are there any alternative products to the AIR-AP3802E-E-K9C?

Alternatives include other Cisco 3800 series models, like the AIR-AP3802I-E-K9, which offers built-in antennas rather than external ones.
