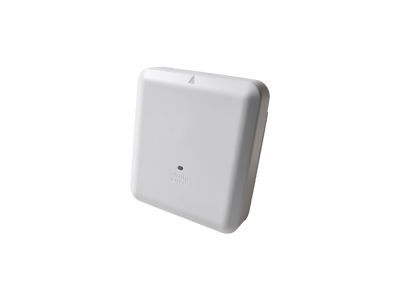

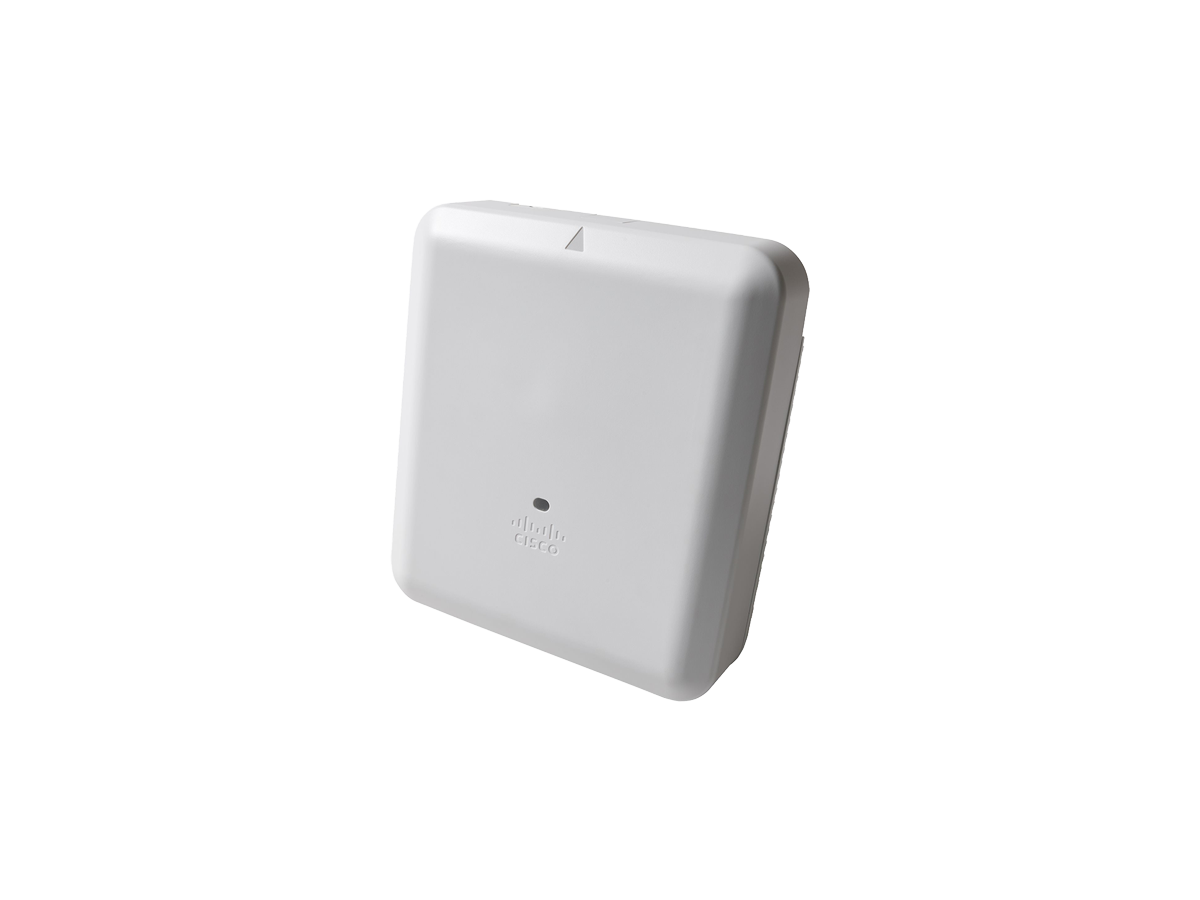

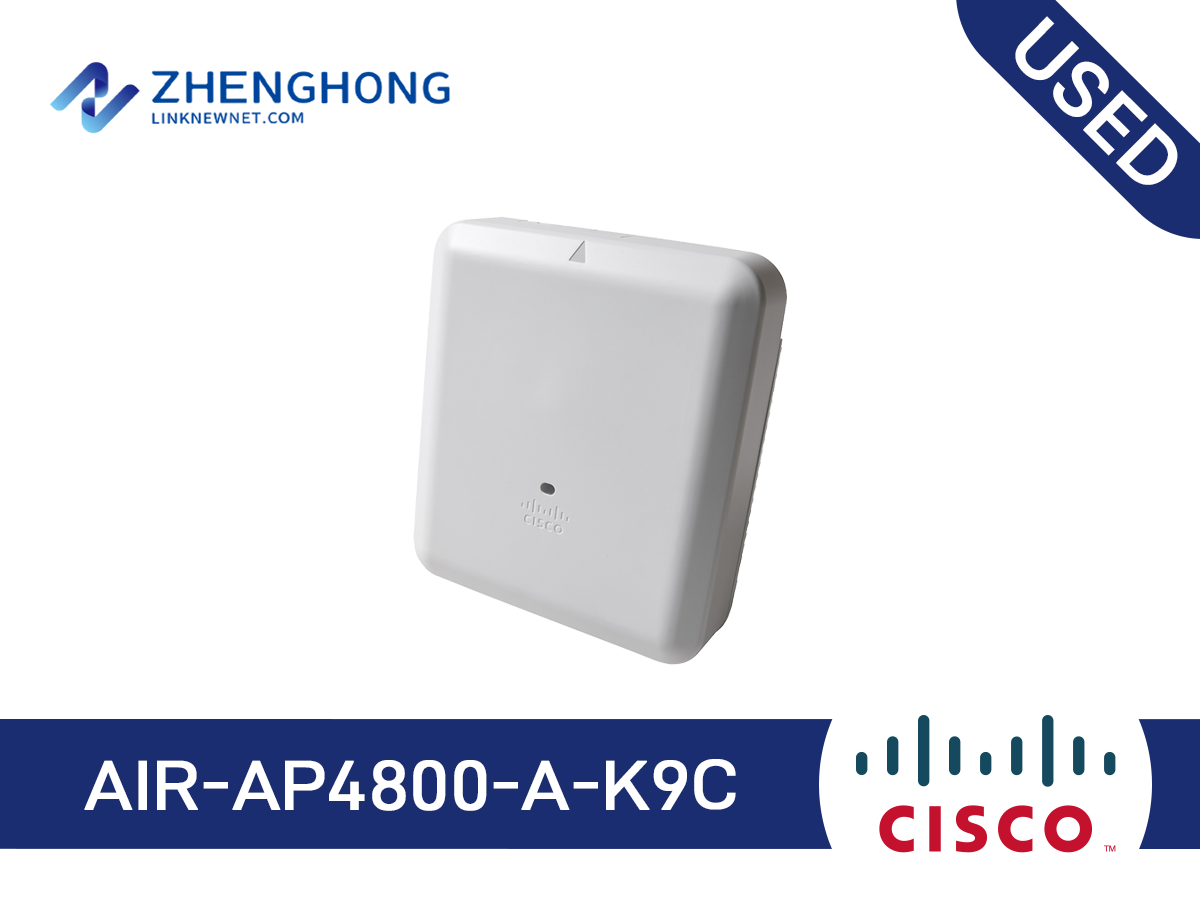

AIR-AP4800-A-K9C - Cisco Aironet 4800 Series Access Points

Description

802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -A Domain, Configurable

Software and supported wireless LAN controllers

●  Cisco Unified Wireless Network Software Release 8.7 or later

●  Cisco 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, Cisco 9800 series Wireless Controllers

●  Cisco IOS ® XE Software Release 16.9

●  Cisco Catalyst ® 3850 Series and 3650 Series Switches

802.11n version 2.0 (and related) capabilities

●  4x4 MIMO with three spatial streams

●  Maximal Ratio Combining (MRC)

●  802.11n and 802.11a/g beamforming

●  20- and 40-MHz channels

●  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities

●  4x4 MIMO with three spatial streams

●  MRC

●  802.11ac beamforming

●  20-, 40-, and 80-MHz channels

●  PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 DFS

●  CSD support

802.11ac Wave 2 capabilities

●  4x4 MU-MIMO with three spatial streams

●  MRC

●  802.11ac beamforming

●  20-, 40-, 80, 160-MHz channels

●  PHY data rates up to 5.2 Gbps

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 DFS

●  CSD support

Wi-Fi Alliance certifications

●  Wi-Fi Certified a, b, g, n, ac

●  Wi-Fi Vantage

●  Wi-Fi Multimedia (WMM)

●  Passpoint

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)

●  2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth

●  5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°

Dedicated 5-GHz radio

●  5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth

Third dedicated radio

●  2.4 GHz and 5 GHz capable

●  Hyperlocation antenna array

BLE radio

●  2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth

Interfaces

●  2 Ethernet ports

●  100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

●   Category 5e cabling

●   Higher-quality 10GBASE-T (Category 6/6a) cabling

●  100/1000BASE-T autosensing (RJ-45 AUX port)

●  Management console port (RJ-45)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

●  Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm)

Weight

●  5.6 lb (2.5 kg)

Input power requirements

●  802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE ®)

●  802.3at power injector (AIR-PWRINJ6=)

●  50W power supply (AIR-PWR-50=)

Power draw

●  30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support

●  31W at the PSE with full functionality

Environmental

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft

●  Operating temperature: 32° to 104°F (0° to 40°C)

●  Operating humidity: 10% to 90% percent (noncondensing)

●  Operating altitude test: 40˚C, 9843 ft. (noncondensing)

System memory

●  1024 MB DRAM

●  256 MB flash

Available transmit power settings

2.4 GHz

●  23 dBm (200 mW)

●  20 dBm (100 mW)

●  17 dBm (50 mW)

●  14 dBm (25 mW)

●  11 dBm (12.5 mW)

●  8 dBm (6.25 mW)

●  5 dBm (3.13 mW)

●  2 dBm (1.56 mW)

5 GHz

●  23 dBm (200 mW)

●  20 dBm (100 mW)

●  17 dBm (50 mW)

●  14 dBm (25 mW)

●  11 dBm (12.5 mW)

●  8 dBm (6.25 mW)

●  5 dBm (3.13 mW)

●  2 dBm (1.56 mW)

Frequency band and 20-MHz operating channels

A (A regulatory domain):

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.320 GHz; 8 channels

●  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)

●  5.745 to 5.825 GHz; 5 channels
