AIR-AP3802I-B-K9C|LinkNewNet

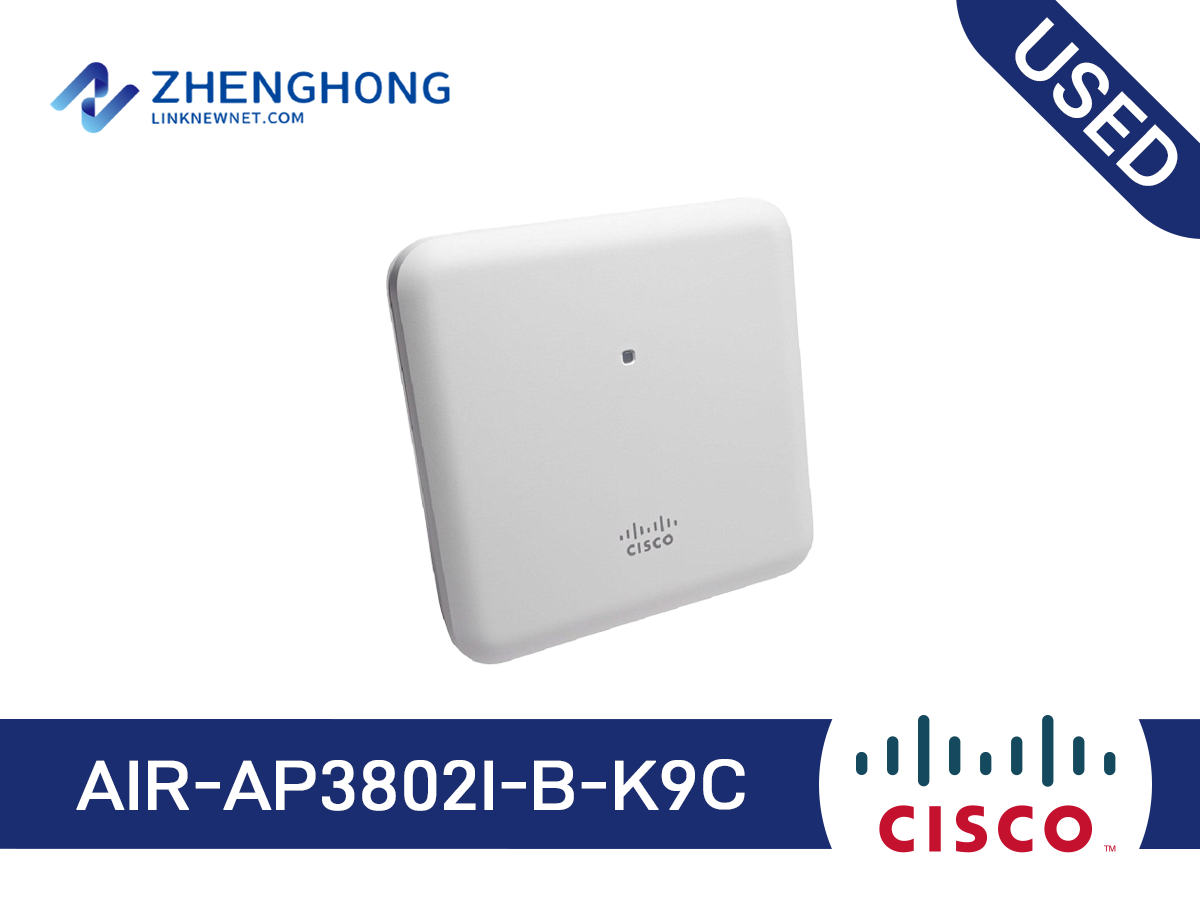

AIR-AP3802I-B-K9C - Cisco Aironet 3802i Access Point

Model: AIR-AP3802I-B-K9C

Detail: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, B Regulatory Domain, Configurable

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-AP3802I-B-K9C Specification
Software and supported wireless LAN controllers	Cisco Unified Wireless Network Software Release 8.2.MR1 or later Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst^®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex^® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco IOS^®XE Software Release 16.3 – Target Q3 CY2016 Cisco Catalyst 3850 Series and 3650 Series Switches
802.11n version 2.0 (and related) capabilities	4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz). Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities	4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
802.11ac Wave 2 capabilities	4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Integrated antenna	Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth
External antenna (sold separately)	3802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) 3802p Series access points are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N=antenna Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Smart Antenna Connector	Available on the 3802e Series and 3802p Series access points only Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point Required when running the flexible radio as either a: ◦ Second 5-GHz serving radio ◦ Wireless Security Monitoring radio
Interfaces	◦ 2 Ethernet ports ◦ 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ◦ CAT 5e cabling ◦ Higher-quality 10GBASE-T (CAT 6/6a) cabling ◦ 100/1000BASE-T autosensing (RJ-45 - AUX port) ◦ Management console port (RJ-45)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	Access point (without mounting brackets): 3802I: 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm), 3802E: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm), 3802P: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)
Weight	4.6 lb (2.09 kg)
Input power requirements	802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE^®) 802.3at power injector (AIR-PWRINJ6=) 50W power supply (AIR-PWR-50=)
Power draw	30W at the PSE with all features enabled except for the USB 2.0 port 34W at the PSE with the USB 2.0 port enabled
Environmental	Cisco Aironet 3800i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% percent (noncondensing) Operating altitude test: 40˚C, 9843 ft. Cisco Aironet 3800e Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft. Cisco Aironet 3800p Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: -4° to 122°F (-20° to 50°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft.
System memory	1024 MB DRAM 256 MB flash
Warranty	Limited lifetime hardware warranty
Frequency band and 20-MHz operating channels	B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.720 GHz; 12 channels ● 5.745 to 5.825 GHz; 5 channels

Q&A

What are common troubleshooting issues?

Common issues include connectivity problems, which can often be resolved by checking antenna connections, firmware updates, and network settings.

What accessories are available for this product?

Accessories for the AIR-AP3802I-B-K9C include mounting kits, power injectors, and additional antennas to extend coverage.

How does this product compare to similar products?

The AIR-AP3802I-B-K9C offers superior performance with its 4x4:3 MU-MIMO and CleanAir technology compared to other Wave 2 APs in the same category.

How do you configure the AIR-AP3802I-B-K9C?

Use the Cisco Wireless LAN Controller or Cisco Mobility Express to configure and manage your AIR-AP3802I-B-K9C after installation.

What is the difference between Cisco APs and Aruba APs?

These two brands of APs focus on different areas.

There are so many APs in the market, how can I select?

Consider your budget, and what you need AP to do.

What is the difference between Huawei wireless and Cisco wireless?

These two brands of wireless products focus on different areas.

How cost-effective is the AIR-AP3802I-B-K9C?

The AIR-AP3802I-B-K9C is highly cost-effective due to its advanced features like 802.11ac Wave 2 and mGig, offering superior performance for its price.

What are the key features of the AIR-AP3802I-B-K9C?

The AIR-AP3802I-B-K9C features 802.11ac Wave 2, CleanAir technology, 4x4:3 MU-MIMO, and an internal antenna, making it ideal for high-density areas.

What are the application scenarios for this product?

The AIR-AP3802I-B-K9C is perfect for large enterprises, educational institutions, and high-density public areas requiring robust wireless coverage.

How do you install the AIR-AP3802I-B-K9C?

Installation is simple: mount the AP on a ceiling or wall using brackets, and connect it to your network via a compatible mGig port.

Does the product need upgrades?

The AIR-AP3802I-B-K9C may require firmware updates to keep its features and security protocols up to date.

Are there any alternative products?

Alternatives include the Cisco AIR-AP2802I-B-K9 and the Cisco Catalyst 9120AXI Access Point, though they may vary in some feature sets and performance.
