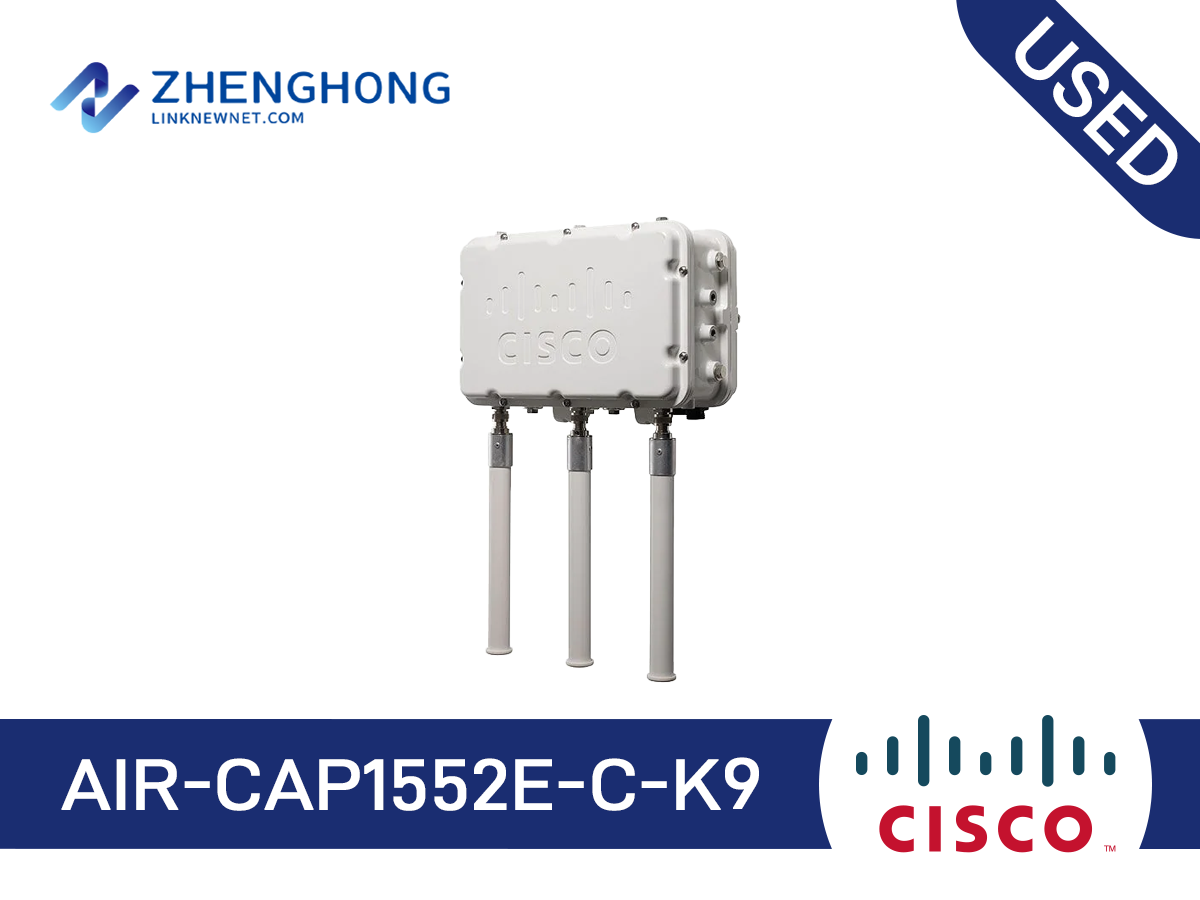

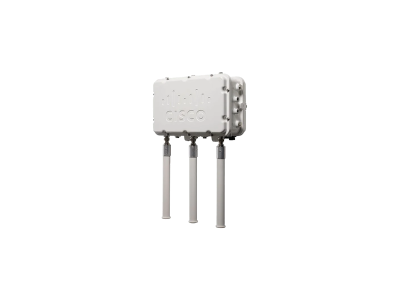

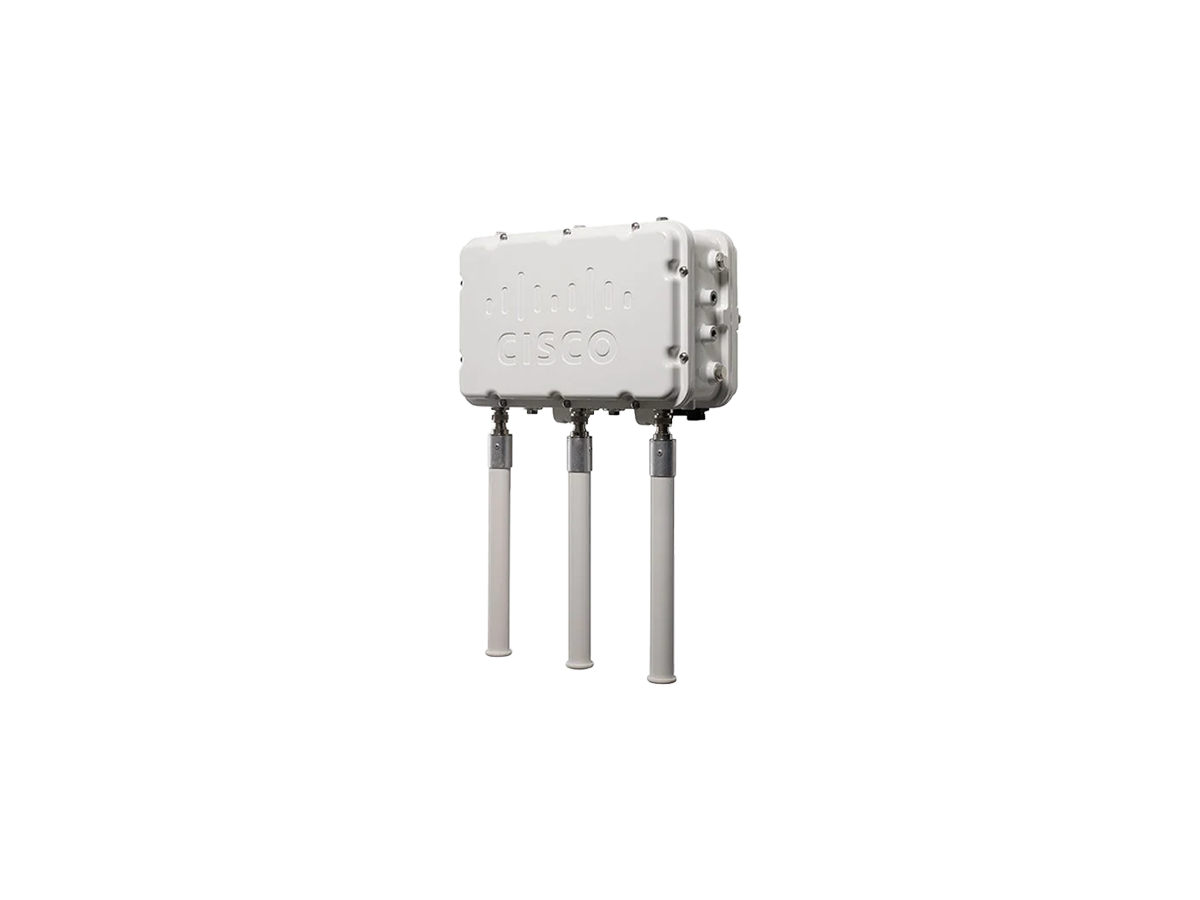

AIR-CAP1552E-C-K9 Cisco 1550 Series Access Point

AIR-CAP1552E-C-K9 Cisco 1550 Series Access Point

Model: AIR-CAP1552E-C-K9
Detail: Cisco 1550 Access Point AIR-CAP1552E-C-K9 802.11N Outdoor Mesh Access Point, Ext. Ant., C Reg. Domain
Condition: USED
List Price: $2388 Price: $1433
Price is not final
Price changes with demand in the second-hand market, please contact our sales to obtain the latest quotation. The final price is subject to the quotation.
Please contact if any inquiry.
Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-CAP1552E-C-K9 Specifications

802.11n Version 2.0 (and Related) Capabilities

●  2x3 Multiple-Input Multiple-Output (MIMO) with two spatial streams

●  Legacy beamforming

●  20- and 40-MHz channels

●  PHY data rates up to 300 Mbps

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic Shift Diversity (CSD) support

DOCSIS 3.0 Capabilities

DOCSIS and EuroDOCSIS 3.0 8x4 cable modem provides:

●  Eight (8) bonded channels on the downstream with total throughput in excess of 300 Mbps

●  Designed to meet DOCSIS 3.0 specifications as well as backward compatibility with existing DOCSIS 2.0, 1.1 and 1.0 networks

●  Enhanced packet processing technology to maximize performance

●  Downstream data rates in excess of 300 Mbps (without overhead)

●  Upstream data rates up to 100 Mbps (without overhead)

Channel-bonded cable modems must be used in conjunction with a Cable Modem Termination System (CMTS) that supports channel bonding per the DOCSIS 3.0 specifications. When used with a non-channel-bonded CMTS, channel‑bonded cable modems function as conventional DOCSIS 2.0 cable modems.

Maximum Number of Nonoverlapping Channels

2.4 GHz

●  802.11b/g:

◦   20 MHz: 3

●  802.11n:

◦   20 MHz: 3

5 GHz

●  802.11a:

◦   20 MHz: 19

●  802.11n:

◦   20 MHz: 19

◦   40 MHz: 11

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Maximum Transmit Power

2.4 GHz

●  802.11b (CCK)

◦   28 dBm with 2 antennas

●  802.11g (non HT duplicate mode)

◦   28 dBm with 2 antennas

●  802.11n (HT20)

◦   28 dBm with 2 antennas

5 GHz

●  802.11a

◦   28 dBm with 2 antennas

●  802.11n non -HT duplicate (802.11a duplicate) mode

◦   28 dBm with 2 antennas

●  802.11n (HT20)

◦   27 dBm with 2 antennas

●  802.11n (HT40)

◦   27 dBm with 2 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Network Interface

●  10/100/1000BASE-T Ethernet, autosensing (RJ-45)

●  Fiber SFP (1552E/EU/H)

●  DOCSIS/EuroDOCSIS 3.0 (8x4) Cable modem interface (1552C/CU)

Dimensions (W x L x H)

1552C/1552I: 12.3 x 8.6 x 5.6 in. (31.2 x 22.9 x 14.2 cm)

1552E/EU/CU/H: 12.3 x 8.6 x 6.1 in. (31.2 x 22.9 x 16.3 cm)

Weight

1552E/EU: 17.3 lbs (7.8 kg)

1552C/CU: 14 lbs (6.4 kg)

1552H: 17.6 lbs (8 kg)

1552I: 14 lbs (6.4 kg)

Battery backup: 1.5 lbs (0.7 kg)

Pole mounting bracket: 6.1 lbs (2.8 kg)

Cable strand mounting bracket: 1.3 lbs (0.6 kg)

Environmental

Operating temperature: -40 to 55°C (-40 to 131°F) plus Solar Loading

Storage temperature: -50 to 85°C (-58 to 185°F)

Wind resistance:

●  Up to 100-MPH sustained winds

●  Up to 165-MPH wind gusts

Environmental Ratings

●  IP67

●  NEMA Type 4X

Antenna Gain

●  Integrated Dual Band Omnidirectional Antenna Radome (1552C/1552I)

◦   2 dBi (2.4 GHz), 4 dBi (5 GHz)

●  External Dual-Band Omnidirectional Antennas (1552E/1552H)

◦   AIR-ANT2547V-N (4 dBi (2.4 GHz), 7 dBi (5 GHz))

●  External Dual-Band Directional Antennas (1552E/1552H)

◦   AIR -ANT2588P3M-N= (8 dBi (2.4 GHz), 8 dBi (5 GHz))

●  External Single Band Antennas (for 1552EU/1552CU)

◦   2.4 GHz

◦   AIR-ANT2420V-N (2 dBi, omni)

◦   AIR-ANT2450V-N (5 dBi, omni)

◦   AIR-ANT2480V-N (8 dBi, omni)

◦   AIR-ANT2413P2M-N= (13 dBi, dual polarized patch)

◦   5 GHz

◦   AIR-ANT5140V-N (4 dBi, omni)

◦   AIR-ANT5175V-N (7.5 dBi, omni)

◦   AIR-ANT5180V-N (8 dBi, omni)

◦   AIR-ANT5114P-N= (14 dBi, patch)

◦   AIR-ANT5114P2M-N= (14 dBi, dual polarized patch)

Powering Options

1552E/1552EU

●  90-480 VAC, 50-60 Hz

●  12 VDC

●  PoE with power injector

1552C/1552CU

●  40-90 VAC, 50-60 Hz, quasi-square wave, Power over Cable

●  12 VDC

1552H

●  100-240 VAC, 50-60 Hz

●  12 VDC

●  PoE with power injector

1552I

●  110-277 VAC, 50-60 Hz

●  12 VDC

Warranty

1 year
