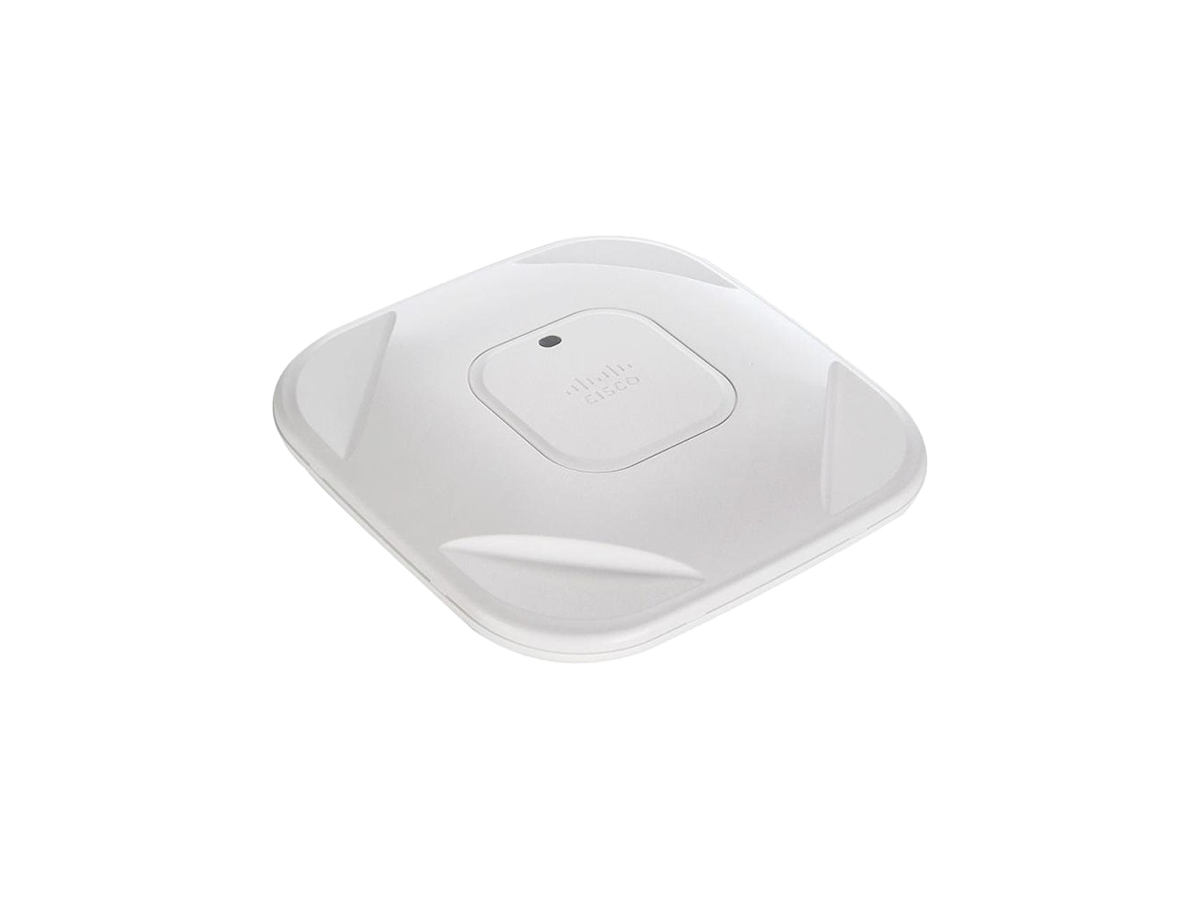

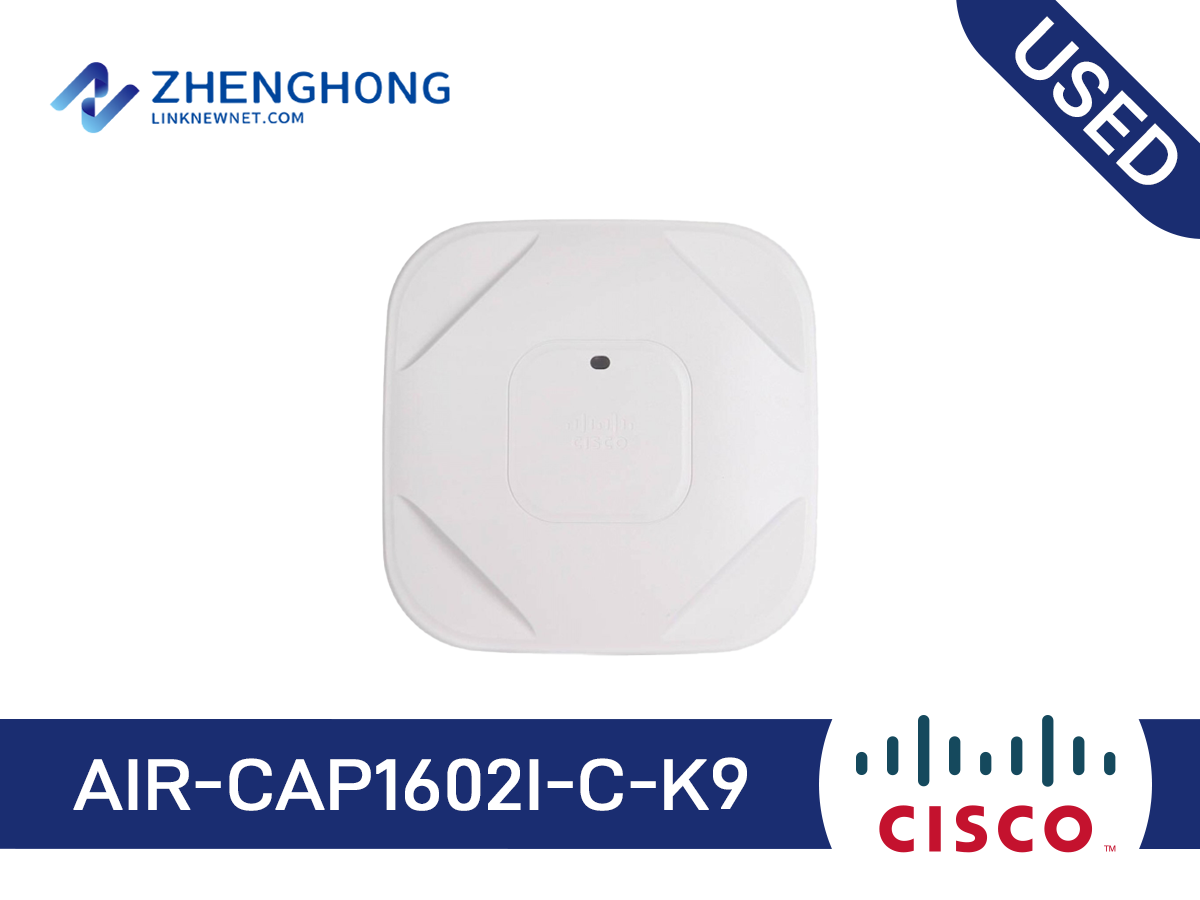

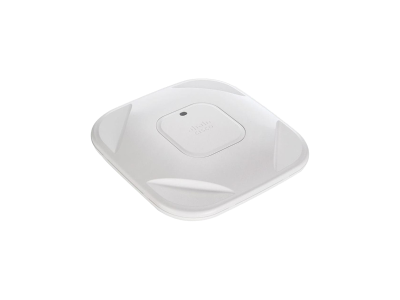

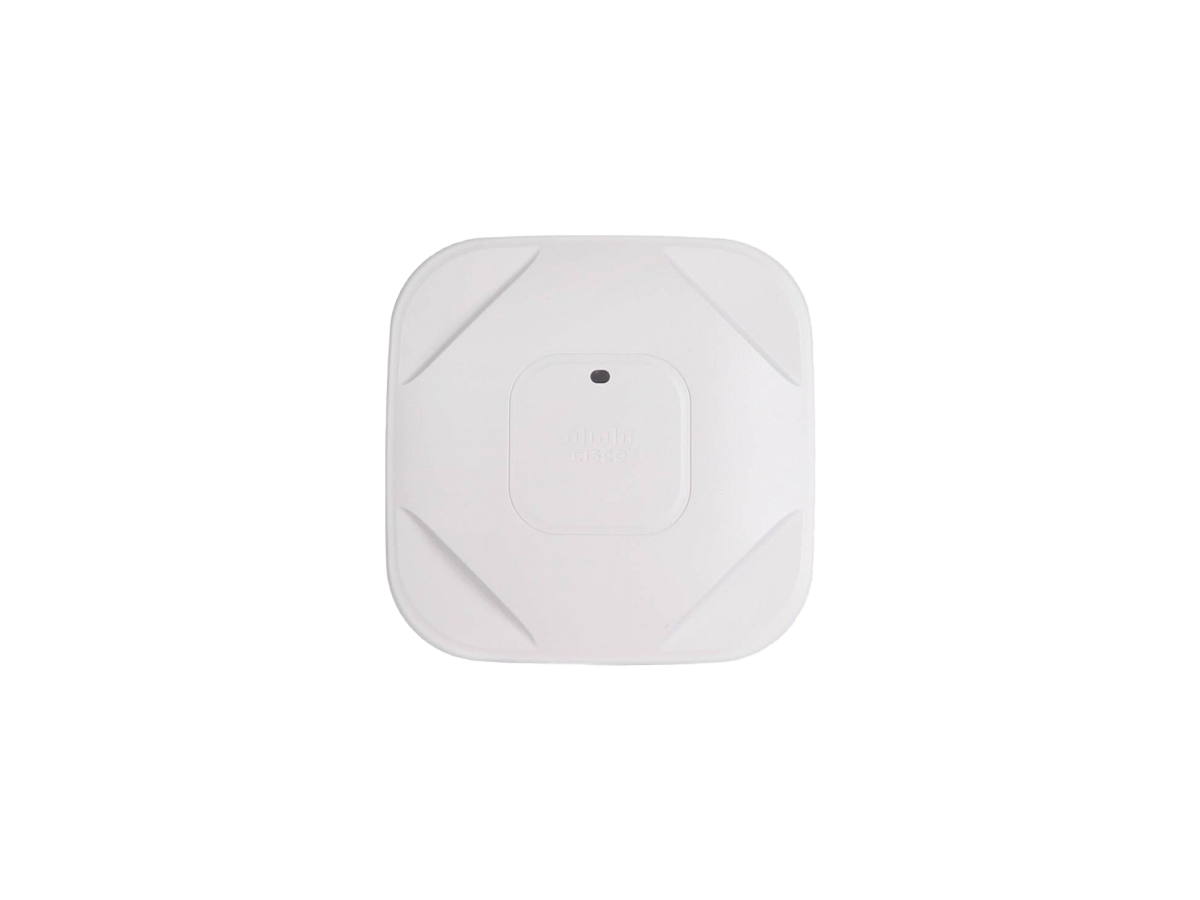

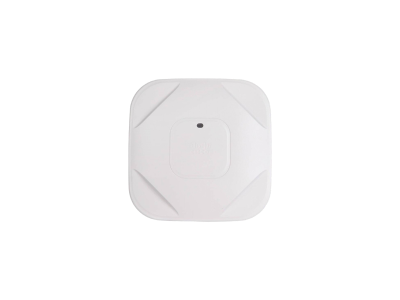

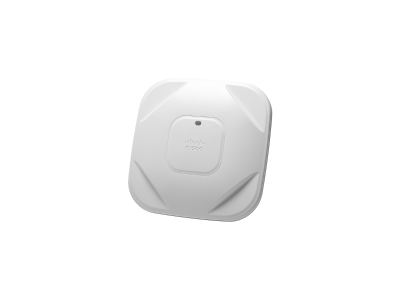

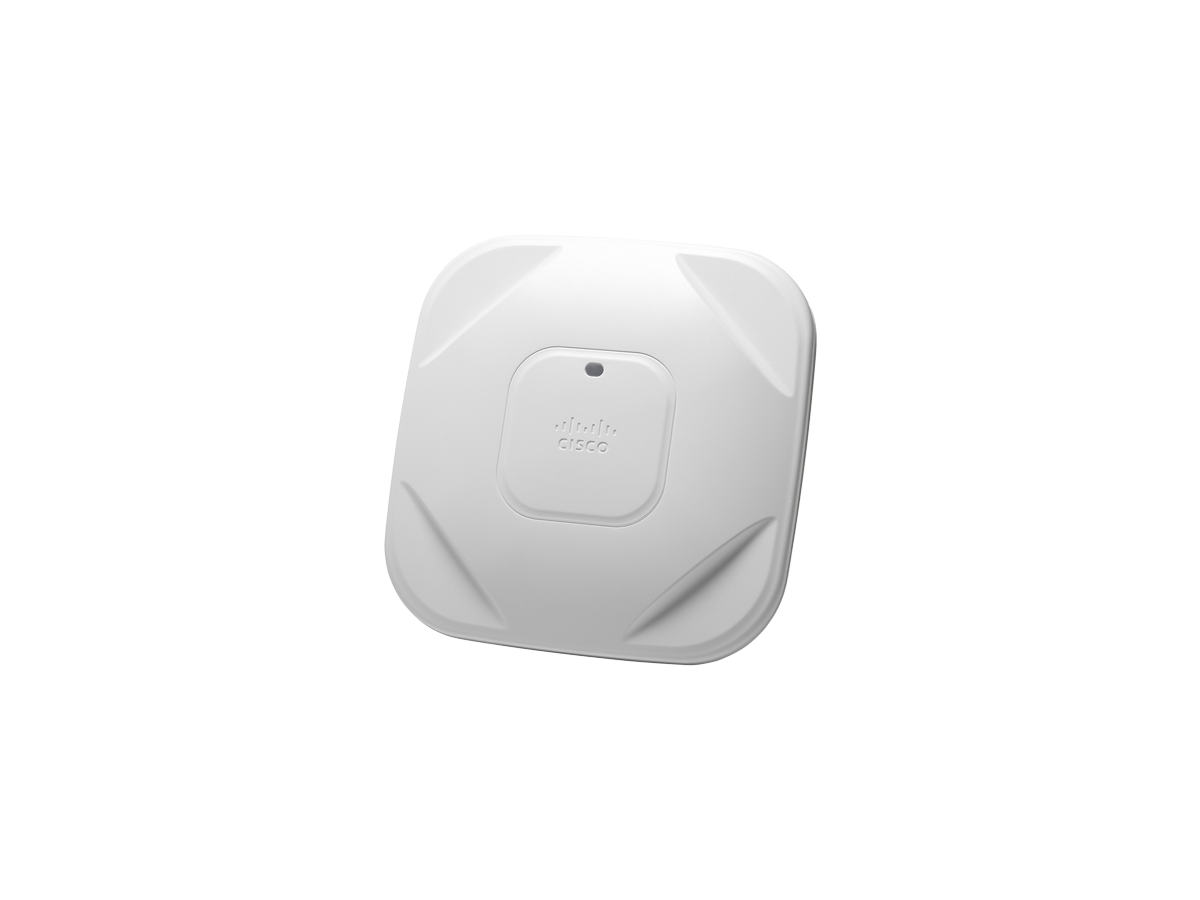

AIR-CAP1602I-C-K9 Cisco Aironet 1600 Series Access Points

Model: AIR-CAP1602I-C-K9 (USED)

Detail: Cisco Aironet 1600 Series Wireless Access Point - Internal antennas - 3*3 MIMO - C Reg - Control Based - 802.11a/b/n - Dual band

Condition: USED

List Price: $248 Price: $149

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-CAP1602I-C-K9 Specification
Devide Type	Wireless Access point
Regulatory domain	C regulatory domain
Supported wireless LAN controllers	● Cisco 2500 Series Wireless Controllers ● Cisco Wireless Controller Module for ISR G2 ● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches ● Cisco 5500 Series Wireless Controllers ● Cisco Flex 7500 Series Wireless Controllers
Software	Cisco Unified Wireless Network Software (available in Q4CY12) Cisco IOS ® Software Release (available in Q4CY12)
Data rates supported	● 802.11a: up to 54 Mbps ● 802.11g: up to 54 Mbps ● 802.11n on 2.4 GHz: up to 300Mbps
Maximum number of nonoverlapping channels	5 GHz ● 802.11a: ◦ 20 MHz: 24 ● 802.11n: ◦ 20 MHz: 24 ◦ 40 MHz:9 2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3
Antenna (purchase separately)	Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios

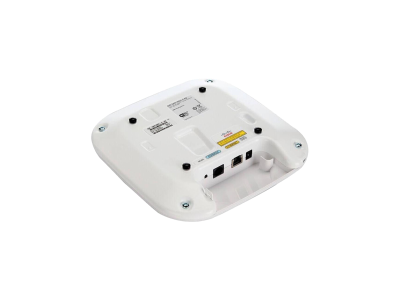

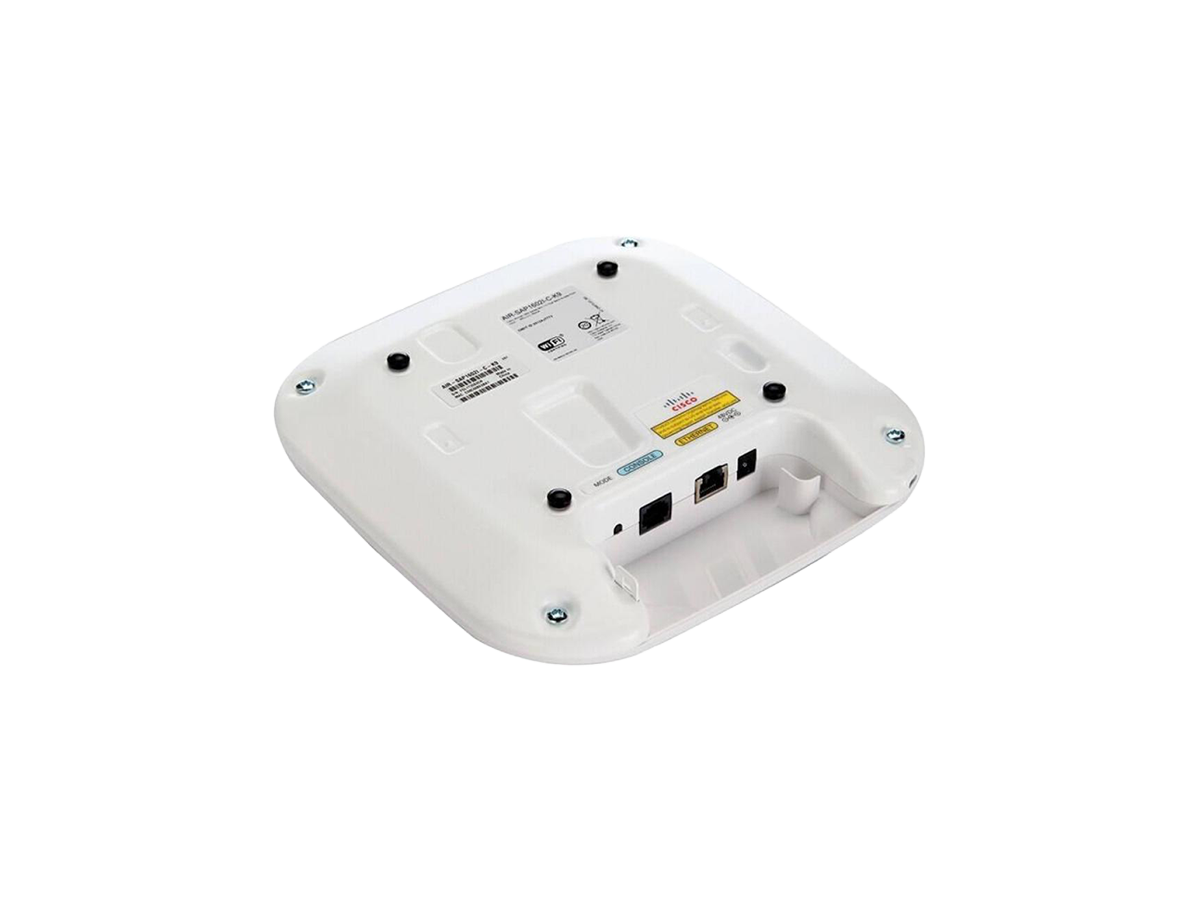

Interfaces	10/100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45)
System memory	256 MB DRAM 32 MB flash
Power consumption (power supply purchase separately)	15.4 Watts (Standard 802.3af POE)
IEEE standards	IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
Security	● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ● 802.1X ● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
Extensible Authentication Protocol (EAP) types	● EAP-Transport Layer Security (TLS) ● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ● Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ● EAP-Flexible Authentication via Secure Tunneling (FAST) ● PEAP v1 or EAP-Generic Token Card (GTC) ● EAP-Subscriber Identity Module (SIM)
Frequency band and 20-MHz operating channels	C (C regulatory domain): 2.412 to 2.472 GHz; 13 channels 5.745 to 5.825 GHz; 5 channels
Environmental	● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test: -25˚C, 15,000 ft. ● Operating temperature: -4 to 122°F (-20 to 50°C) ● Operating humidity: 10 to 90 % (noncondensing) ● Operating Altitude Test: -40˚C, 9843 ft.

Q&A

What are common troubleshooting steps for this Access Point?

Ensure the device is powered, check for network connectivity, and verify firmware versions. Consult the Cisco support page for more details.

What accessories are available for this Aironet 1600 Series Access Point?

Accessories include mounting kits, power injectors, and additional antennas for enhanced coverage.

How does the AIR-CAP1602I-C-K9 compare to other Cisco APs?

It is more cost-effective than the 1700 and 2700 Series but offers comparable performance for many enterprise needs.

What is the advantage of having control-based management on the AIR-CAP1602I-C-K9?

Control-based management allows centralized control, making network management more efficient and scalable.

How cost-effective is the AIR-CAP1602I-C-K9 (USED)?

The AIR-CAP1602I-C-K9 (USED) offers robust wireless performance at a fraction of the cost of new models, making it a cost-effective solution for budget-conscious organizations.

What are the key characteristics of the AIR-CAP1602I-C-K9 (USED)?

The AIR-CAP1602I-C-K9 (USED) features internal antennas, 3*3 MIMO technology, dual-band 802.11a/b/n, and control-based architecture.

What application scenarios are ideal for the AIR-CAP1602I-C-K9 (USED)?

The AIR-CAP1602I-C-K9 (USED) is ideal for medium to large enterprise environments that need reliable and scalable wireless connectivity.

How do I install the AIR-CAP1602I-C-K9 (USED)?

The AIR-CAP1602I-C-K9 (USED) can be installed by mounting it on the ceiling or wall, then connecting it to your network and configuring the settings via the control-based interface.

Does the AIR-CAP1602I-C-K9 (USED) need to be upgraded?

While the AIR-CAP1602I-C-K9 (USED) may not need an immediate upgrade, it is advisable to check for firmware updates from Cisco to ensure optimal performance and security.

Are there alternative products to the AIR-CAP1602I-C-K9 (USED)?

Alternatives to the AIR-CAP1602I-C-K9 (USED) include newer models like the Cisco Aironet 1700 Series, which offer enhanced capabilities and features.

What common troubleshooting steps are there for the AIR-CAP1602I-C-K9 (USED)?

Common troubleshooting steps include power cycling the device, checking network connections, and updating the firmware to the latest version.

What accessories are available for the AIR-CAP1602I-C-K9 (USED)?

Accessories for the AIR-CAP1602I-C-K9 (USED) include mounting kits, power injectors, and additional antenna options to enhance coverage.

How does the AIR-CAP1602I-C-K9 (USED) compare to newer models?

The AIR-CAP1602I-C-K9 (USED) provides reliable performance but lacks some of the advanced features and higher throughput available in newer models like the Cisco Aironet 3800 Series.

How can I ensure optimal performance of the AIR-CAP1602I-C-K9 (USED)?

Ensure optimal performance by regularly updating firmware, positioning the access point to minimize interference, and leveraging both bands for maximum coverage.
