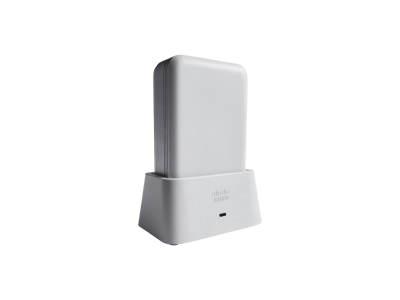

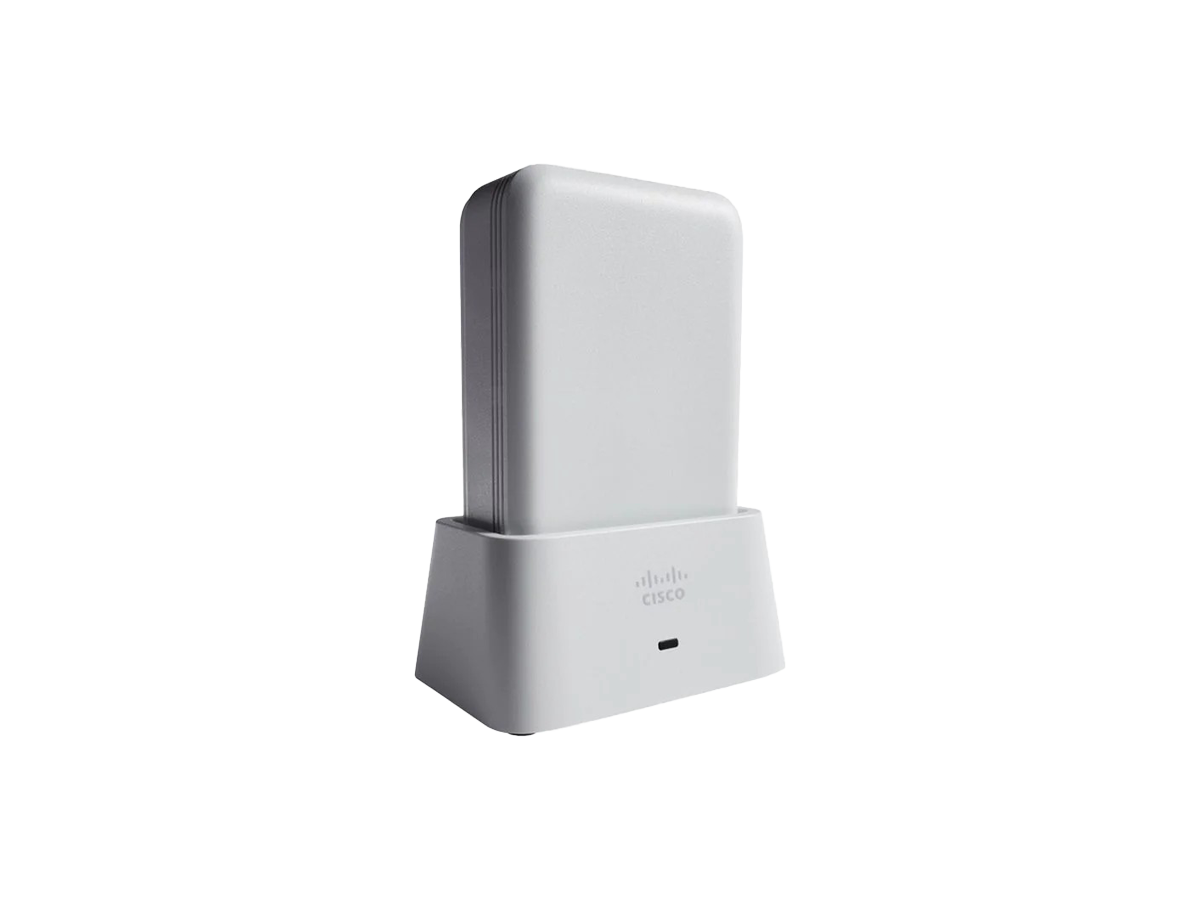

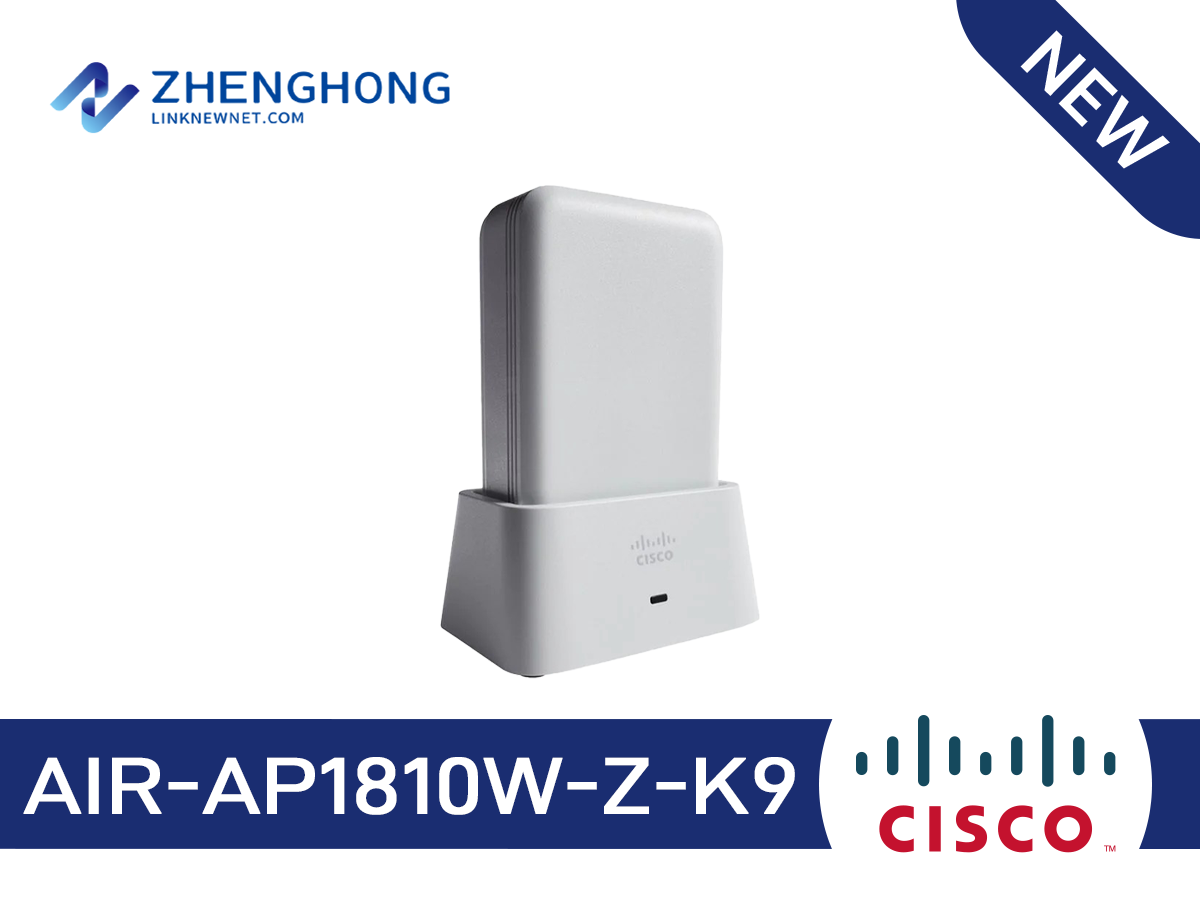

AIR-AP1810W-Z-K9 - Cisco Aironet 1810W Access Point

Authentication and security

• Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)

• 802.1X, RADIUS authentication, authorization and accounting (AAA)

• 802.11i

Software

• Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later

Maximum clients

• Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point

802.11ac

• 2x2 single-user/multiuser MIMO with two spatial streams

• Maximal ratio combining (MRC)

• 20-, 40- and 80-MHz channels

• PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

• Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)

• 802.11 Dynamic Frequency Selection (DFS)

• Cyclic shift diversity (CSD) support

Ethernet ports

• Authentication with 802.1X or MAC filtered

• Dynamic VLAN or per port

• Traffic locally switched or tunneled back to wireless LAN controller

Bluetooth (future availability)

• Integrated Bluetooth 4.1 (including BLE) radio

• Maximum transmit power: 5 dBm

• Antenna gain: 2 dBi

Integrated antennas

• 2.4 GHz, gain 2 dBi

• 5 GHz, gain 4 dBi

Interfaces

• One 10/100/1000BASE-T PoE uplink port

• Management console port (RJ-45)

• Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:

◦   PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af

• One passive pass-through port RJ-45 (back to bottom)

• DC power connector

Indicators

• Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

• Per-port status for local Ethernet ports

• For privacy, LEDs are automatically turned off when the access point joins a controller. LEDs may be enabled to be administratively - see configuration guide.

Dimensions (W x L x H)

• Access point (without mounting bracket): 6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm)

Weight

• Access point without mounting bracket or any other accessories: 1.2 lb (560 g)

Environmental

• Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

• Nonoperating (storage) maximum altitude: 25°C, 15,000 ft (4,500m)

• Operating temperature: 32° to 104°F (0° to 40°C)

• Operating humidity: 10% to 90% percent (noncondensing)

• Operating maximum altitude: 40°C, 9843 ft (3,000m)

System

• 512 MB DRAM

• 256 MB flash

• 1.4 GHz system dual-core CPU

Input power requirements

• 44 to 57V DC

• Optional power supply and power injector: 100 to 240V AC; 49 to 60 Hz

Powering options

• 802.3af/at Ethernet switch

• Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

• Optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=)

Power draw

• Maximum values: 12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out (when powered using AIR-PWR-C or AIR-PWR-D)

Note: When deployed using PoE, the power draw numbers listed above include the power loss in 100m of cabling on the uplink port and 100m of cabling on the PoE out port.

Physical security

• Torx security screw, included with the access point

• Kensington security slot

Mounting

• Included with the access point: mounting bracket AIR-AP-BRACKET-W2, compatible to install to single gang junction box or multiple international standards

• Optional:

◦   AIR-AP1810W-KIT=, spacer kit to mount the access point directly on a wall where standard junction boxes are not available

◦   AIR-OEAP1810-CRD=, cradle kit to mount the access point on a desk

Accessories

• Mounting bracket: AIR-AP-BRACKET-W2= (available as spare)

• Spacer kit: AIR-AP1810W-KIT= (sold separately), includes spacer and RJ-45 jumper cable

• Cradle kit: AIR-OEAP1810-CRD= (sold separately), includes back cover and RJ-45 jumper cable

• Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports

• Cisco local power supply: AIR-PWR-D= (sold separately)

Warranty

Limited Lifetime Hardware Warranty
