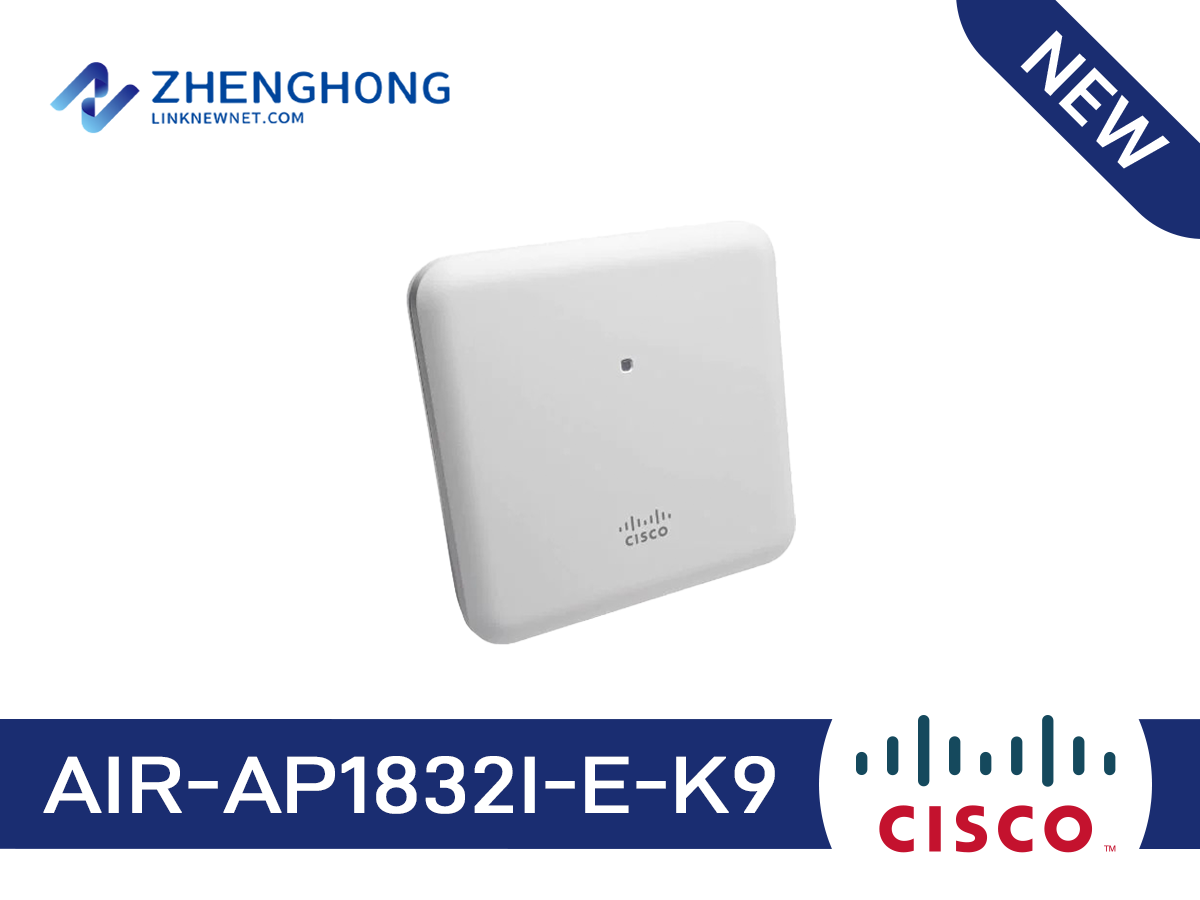

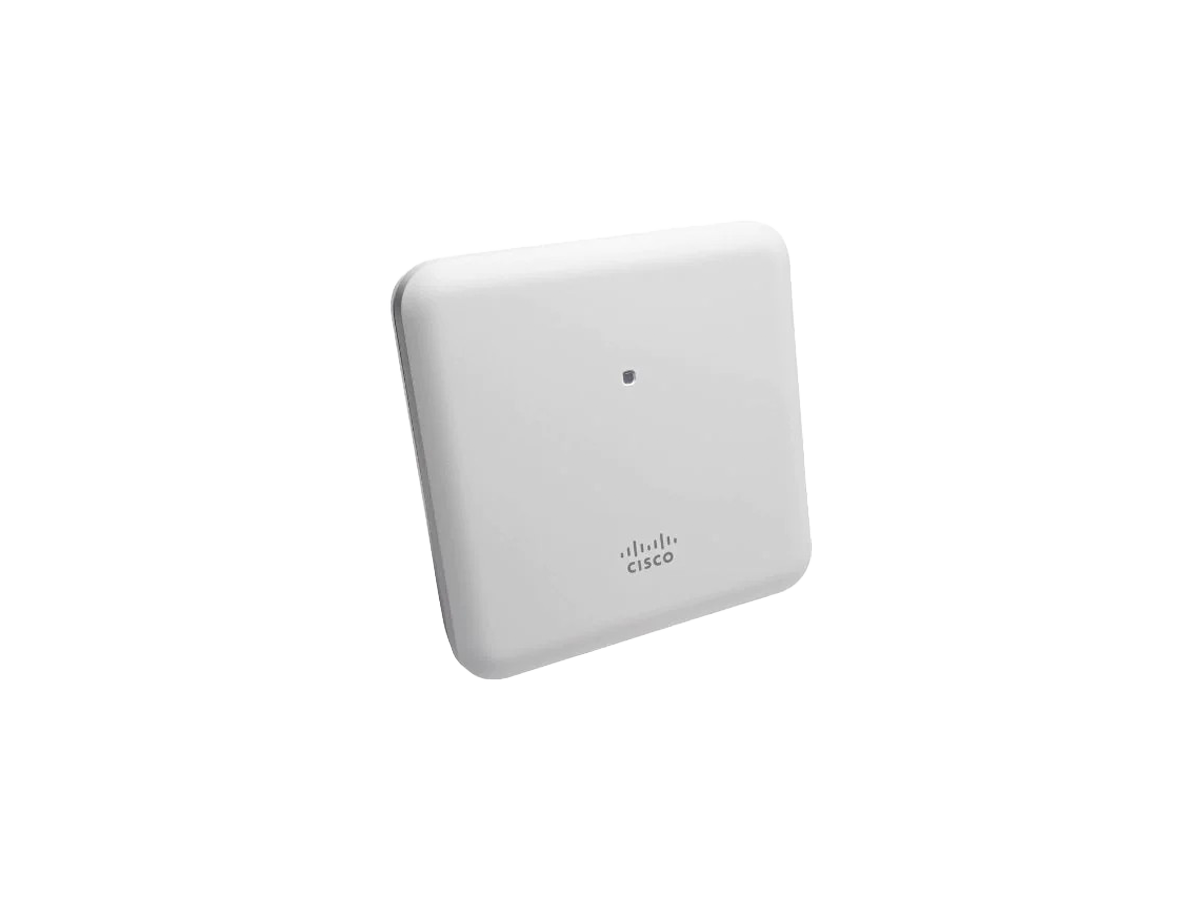

AIR-AP1832I-E-K9 - Cisco Aironet 1832i Access Point

AIR-AP1832I-E-K9 - Cisco Aironet 1832i Access Point

Model: AIR-AP1832I-E-K9
Detail: 802.11ac Wave 2 AP, 3x3:2, Internal Antenna, E Regulatory Domain
Condition: USED
List Price: $448 Price: $269
Price is not final
Price changes with demand in the second-hand market, please contact our sales to obtain the latest quotation. The final price is subject to the quotation.
Please contact if any inquiry.
Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-AP1832I-E-K9 Specifications

Description

802.11ac Wave 2 AP, 3x3:2, Internal Antenna, E Regulatory Domain

Software

Cisco Unified Wireless Network Software Release with AireOS wireless controllers:

  • 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points

Deployment modes

Centralized, standalone, sniffer, Cisco FlexConnect™, monitor, OfficeExtend, mesh

Supported wireless LAN controllers

  • Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller

  • Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

  • 3x3 MIMO with two spatial streams

  • Maximal ratio combining (MRC)

  • 20- and 40-MHz channels

  • PHY data rates up to 300 Mbps (40 MHz with 5 GHz)

  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

  • 802.11 dynamic frequency selection (DFS)

  • Cyclic shift diversity (CSD) support

802.11ac Wave 1 and 2 capabilities

  • 3x3 MIMO with two spatial streams, single-user or multiuser MIMO

  • MRC

  • 802.11ac beamforming (transmit beamforming)

  • 20-, 40-, and 80-MHz channels

  • PHY data rates up to 867 Mbps (80 MHz in 5 GHz)

  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

  • 802.11 DFS

  • CSD support

Regulatory Domain

E (E regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.180 to 5.320 GHz; 8 channels

- 500 to 5.700 GHz; 8 channels

Integrated antenna

  • 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°

  • 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces

  • 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

  • Management console port (RJ-45)

  • USB 2.0 (enabled via future software)

Indicators

  • Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions

(W x L x H)

  • Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

  • 3.12 lb (1.41 kg)

Environmental

Cisco Aironet 1830i

  • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

  • Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

  • Operating temperature: 32° to 104°F (0° to 40°C)

  • Operating humidity: 10% to 90% (noncondensing)

  • Operating altitude test: 40˚C, 9843 ft.

System memory

  • 1 GB DRAM

  • 256 MB flash

Input power requirements

  • AP1830: 44 to 57 VDC

  • Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

  • 15.4W

Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.

Powering options

  • 802.3af/802.3at

  • Enhanced PoE

  • Cisco local power supply, AIR-PWR-C=

  • Cisco power injector, AIR-PWRINJ5= (Note:This injector supports 802.3af only), AIR-PWRINJ6=

Note: If 802.3af PoE is the source of power, the USB port is disabled.

Warranty

Limited lifetime hardware warranty

Quality Certifications
