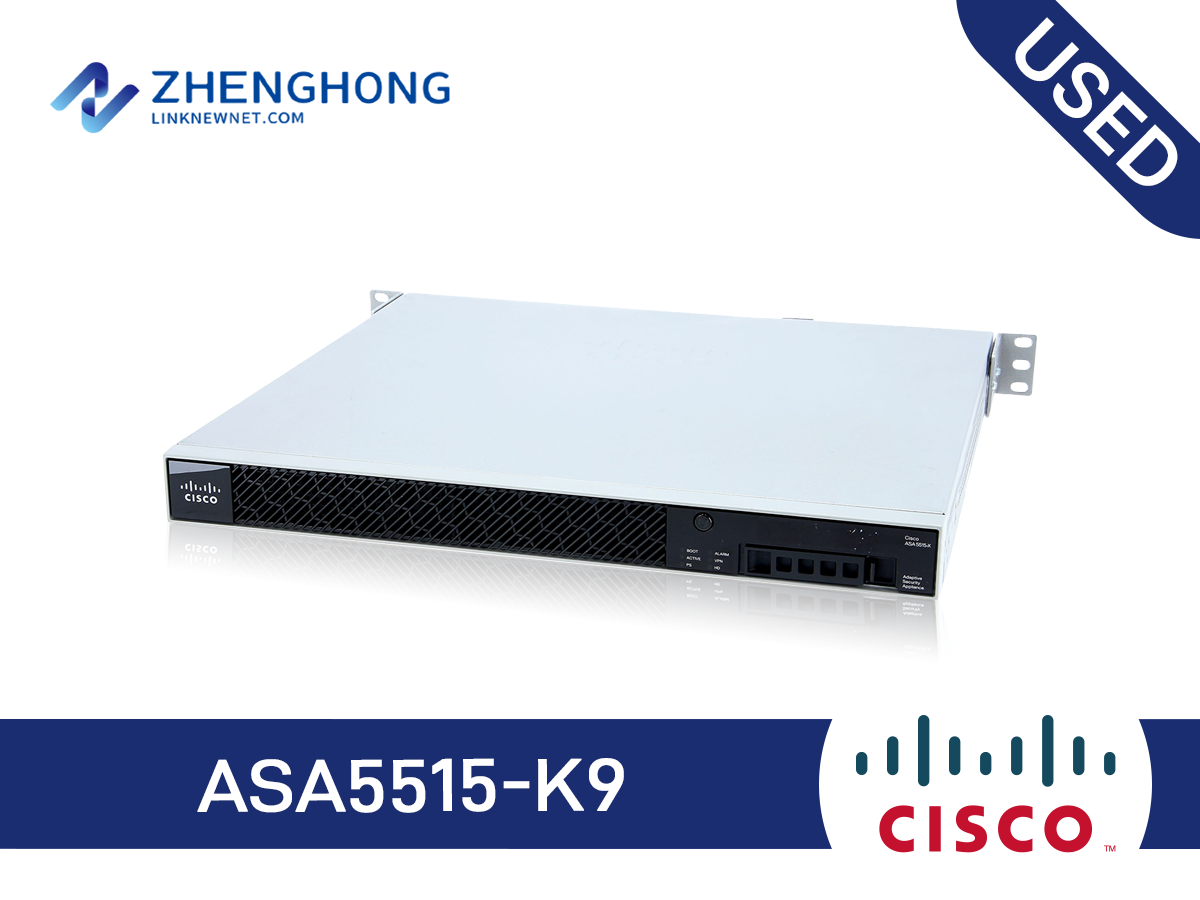

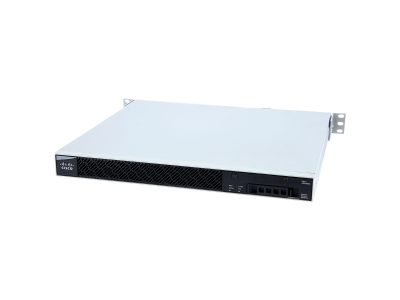

ASA5515-K9 - Cisco ASA 5500 Series Firewall Edition Bundle|LinkNewNet

ASA5515-K9 - Cisco ASA 5500 Series Firewall Edition Bundle

Model: ASA5515-K9

Detail: Cisco ASA 5500 Edition Bundle ASA5515-K9 ASA 5515-X with SW, 6GE Data, 1GE Mgmt, AC, 3DES/AES

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASA5515-K9 Specifications
Type	Cisco ASA 5515-X w/ FirePOWER Services
Throughput: Application Control (AVC)	500 Mbps
Throughput: Application Control (AVC) and IPS	250 Mbps
Maximum concurrent sessions	250,000
Maximum New Connections per second	15,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM
Feature	Cisco ASA 5515-X w/ FirePOWER Services
Stateful inspection throughput (maximum1)	1.2 Gbps
Stateful inspection throughput (multiprotocol2)	600 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	250 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	250
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5	250
Virtual interfaces (VLANs)	100
Security contexts5(included; maximum)	2.5
High availability	Active/ Active and Active/ Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	N/A
Expansion slot	1 interface card
User-accessible Flash slot	No
USB 2.0 ports	2
Integrated I/O	6 GE copper
Expansion I/O
Expansion I/O	6 GE copper or 6 GE SFP
Dedicated management port	Yes (1 GE)
Serial ports	1 RJ-45 console
Solid-state drive	1 slot, 120 GB MLC SED
Solid-state drive
Memory	8 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	23 to 104°F (-5 to 40°C)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
Acoustic noise	64.2 dBA max
Acoustic noise
Temperature	-13 to 158ºF (-25 to 70ºC)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4570 m)
AC range line voltage	100 to 240 VAC
AC normal line voltage	100 to 240 VAC
AC current	4.85A
AC frequency	50/60 Hz
Dual-power supplies	None
DC domestic line voltage	-40.5 to 56 VDC (-48 VDC nominal)
DC international line voltage	-55 to -72 VDC (-60 VDC nominal)
DC current	15A (maximum input)
Steady state	65W
Maximum peak	70W
Maximum heat dissipation	239 Btu/hr
Form factor	1RU, 19-in. rack-mountable
Dimensions (H x W x D)	1.67 x 16.7 x 15.6 in.
Dimensions (H x W x D)	(4.24 x 42.9 x 39.5 cm)
Weight (with AC power supply)	13.39 lb (6.07 kg)
Weight (with AC power supply)

Q&A

What common troubleshooting steps are there for the Cisco ASA5515-K9?

Common steps include checking cable connections, ensuring firmware is current, and verifying security policy configurations.

What accessories are available for the Cisco ASA5515-K9?

Accessories include rack-mount kits, additional power supplies, and compatible network cables.

How does the Cisco ASA5515-K9 compare to the ASA5525-K9?

The ASA5525-K9 offers higher throughput and additional features, suitable for larger network environments.

What security features does the Cisco ASA5515-K9 offer?

It includes stateful inspection firewall, VPN support, and advanced threat protection with 3DES/AES encryption.

There are so many firewalls in the market, how can I select?

Consider your budget, and what you need firewall to do.

What version of ASDM is used to manage the Cisco ASA 5500-X Series?

The Cisco ASA 5500-X Series can be managed using ASDM 6.6.1 or later. Previous releases of ASDM are not supported.

What are the advantages of cloud web security being integrated with the firewall?

Now that Cisco Cloud Web Security is integrated with Cisco ASA Software Release 9.0, organizations gain a centralized content security solution combined with localized network security. However, in contrast to all-in-one offerings, which suffer significant performance degradation when web security services are enabled, there is little to no impact on ASA performance because the content scanning is offloaded to the Cisco web security cloud. Administrators can choose to perform deep content scanning on a subset of traffic, based on network address, Microsoft Active Directory user or group name, or hosts residing inside a specific security context.

Does performance vary from one software release to another?

New features result in a minor variance in performance from one software release to another across all ASA platforms.

What is the ASA firewall transparent mode?

Traditionally, a firewall is a routed hop and acts as a default gateway for hosts that connect to one of its screened subnets. A transparent firewall, on the other hand, is a Layer 2 firewall that acts like a "bump in the wire," or a "stealth firewall," and is not seen as a router hop to connected devices.

Do you provide an enterprise management tool with the capability to manage multiple instances of your solution?

Yes, the Cisco Content Switching Module delivers this capability.

What version of Cisco Security Manager is used to manage the ASA5515-K9?

The Cisco ASA 5500-X Series can be managed using Cisco Security Manager 4.3 and later. Previous releases do not support the Cisco ASA 5500-X Series.

How many the Maximum Logs per Second?

15000

What are the ports of ASA5515-K9?

It has 6 copper GE ports, 1 copper GE management port.

What are the key features of ASA5515-K9?

The ASA5515-K9 offers 6GE data ports, 1GE management port, 3DES/AES encryption, and comprehensive security features for advanced threat protection.

How cost-effective is the ASA5515-K9 for system integrators?

The ASA5515-K9 is cost-effective due to its robust feature set, including state-of-the-art security, at a competitive price point.

What are the common use cases for ASA5515-K9?

ASA5515-K9 is ideal for midsize businesses requiring high-performance security with advanced threat defense and secure network segmentation.

How do I install the ASA5515-K9?

Install the ASA5515-K9 by connecting the power supply, data ports, and management interface, then configure through the Cisco ASDM or CLI.

Does the ASA5515-K9 require regular upgrades?

Yes, to maintain optimal security, periodic software and firmware upgrades from Cisco are recommended for ASA5515-K9.

Are there alternative products to ASA5515-K9?

Alternatives include Cisco ASA 5506-X and ASA 5525-X, suitable for different scales and performance needs.

What accessories are available for ASA5515-K9?

Accessories include additional power supplies, rack mounting kits, and Cisco support service options.

How does ASA5515-K9 compare with ASA 5506-X?

ASA5515-K9 offers more data ports and higher throughput compared to ASA 5506-X, making it more suitable for larger networks.

What are common troubleshooting steps for ASA5515-K9?

Common troubleshooting includes checking power connections, verifying network settings, and consulting Cisco support for software issues.

What are the product's encryption capabilities?

ASA5515-K9 supports advanced 3DES/AES encryption for secure data transmission.

How cost-effective is the Cisco ASA5515-K9?

The Cisco ASA5515-K9 offers robust security features and performance, making it a cost-effective solution for mid-sized enterprises.

What are the key features of the Cisco ASA5515-K9?

The Cisco ASA5515-K9 includes 6 GE data ports, 1 GE management port, AC power, and supports 3DES/AES encryption.

What application scenarios is the Cisco ASA5515-K9 suitable for?

The Cisco ASA5515-K9 is ideal for medium-sized businesses needing comprehensive security and network management.

How do I install the Cisco ASA5515-K9?

Installation involves connecting it to your network, configuring security policies via the ASA software, and powering it on.

Does the Cisco ASA5515-K9 require firmware upgrades?

Yes, regular firmware updates are recommended to ensure security features and performance are up-to-date.

Are there alternative products to the Cisco ASA5515-K9?

Alternatives include other models in the Cisco ASA 5500 series, such as ASA5525-K9, with different performance and features.

What common troubleshooting steps are there for the Cisco ASA5515-K9?

Common steps include checking cable connections, ensuring firmware is current, and verifying security policy configurations.

What accessories are available for the Cisco ASA5515-K9?

Accessories include rack-mount kits, additional power supplies, and compatible network cables.

How does the Cisco ASA5515-K9 compare to the ASA5525-K9?

The ASA5525-K9 offers higher throughput and additional features, suitable for larger network environments.

What security features does the Cisco ASA5515-K9 offer?

It includes stateful inspection firewall, VPN support, and advanced threat protection with 3DES/AES encryption.
