ASA5525-K9 - Cisco ASA 5500 Series Firewall Edition Bundle|LinkNewNet

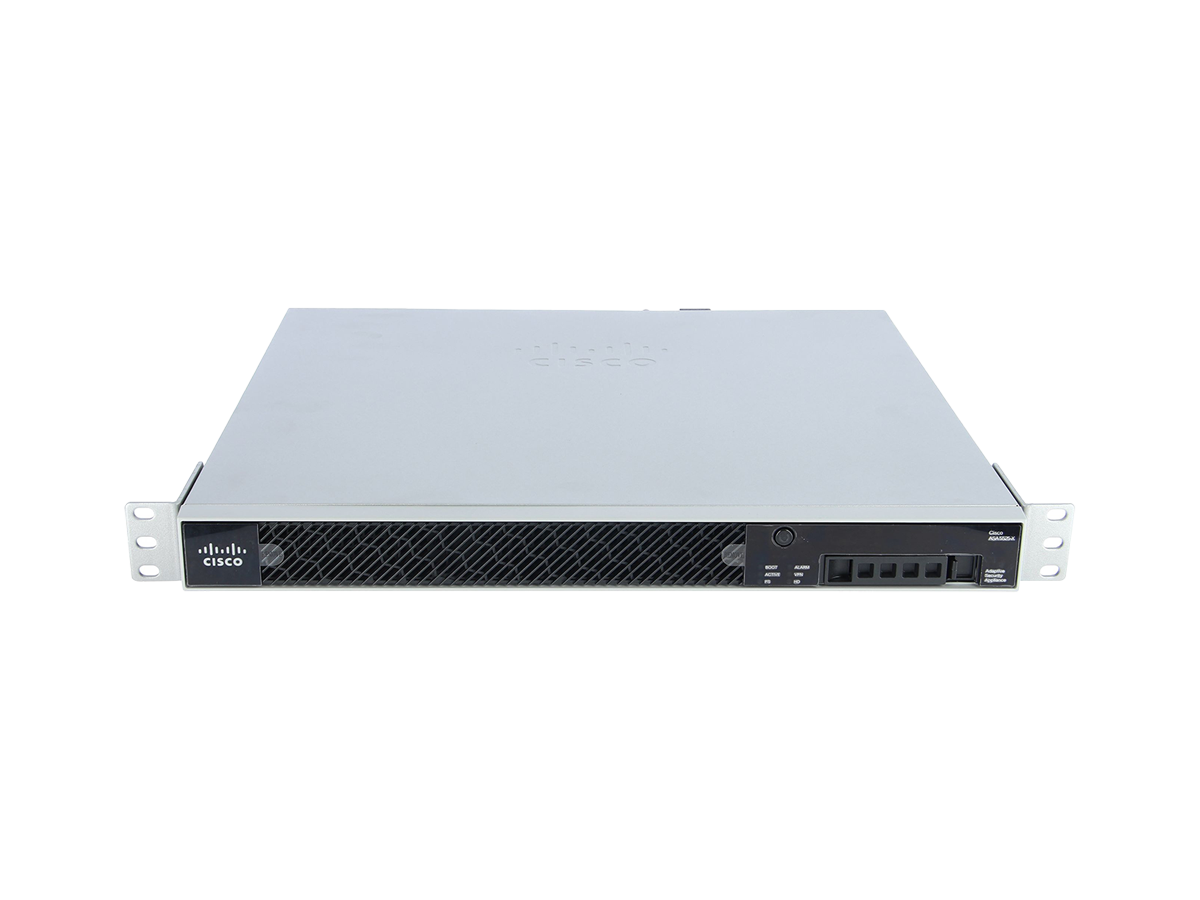

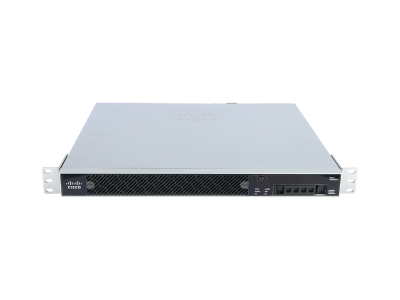

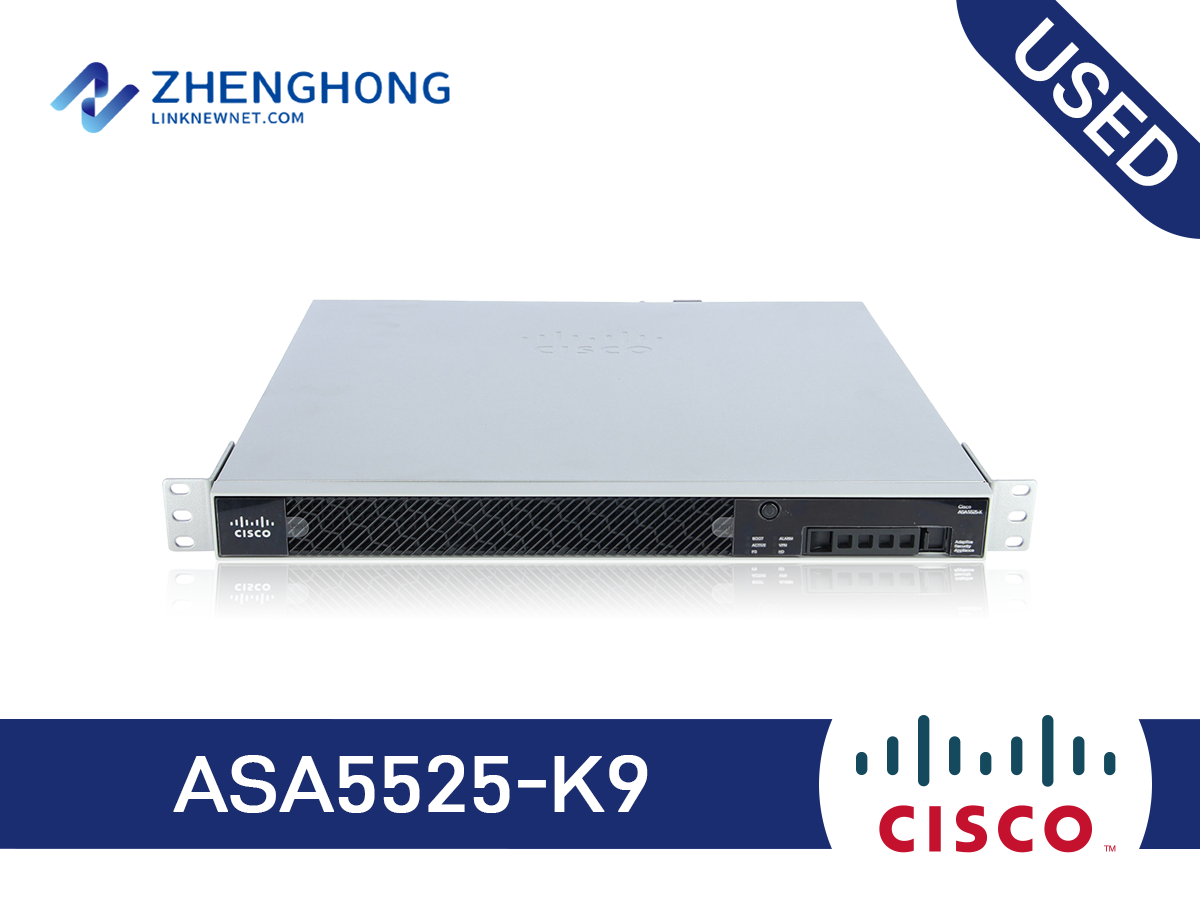

ASA5525-K9 - Cisco ASA 5500 Series Firewall Edition Bundle

Model: ASA5525-K9

Detail: Cisco ASA 5500 Edition Bundle ASA5525-K9 ASA 5525-X with SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASA5525-K9 Specifications
Feature	ASA5525-K9
Stateful Inspection Throughput (Maximum)	2 Gbps
Stateful Inspection Throughput (Multiprotocol)	1 Gbps
IPS Throughput	600 Mpbs
Next-Generation Throughput(Multiprotocol)	650 Mbps
3DES/AES VPN Throughput	300 Mbps
Users/Nodes	Unlimited
IPsec VPN Peers	750
Cisco Cloud Web Security Users	4,000
Premium AnyConnect VPN Peers(Included/Maximum)	2/750
Concurrent Connections	500,000
New Connections/Second	20,000
Virtual Interfaces (VLANs)	200
Security Contexts (Included/Maximum)⁶	2; 20
High Availability	Active/Active and Active/Standby
Expansion Slot	1 interface card
User-Accessible Flash Slot	0
USB 2.0 Ports	2
Integrated I/O	8 GE Copper
Expansion I/O	6 GE Copper or 6 GE SFP
Serial Ports	1 RJ-45 console
Solid State Drive	1 slot, 120 GB MLC SED
Memory	8 GB
Minimum System Flash	8 GB
System Bus	Multibus architecture
Temperature	23 to 104°F (-5 to 40°C)
Relative Humidity	90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3050m)
Shock	50G, 2 m/sec
Vibration	0.41 Grms2 (3 to 500 Hz) random input
Acoustic Noise	64.2 dBa max
Temperature	-13 to 158ºF (-25 to 70ºC)
Relative Humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4570m)
Shock	70G, 4.22 m/sec
Vibration	1.12 Grms2 (3 to 500 Hz) random input
AC Range Line Voltage	100 to 240 VAC
AC Normal Line Voltage	100 to 240 VAC
AC Current	4.85A
AC Frequency	50/60 Hz
Dual-Power Supplies	None
DC Domestic Line Voltage	-40.5 to 56 VDC (-48 VDC nominal)
DC International Line Voltage	-55 to -72 VDC (-60 VDC nominal)
DC Current	15A (maximum input)
Steady State	75W
Maximum Peak	108W
Maximum Heat Dissipation	369 BTU/hr
Form Factor	1 RU, 19-in. rack-mountable
Dimensions (H x W x D)	1.75 x 17.5 x 14.25 In (4.45 x 20.04 x 36.2 cm)
Weight (with AC Power Supply)	22.0 lb (10 kg)
Safety	IEC 60950-1: 2005, 2nd Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd Edition; CSA C22.2 No. 60950-1-07, 2nd Edition
Electromagnetic Compatibility (EMC)	CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008; FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009; ICES-003 ISSUE 4 FEBRUARY.2004; VCCI: V-3/2011.04; C-TICK: AS/NZS CISPR 22,2009 KC: KN22 & KN24
Industry Certifications	In process

Q&A

What are the common troubleshooting steps for the ASA5525-K9?

Common troubleshooting steps include verifying connections, checking the power supply, ensuring proper configuration, and reviewing the device logs for error messages.

What accessories are available for the ASA5525-K9?

Accessories for the ASA5525-K9 include additional power supplies, rack mounting kits, and optional security licenses for enhanced features.

How does the ASA5525-K9 compare to similar Cisco ASA 5500 Series firewalls?

Compared to other models in the Cisco ASA 5500 Series, the ASA5525-K9 offers a balance of cost and performance, with more ports and better encryption than entry-level models like the ASA5512-K9.

What features does the ASA5525-K9 offer in terms of network management?

The ASA5525-K9 includes a dedicated management port for configuration ease, robust logging capabilities, and support for remote management via Cisco Adaptive Security Device Manager (ASDM).

There are so many firewalls in the market, how can I select?

Consider your budget, and what you need firewall to do.

What is the ASA firewall transparent mode?

Traditionally, a firewall is a routed hop and acts as a default gateway for hosts that connect to one of its screened subnets. A transparent firewall, on the other hand, is a Layer 2 firewall that acts like a "bump in the wire," or a "stealth firewall," and is not seen as a router hop to connected devices.

Do you provide an enterprise management tool with the capability to manage multiple instances of your solution?

Yes, the Cisco Content Switching Module delivers this capability.

What version of Cisco Security Manager is used to manage the ASA5525-K9?

The Cisco ASA 5500-X Series can be managed using Cisco Security Manager 4.3 and later. Previous releases do not support the Cisco ASA 5500-X Series.

What version of ASDM is used to manage the Cisco ASA 5500-X Series?

The Cisco ASA 5500-X Series can be managed using ASDM 6.6.1 or later. Previous releases of ASDM are not supported.

What indicates that an ASA 5500-X appliance is over its maximum capacity?

Prolonged high CPU use (anything over 90 percent), less than 10 percent of available memory, and interface packet drops due to high numbers of packets per second are all signs of appliance reaching its capacity limits.

Does performance vary from one software release to another?

New features result in a minor variance in performance from one software release to another across all ASA platforms.

How many the Maximum Logs per Second?

20000

What are the ports of ASA5525-K9?

It has 8 copper GE ports, 1 copper GE management port, and 1 expansion slot

How do I remove the license key from an appliance?

Use the command activation-key deactivate. This command is applicable only to time-based licenses.

How many Licensing Requirements for Cisco ASA Cluster Units of ASA 5525-X firewall?

Base license supporting 2 units. Each unit must have the same encryption license.

What are the key features of the Cisco ASA5525-K9?

The Cisco ASA5525-K9 offers 8 GE data ports, 1 GE management port, AC power, and integrated 3DES/AES encryption.

What application scenarios is ASA5525-K9 suitable for?

The ASA5525-K9 is ideal for mid-sized networks requiring robust security and management capabilities.

How cost-effective is the ASA5525-K9 for system integrators?

The ASA5525-K9 offers high security at a competitive price, making it a cost-effective solution for system integrators.

What accessories come with the ASA5525-K9?

The ASA5525-K9 bundle includes the appliance, power cord, rack-mount kit, and software.

Does the ASA5525-K9 require regular upgrades?

Yes, regular software and firmware updates are recommended to maintain security and performance.

How does the ASA5525-K9 compare to other models in the ASA 5500 series?

The ASA5525-K9 provides balanced performance and features designed for mid-sized businesses, unlike higher or lower-end models.

Is there an alternative to the ASA5525-K9 in the Cisco product line?

Yes, an alternative could be the ASA5545-K9, which offers higher throughput and more advanced features.

What is the installation process for the ASA5525-K9?

The installation involves mounting in a rack, connecting to power and network, and performing initial configuration via the management port.

How can common issues with the ASA5525-K9 be troubleshooted?

Common issues can often be resolved by checking network connections, ensuring proper configuration, and updating to the latest firmware.

What makes the ASA5525-K9 a reliable choice for network security?

The ASA5525-K9 includes advanced security features like 3DES/AES encryption, making it a trusted choice for network protection.

How cost-effective is the ASA5525-K9 for mid-sized businesses?

The Cisco ASA5525-K9 offers comprehensive security features at a reasonable price, making it a cost-effective choice for mid-sized businesses.

What are the main characteristics of the ASA5525-K9?

The ASA5525-K9 features 8 Gigabit Ethernet data ports, 1 Gigabit Ethernet management port, and support for 3DES/AES encryption, providing robust security and data handling.

In what application scenarios is the ASA5525-K9 best suited?

The ASA5525-K9 is ideal for small to medium-sized enterprises requiring advanced security measures and enhanced data processing capabilities.

How do I properly install the ASA5525-K9 firewall?

To install the ASA5525-K9, mount the device in a standard rack, connect the data ports to your network, configure through the management port, and power the device via an AC source.

Does the ASA5525-K9 require periodic upgrades?

Yes, periodically check for firmware updates from Cisco to ensure the ASA5525-K9 is running the latest software for maximum security and performance.

Are there alternative products to the ASA5525-K9?

Alternatives to the ASA5525-K9 include other models in the Cisco ASA 5500 Series, such as the ASA5515-K9 or ASA5545-K9, depending on your specific needs and budget.
