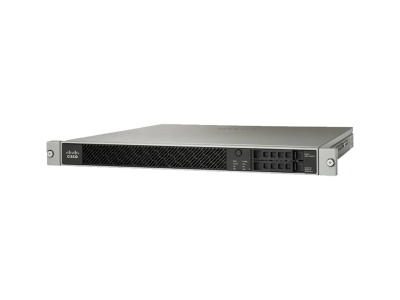

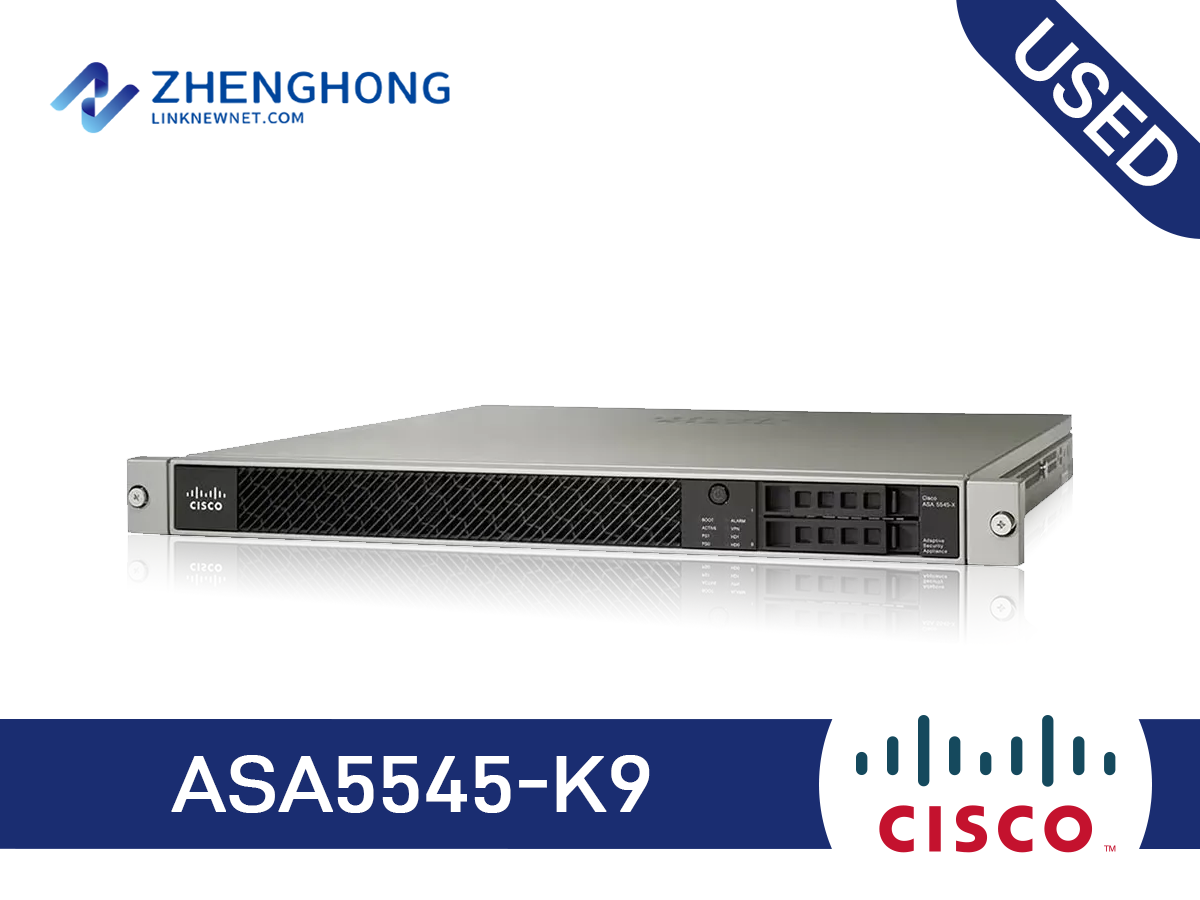

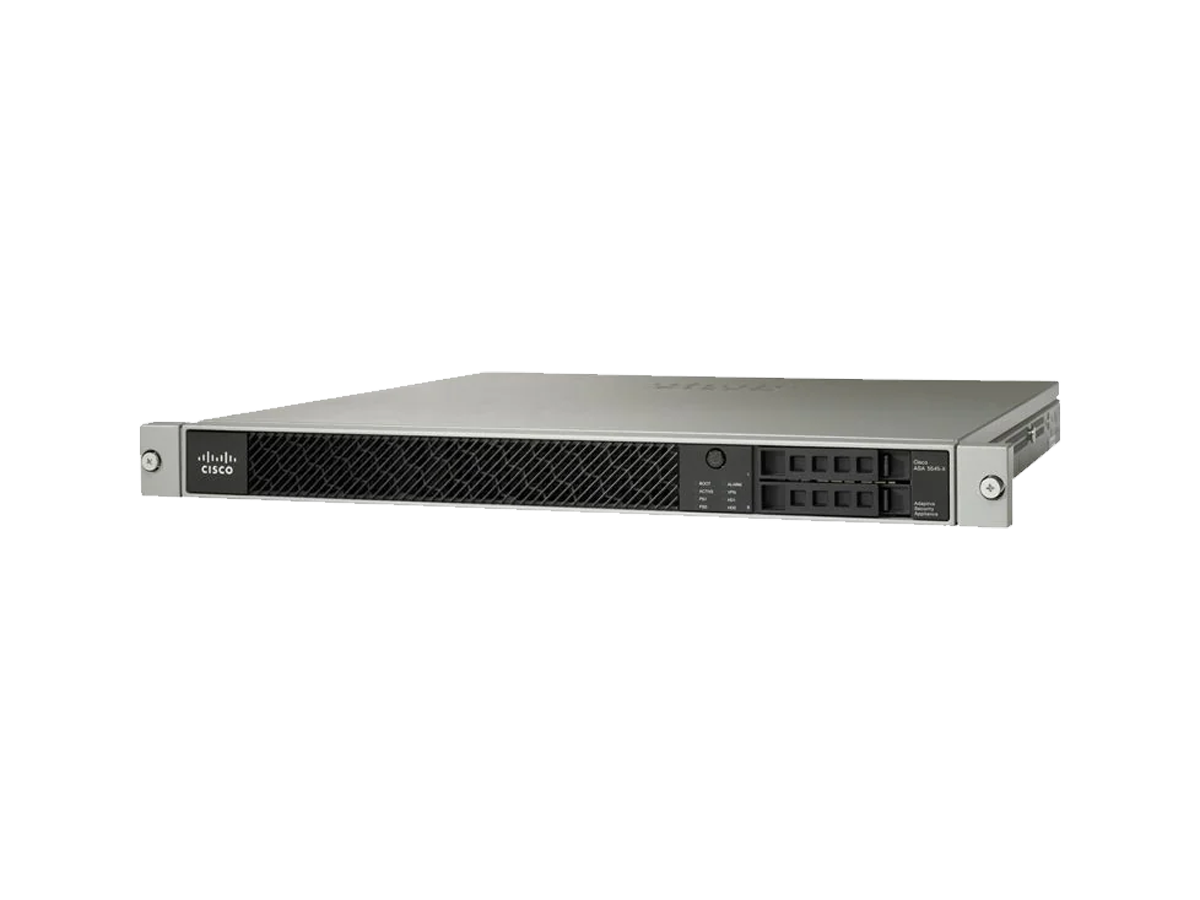

ASA5545-K9 - Cisco ASA 5500 Series Firewall Edition Overview
ASA5545-K9 - Cisco ASA 5500 Series Firewall Edition is a genuine network security and threat protection product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco ASA 5500 Series family, the ASA5545-K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, aggregate capacity of 400 Mbps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include perimeter protection with stateful inspection, branch-office security with VPN and threat prevention, and data-center north-south traffic filtering. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco ASA 5500 Edition Bundle ASA5545-K9 ASA 5545-X with SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the ASA5545-K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Perimeter Security
Stateful inspection and threat prevention at the edge.
Branch Protection
Secure branch offices with VPN and UTM.
Data Center
High-throughput filtering for north-south traffic.
Buying a Pre-Owned ASA5545-K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
ASA5545-K9 Specification | |
Stateful Inspection Throughput (Maximum) | 3 Gbps |
Stateful Inspection Throughput (Multiprotocol) | 1.5 Gbps |
IPS Throughput | 900 Mpbs |
Next-Generation Throughput(Multiprotocol) | 1 Gbps |
3DES/AES VPN Throughput | 400 Mbps |
Users/Nodes | Unlimited |
IPsec VPN Peers | 2,500 |
Cisco Cloud Web Security Users | 5,000 |
Premium AnyConnect VPN Peers(Included/Maximum) | 2/2500 |
Concurrent Connections | 750,000 |
New Connections/Second | 30,000 |
Virtual Interfaces (VLANs) | 300 |
Security Contexts (Included/Maximum) | 2; 50 |
High Availability | Active/Active and Active/Standby |
Expansion Slot | 1 interface card |
User-Accessible Flash Slot | - |
USB 2.0 Ports | 2 |
Integrated I/O | 8 GE Copper |
Expansion I/O | 6 GE Copper or 6 GE SFP |
Serial Ports | 1 RJ-45 console |
Solid State Drive | 2 slot, RAID 1 120 GB MLC SED |
Memory | 12 GB |
Minimum System Flash | 8 GB |
System Bus | Multibus architecture |
Temperature | 23 to 104°F (-5 to 40°C) |
Relative Humidity | 90 percent noncondensing |
Altitude | Designed and tested for 0 to 10,000 ft (3050m) |
Shock | 50G, 2 m/sec |
Vibration | 0.41 Grms2 (3 to 500 Hz) random input |
Acoustic Noise | 64.2 dBa max |
Temperature | -13 to 158ºF (-25 to 70ºC) |
Relative Humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 15,000 ft (4572m) |
Shock | 70G, 4.22 m/sec |
Vibration | 1.12 Grms2 (3 to 500 Hz) random input |
AC Range Line Voltage | 100 to 240 VAC |
AC Normal Line Voltage | 100 to 240 VAC |
AC Current | 4.85A |
AC Frequency | 50/60 Hz |
Dual-Power Supplies | Yes |
DC Domestic Line Voltage | -40.5 to 56 VDC (-48 VDC nominal) |
DC International Line Voltage | -55 to -72 VDC (-60 VDC nominal) |
DC Current | 15A (maximum input) |
Steady State | 86W |
Maximum Peak | 125W |
Maximum Heat Dissipation | 427 BTU/hr |
Form Factor | 1 RU, 19-in. rack-mountable |
Dimensions (H x W x D) | 1.67 x 16.7 x 19.1 in. (4.24 x 42.9 x 48.4 cm) |
Weight (with AC Power Supply) | 16.82 lb (7.63 kg) with single power supply 18.86 lb (8.61 kg) with dual power supply |
Safety | IEC 60950-1: 2005, 2nd Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd Edition; CSA C22.2 No. 60950-1-07, 2nd Edition |
Electromagnetic Compatibility (EMC) | CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008; FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSI C63.4 2009; ICES-003 ISSUE 4 FEBRUARY.2004; VCCI: V-3/2011.04; C-TICK: AS/NZS CISPR 22,2009 KC: KN22 & KN24 |
Industry Certifications | In process |
