ASR-9010-AC-V2 - Cisco Router ASR 9010

Description

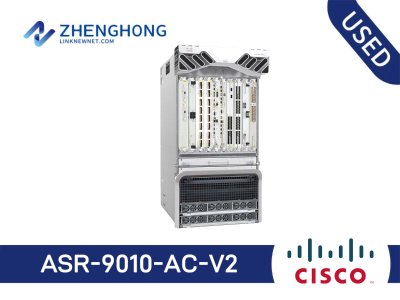

Cisco ASR 9010 System ASR-9010-AC-V2 ASR 9010 AC Chassis with PEM Version 2

Cisco ASR 9010 Specs

Physical specifications

Height: 36.75 in. (933.45 mm) (21 RU)

Width: 17.38 in. (441.45 mm)

Depth:

●  With doors: 29.03 in. (737.4 mm)

●  Without doors: 28.24 in. (717.3 mm)

Weight:

●  155.6 lb (70.73 kg) (chassis with PEM)

231.6 lb (105.27 kg) (fully loaded, excluding linecards and power modules) – RSP, two v2 fan trays, PEMs

Slot orientation

Vertical

Cisco ASR 9000 Series RSP

Dual redundant RSPs with integrated fabric in 2 slots

Cisco ASR 9000 Series line cards

8 line-card slots

“Commons” components

2 RSPs

2 fan trays

2 PEMs (either DC or AC)

1 fan filter

Reliability and availability

Fabric redundancy

Fan redundancy

Feed redundancy

Power-supply redundancy

RSP redundancy

Software redundancy

Rack mounting

19-in. default

21- and 23-in. adapters available

Note: Minimum 17.75-in. opening between posts is needed for proper operation

Cabinet mounting

Yes

Note: Doors not recommended in enclosed cabinets

Wall mounting

No

Airflow

Front-to-back

Performance

Thermal

Two fan trays:

●  12 high-efficiency fans per tray

●  Variable-speed fans for optimal thermal performance

●  No single point of failure

Modularity

Pay-as-you-grow power for future scalability, available in AC and DC.

Multiple power module types:

●  6 kW and 3 kW AC power modules

●  4.4 kW and 2.1 kW DC power modules

Note: Mixing of AC and DC modules is not supported

Redundancy

●  AC: N+N redundancy

●  DC: N+1 redundancy

●  Power module redundancy

●  A/B Feed redundancy

●  PEM redundancy

Power zones

No power zone restrictions

Fully load-sharing power infrastructure

Power input

Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum)

Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)

Power-module airflow

Front-to-back

Environmental Specifications

Operating temperature (nominal)

41 to 104ºF (5 to 40ºC)

Operating temperature (short-term)

ASR 9006: 23 to 131ºF (-5 to 55ºC)

ASR 9010: 23 to 122ºF (-5 to 50ºC)

Operating humidity (nominal) (relative humidity)

5 to 90%

Storage temperature

-40 to 158ºF (-40 to 70ºC)

Storage (relative humidity)

5 to 93%

Operating altitude

-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)

Regulatory Compliance

Network Equipment Building Standards (NEBS)

Cisco ASR 9010 Routers are designed to meet:

●  SR-3580: NEBS Criteria Levels (Level 3)

●  GR-1089-CORE: NEBS EMC and Safety

●  GR-63-CORE: NEBS Physical Protection

●  VZ.TPR.9205: Verizon TEEER

ETSI standards

Cisco ASR 9010 Routers are designed to meet:

●  EN300 386: Telecommunications Network Equipment (EMC)

●  ETSI 300 019 Storage Class 1.1

●  ETSI 300 019 Transportation Class 2.3

●  ETSI 300 019 Stationary Use Class 3.1

EMC standards emission

Cisco ASR 9010 Routers are designed to meet:

●  FCC Class 47CFR15 A

●  ICES 003 Class A

●  AS/NZS CISRP22 Class A

●  CISPR 22 (EN55022) Class A

●  VCCI Class A

●  BSMI Class A

●  IEC/EN 61000-3-12: Power Line Harmonics

●  IEC/EN 61000-3-11: Voltage Fluctuations and Flicker

●  EN55022: Information Technology Equipment (Emissions)

●  EN 50121-4: Railway EMC
