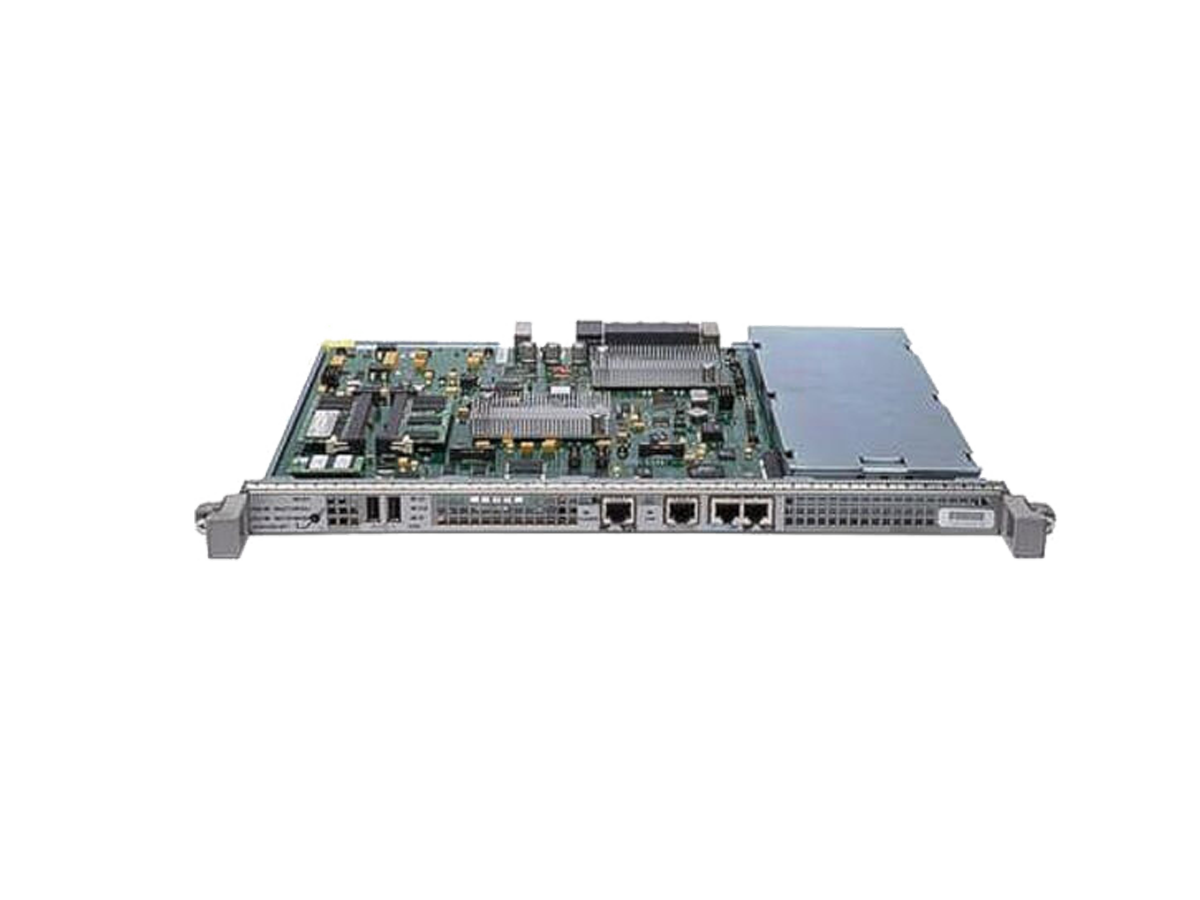

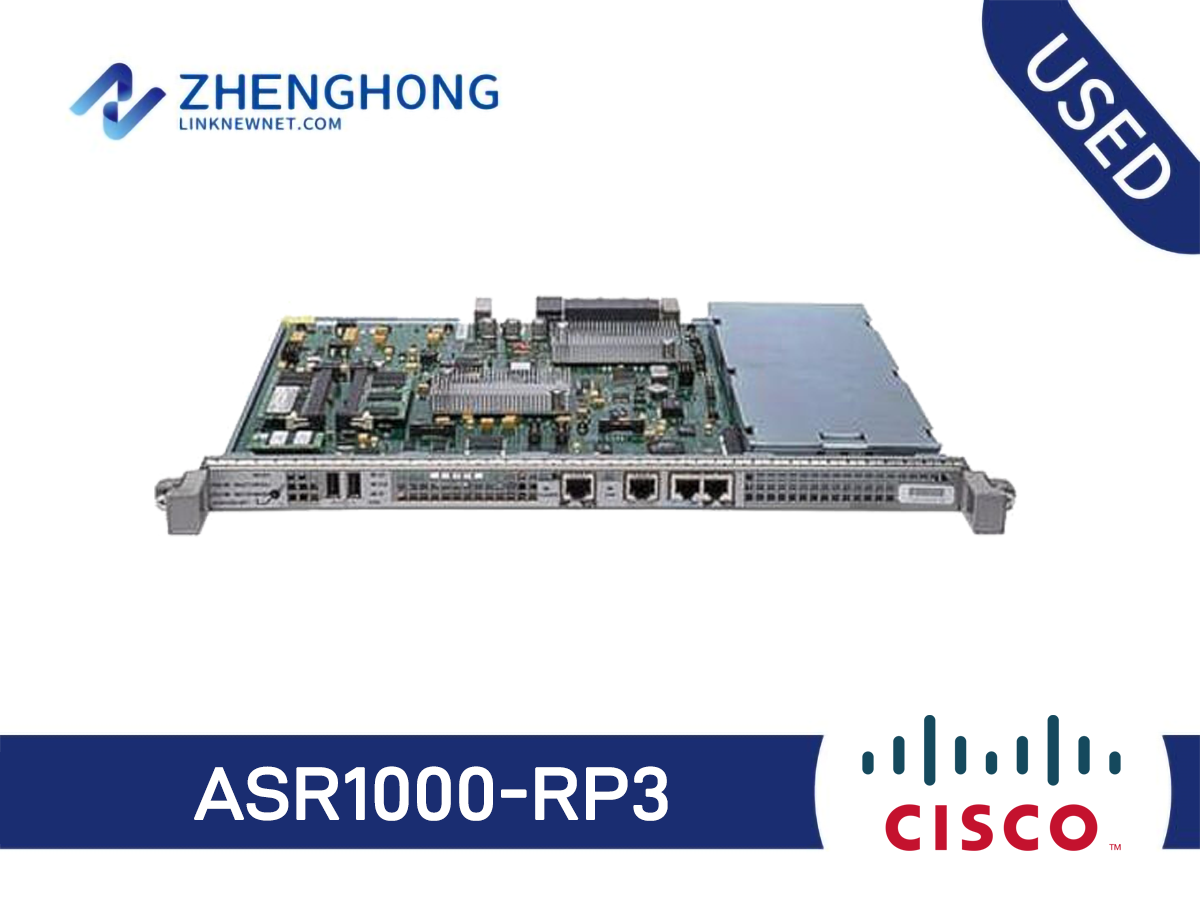

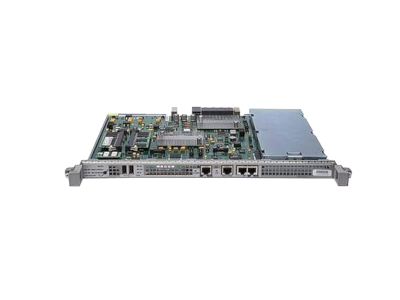

ASR1000-RP3 - Cisco ASR 1000 Series Processor Overview
ASR1000-RP3 - Cisco ASR 1000 Series Processor is a genuine modular capacity expansion product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco ASR 1000 Series family, the ASR1000-RP3 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco ASR 1000 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include adding ports and performance to existing chassis systems, modernizing legacy platforms with compatible line cards, and mixing copper, fiber and high-speed uplinks in one chassis. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “ASR 1000 Route Processor 3”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the ASR1000-RP3. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned ASR1000-RP3
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
ASR1000-RP3 Specifications | |
Software protocols | Refer to Cisco IOS XE 16.3.1 and later versions for protocol support |
Chassis support | Cisco ASR 1006-X, 1009-X, and 1013 chassis |
Software compatibility | Minimum Cisco IOS XE 16.3.1 Software (Please consult your Cisco account representative for additional details.) |
Software protocols | Refer to Cisco IOS XE 16.3.1 and later versions for protocol support |
Connectivity | ● Console port (RJ-45 connector) ● Auxiliary port (RJ-45 connector) ● 10/100/1000 Ethernet port (RJ-45 connector) ● RJ-48 connector for BITS input clock and output source |
Memory options | ● 8-GB memory default; upgradable to 16-GB, 32-GB, or 64-GB memory |
Storage options | ● 100-GB SSD (hot-swappable); upgradable to 200-GB or 400-GB SSD ● 1-GB USB compact flash memory |
Performance | With 8-GB memory: ● Up to 1,000,000 IPv4 routes or 1,000,000 IPv6 routes ● BGP RR scalability up to 8,000,000 IPv4 routes or 6,000,000 IPv6 routes With 16-GB memory: ● Up to 4,000,000 IPv4 routes or 4,000,000 IPv6 routes ● BGP RR scalability up to 24,000,000 IPv4 routes or 17,000,000 IPv6 routes |
Reliability and availability | ● 1 + 1 redundancy in dual-route-processor configuration ● Support for OIR ● Support for NSF and SSO ● Support for ISSU |
MIBs | ● RFC 2737 compliant |
Network management | ● Telnet and SSH (CLI) ● Console port (through the CLI) ● SNMP ● RFC 2665 |
LEDs | ● PWR - Power Green - All power rails are within specifications ● STAT - Status Green - Cisco IOS Software has booted Yellow - BootROM has successfully loaded Red - System failure or during boot process ● ACTV- Active Green - Active route processor ● STBY - Standby Yellow - Standby route processor ● CRIT - Critical alarm Red - Critical alarm or during boot process ● MAJ - Major alarm Red - Major alarm ● MIN - Minor alarm Amber - Minor alarm ● HD - Internal HDD FLASH Green - Activity indicator Off - No activity ● USB - External compact flash FLASH green - Activity indicator ● BF - Boot flash (Internal) FLASH green - Activity indicator Off - No activity ● CARRIER BITS I/F Mode Off - Out of service or not configured Green - Normal or bridging Amber - Fast ● DTI Mode Off - Warm-up, free-run, or holdover Green - In service or working properly Amber - Fault or loop condition ● LINK - Management Ethernet link status Solid green - Link with no activity FLASH green - Link with activity Off - No link ● DISK2 - Internal HDD FLASH green - Activity indicator Off - No activity ● CARRIER - BITS interface Off - Out of service Green - In frame and in service Amber - Fault or loop condition |
Physical dimensions (H x W x D) | 0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36m) |
Weight | 7 lb (3.2 kg) |
Approvals and compliance | Safety ● UL60950-1 and CAN/CSA-C22.2 No. 60950-1-03 Information technology equipment ● AS/NZS 60950-1 ● IEC/EN 60950-1 Information technology equipment ● 73/23/EEC Electromagnetic Emissions Certification ● CFR 47 Part 15: (FCC) Class A ● ICES 003 Class A ● AS/NZ CISPR 22: Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● KN22 ● IEC/EN 61000-3-2 (or 3-12 as applicable): AC Power Line Harmonics ● IEC/EN 61000-3-3 (or 3-11 as applicable): AC Voltage Fluctuations and Flicker Immunity ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8-kV Contact, 15-kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10 V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2-kV Power, 1-kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4-kV CM, 2-kV DM) ● IEC/EN-61000-4-5: Surge Signal Ports (1-kV indoor, 2-kV outdoor) ● IEC/EN-61000-4-5: Surge DC Port 1-kV ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30 A/m) ● IEC/EN-61000-4-11: Voltage Dips, Short Interruptions, and Voltage Variations Network Equipment Building Standards The module meets the following NEBS: ● GR-1089-CORE ● GR-63-CORE ETSI and EN Standards ● EN300 386: Telecommunications Network Equipment (EMC), OTC ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: 1995-Generic Immunity Standard |
Environmental | ● Storage temperature: -38 to 150°F (-40 to 70°C) ● Operating temperature, nominal: 41 to 104°F (5 to 40°C) ● Operating temperature, short-term: 23 to 131°F (-5 to 55°C) ● Storage relative humidity: 5 to 95% RH ● Operating humidity, nominal: 5 to 85% RH ● Operating humidity, short-term: 5 to 90% RH ● Operating altitude: -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
ASR1000-RP3 - Deployment Notes
This ASR1000-RP3 router serves branch, edge, or WAN-aggregation roles depending on the interface mix and forwarding capacity of the specific SKU. Verify the interface types (GE, 10GE, SFP, WAN), memory, and module slots that this variant provides against your deployment topology.
When planning a refresh, confirm the software feature set (base, advanced, security) applicable to this SKU and the licensed throughput. Our team can confirm software state and hardware revision before dispatch.
Each ASR1000-RP3 unit is inspected, tested and verified before leaving our facility, including interface operation, console access, and firmware state. Contact us for volume pricing and staged delivery options.
ASR1000-RP3 - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco module/line card expands the capability of a chassis platform, adding interface density, forwarding capacity, or service features. It is installed in a matching chassis slot and managed as part of the parent platform.
Deployment guidance: When planning this ASR1000-RP3 unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: ASR1000-SIP40, ASR1000-ESP200-X, ASR1000-MIP100=, ASR1000-2T+20X1GE=, EPA-2X40GE=. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
