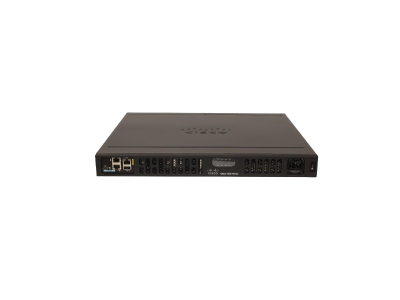

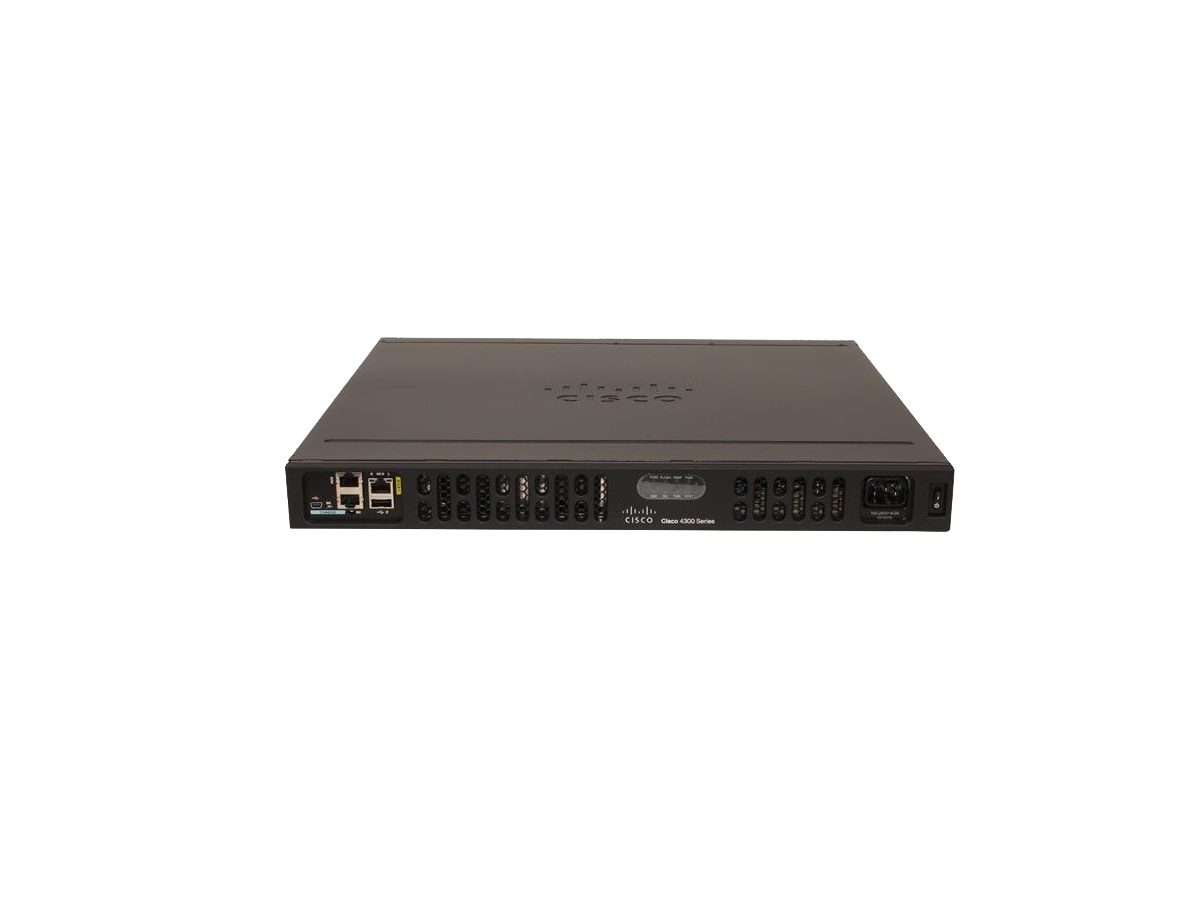

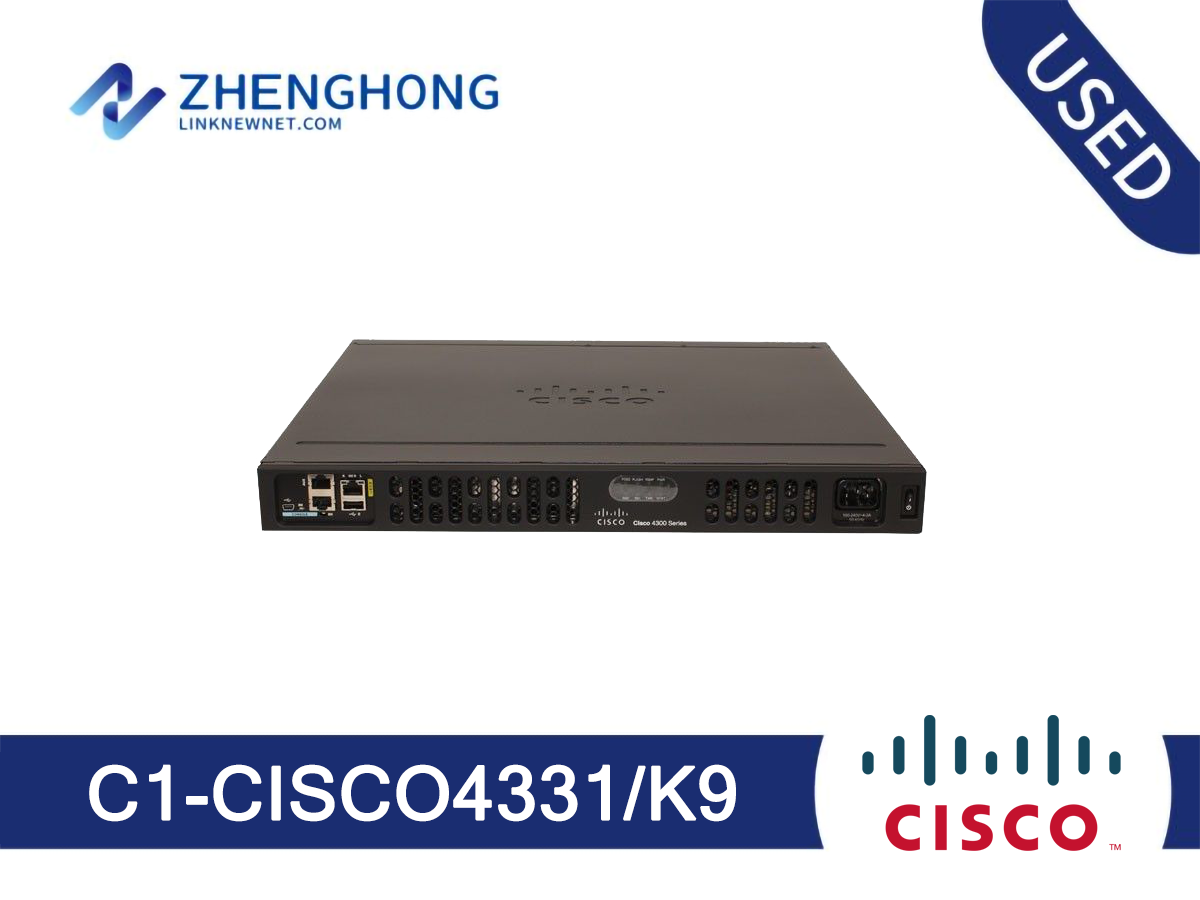

C1-CISCO4331/K9 Specification | |
Product Number  | C1-CISCO4331/K9  |
Product Description  | Cisco ONE ISR 4331 (3GE.2NIM.1SM.4G FLASH.4G DRAM.IPB)  |
Aggregate Throughput  | 100 Mbps to 300 Mbps  |
Total onboard WAN or LAN 10/100/1000 ports  | 3  |
RJ-45-based ports  | 2  |
SFP-based ports  | 2  |
Enhanced service-module slots  | 1  |
NIM slots  | 2  |
Typical power (no modules) (watts)  | 42  |
AC input frequency  | 47 to 63 Hz  |
AC input current range, AC power supply (maximum)  | 3 to 1.3A  |
OIR (all I/O modules)  | Yes  |
Onboard ISC slot  | 1  |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)  | 16 GB  |
Default flash memory  | 4 GB  |
Maximum flash memory  | 16 GB  |
External USB 2.0 slots (type A)  | 1  |
Power-supply options  | Internal: AC and PoE  |
AC input voltage  | 100 to 240 VAC autoranging  |
AC input surge current  | 60 A peak and less than 5 Arms per half cycle  |
