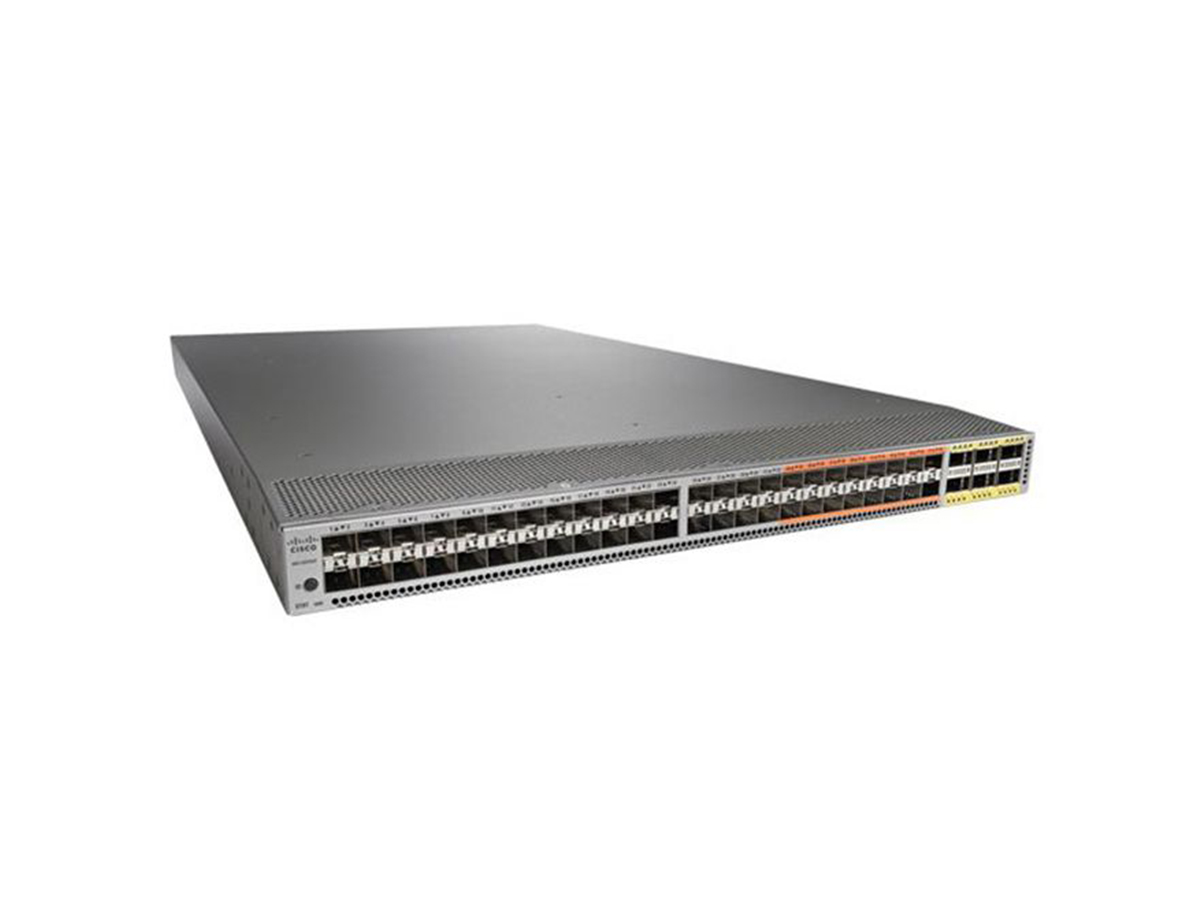

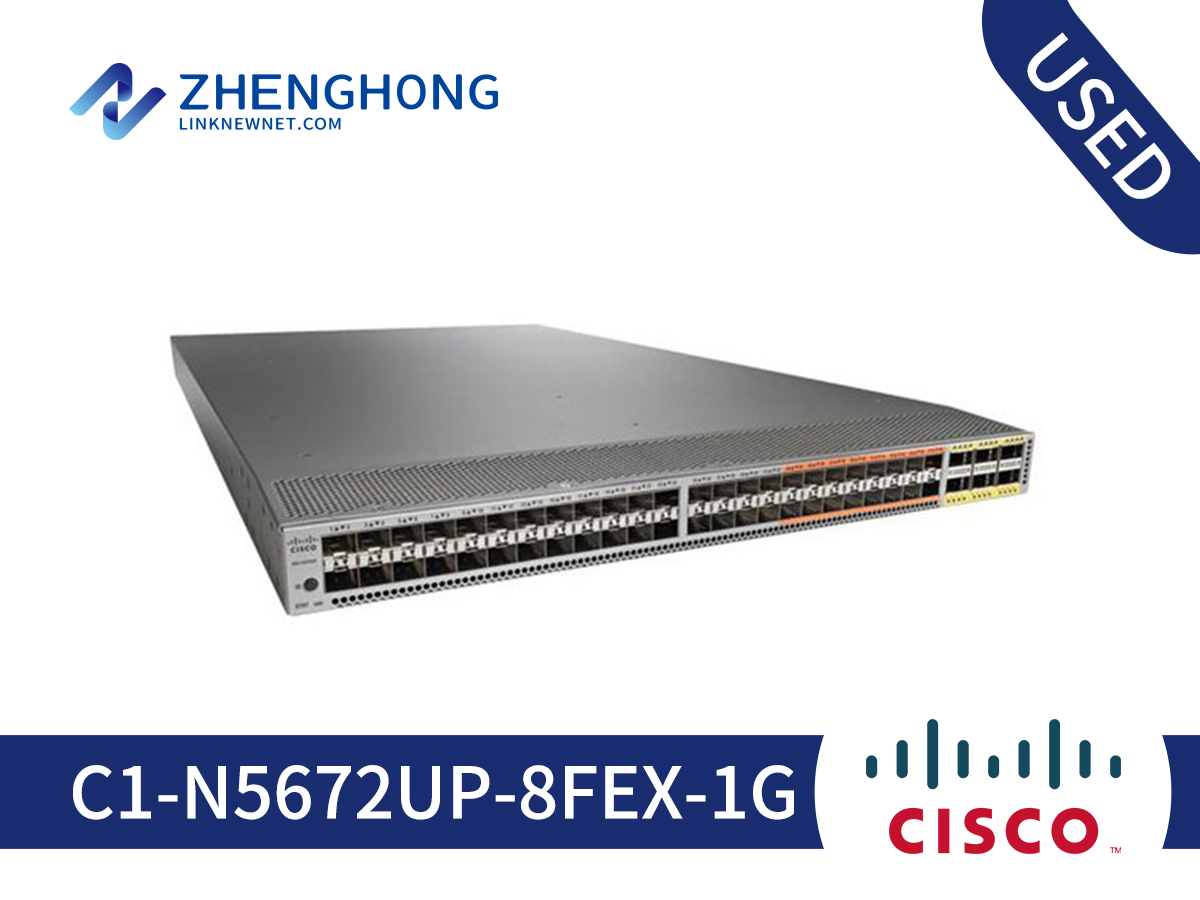

C1-N5672UP-8FEX-1G | |
Product list | |
Product code | C1-N5672UP-8FEX-1G |
Device Type | Switch - 48 ports - L3 - managed - with 8 x 1G FEXes with FETs |
Button | Rack-mountable 1U |
Subtype | 10 Gigabit Ethernet |
Product parameters | |
Port | 32 |
Port Type | 32 x 1 Gigabit / 10 Gigabit SFP+ + 16 x combo 1 Gigabit / 10Gb Ethernet / 2/4/8Gb Fibre Channel / FCoE SFP+ + 6 x 40Gb Ethernet / FCoE QSFP+ (breakout compatible) |
Interfaces | 48 x SFP+ ¦ 6 x QSFP+ ¦ 1 x console RJ-45 management ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x USB |
Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, FIP v1 |
Features | Routing, layer 3 switching, DHCP support, VPN support, ARP support, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, port air intake, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, SSH support, Jumbo Frames support, Dynamic ARP Inspection (DAI), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), IPv4 support, Link Aggregation Control Protocol (LACP), Per-VLAN Rapid Spanning Tree (PVRST), Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), Multicast VLAN Registration (MVR), Virtual Routing and Forwarding (VRF), redundant hot swappable fans, static routing, Transparent (N_Port ID Virtualization - NPIV) mode support, Registered State Change Notification (RSCN) support, Call Home function support, FCoE forwarding, STP PortFast, Class of Service (CoS), port exhaust, Multicast Source Discovery Protocol (MSDP), SNMP support, Virtual PortChannel (vPC) technology |
Introduction | The Cisco Nexus 5672UP is a wire-rate Layer 2 and Layer 3 switch offering 10 Gigabit Ethernet and unified ports (UP) in a compact one-rack-unit form factor. It is optimized for 10 Gigabit Ethernet top-of-rack access, Cisco Fabric Extender (FEX) aggregation, Virtual Extensible LAN (VXLAN) segmentation, and LAN-SAN convergence. It delivers high performance, operational efficiency, and design flexibility for traditional, virtualized, and cloud environments. |
Power Device | |
Power Device | Internal power supply - hot-plug |
Installed Qty | 2 (installed) / 2 (max) |
Power Provided | 1100W |
Input Voltage | AC 120/230 V (50/60 Hz) |
Physical specifications | |
Width | 17.3 in |
Height | 1.7 in |
Depth | 30 in |
Weight | 32 lbs |
Environmental Parameters | |
Min Temperature | 32 °F |
Max Temperature | 104 °F |
Humidity Operating | 10 - 85% (non-condensing) |
