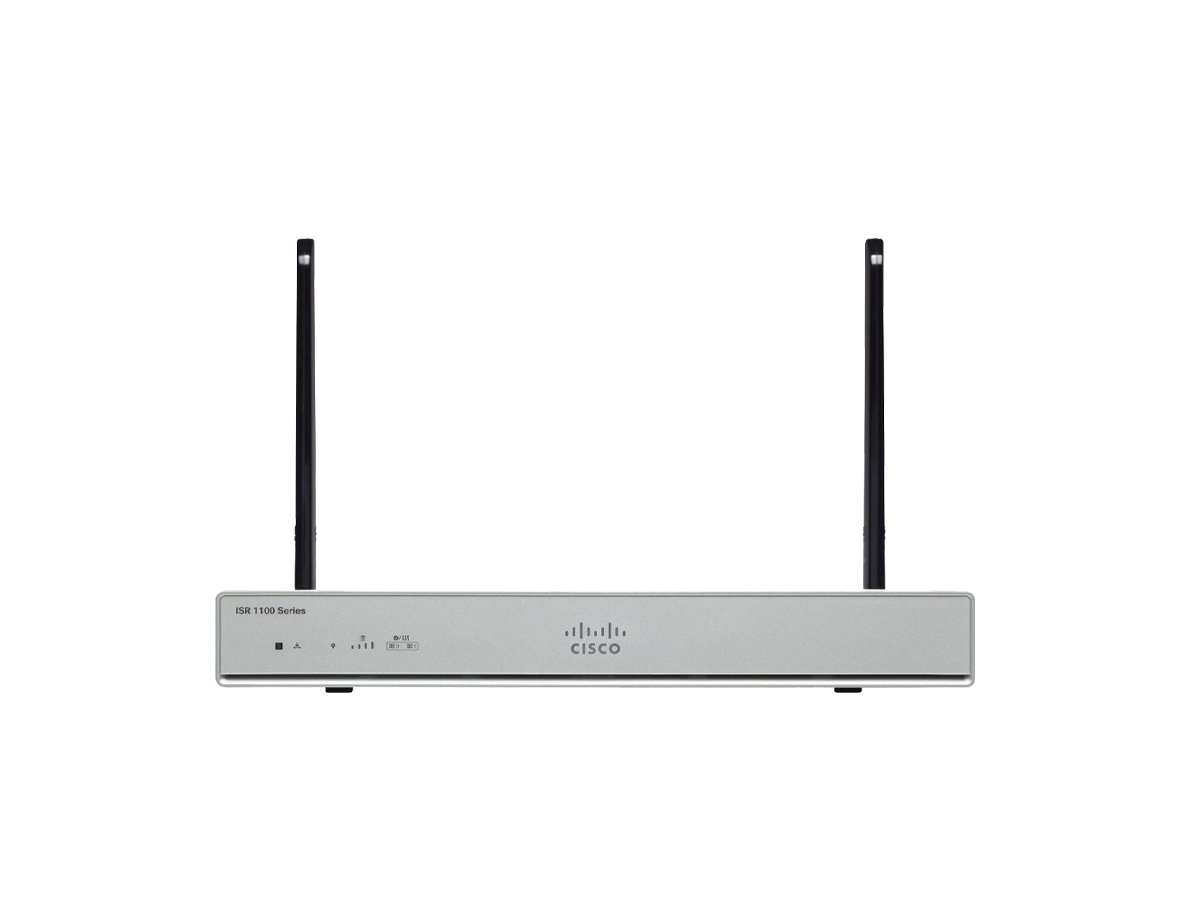

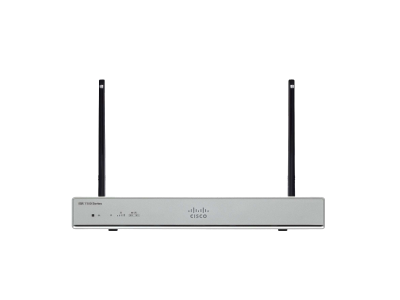

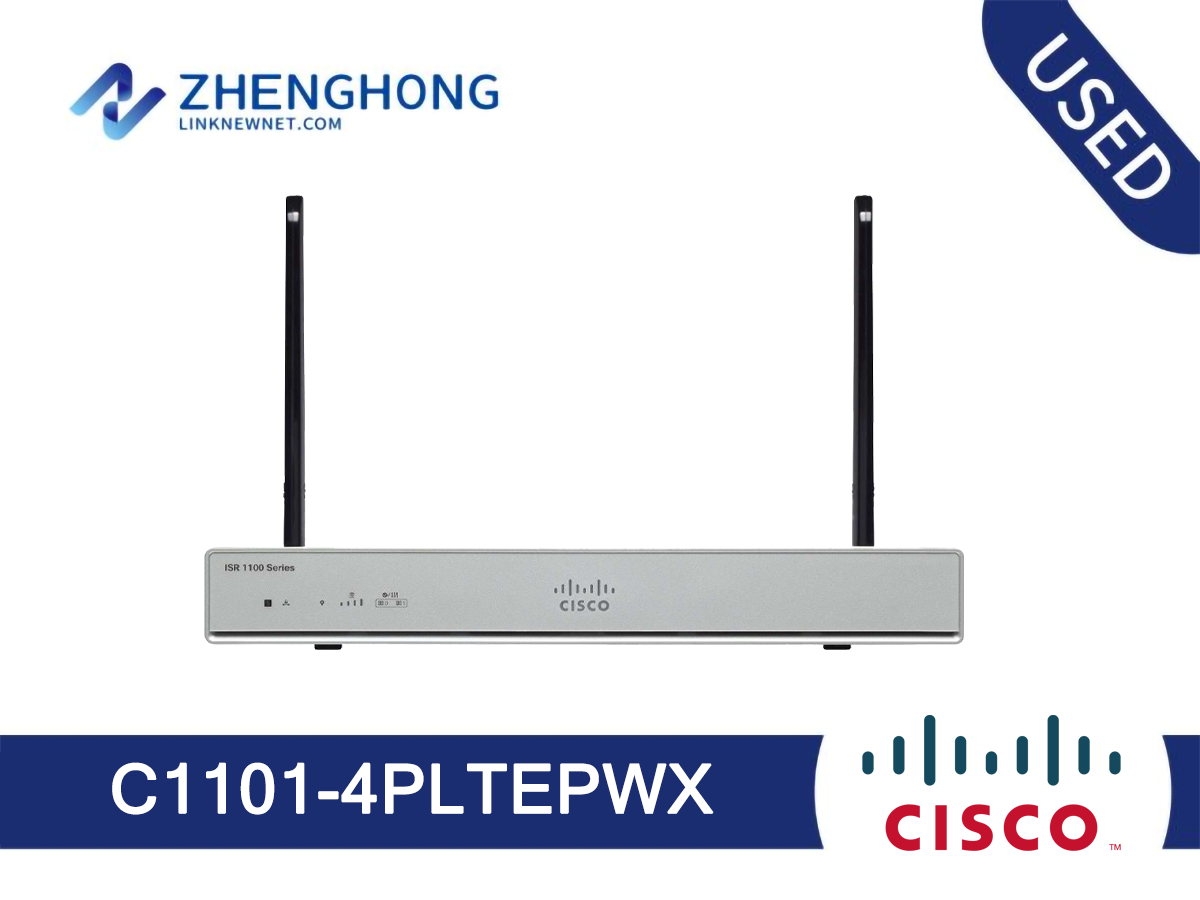

C1101-4PLTEPWX - Cisco Router ISR 1100 Series Overview
C1101-4PLTEPWX - Cisco Router ISR 1100 Series is a genuine edge and wide-area routing product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco Router ISR 1100 Series family, the C1101-4PLTEPWX unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco Router ISR 1100 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “ISR 1101 4 Ports LTE, X WiFi domain”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C1101-4PLTEPWX. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned C1101-4PLTEPWX
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C1101-4PLTEPWX Specification | |
GE | 1 |
802.11ac | 2X2 MIMO |
GE | 4 |
Integrated USB 3.0 AUX/console | Yes (No AUX) |
Pluggable | Yes (All) |
Memory (default and maximum) | DRAM: 4 GB Flash: 4 GB |
Console | · Micro USB console (USB 3.0). |
Mini-USB port (reserved) | · Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). |
External power supply | · AC input voltage: Universal 100 to 240 VAC. · Frequency: 50 to 60 Hz. · Maximum output power: 66W (default). · Output voltages: 12 VDC. · Optional PoE and PoE+: ◦ Single 150W power supply required for Cisco 1100-8P series router ◦ Single 115W power supply required for Cisco 1100-4P series router · External output voltage: 48 VDC. |
USB 3.0 | · USB devices supported: ◦ USB eTokens and USB flash memory · Note: Devices USB 3.0 supports to be connected externally. |
LEDs | · WWAN (green/amber). · SIM status (green/amber). · Received signal strength indication (RSSI) bar (green). · 3G/LTE service (green/amber). · GPS (green/amber). · Speed and link for Gigabit Ethernet WAN port (green). · Speed and link for all Fast Ethernet LAN ports (green). |
Physical dimensions (H x W x D) | 1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models) |
Weight | 3.34 lb (1.51kg) |
C1101-4PLTEPWX - Product Notes
This listing is a specific SKU variant of the C1101-4PLTEPWX family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
C1101-4PLTEPWX - Product Notes
This listing is a specific SKU variant of the C1101-4PLTEPWX family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
C1101-4PLTEPWX - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco router is positioned at the WAN edge, branch, or service-provider aggregation point. It provides routing, VPN, QoS and security services, and integrates with Cisco IOS-XE / IOS-XR management.
Deployment guidance: When planning this C1101-4PLTEPWX unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: C1121-4P, C1121-4PLTEP, C1117-4P, C1161X-8PLTEP, C1111-4PLTELA. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
