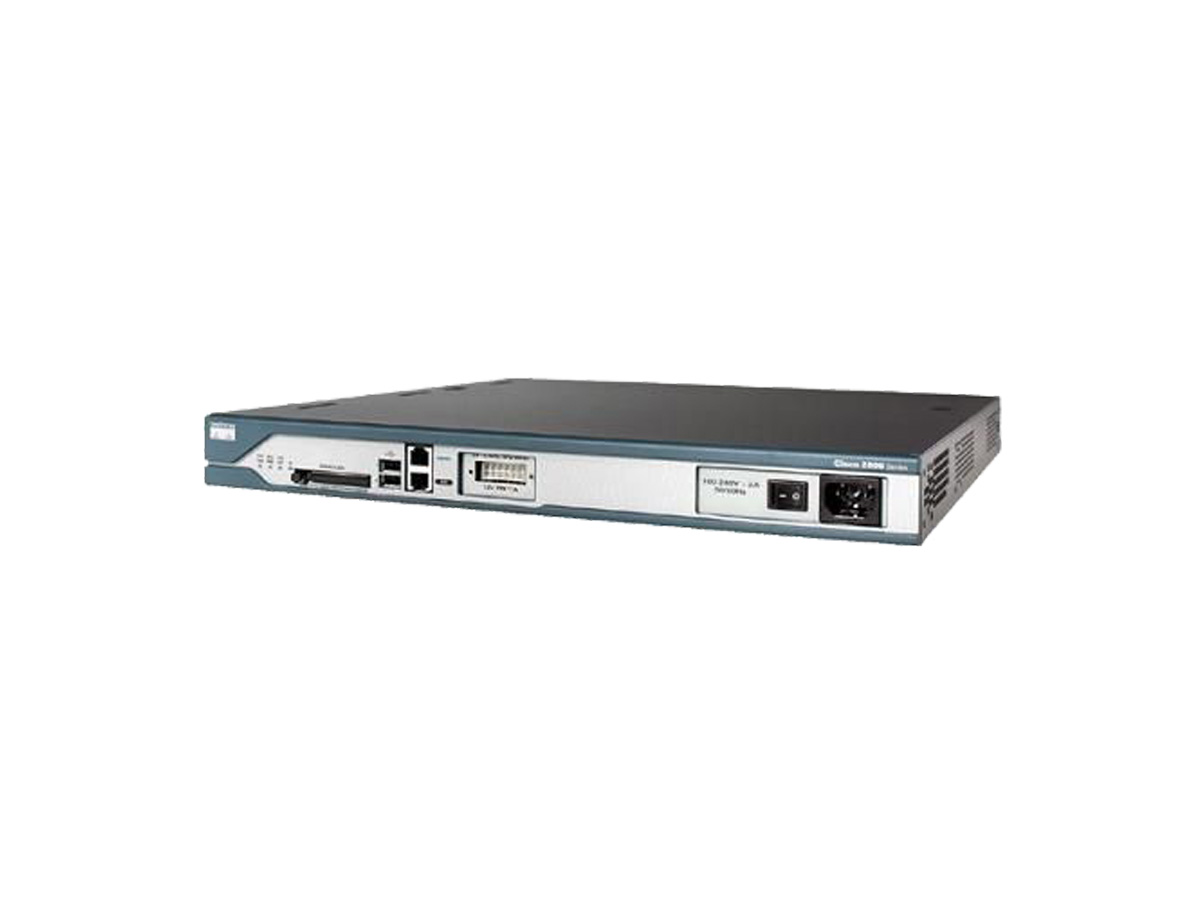

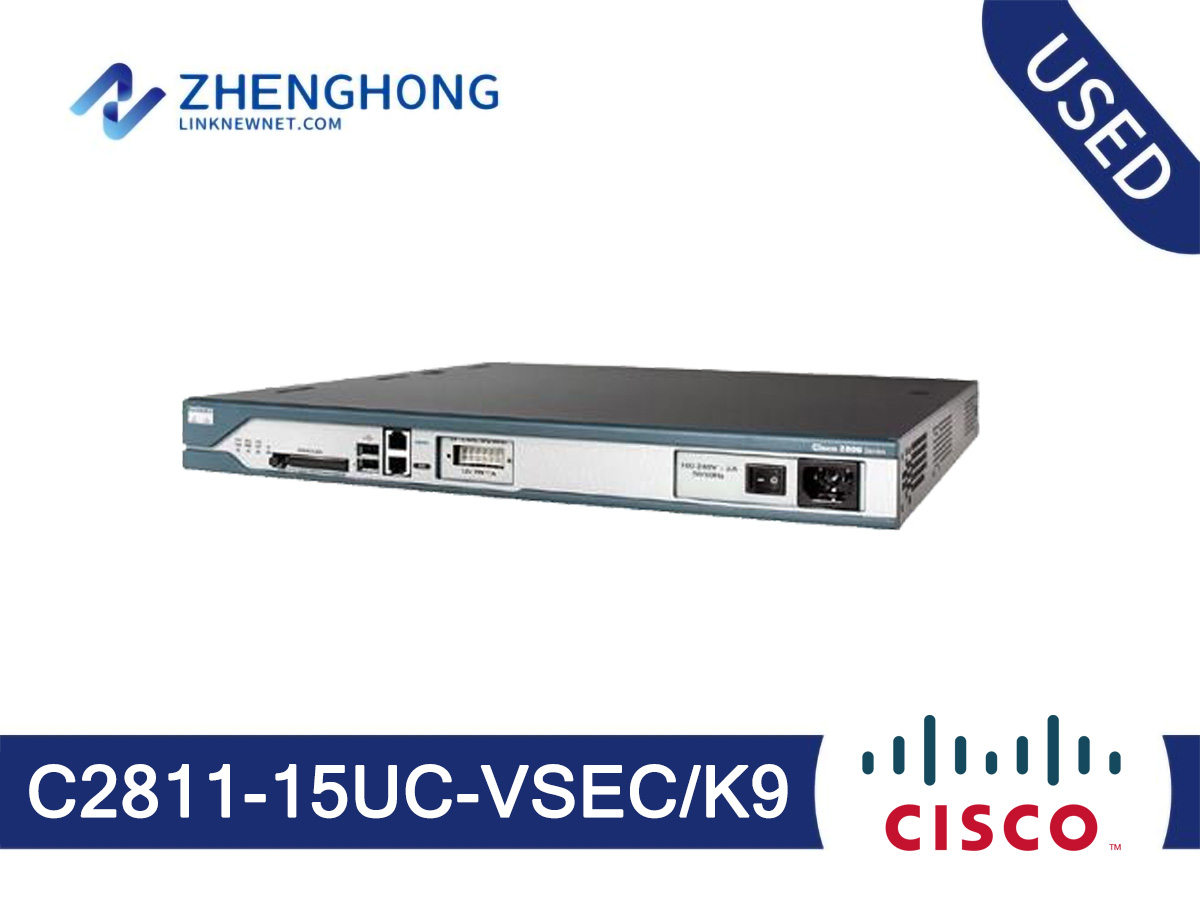

C2811-15UC-VSEC/K9 - Cisco 2800 Router Overview
C2811-15UC-VSEC/K9 - Cisco 2800 Router is a genuine edge and wide-area routing product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco family, the C2811-15UC-VSEC/K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, it offers 2 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “2811 w/ PVDM2-32,AIM-CUE,15 CME/CUE/Ph lic,Adv IP,128F/512D”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C2811-15UC-VSEC/K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned C2811-15UC-VSEC/K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C2811-15UC-VSEC/K9 Specification | |
| Interfaces/Ports | |
| Number of Ports: | 2 |
| Fast Ethernet Port: | Yes |
| Interfaces/Ports: | 2 x RJ-45 10/100Base-TX LAN |
| 2 x USB | |
| 1 x Console Management | |
| 1 x Auxiliary Management | |
| Media & Performance | |
| Connectivity Media: | Twisted Pair 10/100Base-TX |
| I/O Expansions | |
| Number of Expansion Slots: | 11 |
| Expansion Slots: | (2 Total /1 Free /1 Populated) AIM |
| (4 Total) HWIC | |
| (1 Total) Network Module | |
| (1 Total) EVM | |
| (3 Total /2 Free /1 Populated) PVDM | |
| Modules: | 1 x PVDM2-32 Packet Voice/Fax DSP Module |
| Management & Protocols | |
| Management: | Simple Network Management Protocol (SNMPv3) |
| Quality of Service (QoS) | |
| VLAN | |
| Web-based management | |
| Cisco Router and Security Device Manager (SDM) | |
| Security Features: | DES |
| 3DES | |
| AES 128, 192 and 256 | |
| Cisco IOS Software Firewall | |
| Secure Sockets Layer (SSL) | |
| Network Admissions Control (NAC) | |
| Intrusion Prevention System (IPS) | |
| Memory | |
| Standard Memory: | 256 MB |
| Maximum Memory: | 1 GB |
| Memory Technology: | DRAM |
| Flash Memory: | 128MB |
| Software | |
| Operating System: | Cisco IOS 12.3(8)T |
| Power Description | |
| Input Voltage: | 110 V AC |
| 220 V AC | |
| Input Voltage Range: | 100 V AC to 240 V AC |
| Power Source: | Power Supply |
| Redundant Power Supply: | Yes |
| Physical Characteristics | |
| Compatible Rack Unit: | 2U |
| Form Factor: | Rack-mountable |
| Dimensions: | 3.50" Height x 17.25" Width x 16.40" Depth |
| Weight (Approximate): | 25 lb |
| Miscellaneous | |
| Package Contents: | 2811 Integrated Services Router |
| 1 x PVDM2-32 | |
| Additional Information: | Network Module slot supports NM, NME, NME-X, NMD and NME-XD type modules |
| HWIC slots can support HWIC, WIC, VIC, or VWIC type modules | |
C2811-15UC-VSEC/K9 - Product Notes
This listing is a specific SKU variant of the C2811-15UC-VSEC/K9 family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
C2811-15UC-VSEC/K9 - Product Notes
This listing is a specific SKU variant of the C2811-15UC-VSEC/K9 family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
C2811-15UC-VSEC/K9 - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco router is positioned at the WAN edge, branch, or service-provider aggregation point. It provides routing, VPN, QoS and security services, and integrates with Cisco IOS-XE / IOS-XR management.
Deployment guidance: When planning this C2811-15UC-VSEC/K9 unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: CISCO2811, C2801-VSEC-SRST/K9, CISCO2811-16TS, CISCO2811-HSEC/K9, CISCO2811-ADSL2/K9. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: K9 = Cryptographic (encryption) software feature set - this suffix indicates the feature set, power, or regulatory variant of the C2811-15UC-VSEC/K9, which affects software licensing and regional compliance.
