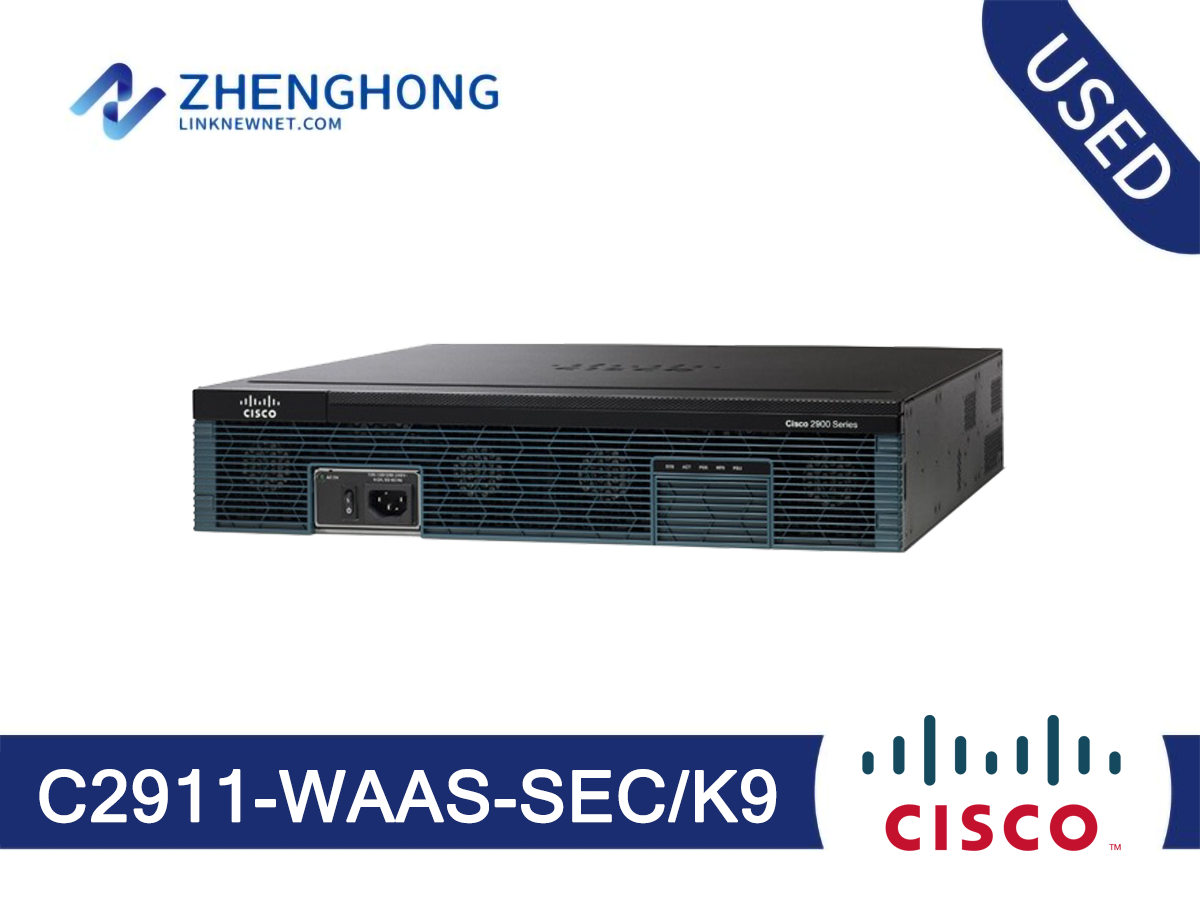

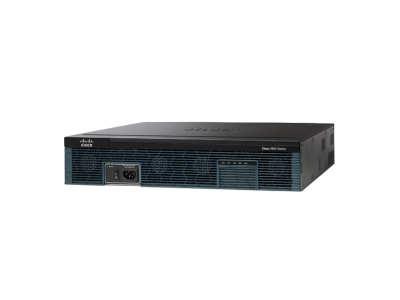

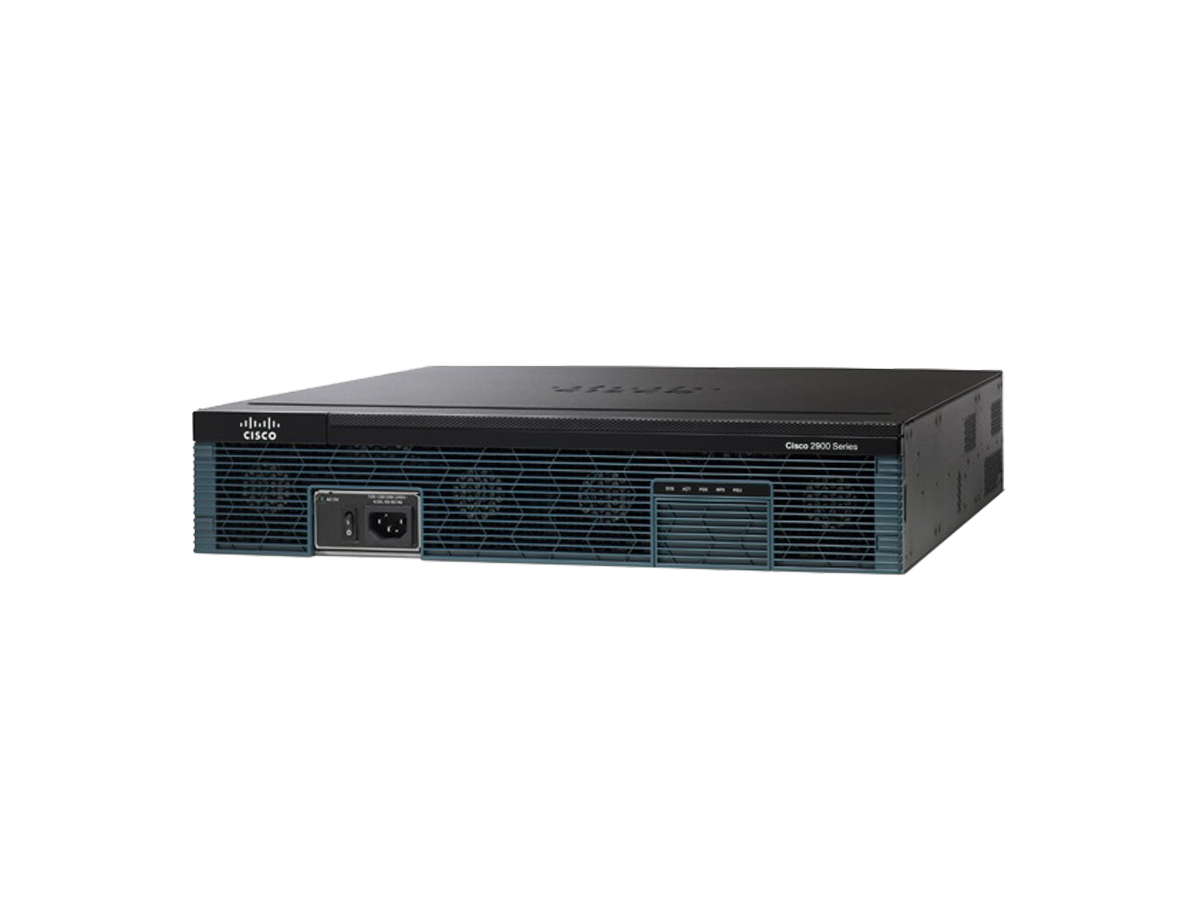

| C2911-WAAS-SEC/K9 Data Sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C2911-WAAS-SEC/K9 |
| Product Type | Router - with Cisco Services Ready Engine 700 Service Module |
| Form Factor | Rack-mountable - modular - 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | SSL |
| Features | Firewall protection, hardware encryption, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag |
| DRAM Memory | 512 MB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| LED Status Lights Indicators | Link activity, power |
| Connectivity Slots | |
| Router Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 USB : 2 x 4 pin USB Type A |
| Expansion Slot(s) | 4 (total) / 4 (free) x EHWIC 2 (total) / 2 (free) x PVDM 2 (total) / 1 (free) x CompactFlash Card 1 (total) / 1 (free) x expansion slot |
| Power Supply | |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Approximate Width | 17.2 in |
| Depth | 12 in |
| Height | 3.5 in |
| Weight | 18.1 lbs |
| System software | |
| IOS Software Included | Cisco IOS Security |
| Software Included | Cisco Wide Area Application Services Enterprise |
