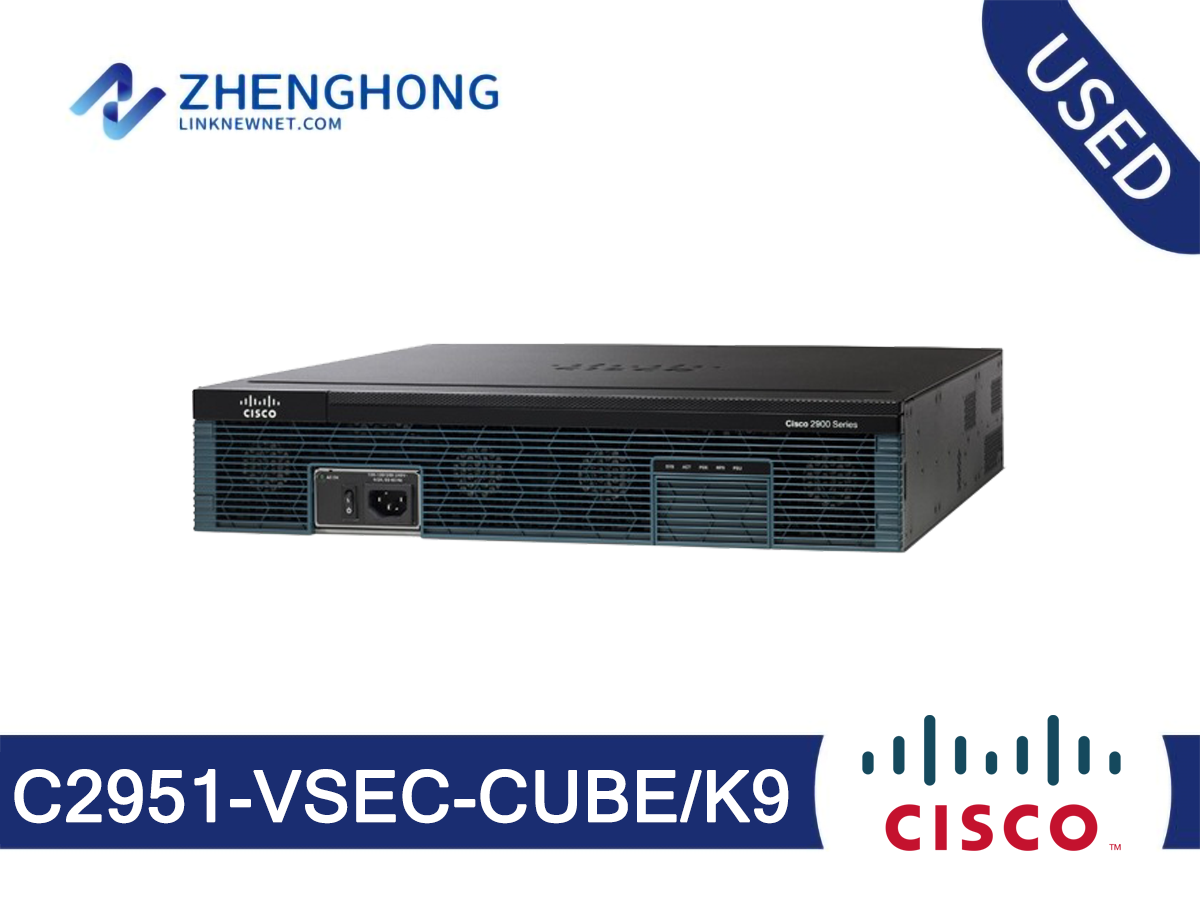

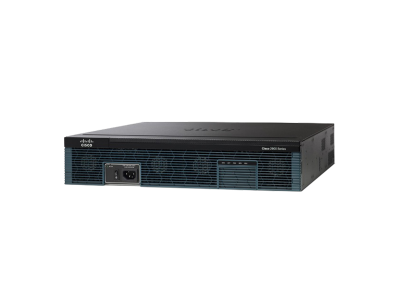

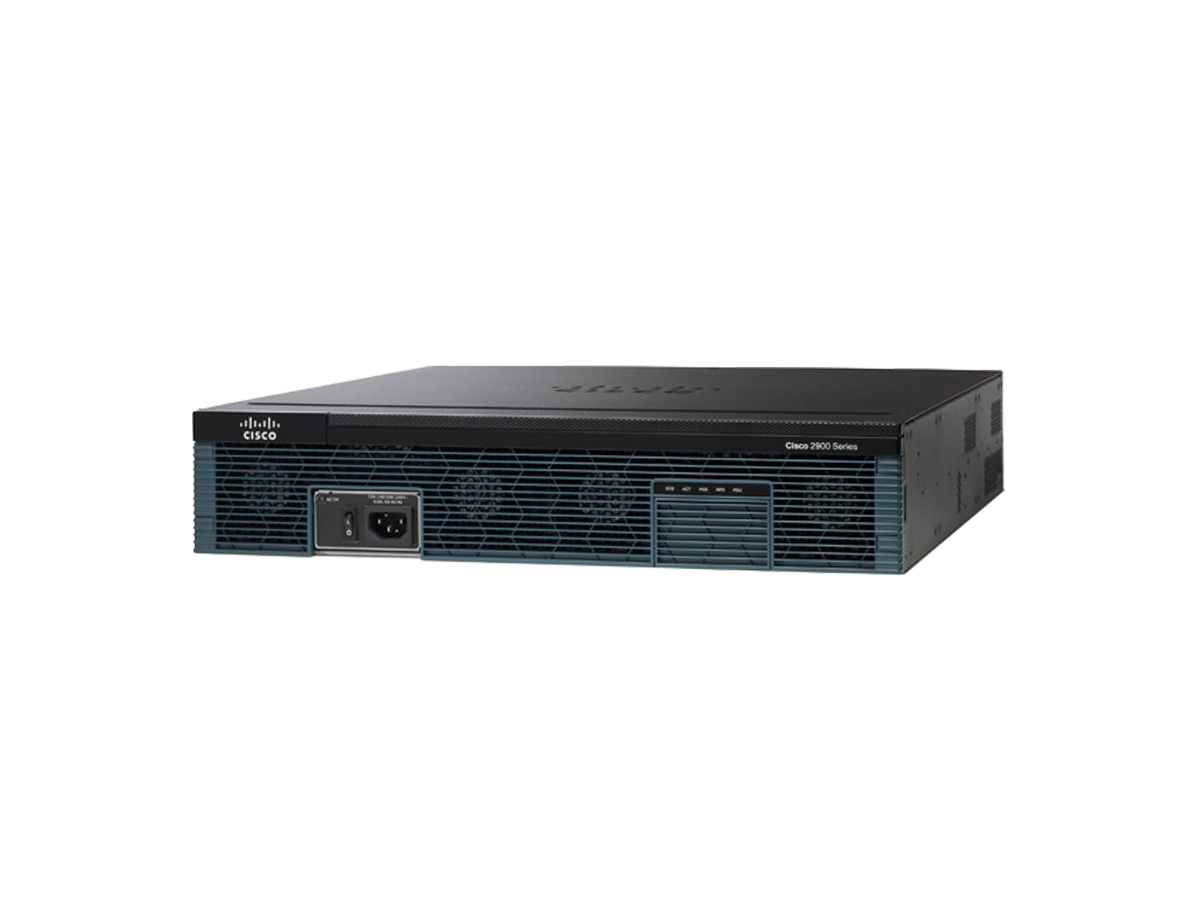

C2951-VSEC-CUBE/K9 - Cisco 2900 Series Integrated Service Router Overview
C2951-VSEC-CUBE/K9 - Cisco 2900 Series Integrated Service Router is a genuine edge and wide-area routing product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco 2900 Series family, the C2951-VSEC-CUBE/K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco 2900 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “C2951 VSEC CUBE Bundle, PVDM3-32, UC SEC Lic, FL-CUBEE-25”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C2951-VSEC-CUBE/K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned C2951-VSEC-CUBE/K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C2951-VSEC-CUBE/K9 Specification | |
General | |
Bundle | C2951 VSEC CUBE Bundle, PVDM3-32, UC SEC Lic, FL-CUBEE-25 |
Enclosure Type | Rack-mountable - modular - 2U |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | IPSec, L2TPv3 |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy- based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast |
Remote Management Protocol | SNMP, RMON, TR-069 |
Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow |
Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824 |
RAM | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Status Indicators | Link activity, power |
Expansion and Connectivity | |
Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management : 1 x console - RJ-45 ¦ Management : 1 x console - mini-USB Type B ¦ Serial : 1 x auxiliary - RJ-45 ¦ USB : 2 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC) |
Expansion Slot(s) | 4 (total) / 4 (free) x EHWIC ¦ 3 (total) / 3 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash Card ¦ 1 (total) / 1 (free) x ISM ¦ 2 (total) / 2 (free) x service module (SM) |
Power | |
Voltage Required | AC 120/230 V (50/60 Hz ) |
Miscellaneous | |
Dimensions (W × D × H) | 17.2 × 18.5 × 3.5 in (47 x 43.8 x 8.9 cm) |
Rack Mounting Kit | N/A |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, TIA/EIA/IS-968 |
