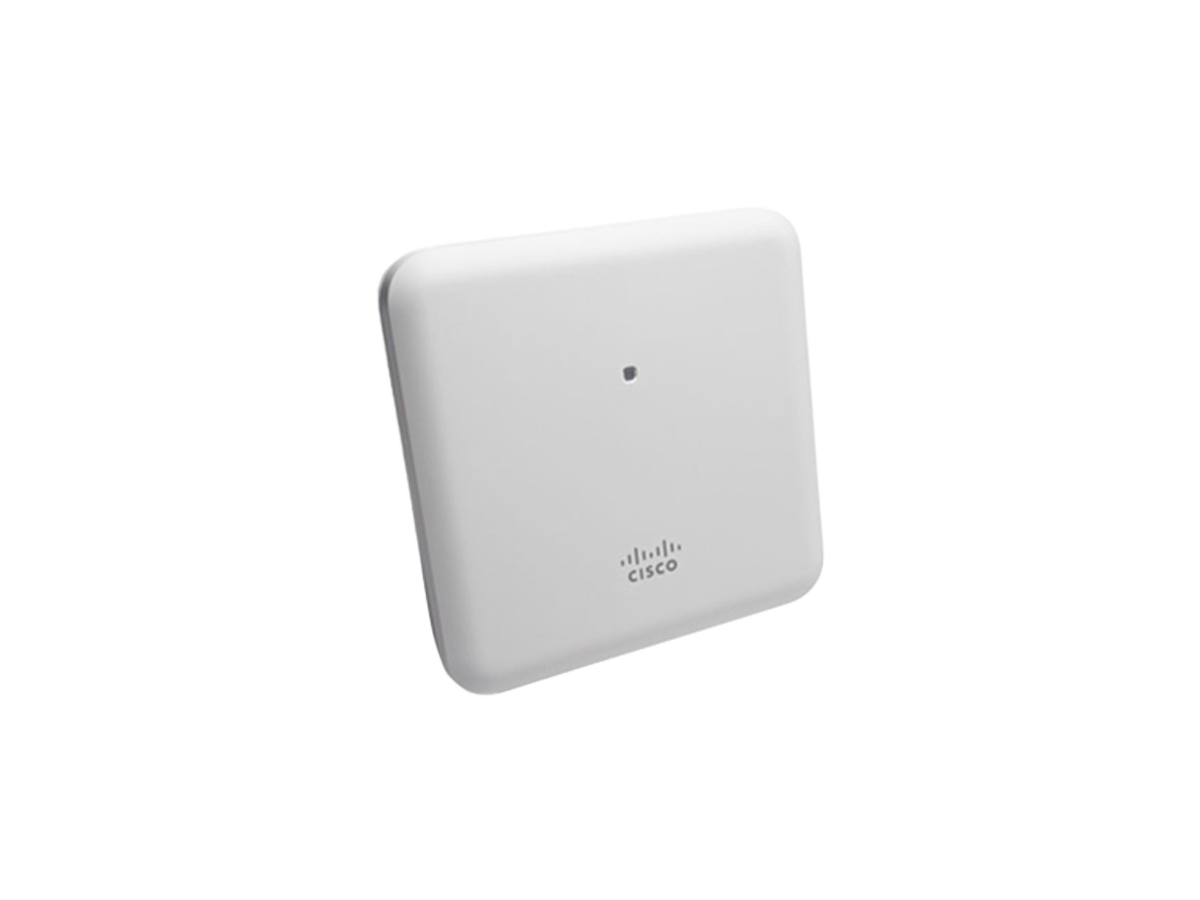

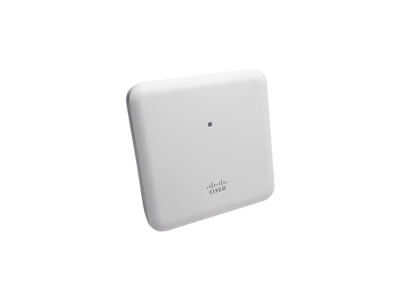

AIR-AP3802I-E-K9C - Cisco Aironet 3802i Access Point

802.11n version 2.0 (and related) capabilities

●  4x4 MIMO with three spatial streams

●  Maximal Ratio Combining (MRC)

●  802.11n and 802.11a/g beamforming

●  20- and 40-MHz channels

●  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 Dynamic Frequency Selection (DFS)

●  Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities

●  4x4 MIMO with three spatial streams

●  MRC

●  802.11ac beamforming

●  20-, 40-, and 80-MHz channels

●  PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 DFS

●  CSD support

802.11ac Wave 2 capabilities

●  4x4 MU-MIMO with three spatial streams

●  MRC

●  802.11ac beamforming

●  20-, 40-, 80, 160-MHz channels

●  PHY data rates up to 5.2 Gbps

●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

●  802.11 DFS

●  CSD support

Wi-Fi Alliance Certified

●  Wi-Fi Certified a, b, g, n, ac

●  Wi-Fi Vantage

●  WMM

●  Passpoint

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)

●  2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth

●  5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°

Dedicated 5-GHz radio

●  5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

External antenna (sold separately)

●  3802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

●  3802p Series access points are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR‑ANT2513-P4M-N= antenna

●  Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Smart antenna connector

●  Available on the 3802e Series and 3802p Series access points only

●  Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point

●  Required when running the flexible radio as either a:

◦   Second 5-GHz serving radio

◦   Wireless Security Monitoring radio

Interfaces

●  2 Ethernet ports

●  100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

◦   CAT 5e cabling

◦   Higher-quality 10GBASE-T (CAT 6/6a) cabling

●  100/1000BASE-T autosensing (RJ-45 - AUX port)

●  Management console port (RJ-45)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

●  Access point (without mounting brackets): 3802I: 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm), 3802E: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm), 3802P: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)

Weight

●  4.6 lb (2.09 kg)

Input power requirements

●  802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE ®)

●  802.3at power injector (AIR-PWRINJ6=)

●  50W power supply (AIR-PWR-50=)

Power draw

●  25.8W at the PSE (22.5W at the PD) with all features enabled except for the USB 2.0 port

●  30W at the PSE (25.5W at the PD) with the USB 2.0 port enabled

Environmental

Cisco Aironet 3800i

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

●  Operating temperature: 32° to 104°F (0° to 40°C)

●  Operating humidity: 10% to 90% percent (noncondensing)

●  Operating altitude test: 40˚C, 9843 ft.

Cisco Aironet 3800e

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

●  Operating temperature: -4° to 122°F (-20° to 50°C)

●  Operating humidity: 10% to 90% (noncondensing)

●  Operating altitude test: 40˚C, 9843 ft.

Cisco Aironet 3800p

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

●  Operating temperature: -4° to 122°F (-20° to 50°C)

●  Operating humidity: 10% to 90% (noncondensing)

●  Operating altitude test: 40˚C, 9843 ft.

System memory

●  1024 MB DRAM

●  256 MB flash

Available transmit power settings

2.4 GHz

●  23 dBm (200 mW)

●  20 dBm (100 mW)

●  17 dBm (50 mW)

●  14 dBm (25 mW)

●  11 dBm (12.5 mW)

●  8 dBm (6.25 mW)

●  5 dBm (3.13 mW)

●  2 dBm (1.

5 GHz

●  23 dBm (200 mW)

●  20 dBm (100 mW)

●  17 dBm (50 mW)

●  14 dBm (25 mW)

●  11 dBm (12.5 mW)

●  8 dBm (6.25 mW)

●  5 dBm (3.13 mW)

●  2 dBm (1.56 mW)

56 mW)
