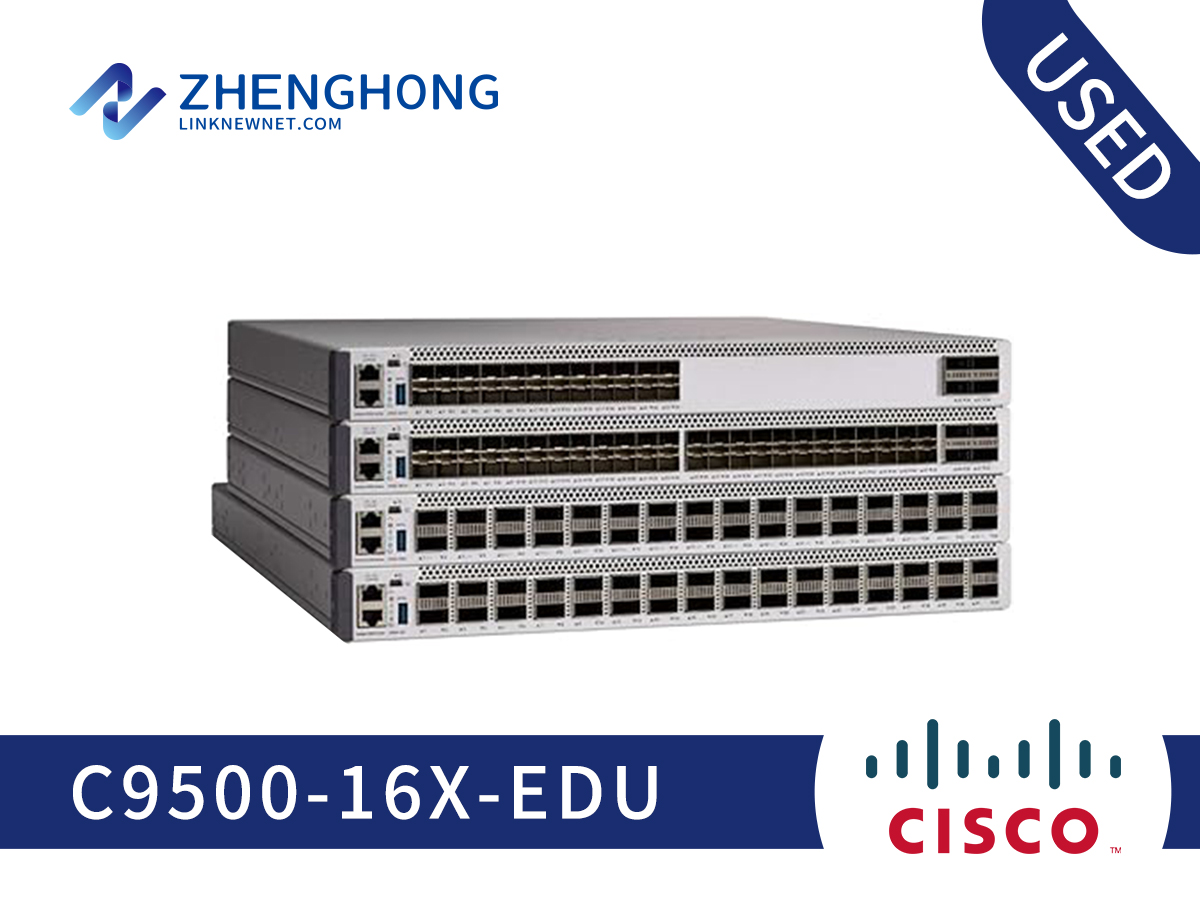

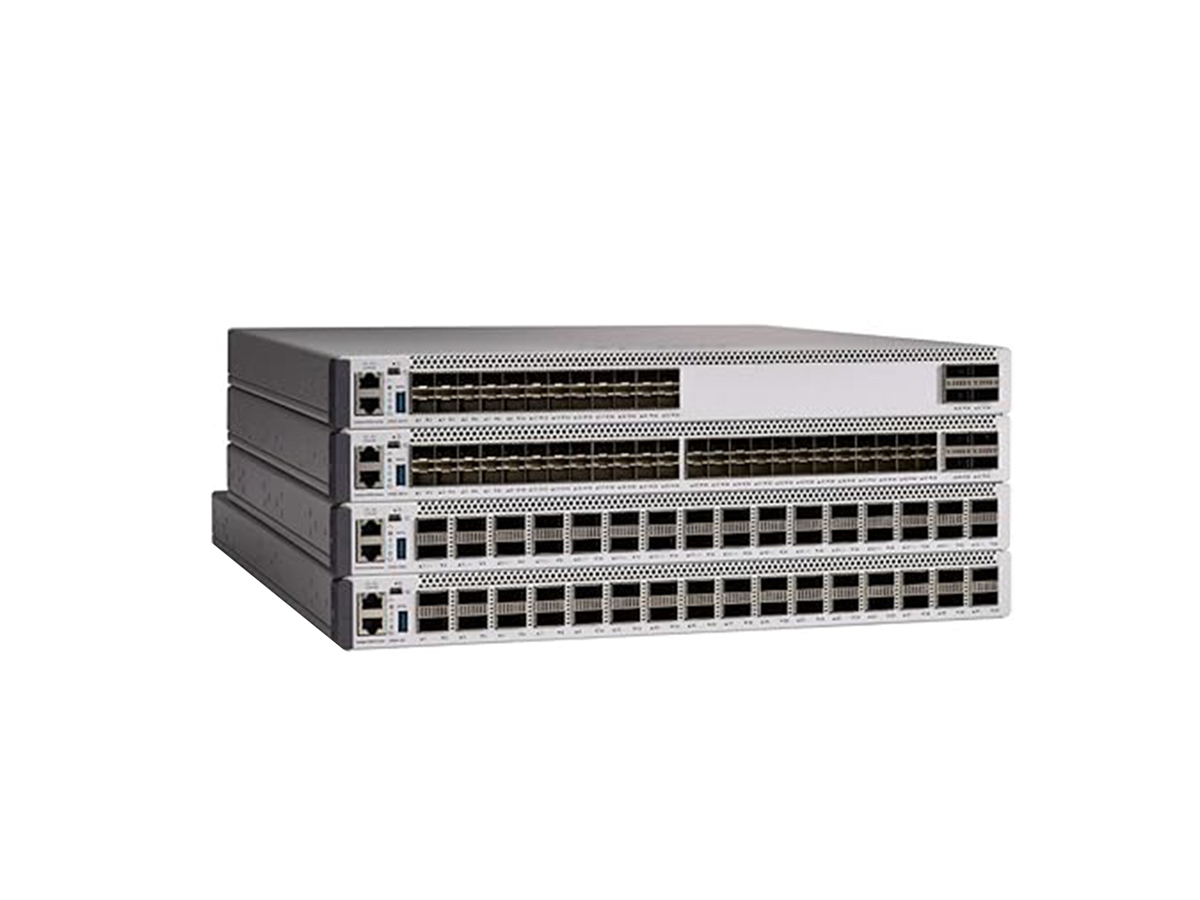

Cisco Switch Catalyst 9500 C9500-16X-EDU Overview
Cisco Switch Catalyst 9500 C9500-16X-EDU is a genuine core and distribution switching product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco family, the C9500-16X-EDU unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is positioned for campus core and distribution roles, aggregating traffic for large user populations with resilient failover behavior.
From a specification standpoint, aggregate capacity of 480 Gbps; packet forwarding up to 360 Mpps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Catalyst 9500 16-port 10G,ASIC”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C9500-16X-EDU. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned C9500-16X-EDU
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C9500-16X-EDU Specification | |
Product Code | C9500-16X-EDU |
Product Description | Catalyst 9500 16-port 10G, K12 |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
Rack units (RU) | 1 RU |
ASIC | UADP 2.0 |
Switching capacity | Up to 480 Gbps |
Forwarding rate | Up to 360 Mpps |
Total number of MAC addresses | Up to 64,000 |
MTBF (hours) | 315,790 |
Total number of IPv4 Multicast routes | Up to 32,000 |
Total number of IPv6 Multicast routes | Up to 16,000 |
Security ACL scale | Up to 18000 |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4094 |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
Minimum software requirement | Open Cisco IOS-XE Software Release 16.8.1 |
Input voltage | 90 to 264 VAC |
Operating temperature | 32°to 104°F (0°to 40°C) |
Storage temperature | -4°to 149°F (-20°to 65°C) |
Jumbo frame | 9198 bytes |
FNF entries | Up to 512,000 |
Altitude | Operation up to 13,000 feet at 40°C |
