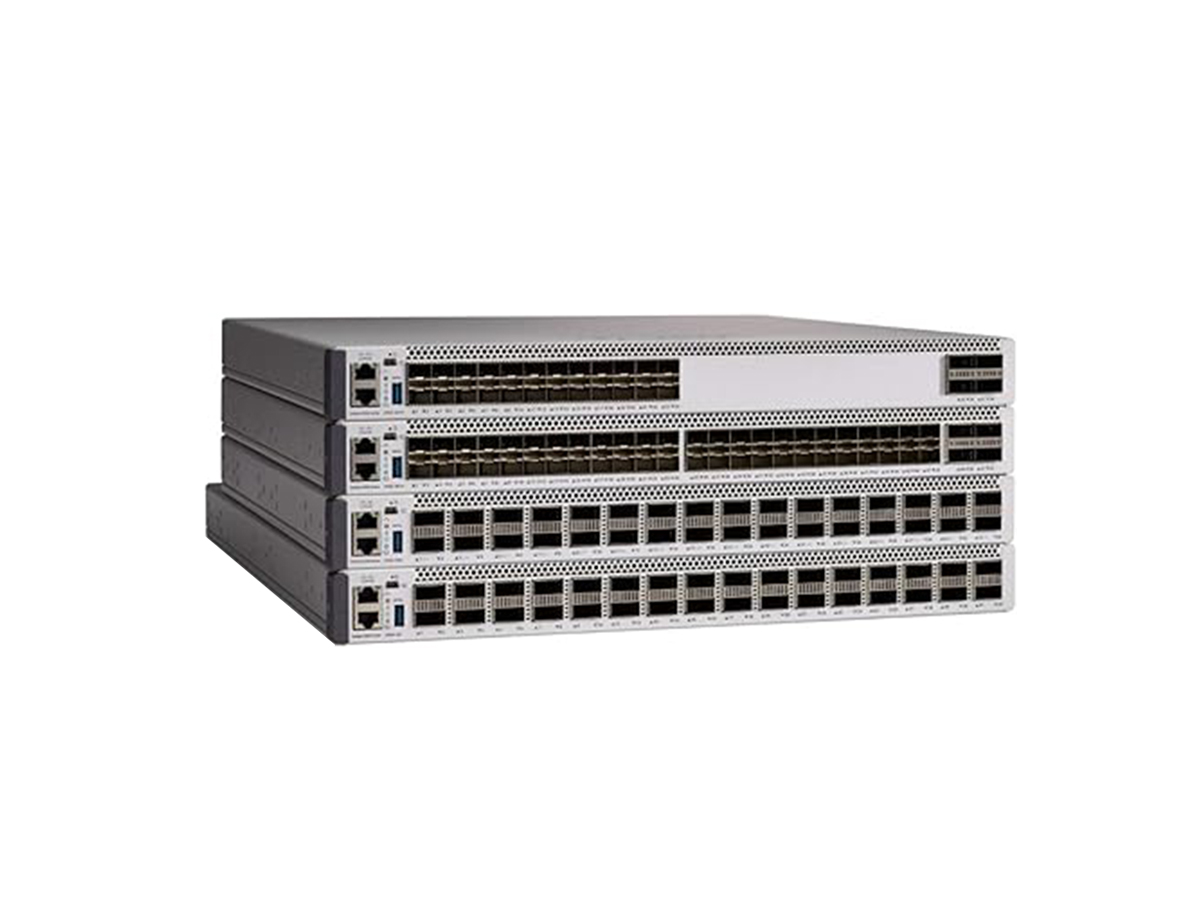

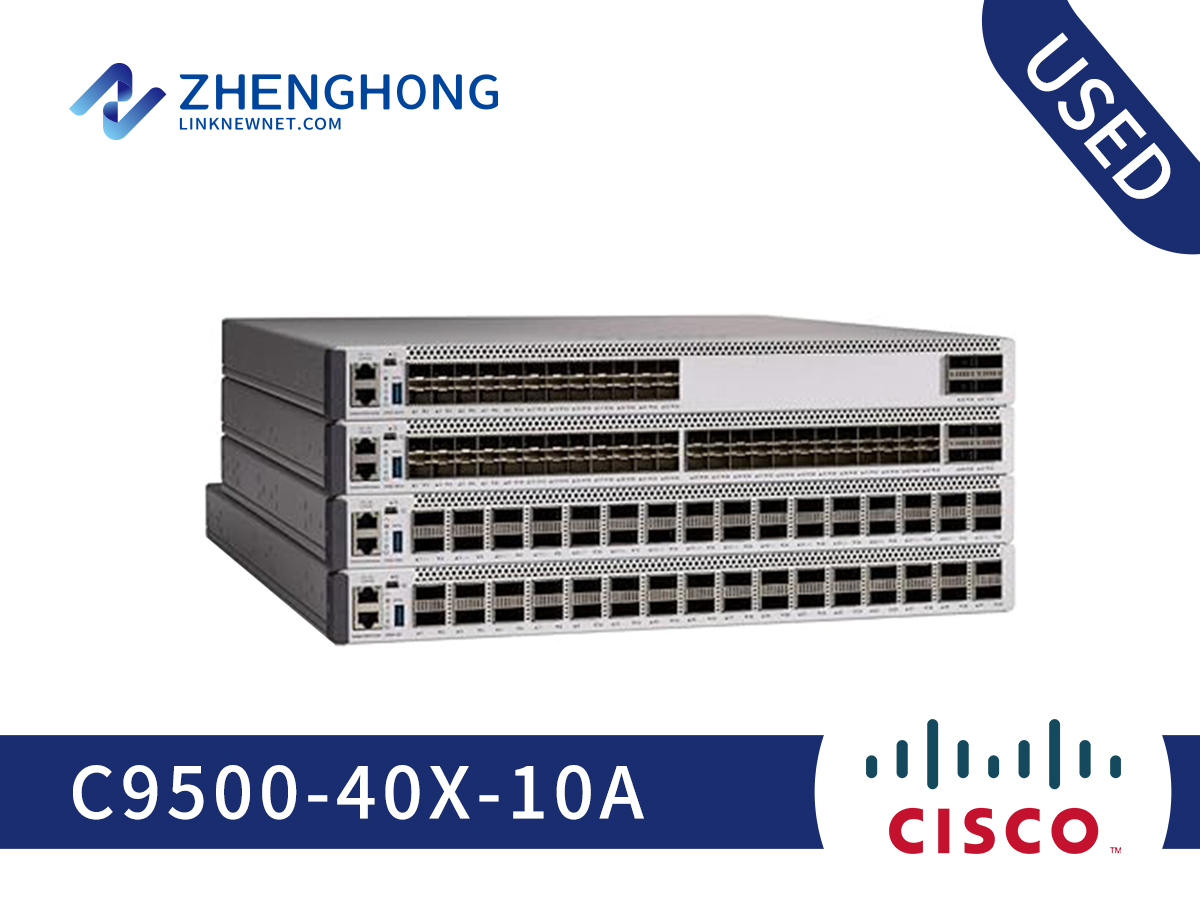

Cisco Switch Catalyst 9500 C9500-40X-10A Overview
Cisco Switch Catalyst 9500 C9500-40X-10A is a genuine core and distribution switching product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco family, the C9500-40X-10A unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is positioned for campus core and distribution roles, aggregating traffic for large user populations with resilient failover behavior.
From a specification standpoint, aggregate capacity of 960 Gbps; packet forwarding up to 720 Mpps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “9500 10Y DNA Advantage, HW”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C9500-40X-10A. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned C9500-40X-10A
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C9500-40X-10A Specification | |
Product Code | C9500-40X-10A |
Product Description | 9500 10Y DNA Advantage, HW |
Rack units (RU) | 1 RU |
Minimum software requirement | Open Cisco IOS XE Software Release 16.6.1a |
ASIC | UADP 2.0 |
Switching capacity | Up to 960 Gbps |
Forwarding rate | Up to 720 Mpps |
Total number of MAC addresses | Up to 64,000 |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 64,000 indirect Up to 80,000 host |
Total number of IPv6 routes | Up to 32,000 indirect Up to 40,000 host |
Total number of IPv6 Multicast routes | Up to 16,000 |
QoS ACL scale | Up to 18000 |
Security ACL scale | Up to 18000 |
FNF entries | Up to 512,000 |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4094 |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Jumbo frame | 9198 bytes |
Safety certifications
| C9500-12Q, C9500-24Q, C9500-40X, C9500-16X •UL 60950-1 •CAN/CSA-C22.2 No. 60950-1 •EN 60950-1 •IEC 60950-1 •AS/NZS 60950-1 •GB4943 C9500-32C, C9500-32QC, C9500-24Y4C, C9500-48Y4C •IEC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences •AS/NZS 60950.1.2011 •CAN/CSA-C22.2 No. 60950-1-07 •GB 4943-95 •EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences •NOM-019-SCFI-1998 •UL 60950-1, Second Edition |
EMI and EMC compliance | •47 CFR Part 15 Class A •CNS13438: 2006 Class A •EN 300 386 V1.6.1 •EN61000-3-2: 2014 •EN61000-3-3: 2013 •ICES-003 Issue 6: 2016 Class A •KN 32: 2015 Class A •TCVN 7189: 2009 Class A •EN 55032:2012/ AC:2013 Class A •EN 55032:2015 Class A •CISPR 32 Edition 2 Class A •V-2/2015.04 Class A •V-3/2015.04 Class A •CISPR24: 2010 + A1: 2015 •EN 300 386 V1.6.1 •EN55024: 2010 + A1: 2015 •KN35: 2015 •TCVN 7317: 2003 |
Input voltage | 90 to 264 VAC |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
Operating temperature | 32°to 104°F (0°to 40°C) |
Storage temperature | -4°to 149°F (-20°to 65°C) |
MTBF (hours) | 277,310 |
C9500-40X-10A - Deployment Notes
This C9500-40X-10A switch is suited to wiring-closet, distribution, or core roles depending on the port density and uplink options of the specific model. The port configuration is a key consideration when planning power budgets for attached devices such as IP phones and access points.
For a refresh or expansion, confirm the IOS/NX-OS software release supported by this specific SKU, the fan and power requirements, and the uplink modules that match your existing infrastructure. Our team can verify revision levels and software compatibility before you order.
Every unit at LinkNewNet is inspected and tested before dispatch, and this C9500-40X-10A variant is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Volume requirements can be staged with configuration checks.
C9500-40X-10A - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco Catalyst or Nexus switch is typically deployed in campus access, distribution, or data-center roles. It provides reliable Layer 2/3 switching for user, server and uplink connectivity, and integrates with Cisco DNA Center or traditional CLI-based management.
Deployment guidance: When planning this C9500-40X-10A unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: C9500-40X-A, C9500-40X-E, C9500-24Y4C-A, C9500-48Y4C-EDU, C9500-40X-E. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: A = AC power supply / Americas regulatory domain - this suffix indicates the feature set, power, or regulatory variant of the C9500-40X-10A, which affects software licensing and regional compliance.
