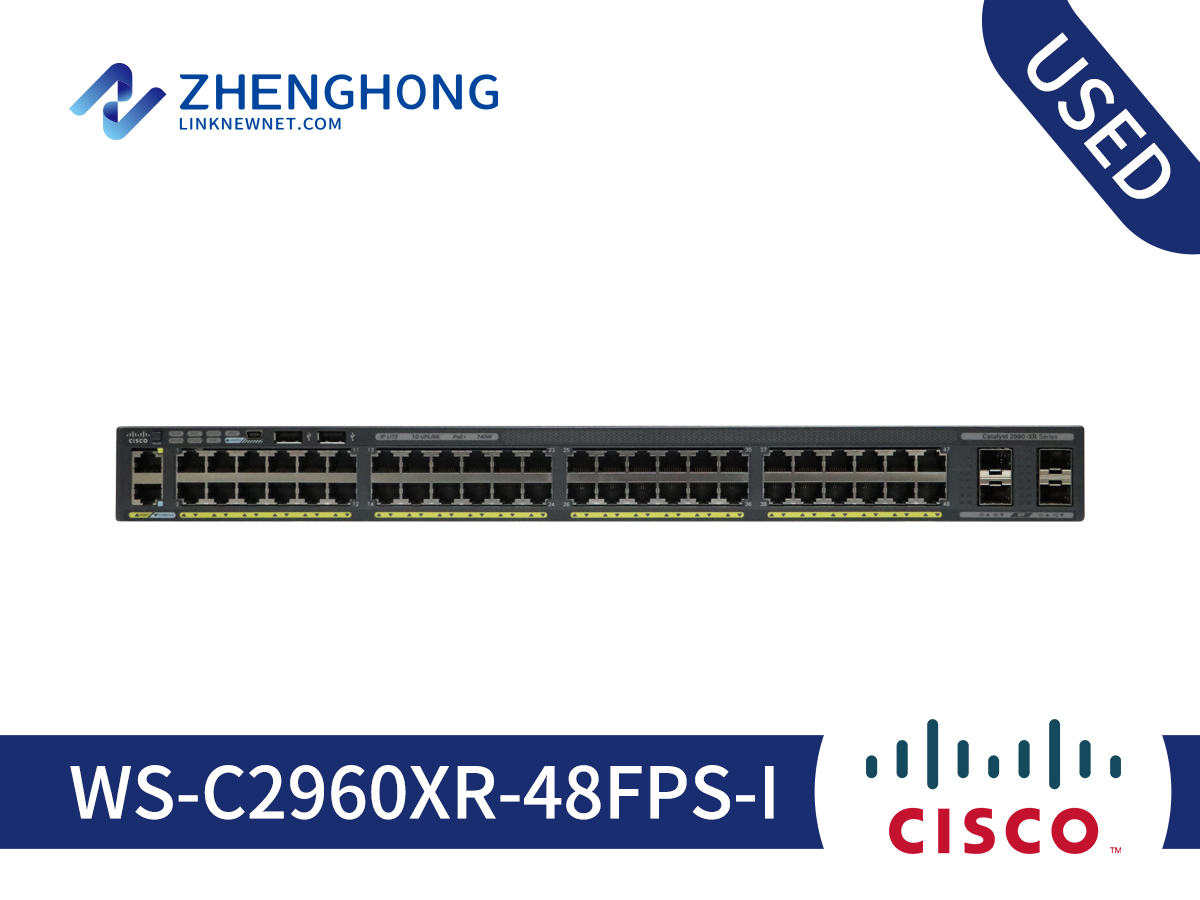

Cisco Catalyst 2960-XR Series Switch WS-C2960XR-48FPS-I Overview
Cisco Catalyst 2960 Series Switch WS-C2960XR-48FPS-I 2960-XR 48 GigE PoE 740W, 4 x 1G SFP, IP Lite
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned WS-C2960XR-48FPS-I
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| WS-C2960XR-48FPS-I | |
| Product list | |
| Product code | WS-C2960XR-48FPS-I |
| Power cable | No |
| Button | No |
| Product parameters | |
| Network PoE(RJ-45) Ports | 24 |
| Network PoE+(RJ-45) Ports | 24 |
| Port Detail | 48 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 3 |
| Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Management | Web-based Management VLAN QoS Syslog Telnet RMON I, II SNMP v1, v2c, v3 DHCP CLI |
| Introduction | All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. |
| Memory | |
| Memory Technology | DRAM |
| Standard Memory | 512 MB |
| Flash Memory | 128 MB |
| Power Device | |
| Power Source | Power Supply |
| Input Voltage | 110 V AC 220 V AC |
| Physical specifications | |
| Width | 17.5 in |
| Height | 1.8 in |
| Depth | 16 in |
| Weight | 14.7 lbs |
| Environmental Parameters | |
| Min Temperature | 23 °F |
| Max Temperature | 131 °F |
| Humidity Operating | 5 - 95% (non-condensing) |
