Cisco Catalyst 2960-X Series Switch WS-C2960X-48LPS-L

Model: WS-C2960X-48LPS-L

Detail: Cisco Catalyst 2960 Series Switch WS-C2960X-48LPS-L 2960-X 48 GigE PoE 370W, 4 x 1G SFP, LAN Base

Condition: USED

List Price: $520 Price: $312

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C2960X-48LPS-L Overview

Cisco Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power over Ethernet Plus(PoE+) that supports up to 370W of PoE budget for 12 ports with 30W per port, or 24 ports with 15.4W per port or 48 ports with 7.4W per port.

Quick Specs

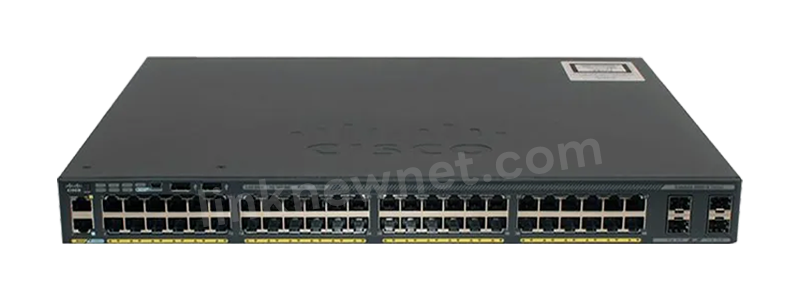

Figure 1 shows the appearance of WS-C2960X-48LPS-L.

Table 1 shows the Quick Specs.

Product Code	WS-C2960X-48LPS-L
Enclosure Type	Rack-mountable - 1U
Feature Set	LAN Base
Uplink Interfaces	4 x 1G SFP
Ports	48 x 10/100/1000 Ethernet Gigabit ports
Available PoE Power	370W
Maximum stacking number	8
Stack bandwidth	80G
Forwarding Performance	107.1Mpps
Switching Bandwidth	216Gbps
RAM	512 MB
Flash Memory	128 MB
Dimensions	44.5 cm x 36.8 cm x 4.5 cm
Package Weight	10.65 Kg

Product Details

Figure 2 shows the front panel of the Cisco Catalyst 2960X-48LPS-L switch.

WS-C2960X-48LPS-L (2).png

Note:

① Ethernet management port
② Mode button
③ Switch LEDs
④ USB mini-Type B (console) port
⑤ USB Type A ports
⑥ SFP module ports
⑦ 48 x 10/100/1000 ports
⑧ CONSOLE LED
⑨ MGMT LED
⑩ RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.

·Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port.

Figure 3 shows the back panel of the Cisco Catalyst 2960X-48LPS-L switch.

Note:

①FlexStack-Plus module slot and cover
②Fan Exhaust
③RPS Connector
④AC power connector

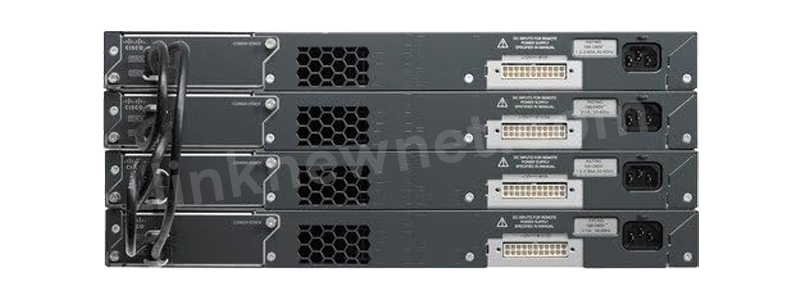

Figure 4 shows the stackable capacity.

This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.

WS-C2960X-48LPS-L (3).png

The Accessories

Table 2 shows some accessories of WS-C2960X-48LPS-L.

Models	Description
C2960X-STACK	Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M	Cisco FlexStack Stacking Cables
GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B

WS-C2960X-48LPS-L Specifications
Enclosure type	Rack-mountable - 1U
Ports	48 x 10/100/1000 + 4 x 1G SFP
Network management Interface	10/100 Mbps Ethernet (RJ-45)
Available PoE Power	370W
Forwarding bandwidth(Gbps)	108Gbps
Maximum stacking number	8
Stack Bandwidth	80 G
Forwarding Performance	107.1Mpps
Switching bandwidth	216Gbps
Maximum active VLANs	1023
MAC Address Table Size	16K (default)
CPU	APM86392 600MHz dual core
RAM	256 MB
Flash Memory	64 MB
Status Indicators	Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Stacking cable	Optional
Power Redundancy	Option (PWR-RPS2300)
Voltage range (Auto)	110V-240V
Power Consumption Operational	0.49KVA
Miscellaneous
Width	17.5 Inches (44.5 cm)
Depth	14.5 Inches (36.8 cm)
Height	1.75 Inches (4.5 cm)
Weight	12.9 lb (5.8 Kg)
Package Weight	23.48 lb (10.65 Kg)
Rack Mounting Kit	optional
MTBF in hours	276,870
Compliant Standards	● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3af and IEEE 802.3at ● IEEE 802.3ah (100BASE-X single/multimode fiber only) ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX ● IEEE 802.3ab 1000BASE-T ● IEEE 802.3z 1000BASE-X ● RMON I and II standards ● SNMP v1, v2c, and v3 ● IEEE 802.3az ● IEEE 802.1ax
System software / license
System software	IOS LAN BASE
license	NERGY-MGT-100-K9, EW-DO-100-DE
features	●Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency
Network security	●SSH, SSL and SCP ●RADIUS and TACACS+ ●SNMPv3 crypto ●802.1x ●802.1x Accounting / MIB ●802.1x w/ port security ●802.1x w/Voice VLAN ●802.1x Guest VLAN ●802.1x VLAN assignment ●802.1x MAC-Auth Bypass ●BPDU/Root Guard ●Port Security ●Private VALN Edge ●Storm Control ●Block unknown unicast and multicast ●IGMP Snooping ●IGMP Filter/Throttle
Management and Troubleshooting	●Auto-MDOX ●TDR ●UDLD ●IP SLA Responder ●layer 2 / IP Traceroute ●SPAN ●RSPAN ●Express Setup ●Device Manager ●Cisco Network Assistant ●Smartports + Advisor ●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade ●IP Address DHCP ●Autoinstall with saved configuration ●Configuration Replace ●DHCP Auto Image Upgrade ●DHCP Port Based Allocation ●Error Disable MIB
Environmental Ranges
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF (-5ºC to 45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to 40ºC)
Short-term exception at sea level*	23ºF to 131ºF (-5ºC to 55ºC)
Short-term exception up to 5000 feet (1500 m)*	23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m)*	23ºF to 113ºF (-5ºC to 45ºC)
Short-term exception up to 13,000 feet (4000 m)*	23º to 104ºF (-5ºC to 40ºC)
Storage temperature up to 15,000 feet (4573 m)	-13º to 158ºF (-25º to 70ºC)
Operating altitude	Up to 10,000 Feet (Up to 3000 Meters)
Storage altitude	Up to 13,000 (Up to 4000 Meters)
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing

Q&A

Q Can the WS-C2960X-48LPS-L feature set license be upgraded?

A No. The feature set is bound to the hardware model. To get the features and capabilities of IP Lite, you must purchase an IP Lite switch.

Q Do I need a software license for the WS-C2960X-48LPS-L ?

A No. Cisco Catalyst 2960-X Series Switches use the Universal image, but no license is required. The feature set is bound to the hardware model type and cannot be changed. For convenience, a single software image is used for all Cisco Catalyst 2960-X switches, regardless of whether they are IP Lite, LAN Base, or LAN Lite models.

Q Hello, can you tell the main features of Cisco 2960-XR, compared to catalyst 2960-X?

A Compared to Catalyst 2960-X, the catalyst 2960-XR has additional features: Dual-FRU power supply with integrated fan (2960-XR only); Layer 3 features(2960-XR only) with IP Lite feature set; Configurable 8 queues per port (standalone); 48 Ether channel groups.

Q Hello, is the Cisco2960XR covered under E-LLW?

A Hmm, Yes and no. Yes, you still need to "tie" the serial numbers of your appliances to a valid Cisco Service Contract. In some cases, TAC will not honor the LLW/E-LLW until you point them to the documentation. So keep the link to the LLW/E-LLW handy.
