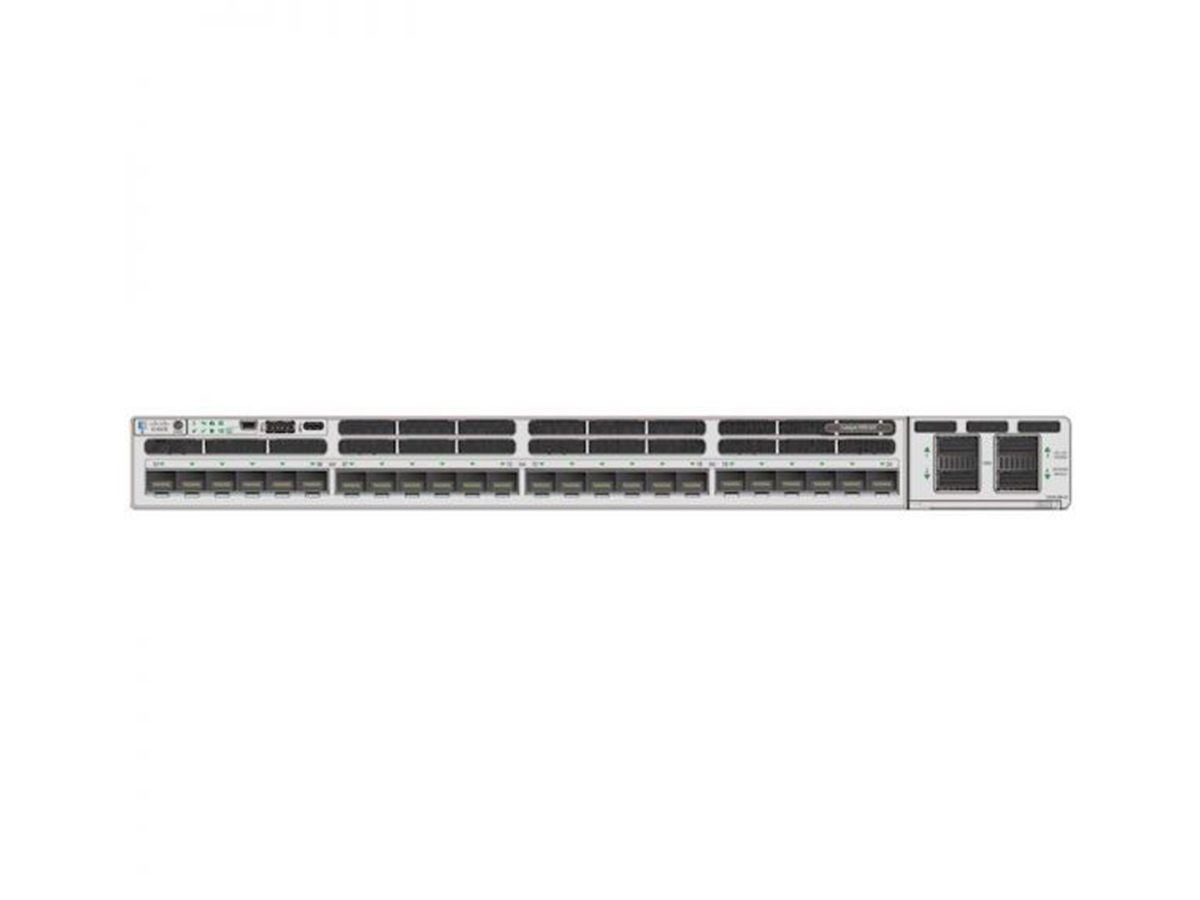

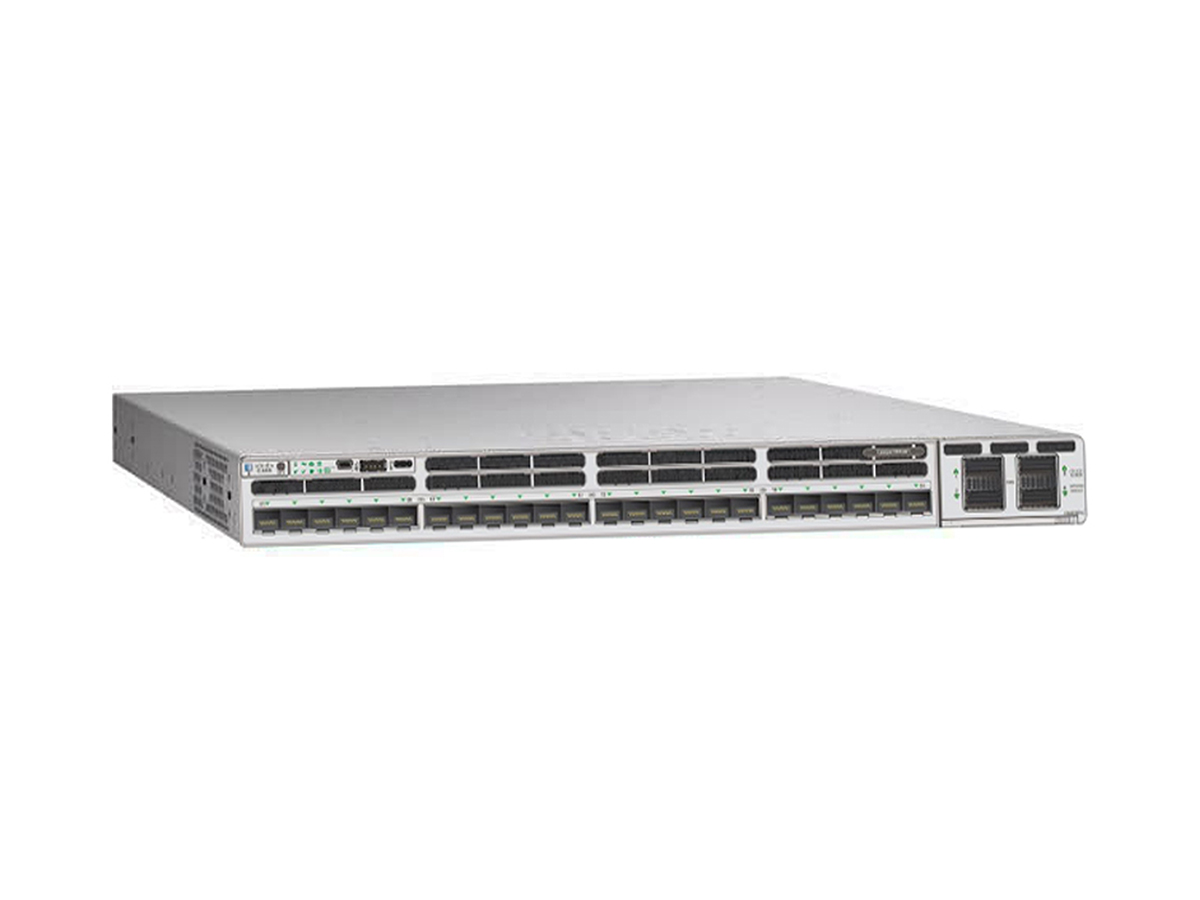

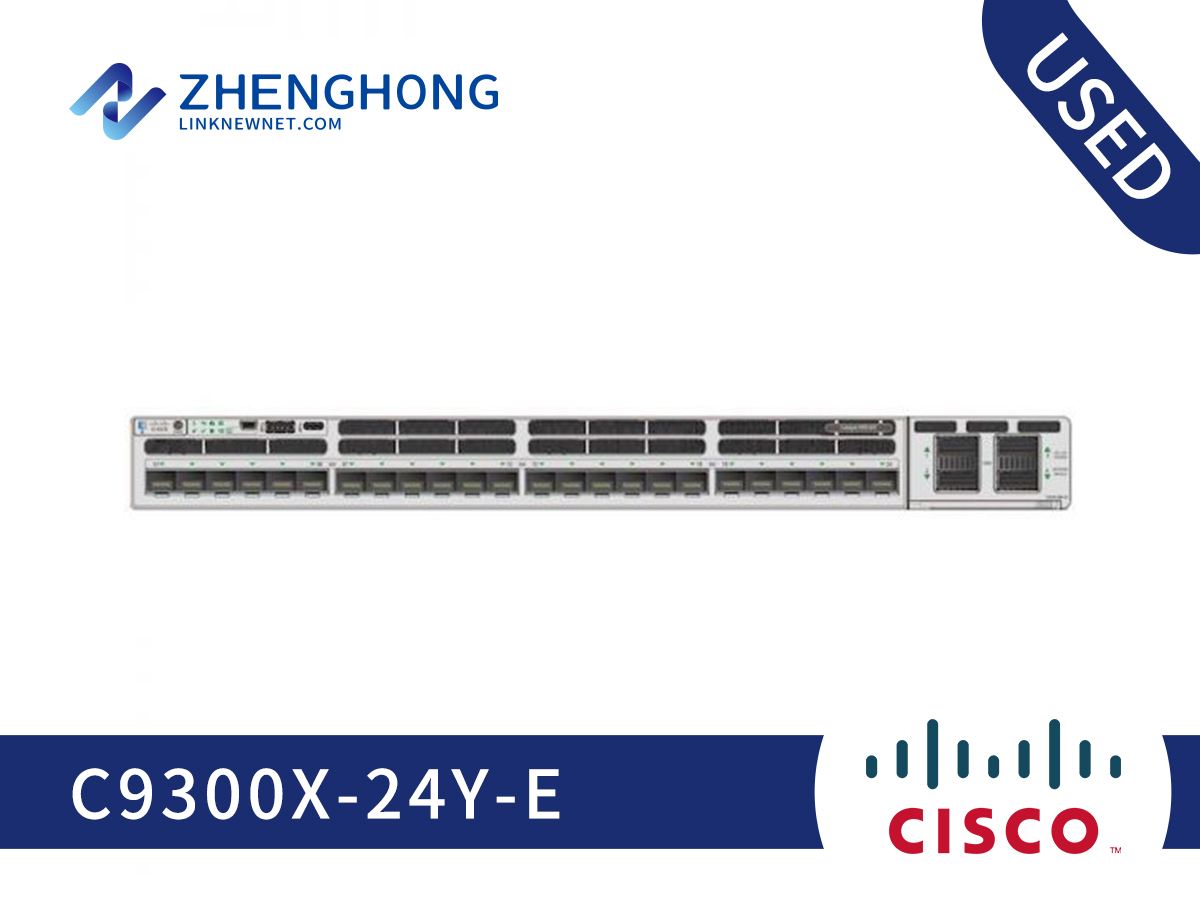

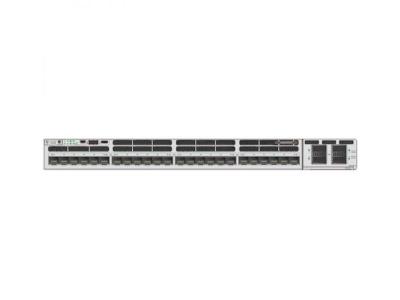

Cisco Catalyst 9300X C9300X-24Y-E Switch Overview
The Cisco Catalyst 9300X C9300X-24Y-E is a 24-port 25G/10G/1G SFP28 access and aggregation switch from the Catalyst 9300 Series, Cisco's lead stackable enterprise switching platform. Each port accepts 1G, 10G and 25G SFP28 optics, so it is built for high-bandwidth access uplinks, campus distribution and top-of-rack roles that a Gigabit-only switch cannot serve.
From a specification standpoint, it offers 24 ports for client, server or uplink connectivity; aggregate capacity of 2,000 Gbps (3,000 Gbps in a stack); packet forwarding up to 1488 Mpps (2232 Mpps with stacking). These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C9300X-24Y-E. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
C9300X-24Y-E vs. C9300X-24Y-A: Which to Choose
The Catalyst 9300X ships in two regional variants: the C9300X-24Y-E (this page) and the C9300X-24Y-A. Both carry the same 24-port 25G/10G/1G SFP28 hardware, 2,000 Gbps switch capacity and Catalyst 9300 software stack. The -E and -A suffixes mainly reflect regional certification and localized configurations rather than a performance gap, so choose based on your region and deployment preference.
Prefer to compare in depth? Read our full write-up Cisco C9300X-24Y-A vs C9300X-24Y-E: In-Depth Comparison covering hardware, licensing and real-world scenarios.
Buying a Used C9300X-24Y-E
This C9300X-24Y-E is offered used, fully tested and in stock at $4,383 with a 3-month warranty. Every unit is graded, cleaned and verified (ports, console and firmware) before dispatch. Orders ship within 2-3 working days. Contact sales for bulk pricing, extended warranty or to confirm revision/software compatibility.
Buying a Pre-Owned C9300X-24Y-E
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| C9300X-24Y-E | |
| Product list | |
| Product code | C9300X-24Y-E |
| Power cable | No |
| Button | No |
| Product parameters | |
| Network Ports | 24 |
| Modular Uplink | Yes |
| Stack Port | Yes |
| Port Details | 24 port 25G/10G/1G SFP28 |
| Ethernet Technology | Gigabit Ethernet |
| Switch capacity | 2,000 Gbps |
| Switch Capacity witch stacking | 3,000 Gbps |
| Forwarding rate | 1488 Mpps |
| Forwarding rate with stacking | 2232 Mpps |
| Layer Supported | 3 |
| Introduction | Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place. |
| Power supply | |
| Default | 715W AC |
| Physical specifications | |
| Width | 20.7 in |
| Height | 1.7 in |
| Depth | 17.5 in |
| Weight | 16.2 lb |
C9300X-24Y-E FAQ
Is the C9300X-24Y-E used or new?
We sell it as used/pre-owned. Every unit is fully tested by our engineers before dispatch and carries a 3-month free warranty; an extended warranty can be arranged on request.
What warranty does the C9300X-24Y-E come with?
A 3-month free warranty is included. Contact sales if you need a longer coverage period.
How many and what type of ports does it have?
24 ports of 25G/10G/1G SFP28. Switch capacity is 2,000 Gbps (3,000 Gbps when stacked) with up to 1488 Mpps forwarding (2232 Mpps with stacking). It supports modular uplinks and stacking.
Is the C9300X-24Y-E tested before shipping?
Yes. Units are graded, cleaned and verified for correct operation - port status, console access and firmware - before dispatch, and we can provide testing instructions on request.
How long does delivery take?
After your order we test and prepare the unit; it normally ships within 2-3 working days. Import duties and taxes are not included in the price.
C9300X-24Y-E - Deployment Notes
This C9300X-24Y-E switch is suited to wiring-closet, distribution, or core roles depending on the port density and uplink options of the specific model. The port configuration is a key consideration when planning power budgets for attached devices such as IP phones and access points.
For a refresh or expansion, confirm the IOS/NX-OS software release supported by this specific SKU, the fan and power requirements, and the uplink modules that match your existing infrastructure. Our team can verify revision levels and software compatibility before you order.
Every unit at LinkNewNet is inspected and tested before dispatch, and this C9300X-24Y-E variant is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Volume requirements can be staged with configuration checks.
C9300X-24Y-E - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco Catalyst or Nexus switch is typically deployed in campus access, distribution, or data-center roles. It provides reliable Layer 2/3 switching for user, server and uplink connectivity, and integrates with Cisco DNA Center or traditional CLI-based management.
Deployment guidance: When planning this C9300X-24Y-E unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: C9300-24T-A, C9300LM-24U-4Y-E, C9300-48U-A, C9300LM-24U-4Y-A, C9300-24T-E. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: E = Enhanced feature set / EMEA regulatory domain - this suffix indicates the feature set, power, or regulatory variant of the C9300X-24Y-E, which affects software licensing and regional compliance.
Frequently Asked Questions
What condition is the C9300X-24Y-E sold in?
Every pre-owned C9300X-24Y-E at LinkNewNet is cleaned, firmware-checked and port-by-port tested by our engineers, then shipped with a 3-month warranty and a factory-reset configuration.
What license level does the C9300X-24Y-E include?
The C9300X-24Y-E is a Cisco Catalyst 9300X 24-port 25G switch. The trailing -A/-E suffix denotes the Cisco DNA software tier (Advantage or Essentials); hardware is identical between tiers. Contact us to confirm the license state of the specific unit in stock.
Do you offer bulk pricing and worldwide shipping?
Yes - we stock quantity for project deployments and offer tiered bulk pricing. All units ship worldwide with tracking; contact us for a quote on your required quantity.
