Cisco Nexus 7000 Series Switch Chassis N7K-C7010|LinkNewNet

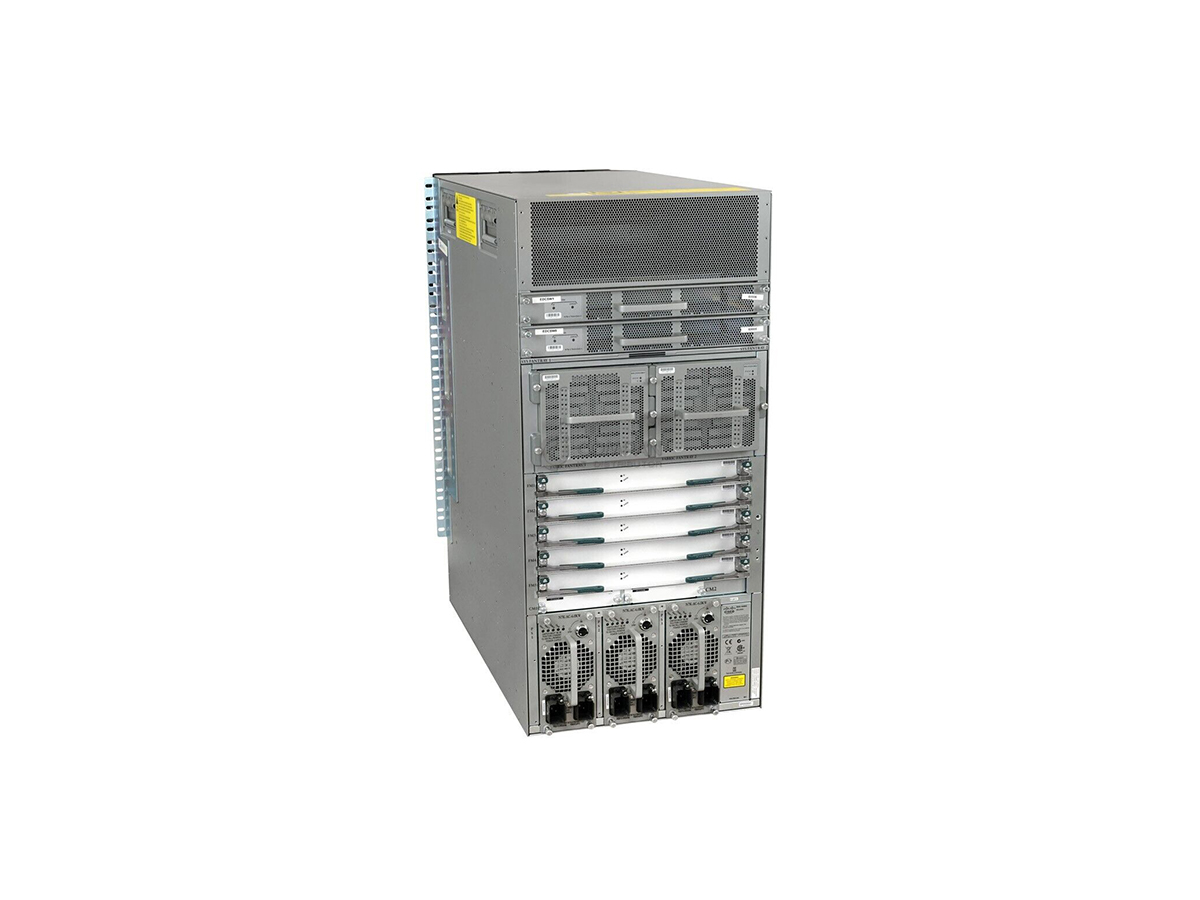

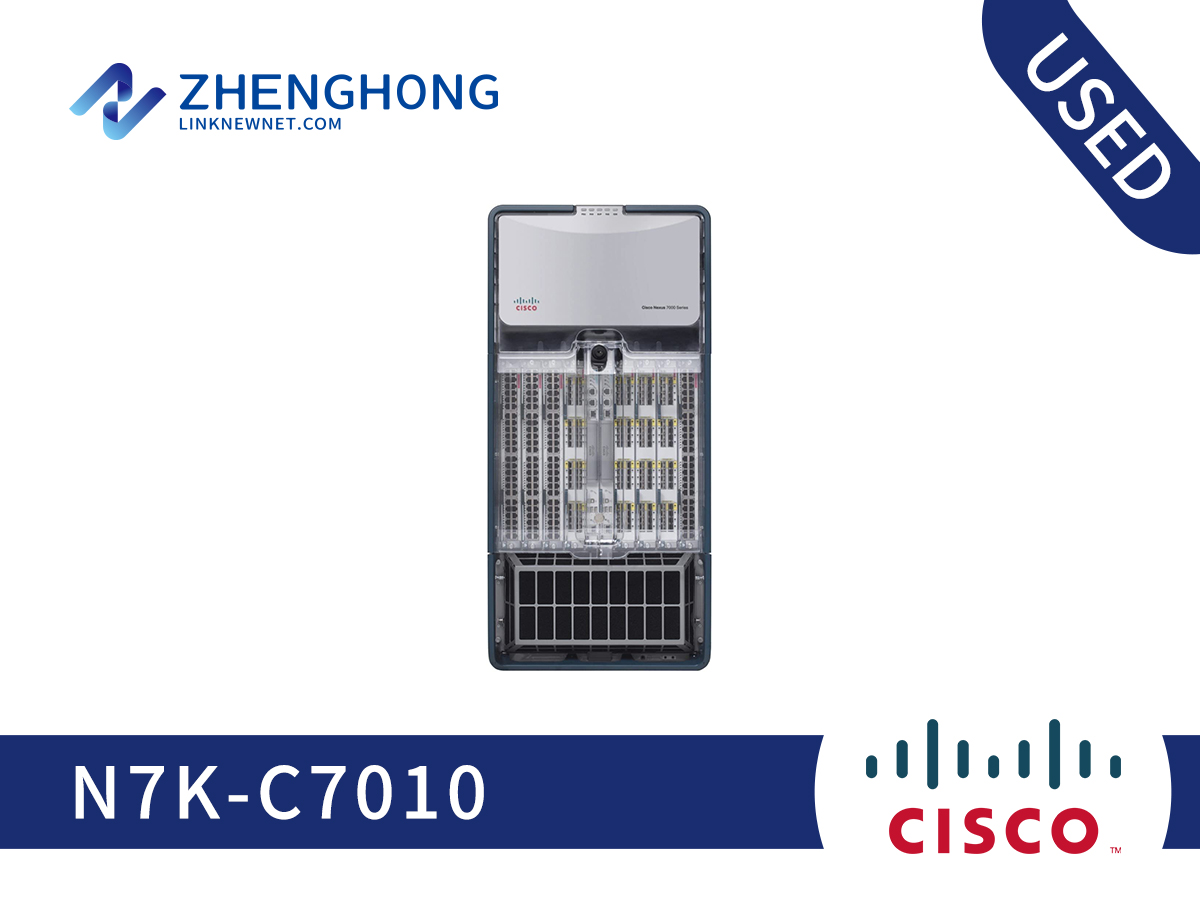

Cisco Nexus 7000 Series Switch Chassis N7K-C7010

Model: N7K-C7010

Detail: Cisco Nexus 7000 Series 10-Slot chassis including Fan Trays

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

N7K-C7010
Product list
Product code	N7K-C7010
Power cable	No
Button	No
Product parameters
Product Type	Switch Chassis
Token Ring Port	No
LRE Port	No
Stack Port	Yes
Number of Total Expansion Slots	10
Max local switching capacity	600 Gbps
Max inter-slot switching capacity	550 Gbps
Management	Cisco DCNM 4.0 or later
Introduction	Cisco Nexus 7000 Series Switches provide the foundation for Cisco^® Unified Fabric. They are a modular data center-class product line designed for highly scalable 1/10/40/100 Gigabit Ethernet networks with a fabric architecture that scales beyond 17 terabits per second (Tbps).
Power Description
PoE (RJ-45) Port	No
Input Voltage	110VAC 220VAC
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Physical specifications
Height	92.7 cm
Width	44 cm
Depth	84.1 cm
Weight	90 kg

Q&A

Q How many Fex can be connected on Nexus 7000?

A You can extend the Cisco Nexus 7000 Series switch architecture by connecting up to 32 Cisco Nexus 2248 FEXs as remote I/O modules. Each FEX provides top-of-the-rack connectivity for up to 48 hosts.

Q What is the difference between Nexus 7000 and 7700?

A The Nexus 7700 series offers higher bandwidth per slot (1.3Tbps compared to 550Gbps), greater performance and ability to support up to an impressive 192 100GE ports (7700 – 18 slot) compared to 96 100GE ports (7000 – 18 slot).

Q What is the difference between Nexus 7k and 5k?

A Nexus 5k is an aggregation/end of rack switch for the datacenter. Nexus 7k is fully redundant - line cards, supervisors, fabric modules, power supplies. Nexus 5k has dual power, but no other redundancy. Nexus 7k supports OTV, LISP, MPLS and some other L3 things that 5k doesn't.

Q What is Nexus 7k?

A High performance. The Cisco Nexus 7000 Series Switches run on Cisco NX-OS. It was specifically developed for mission-critical enterprise and service provider deployments. The switches offer a full feature set in a highly resilient modular platform. Explore Cisco NX-OS.
