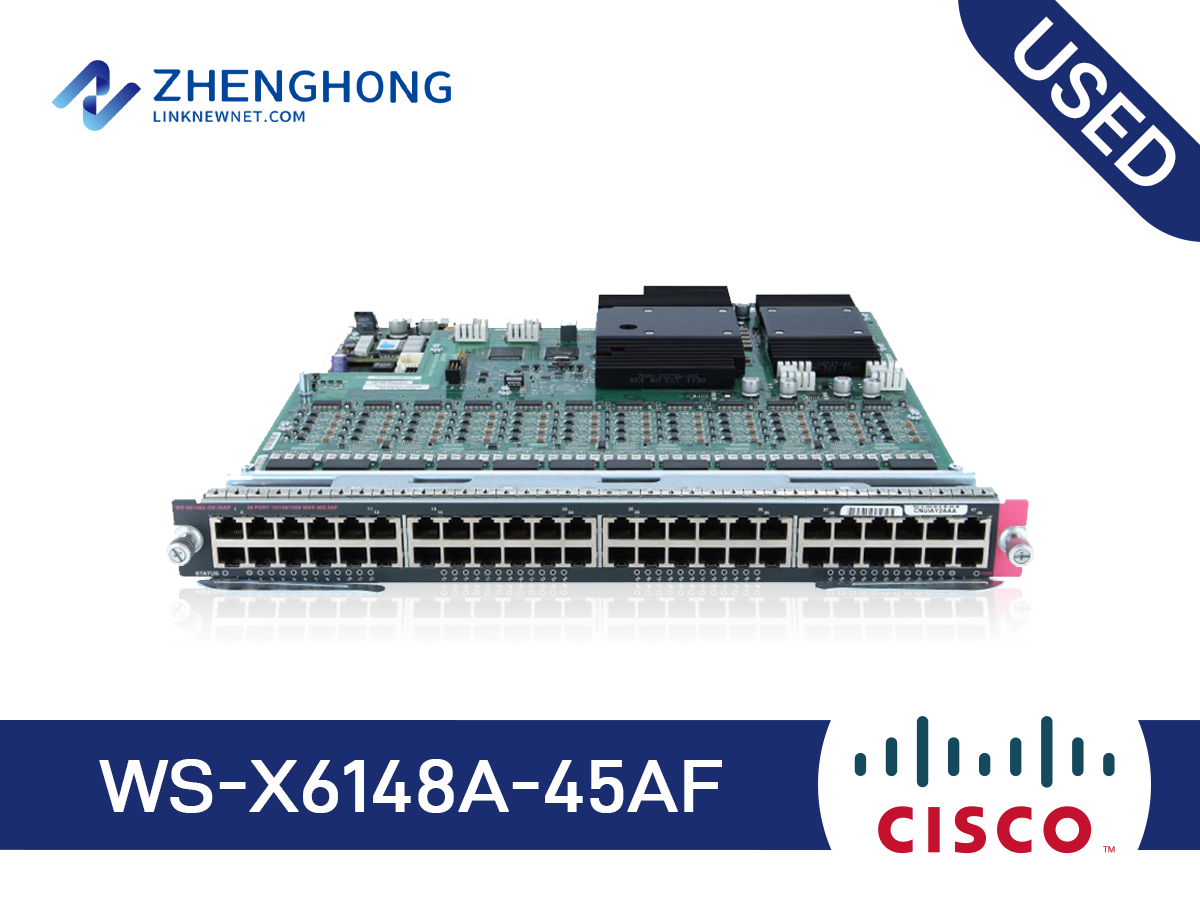

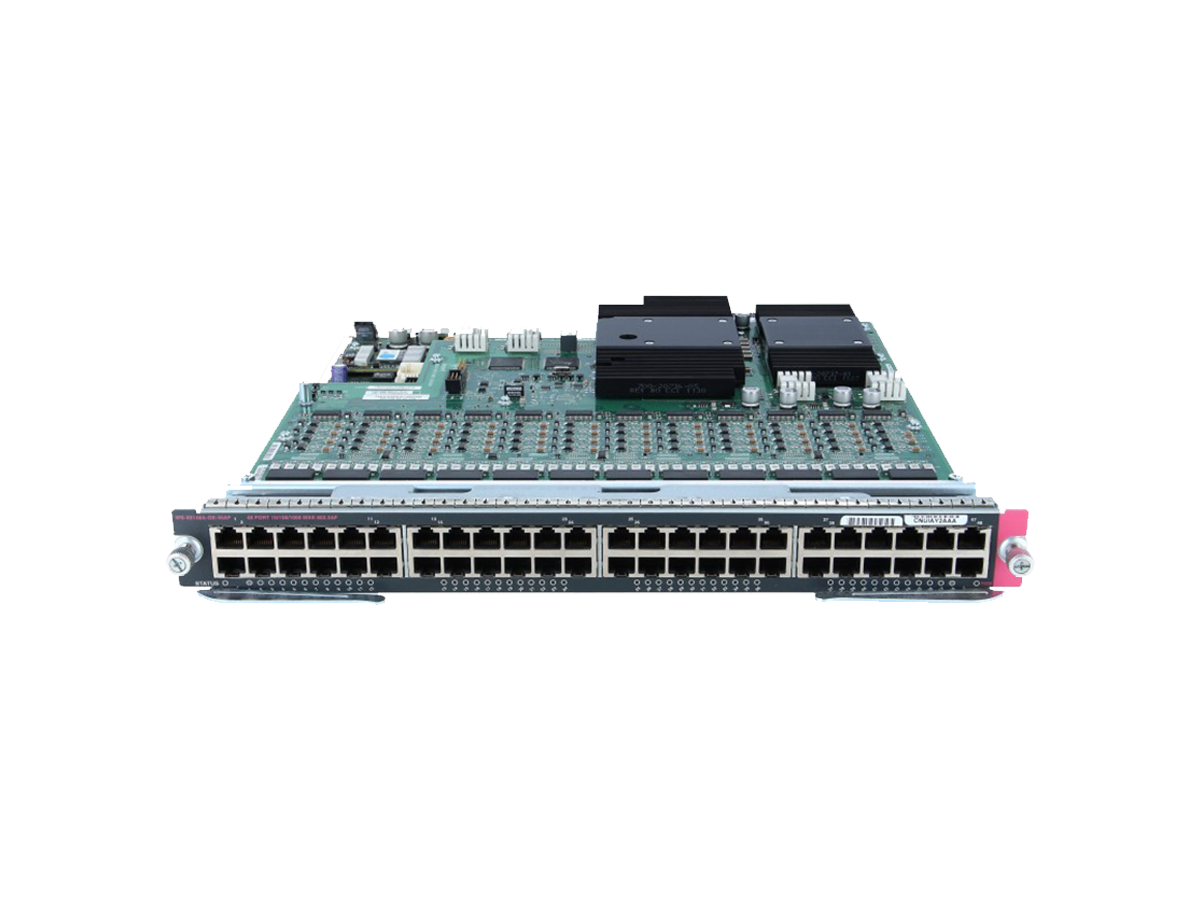

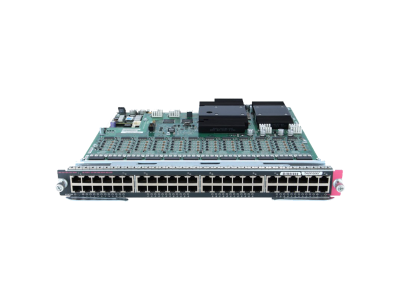

WS-X6148A-45AF - Cisco Catalyst 6500 Series Ethernet Interface Modules|LinkNewNet

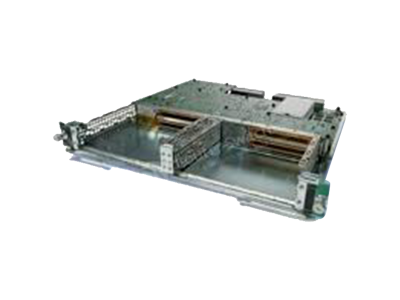

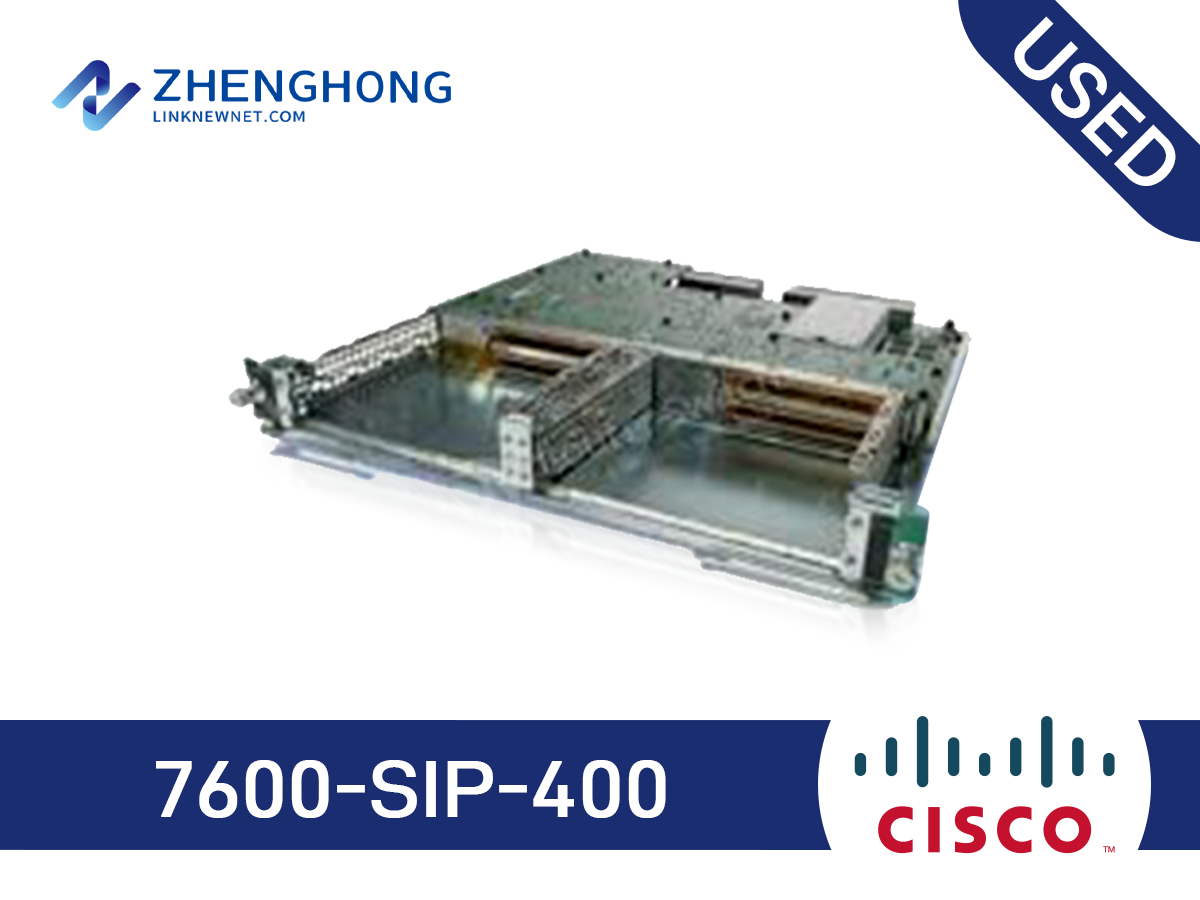

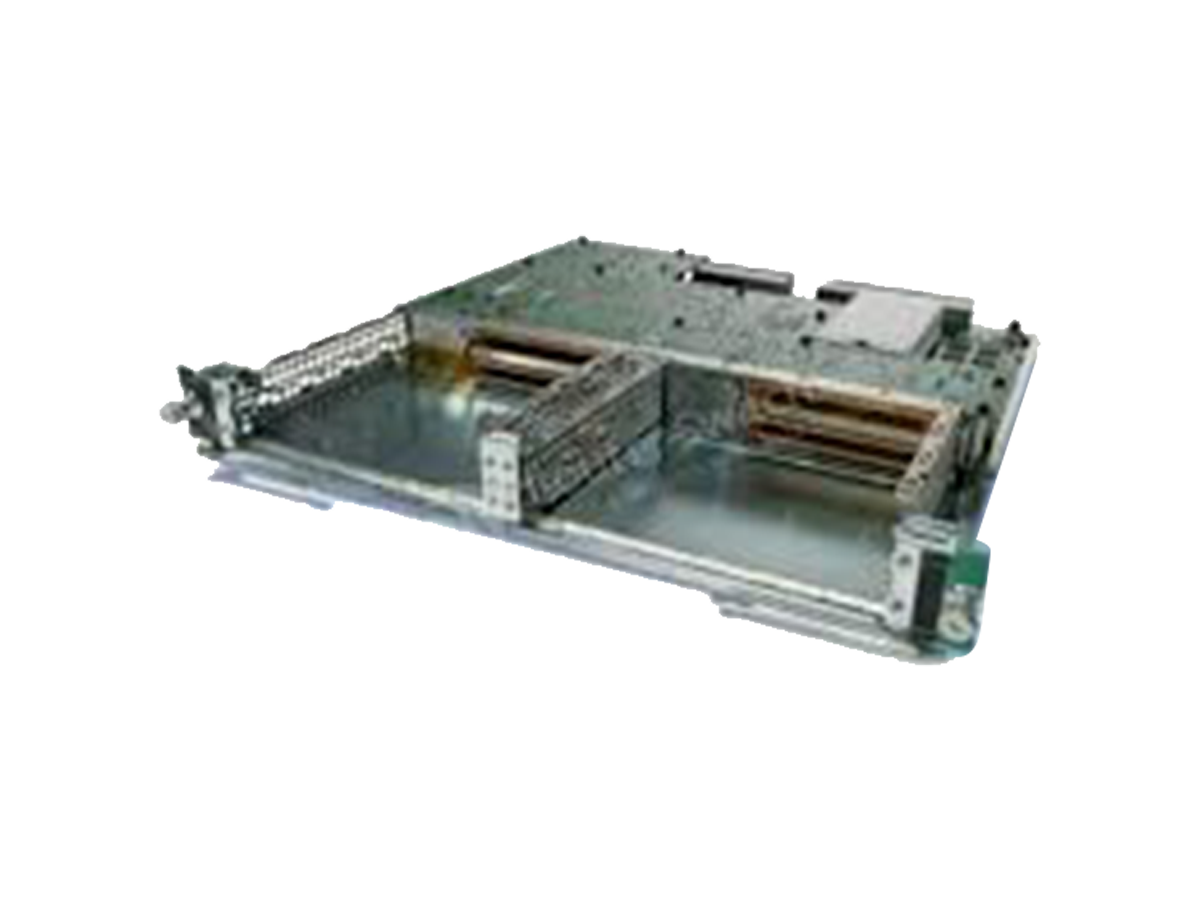

7600-SIP-400 - Cisco 7600 SPA Interface Processor

Model: 7600-SIP-400

Detail: Cisco 7600 Series SPA Interface Processor-400

Condition: USED

List Price: $1400 Price: $1000

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7600-SIP-400 Specification
Compatibility	Cisco Route Switch Processor 720 3C/3CXL, Cisco Supervisor Engine 720-3B/3BXL, and Cisco Supervisor Engine 32 (Sup-32) systems
Protocols	● TCP ● User Datagram Protocol (UDP) ● IPv4 Unicast and Multicast ● IPv6 Unicast and Multicast ● Multiprotocol Label Switching (MPLS) ● SAToP and CESoPSN
Encapsulation	● Frame Relay ● Point-to-Point Protocol (PPP) ● High-Level Data Link Control (HDLC) ● ATM permanent virtual circuit-constant bit rate (PVC-CBR), variable bit rate real-time (VBR-rt), VBR non-real-time (VBR-nrt), and unspecified bit rate (UBR) ● ATM switched virtual circuit (SVC)-CBR, VBR-rt, VBR-nrt, UBR, UBR+ ● TDM over MPLS, ATM over MPLS, and ATM over GRE ● L2TPv3
Cards, ports, and slots	Four SPA bays per Cisco 7600 SIP-400
Features	QoS, ACLs, and Low-Speed Aggregation Features QoS ● Modular QoS CLI (MQC) ● Classification based on: ◦ IP Precedence (IPv6 and IPv4) ◦ Diffserv code point (DSCP) (IPv6 and IPv4) ◦ MPLS experimental values (MPLS EXP) ◦ Extended ACL ◦ ATM CLP ◦ Frame Relay DE ◦ Class of Service (CoS) ◦ VLAN Congestion Avoidance ● Weighted Random Early Detection (WRED) based on IP Precedence, DSCP, MPLS EXP, ECN (mark IP TOS field for POS traffic) Queuing ● Congestion management ◦ Per-virtual circuit queuing ◦ Ingress and egress Low-Latency Queuing (LLQ) ◦ Egress Class-Based Weighted Fair Queuing (CBWFQ) Traffic Classification, Shaping, and Bandwidth Policing ● Marking ● Policing ● Distributed traffic shaping (DTS) ● Hierarchical service policies Security ● Standard and extended ACLs Layer 2 and Layer 3 VPNs ● Ethernet over MPLS (EoMPLS) ● ATM over MPLS (ATM over MPLS) ◦ ATM Adaptation Layer 5 (AAL5) virtual circuit mode, single and packed cell relay virtual circuit mode ● Frame Relay over MPLS (FRoMPLS) ● Layer 3 MPLS/VPN over GRE ● ATM over GRE, Ethernet over GRE ● TDM over MPLS High availability ● IPv4 Nonstop Forwarding (NSF) ● IPv4 Stateful Switchover (SSO) ● Automatic Protection Switching (APS) with ATM, POS SPAs ● OIR for both SIP and SPA Multilink support ● Frame Relay Multilink^1 (1) Added in >15.2(04)S
Memory	1 GB default Double Data Rate (DDR) synchronous dynamic RAM (SDRAM) per Cisco 7600 SIP-400
Supported SPAs	Following SPAs are supported on SIP-400 release wise 7600-SIP-400 - POS SPAs Support
	SPA ID	Project/Family	Height	Min Release
	SPA-2XOC3-POS	Sphinx	Half	12.2(18)SXE
	SPA-4XOC3-POS	Sphinx	Half	12.2(18)SXE
	SPA-1XOC12-POS	Sphinx	Half	12.2(18)SXE
	SPA-1XOC48-POS	Iguana	Half	12.2(33)SRA
	SPA-4XOC3-POS-V2	Gladiator	Half	15.2(04)S
	SPA-8XOC3-POS	Gladiator	Half	15.2(04)S
	SPA-2XOC12-POS	Gladiator	Half	15.2(04)S
	SPA-4XOC12-POS	Gladiator	Half	15.2(04)S
	7600-SIP-400 - ATM SPAs Support
	SPA ID	Project/Family	Height	Min Release
	SPA-2XOC3-ATM	Warlord	Full	12.2(18)SXE
	SPA-4XOC3-ATM	Warlord	Full	12.2(18)SXE
	SPA-1XOC12-ATM	Warlord	Full	12.2(18)SXE
	SPA-1XOC48-ATM	Ronin	Full	12.2(33)SRA
	SPA-3XOC3-ATM-V2	Barbarian	Half	15.0(01)
	SPA-1XOC3-ATM-V2	Barbarian	Half	15.0(01)
	SPA-1XOC12-ATM-V2	Barbarian	Half	15.0(01)
	7600-SIP-400 - GE SPAs Support
	SPA ID	Project/Family	Height	Min Release
	SPA-2X1GE	Wanda	Half	12.2(18)SXF
	SPA-2X1GE-V2	Wanda	Half	12.2(18)SRB
	SPA-5X1GE-V2	Cricket	Half	12.2(33)SRB
	SPA-1X10GE-V2	Scorpion	Half	12.2(33)SRB
	SPA-2X1GE-SYNCE	SyncE	Half	15.0(01)
	SPA-4X1FE-TX-V2	FastEthernet	Half	12.2(33)SRD
	SPA-8X1FE-TX-V2	FastEthernet	Half	12.2(33)SRD
	7600-SIP-400 - CEoP SPAs Support
	SPA ID	Project/Family	Height	Min Release
	SPA-24XT1E1-CE	Velvet Hammer	Half	12.2(33)SRB
	SPA-1XOC3-CE	Black Russian	Half	12.2(33)SRB
	SPA-2XT3E3-CE	White Russian	Half	12.2(33)SRC(ATM only)
	7600-SIP-400 - Serial/Channelized SPAs
	SPA ID	Project/Family	Height	Min Release
	SPA-2XT3E3	Javelin	Half	12.2(33)SRC
	SPA-4XT3E3	Javelin	Half	12.2(33)SRC
	SPA-8XCHTE1	Maverick	Half	12.2(33)SRC
	SPA-CHOC3-STM1	Prowler	Half	12.2(33)SRC
	SPA-2XCT3	Patriot	Half	12.2(33)SRC
	SPA-4XCT3	Patriot	Half	12.2(33)SRC
	SPA-4XT-SERIAL	DocOct	Half	15.2(03)S
	SPA-CHOC12-STM4	Chopper	Half	12.2(33)SRD
	SPA-1XCHOC48/DS3	Trex	Full	15.2(01)S
	SPA-2XT3/E3-V2	Javelin-V2	Half	15.3(3)S
	SPA-4XT3/E3-V2	Javelin-V2	Half	15.3(3)S
	SPA-8XCHT1/E1-V2	Maverick-V2	Half	15.3(3)S
	SPA-1XCHSTM1/OC3-V2	Prowler-V2	Half	15.3(3)S
	SPA-2XCT3/DS0-V2	Patriot-V2	Half	15.3(3)S
	SPA-4XCT3/DS0-V2	Patriot-V2	Half	15.3(3)S
MIBs	● Cisco Entity MIB (CISCO-ENTITY-MIB) ● Cisco Entity Asset MIB ● Cisco Entity Field-Replaceable Unit (FRU) Control MIB ● Cisco Entity Alarm MIB ● Interface IF MIB (RFC 2233) ● Frame Relay MIB (RFC 1315) ● Cisco Frame Relay MIB ● ATM MIB (RFC 1695) ● Definitions of Managed Objects for Bridges (RFC 1493) ● Evolution of Interfaces Group of MIB-II (RFC 1573) ● SNMP MIB II (RFC 1213) ● Remote Monitoring (RMON) MIB (RFC 1757) ● Switch Monitoring (SMON) MIB
Network management	Supported with CiscoWorks CiscoView CiscoWorks Resource Manager Essentials (RME) Cisco IP Solution Center (ISC)
Physical specifications	● Occupies one slot in a Cisco 7600 Series router ● Supports up to 12 Cisco 7600 SIP-400s in a 13-slot chassis ● Requires Supervisor Engine 720-3B or 720-3BXL ● Dimensions (H x W x D): 1.75 x 15.375 x 16 in. ● Weight: 16 lbs not including the packaging
Power	185W power consumption per Cisco 7600 SIP-400 265W maximum power consumption with 4 SPAs
Indicators	Cisco 7600 SIP-400 status: green (operational); orange (faulty)
Standards	Telecommunications ● TU-T G.610 ● ITU-T G.703 ● ITU-T G.707 ● ITU-T G.783 Sections 9-10 ● ITU-T G.784 ● ITU-T G.803 ● ITU-T G.813 ● ITU-T G.825 ● ITU-T G.826 ● ITU-T G.841 ● ITU-T G.957 Table 3 ● ITU-T G.958 ● ITU-T I.361 ● ITU-T I.363 ● ITU I.432 ● ITU-T Q.2110 ● ITU-T Q.2130 ● ITU-T Q.2140 ● ITU-T Q.2931 ● ITU-T O.151 ● ITU-T O.171 ● ETSI ETS 300 417-1-1 ● ACA TS 026 (1997) ● BABT/TC/139 (Draft 1e)
