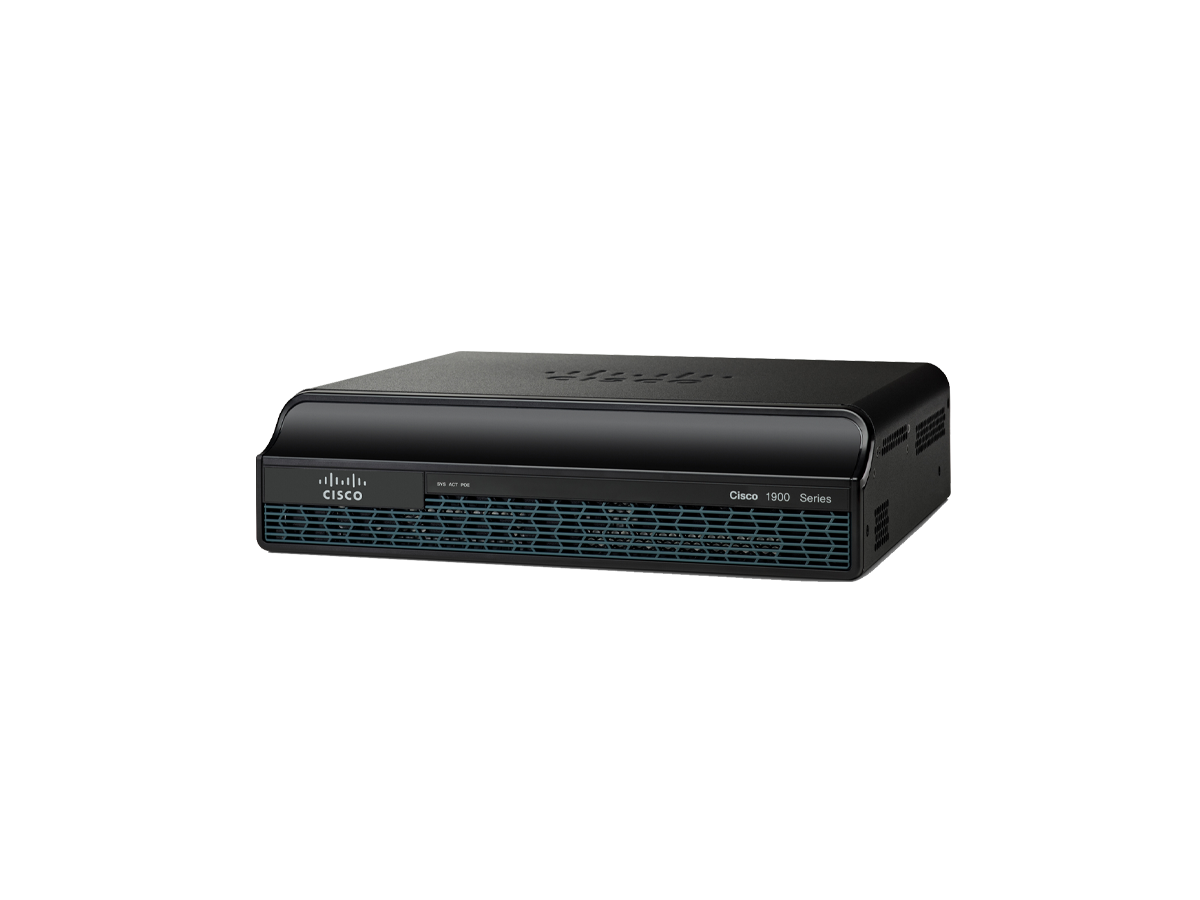

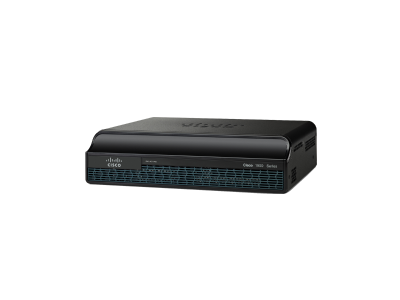

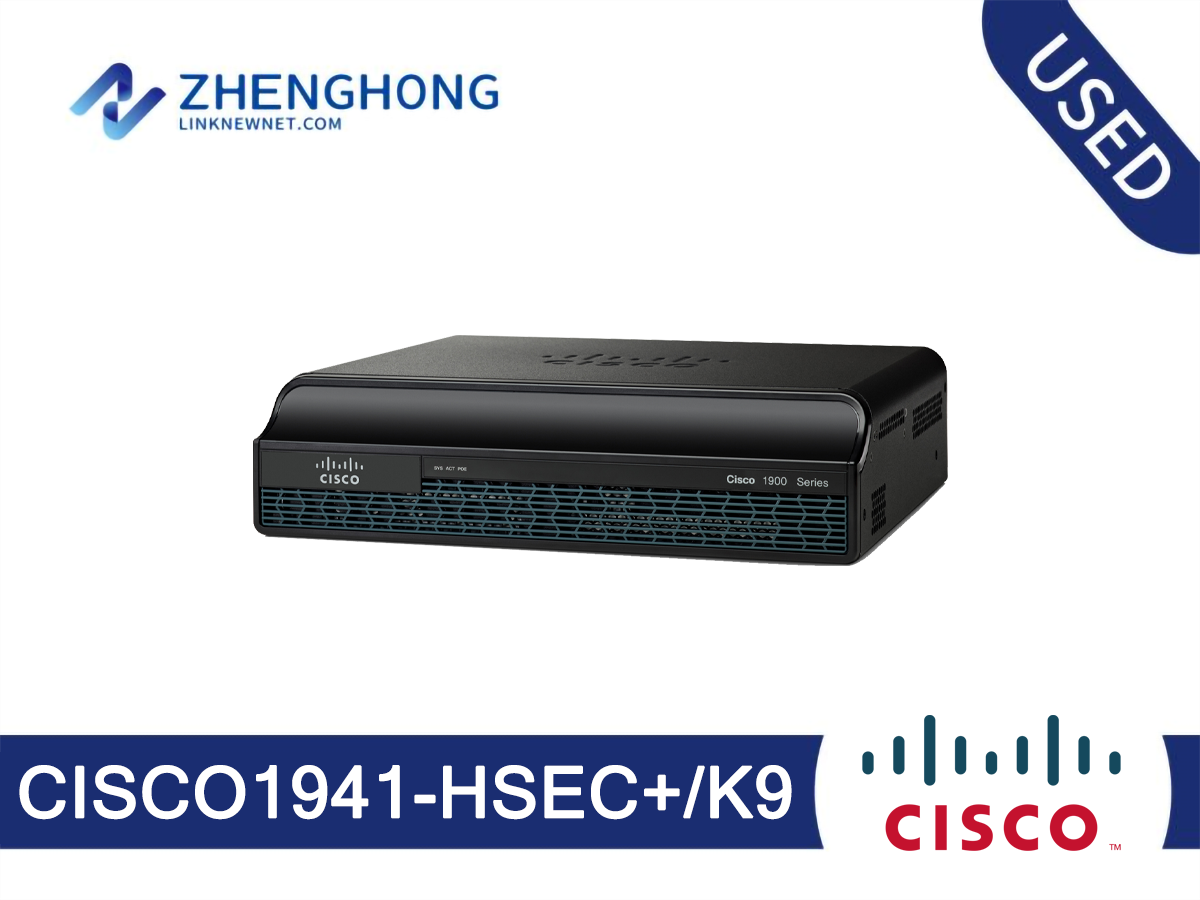

CISCO1941-HSEC+/K9 - Cisco 1941 Series Integrated Services Routers Overview
CISCO1941-HSEC+/K9 - Cisco 1941 Series Integrated Services Routers is a genuine edge and wide-area routing product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco 1941 Series family, the CISCO1941-HSEC+/K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, it offers 2 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “CISCO1941-HSEC+/K9 VPN ISM module HSEC bundles for 1941 ISR platform, enhances VPN performance and security.”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the CISCO1941-HSEC+/K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned CISCO1941-HSEC+/K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
CISCO1941-HSEC+/K9 Specifications | |
Type | CISCO1941-HSEC+/K9 VPN ISM module HSEC bundles for 1941 ISR platform |
| Form Factor | External - modular - 2U |
Dimensions (WxDxH) | 34.3 cm x 29.2 cm x 8.9 cm |
Weight | 5.8 kg |
DRAM Memory | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | IPSec |
Remote Management Protocol | SNMP, RMON |
Power | AC 120/230 V ( 50/60 Hz |
| Embedded hardware-based crypto acceleration (IPSec + SSL) | Yes |
Total Onboard LAN 10/100/1000 | 2 |
RJ-45-Based Ports | 2 |
SFP-Based Ports | 0 |
SM Slots | 0 |
Double-Wide SM Slots | 0 |
EHWIC Slots | 2 |
Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots) | 1 |
ISM Slots | 1 (0 on the Cisco 1941W) |
Memory (DDR2 Error Correction Code [ECC] ECC DRAM) - Default | 512 MB |
Memory (DDR2 ECC DRAM) - Maximum | 2.0 GB |
Compact Flash (external) - Default | slot 0: 256 MB slot 1: none |
Compact Flash (external) - Maximum | slot 0: 4 GB slot 1: 4 GB |
External USB flash memory slots (Type A) | 2 |
USB Console Port (Type B) (up to 115.2 kbps) | 1 |
Serial Console Port (up to 115.2 kbps) | 1 |
Serial Auxiliary Port (up to 115.2 kbps | 1 |
Power Supply Options | AC, POE |
Redundant Power Supply Support | No |
| AC Input Voltage | 100-240 V ~ |
AC Input Frequency | 47-63 Hz |
AC Input Current range AC Power Supply (Max) (Amps) | 1.5-0.6 |
AC Input Surge Current | <50 A |
Typical Power (No Modules) | 35 W |
Maximum Power capacity with AC power supply | 110 W |
Maximum Power capacity with PoE power supply (platform only) | 110 W |
Maximum PoE device power capacity with PoE power supply | 80 W |
| Dimensions (H x W x D) | 3.5 in x 13.5 in x 11.5 in (34.3 cm x 29.2 cm x 8.9 cm) |
Rack Height | 2 RU |
Rack-mount 19in. (48.3 cm) EIA | Included |
Wall-mount (refer to installation guide for approved orientation) | Yes |
Airflow | Front to Side |
| Temperature-5906 feet (1800 m) max. altitude | 0-40°C (32-104°F) |
Temperature-9843 feet (3000 m) max. altitude | 0-25°C (32-77°F) |
Altitude | 3000 m (10000 ft) |
Humidity | 10 to 85% RH |
Acoustic: Sound Pressure (Typ/Max) | 26/46 dBA |
Acoustic: Sound Power (Typ/Max) | 36/55 dBA |
| Temperature | -40 - 70 oC (-40 - 158 oF) |
Humidity | 5 to 95%RH |
| Altitude | 4570m (15000 ft) |
CISCO1941-HSEC+/K9 - Product Notes
This listing is a specific SKU variant of the CISCO1941-HSEC+/K9 family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
CISCO1941-HSEC+/K9 - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco router is positioned at the WAN edge, branch, or service-provider aggregation point. It provides routing, VPN, QoS and security services, and integrates with Cisco IOS-XE / IOS-XR management.
Deployment guidance: When planning this CISCO1941-HSEC+/K9 unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: CISCO1921/K9, C1-CISCO1941/K9, CISCO1941W-N/K9, C1921-ADSL2-M/K9, CISCO1941W-A/K9. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: K9 = Cryptographic (encryption) software feature set - this suffix indicates the feature set, power, or regulatory variant of the CISCO1941-HSEC+/K9, which affects software licensing and regional compliance.
