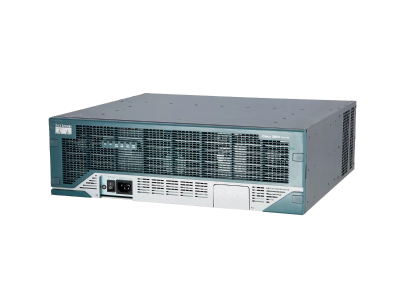

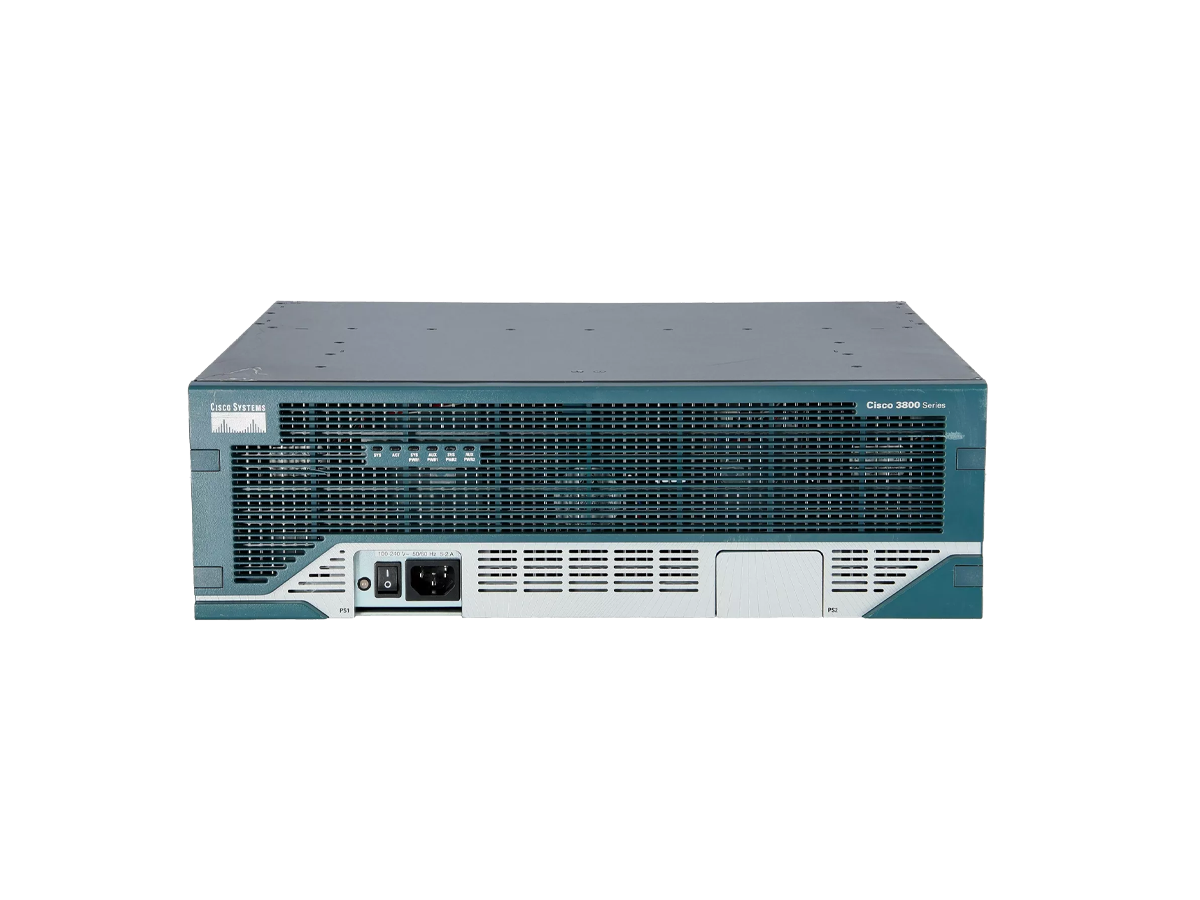

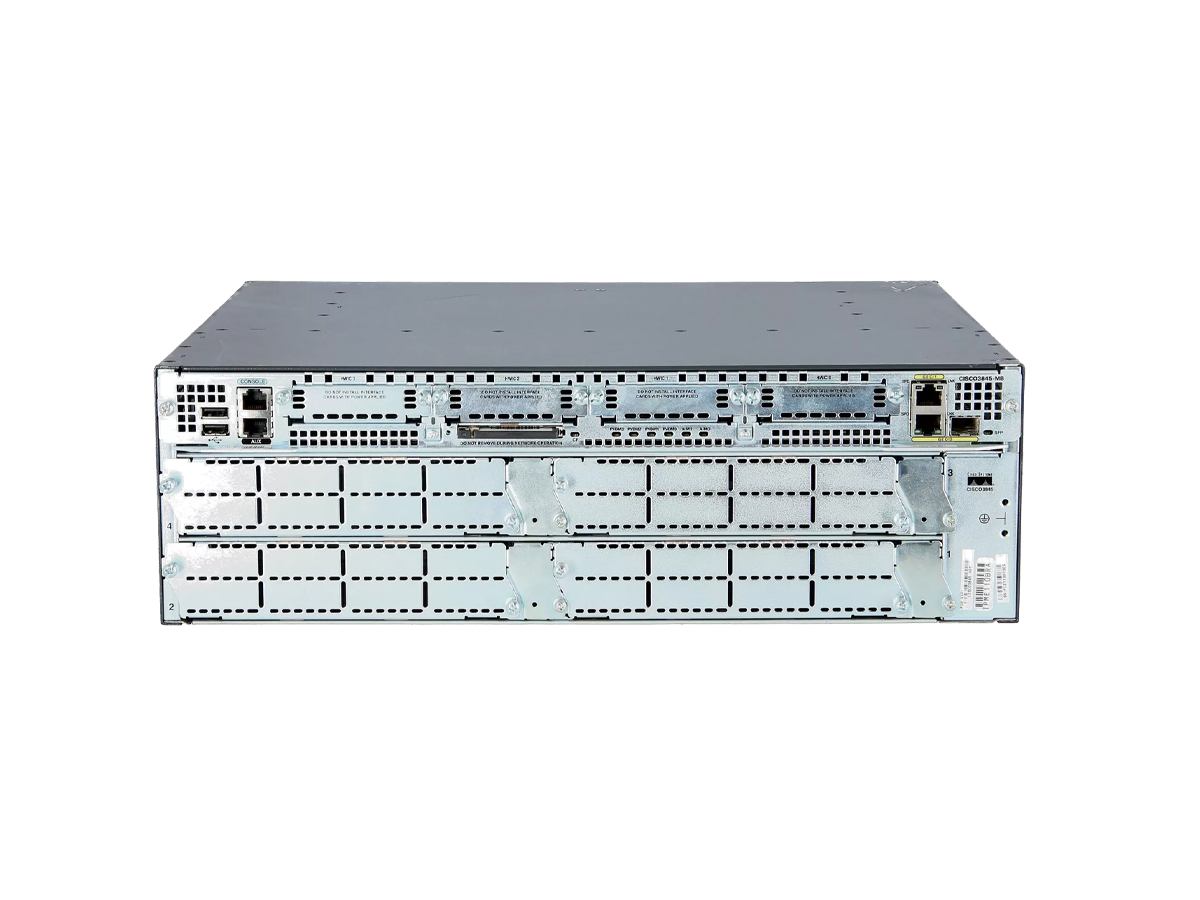

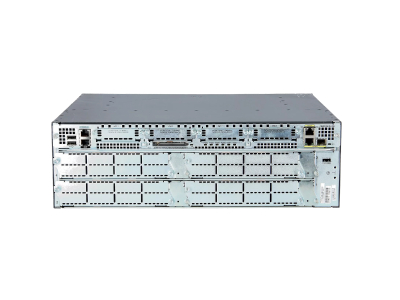

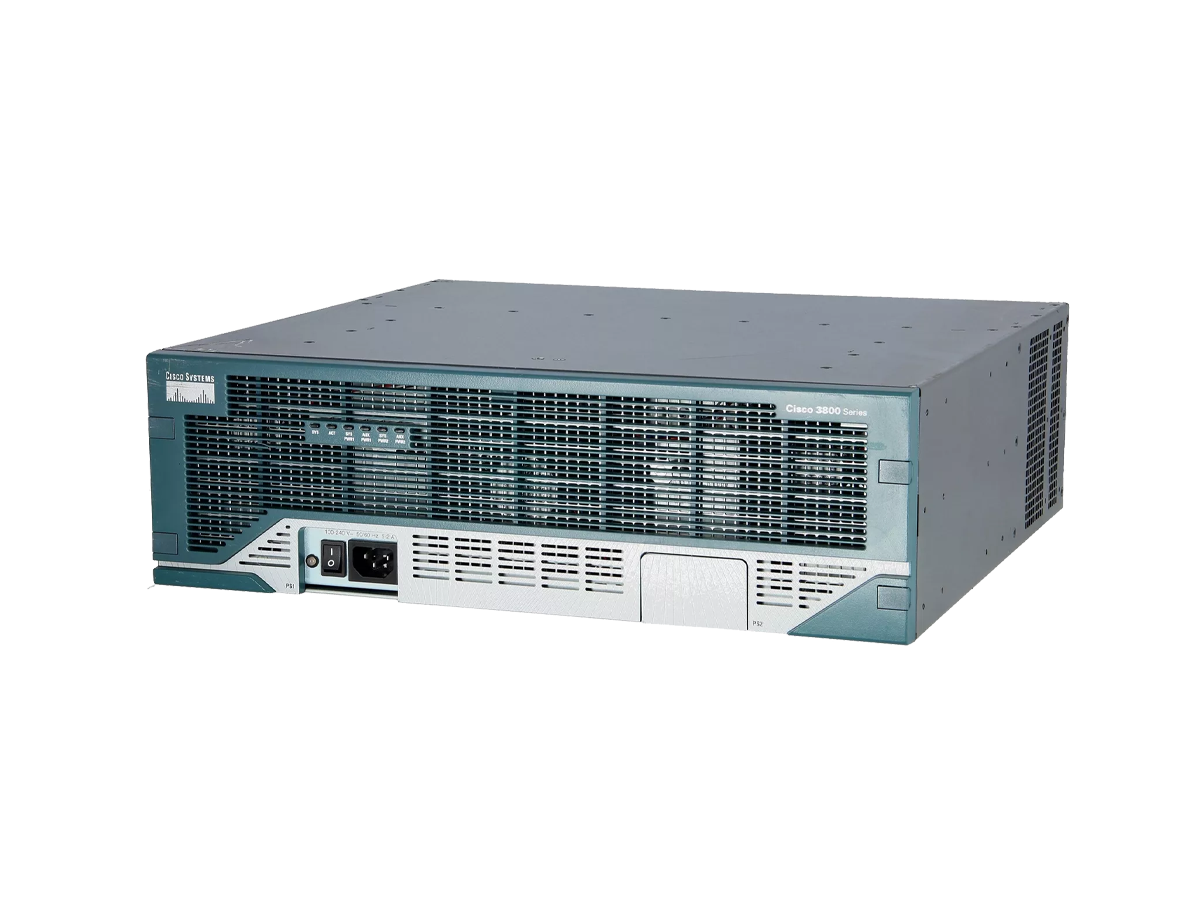

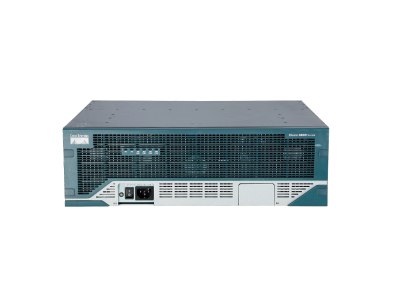

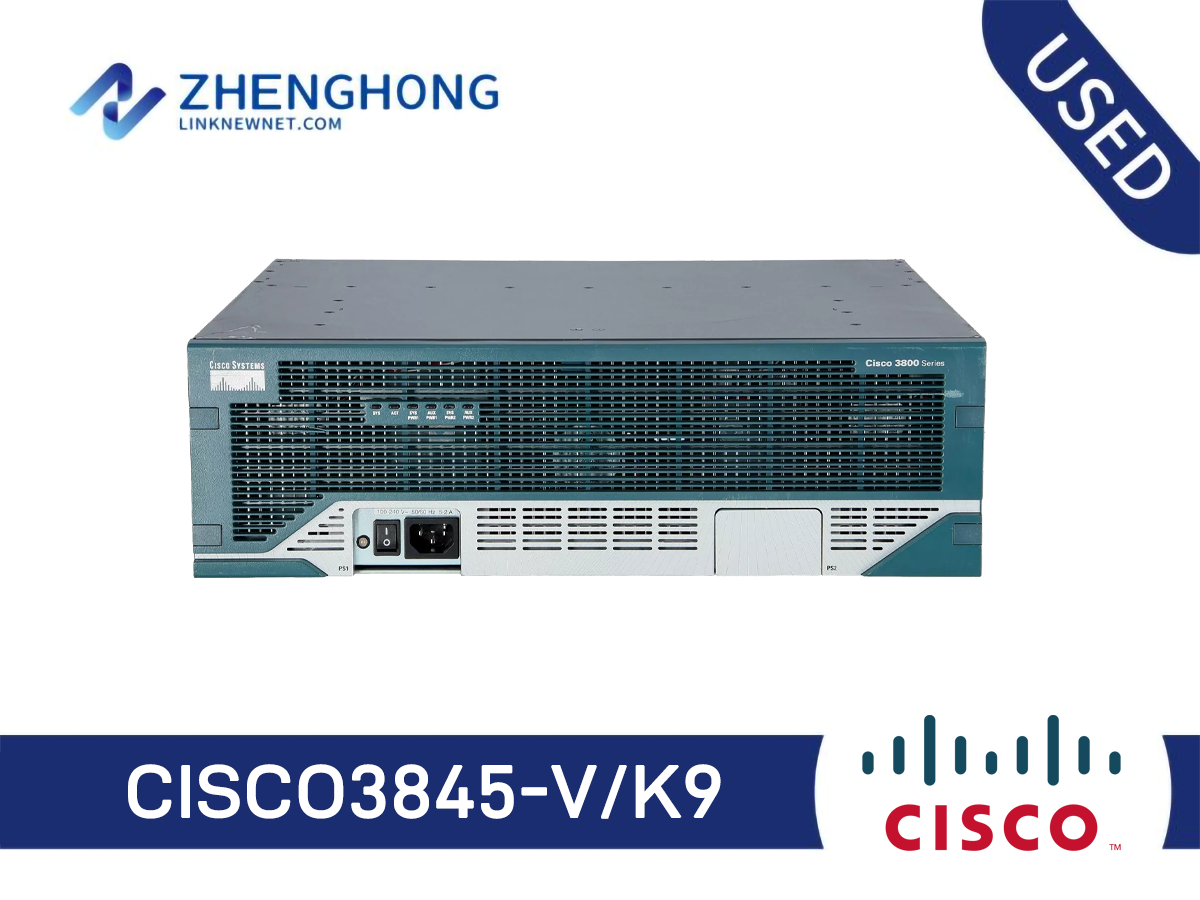

CISCO3845-V/K9 - Cisco 3800 Series Router Voice Bundle Overview
CISCO3845-V/K9 - Cisco 3800 Series Router Voice Bundle is a genuine edge and wide-area routing product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco 3800 Series family, the CISCO3845-V/K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco 3800 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “3845 Voice Bundle,PVDM2-64,SP Serv,128F/512D”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the CISCO3845-V/K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned CISCO3845-V/K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
CISCO3845-V/K9 Specification | |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop - modular - 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Remote Management Protocol | SNMP 3 |
| Encryption Algorithm | DES, Triple DES, AES |
| Authentication Method | Secure Shell v.2 (SSH2) |
| Features | Firewall protection, 128-bit encryption, hardware encryption, VPN support, MPLS support, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), URL filtering, 256-bit encryption |
| Compliant Standards | VCCI, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, AS/NZ 3548 Class A, ICES-003 Class A, CS-03, EN 61000-6-2 |
| RAM | 256 MB (installed) / 1 GB (max) - DDR SDRAM |
| Flash Memory | 64 MB (installed) / 256 MB (max) |
| Status Indicators | Power, link/activity |
| Communications | |
| Type | Voice / fax module |
| IP Telephony | |
| Voice Codecs | G.711, G.723.1, G.728, G.729, G.729a, G.729ab, G.726 |
| IP Telephony Features | Echo cancellation (G.168) |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 2 x ¦ Management: 1 x console ¦ 1 x auxiliary ¦ 1 x SFP (mini-GBIC) |
| Expansion Slots | 4 (total) / 4 (free) x HWIC ¦ 2 (total) / 2 (free) x AIM ¦ 4 (total) / 4 (free) x NME-X ¦ 4 (total) / 3 (free) x PVDM ¦ Memory ¦ 1 CompactFlash |
| Software / System Requirements | |
| OS Provided | Cisco IOS SP services |
| Dimensions & Weight | |
| Depth | 16 in |
| Height | 5.2 in |
| Weight | 44.97 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Humidity Range Operating | 5 - 95% |
