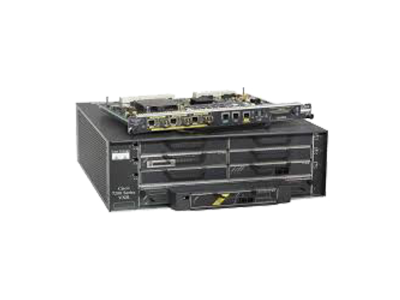

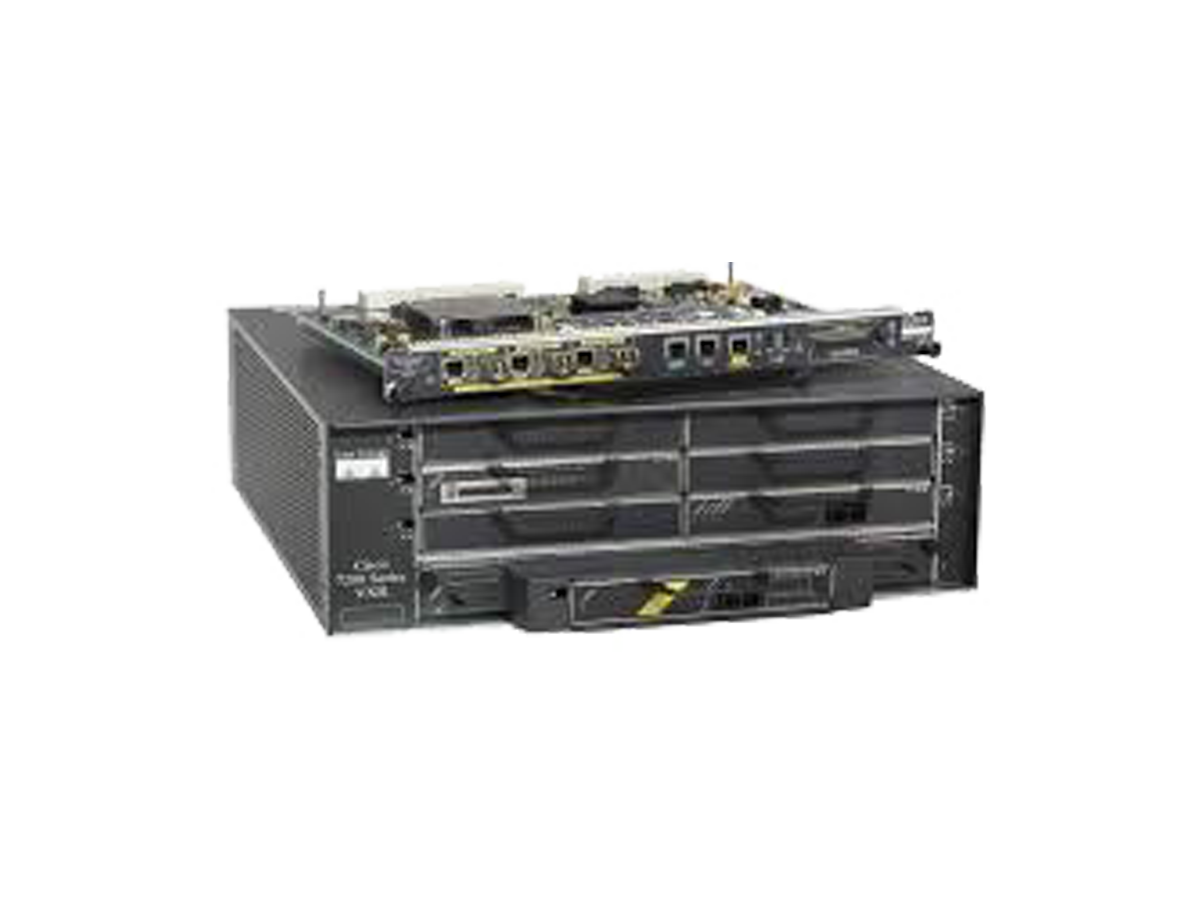

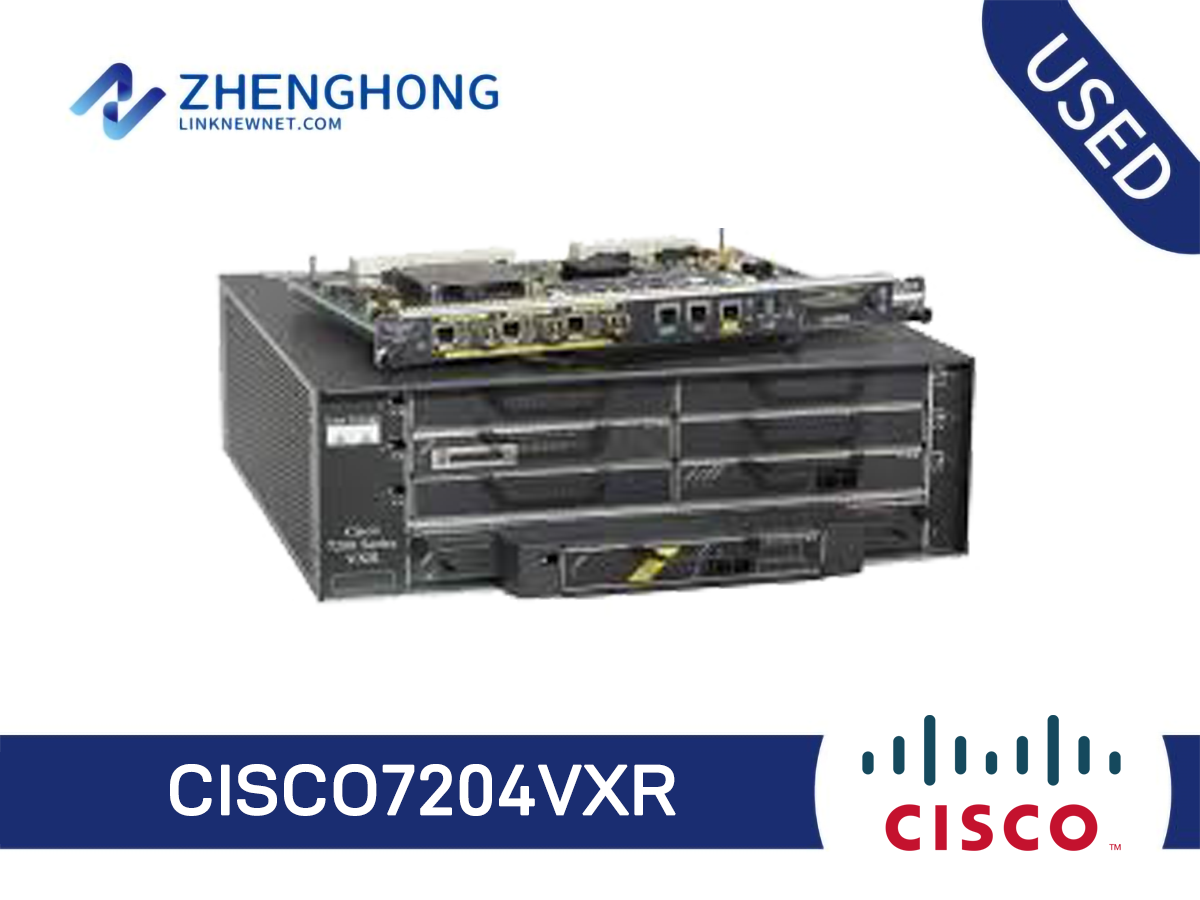

CISCO7204VXR - Cisco 7200 Series Router Overview
CISCO7204VXR - Cisco 7200 Series Router is a genuine edge and wide-area routing product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco 7200 Series family, the CISCO7204VXR unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, it offers 32 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco 7204VXR, 4-slot chassis, 1 AC Supply w/IP Software”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the CISCO7204VXR. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned CISCO7204VXR
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
CISCO7204VXR Specification | |
Product Number | CISCO7204VXR |
Description | Cisco 7204 VXR, 4-slot chassis, 1 AC supply with IP software |
Configurable Slots without Port Adapter Jacket Card | 4 |
Configurable Slots with Port Adapter Jacket Card | 5 |
Ethernet (10BASE-T) Ports | 32 |
Ethernet (10BASE-FL) Ports | 20 |
Fast Ethernet (TX) Ports | 4 |
Fast Ethernet (FX) Ports | 4 |
EtherSwitch Port Adapters | 2 |
100VG-AnyLAN Ports | 4 |
FDDI (FDX, HDX) Ports | 0 |
ATM Ports (T3, OC-3) | 4, 4 |
Packet over SONET | 4 |
Token Ring (FDX, HDX) Ports | 16 |
Synchronous Serial Ports | 32 |
ISDN BRI Ports (S/T) | 16, 32 |
ISDN PRI, Multichannel T1/E1 Ports | 32 |
Multichannel T3 Ports | Up to 4 |
HSSI Ports | Up to 8 |
Packet over T3/E3 Ports (Integrated DSU) | Up to 10 |
VPN Acceleration Module | 1 |
Chassis/Rack | • 16 with side-to-side air flow • 9 with RDS mounting system for front-to-back airflow |
I/O Card Slots | 1 |
Port Adapter Slots | 4 |
Midplane | 2 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth of 1.2 Gbps when used with NPE-400. 3 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth of 1.8 Gbps when used with NPE-G1 or NPE-G2 |
Online Insertion and Removal (OIR) | Yes |
Field-Replaceable Components | Processor, memory, power supply, I/O card, and port adapters |
Additional Standard Components | AC power supply, AC power cord |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -4 to 149°F (-20 to 65°C) |
Operating Humidity | 10 to 90% (noncondensing) |
Processor Memory | • 256 MB (default for NPE-400 and NPE-G1) • 512 MB (max for NPE-400) • 1 GB (max for NPE-G1 and default for NPE-G2) • 2 GB option for NPE-G2 |
PCMCIA Flash Disk Memory Card (optional, up to 2 slots available) | • 48 MB, expandable to 128 MB for I/O controllers • 64 MB, expandable to 256 MB for NPE-G1 and NPE-G2 |
Compact Flash Disk Memory Card (optional for NPE-G1 and NPE-G2) | • 64 MB, expandable to 256 MB for NPE-G1 • 256 MB for NPE-G2 |
Weight | Chassis is fully configured with a network processing engine, I/O controller, four port adapters, two power supplies, and a fan tray: ~50 lb (22.7 kg) |
CISCO7204VXR - Product Notes
This listing is a specific SKU variant of the CISCO7204VXR family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
CISCO7204VXR - Product Notes
This listing is a specific SKU variant of the CISCO7204VXR family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
CISCO7204VXR - Product Notes
This listing is a specific SKU variant of the CISCO7204VXR family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
CISCO7204VXR - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco router is positioned at the WAN edge, branch, or service-provider aggregation point. It provides routing, VPN, QoS and security services, and integrates with Cisco IOS-XE / IOS-XR management.
Deployment guidance: When planning this CISCO7204VXR unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: CISCO7206VXR, CISCO7201, 7206VXR/NPE-G1, 7204VXR/400, CISCO7201. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
