Specifications
| Details | |
|---|---|

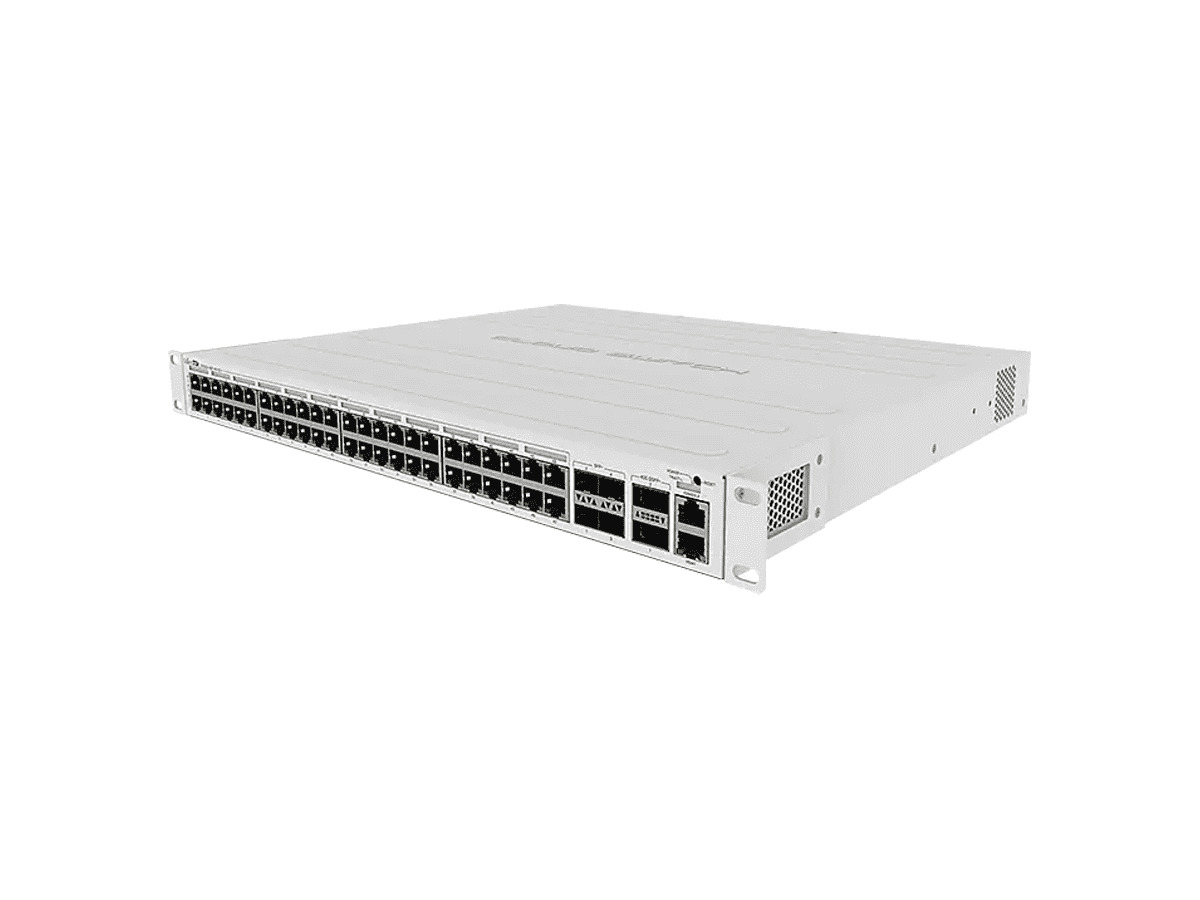

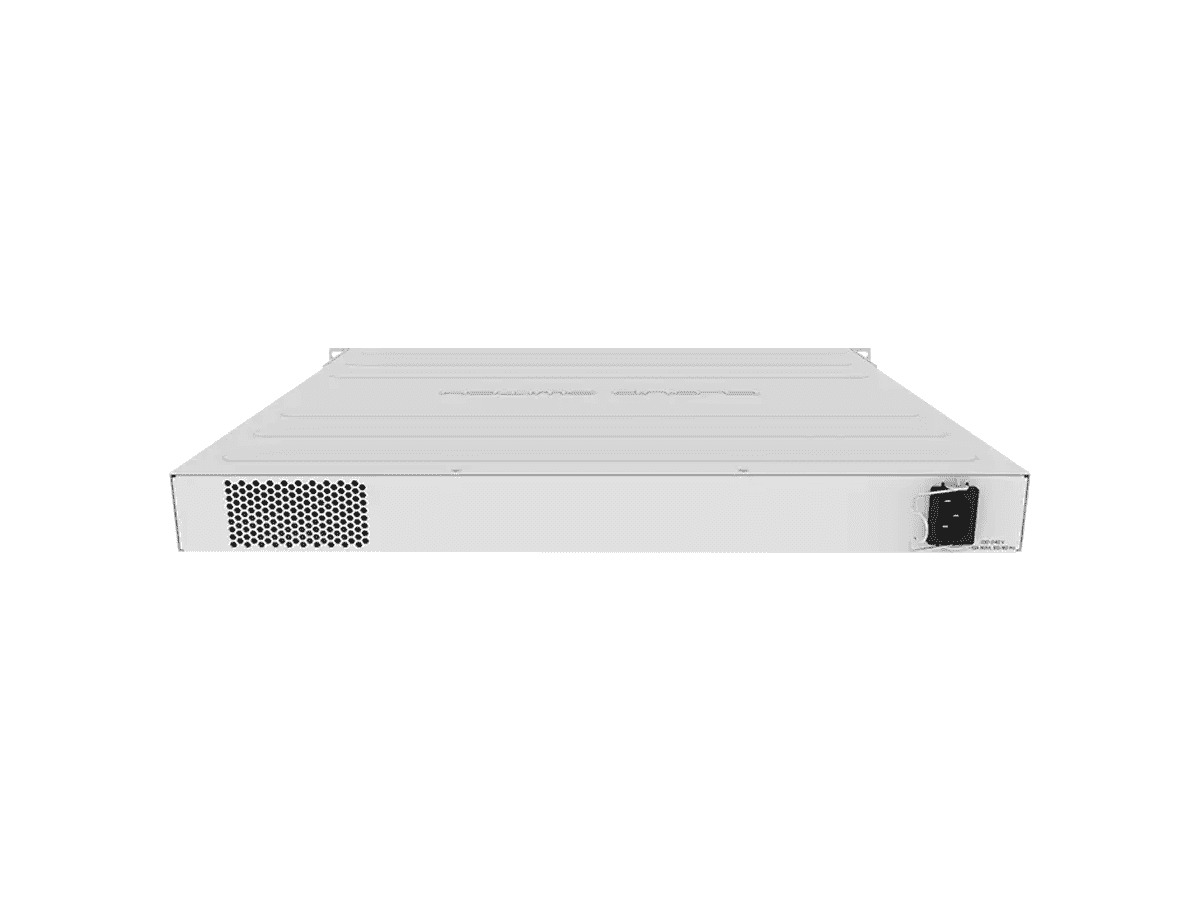

| Product code | CRS354-48P-4S+2Q+RM |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | 98DX3257 |
| Dimensions | 443 x 382 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS v7 / SwitchOS |
| Size of RAM | 128 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of PSU slots | 1 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 800 W |
| Max power consumption without attachments | 85 W |
| Cooling type | 4 fans |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether48 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1000 mA |
| High voltage PoE-Out current limit | 570 mA |
| Total output current | 27A at 26V OR 13.2A at 53V |
| Total output power | 700W |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 48 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 4 |
| Number of 40G QSFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
