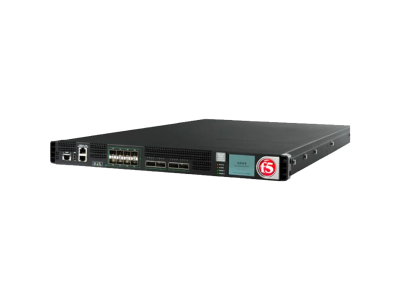

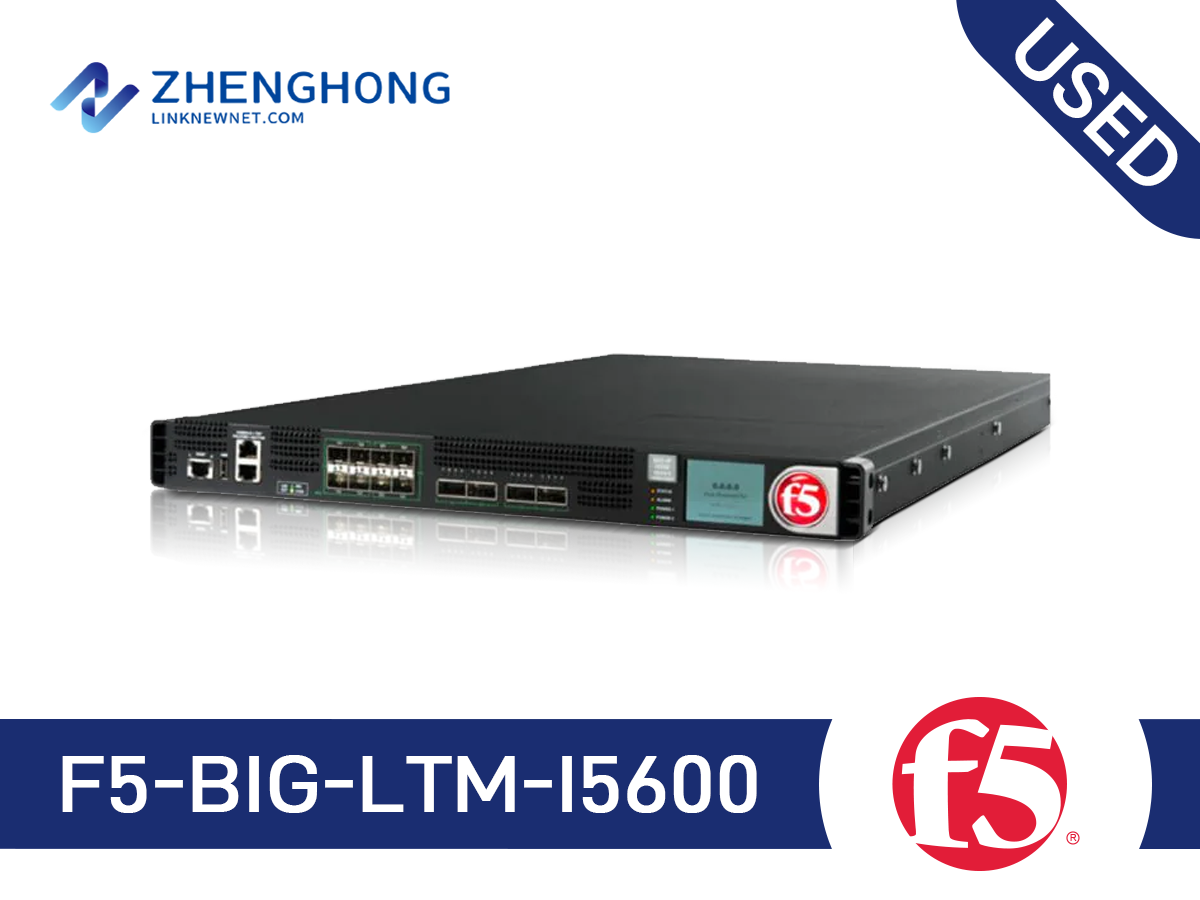

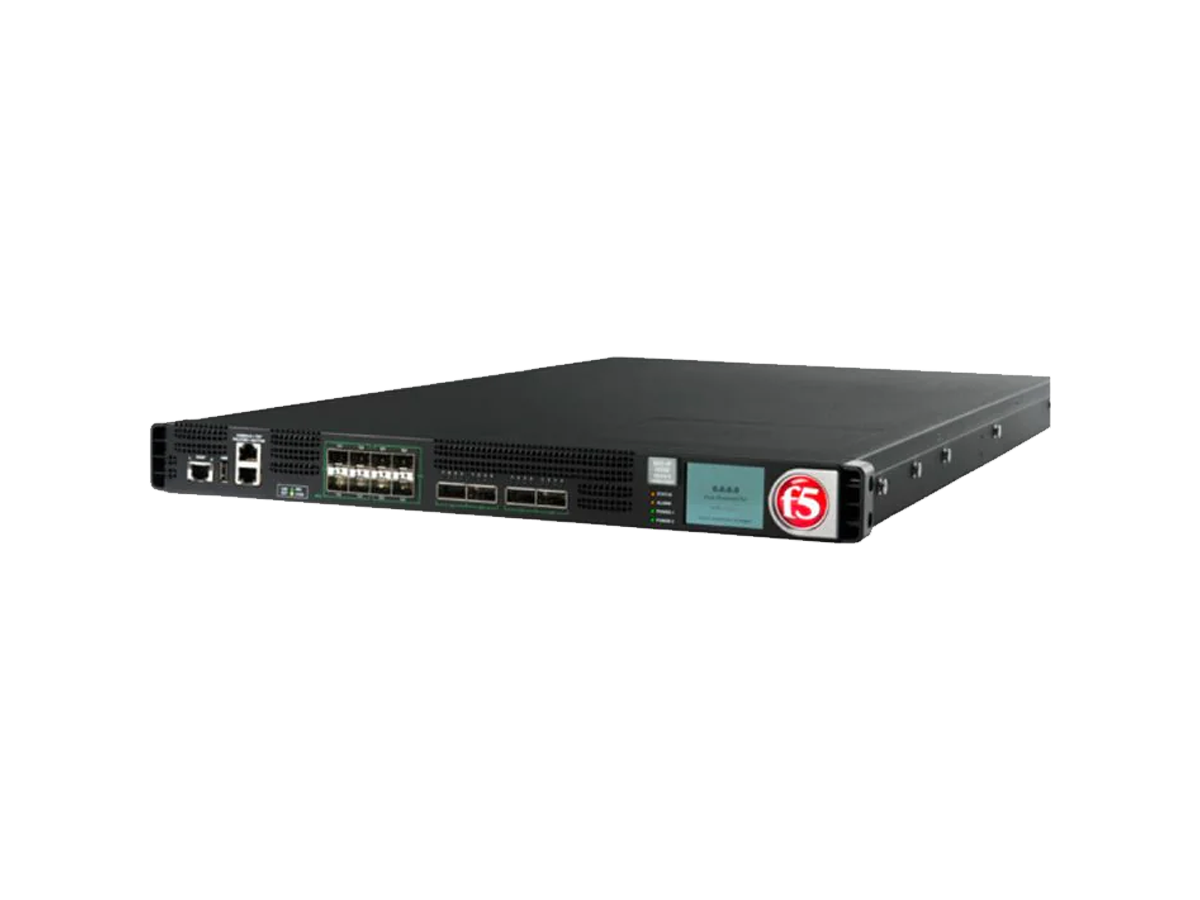

F5-BIG-LTM-i5600 Specifications | |
Brand | F5 |
Model | BIG-LTM-i5600 |
Device Type | Load balancing device |
Interfaces | 10 GigE, 40 Gigabit LAN |
Power Supply | AC 100 - 240 V |
Form Factor | 1U - rack-mountable |
Ports | 8x 10GbE SFP+, 2x 40GbE QSFP+ |
Management | Console, Ethernet, LCD panel |
Performance | Up to 40 Gbps throughput |
SSL TPS | Up to 20,000 TPS |
Network Interfaces | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
Maximum Connections | 30 million |
Supported Protocols | TCP, UDP, HTTP/2, SSL/TLS |
Dimensions (WxDxH) | 17.3 x 22.8 x 1.75 inches |
Environmental Requirements | Operating Temperature: 32�� to 104��F (0�� to 40��C) |
Cooling | Redundant fans |
Security Features | Stateful firewall, DoS protection |
Storage | 120 GB SSD |
Redundancy | Hot-swappable power supplies, fans |
MTBF | 100,000 hours |
Warranty | 1-year hardware warranty |
