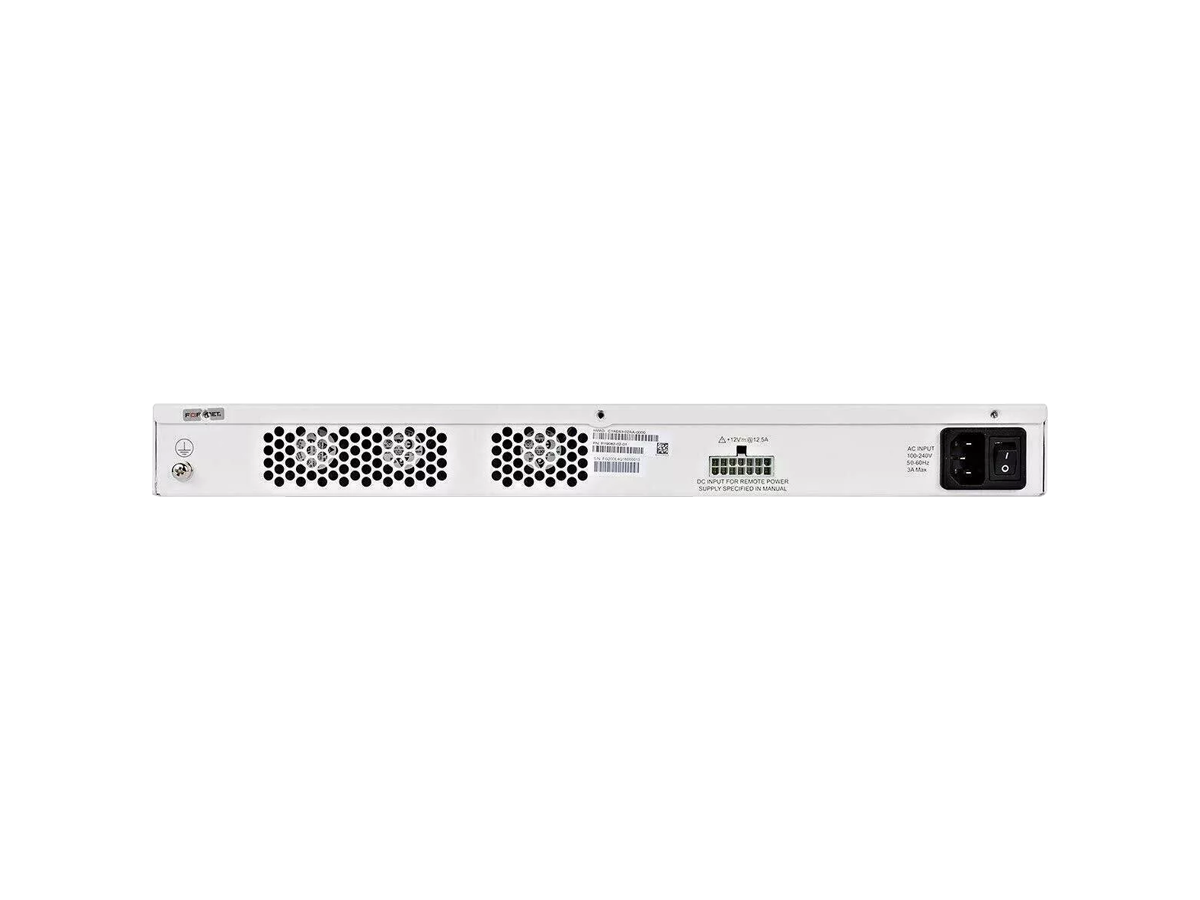

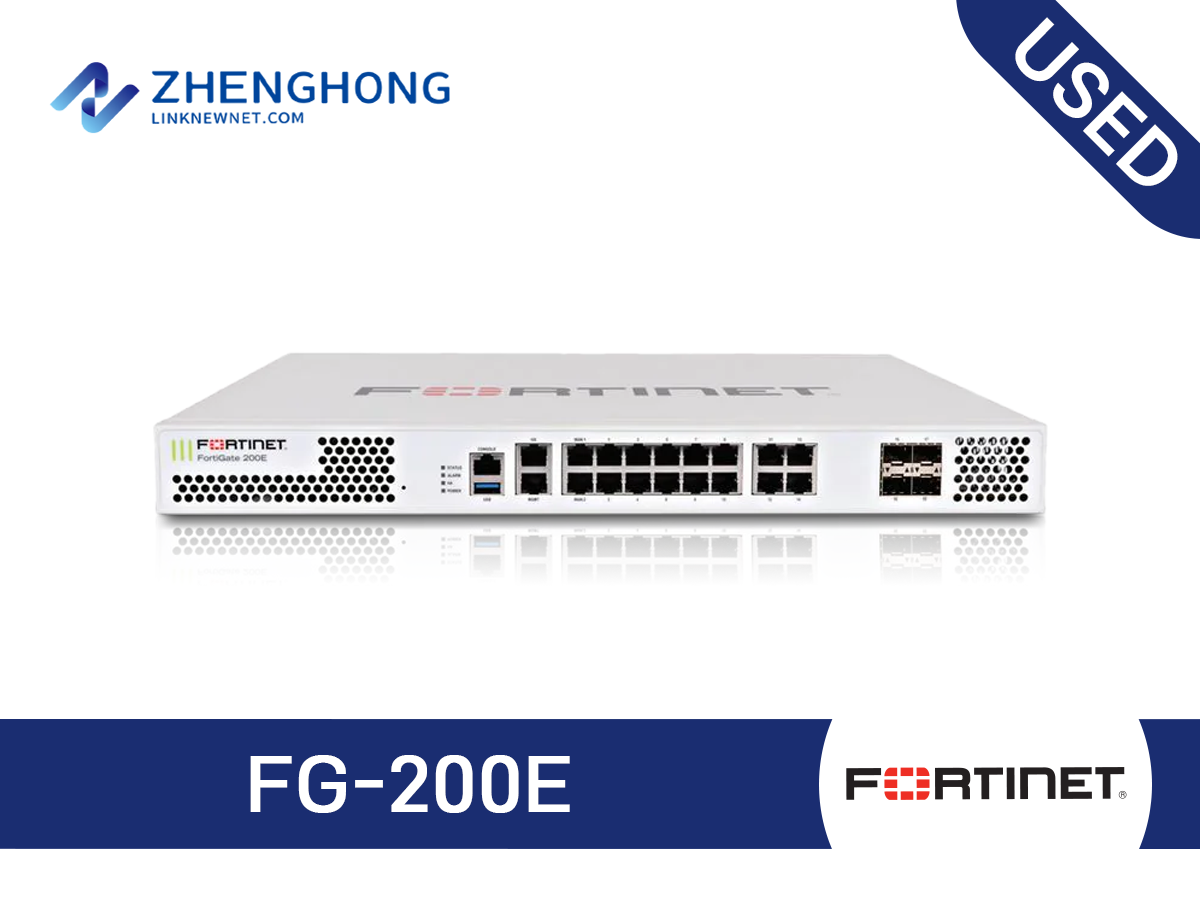

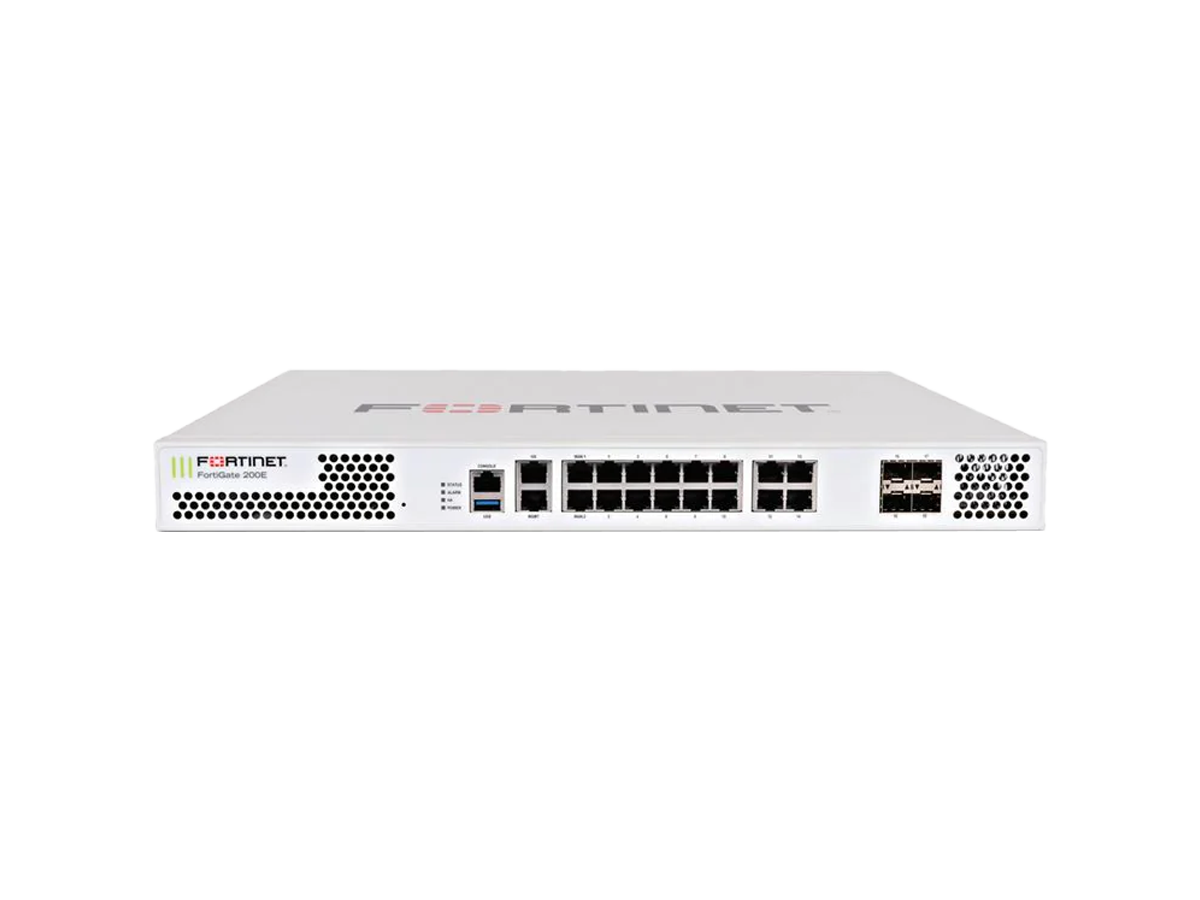

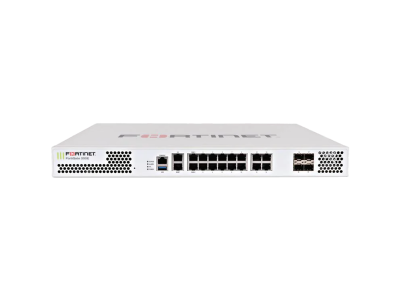

Fortinet FG-200E FortiGate 200E Series Overview
Fortinet FG-200E FortiGate 200E Series is a genuine network infrastructure product from Fortinet, a leader in next-generation firewall and unified threat management appliances. Belonging to the Fortinet FG-200E FortiGate 200E Series family, the FG-200E unit is built to the original factory specification, so it integrates with existing Fortinet deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, aggregate capacity of 7.2 Gbps. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Fortinet hardware already running in the environment.
Typical deployments include general network infrastructure support, general network infrastructure support, and general network infrastructure support. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Fortinet FG-200E FortiGate 200E Series”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the FG-200E. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Perimeter Security
Stateful inspection and threat prevention at the edge.
Branch Protection
Secure branch offices with VPN and UTM.
Data Center
High-throughput filtering for north-south traffic.
Buying a Pre-Owned FG-200E
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| FortiGate-FG-200E | |
| System Performance | |
| Product code | FortiGate-200E |
| Firewall Throughput (1518 / 512 / 64 Byte UDP Packets) | 20 / 20 / 9 Gbps |
| Firewall Latency (64 Byte UDP Packets) | 3 μs |
| Firewall Throughput (Packets per Second) | 2 Million |
| New Sessions/Second (TCP) | 135,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 Bytes) | 1 7.2 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 10,000 |
| SSL-VPN Throughput | 900 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, TunnelMode) | 500 |
| SSL Inspection Throughput(IPS, Average HTTPS) | 3820 Mbps |
| SSL Inspection Connections per Second (IPS, Average HTTPS) | 31,000 |
| SSL Concurrent sessions inspected (IPS, average HTTPS) | 3240,000 |
| Application control throughput (HTTP 64K) | 23.5 Gbps |
