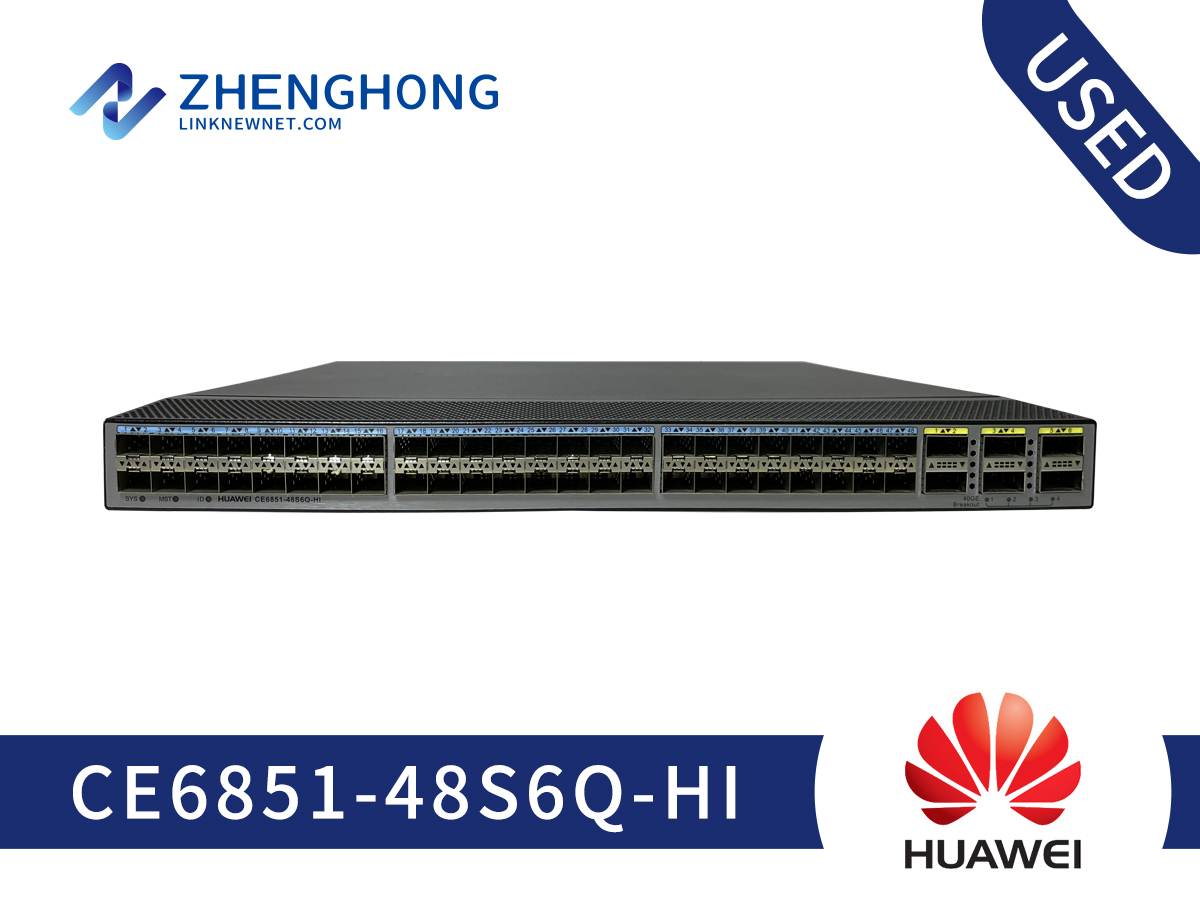

HUAWEI Cloud Engine CE 6800 Series Switch CE6851-48S6Q-HI

HUAWEI Cloud Engine CE 6800 Series Switch CE6851-48S6Q-HI

Model: CE6851-48S6Q-HI


Detail: Huawei Cloud Engine CE6851-48S6Q-HI  Switch(48-Port 10G SFP+, 6-Port 40GE QSFP+, 2*FAN Box,Without Fan and Power Module)


Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags: ASR Series 10G Layer 3 Managed ≥48 port

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CE6851-48S6Q-HI
Product list
Product codeCE6851-48S6Q-HI
Heat dissipation modeAir cooling
Power module backup1+1 backup
Product parameters
Network Ports48
RJ-45 Ports48
Ethernet Technology

Gigabit Ethernet

Network Technology

10/100/1000Base-T

Layer supported2
Introduction

Huawei CE6851-48S6Q-HI Switch (48-Port 10G SFP+, 6-Port 40GE QSFP+, 2*FAN Box,Without Fan and Power Module)

CloudEngine 6800 series switches are next-generation switches designed for data center and high-end campus networks, with high performance, high interface density, and low latency. They boast an advanced hardware design with high-density 10 GE/25 GE access interfaces, 40 GE/100 GE uplink interfaces, advanced data center features, high-performance stacking technologies, and flexible airflow capabilities.


Maximum power consumption245W
Typical power consumption145 W
Typical heat dissipation259 BTU/hr
Maximum heat dissipation836BTU/hr
Switching capacity336 Gbit/s
Forwarding rate252 Mpps
Buffer8 MB
DRAM Memory2 GB
NOR Flash16 MB
NOR FlashPower Device
Power SourcePower Supply
Input Voltage

110 V AC

220 V AC

Physical specifications
Width442 mm
Height43.6 mm
Depth420 mm
Weight18.5 lbs
Environmental Parameters
Min Temperature23 °F
Max Temperature113 °F
Humidity Operating

10 - 90% (non-condensing)
