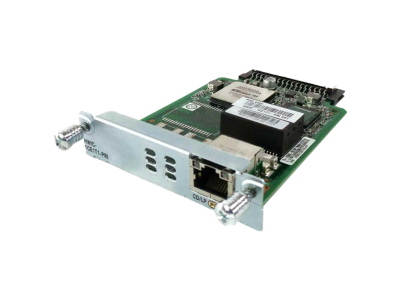

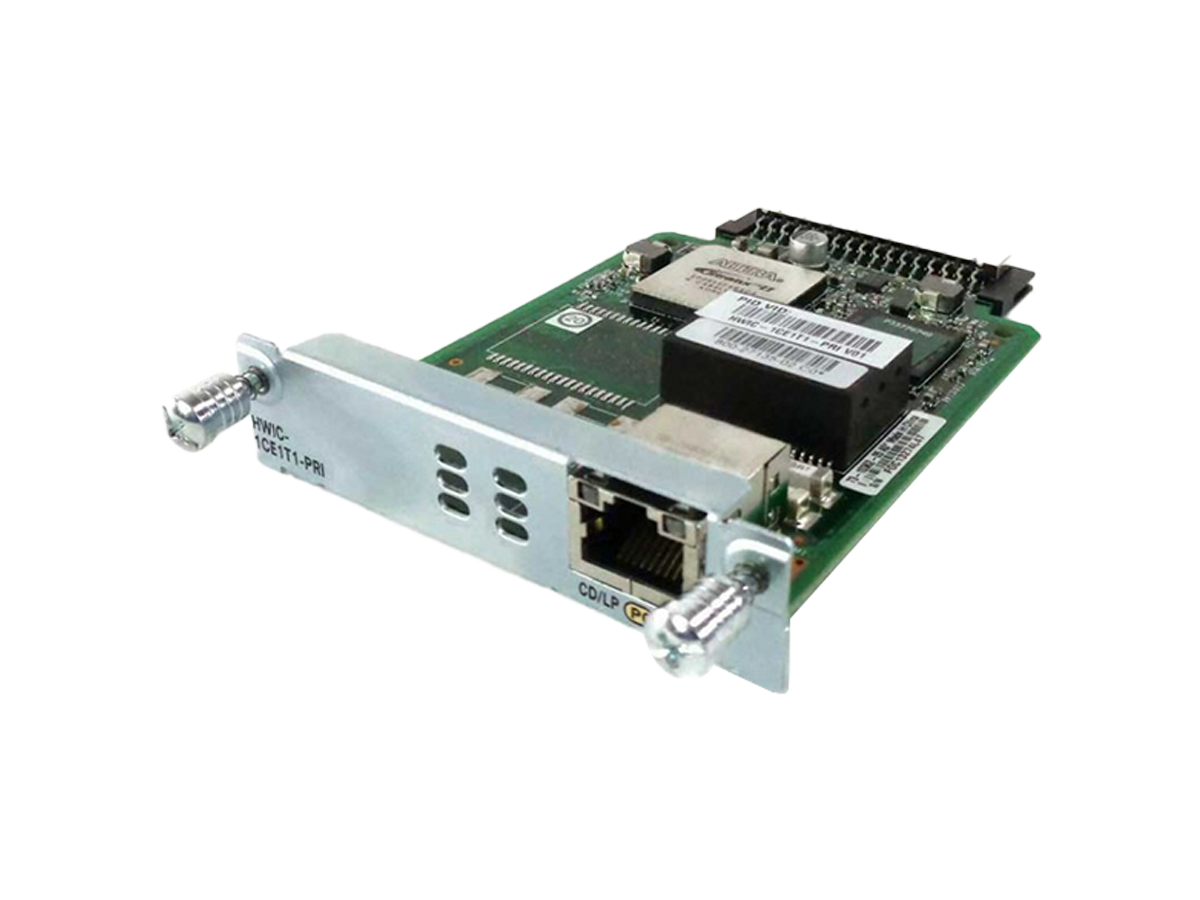

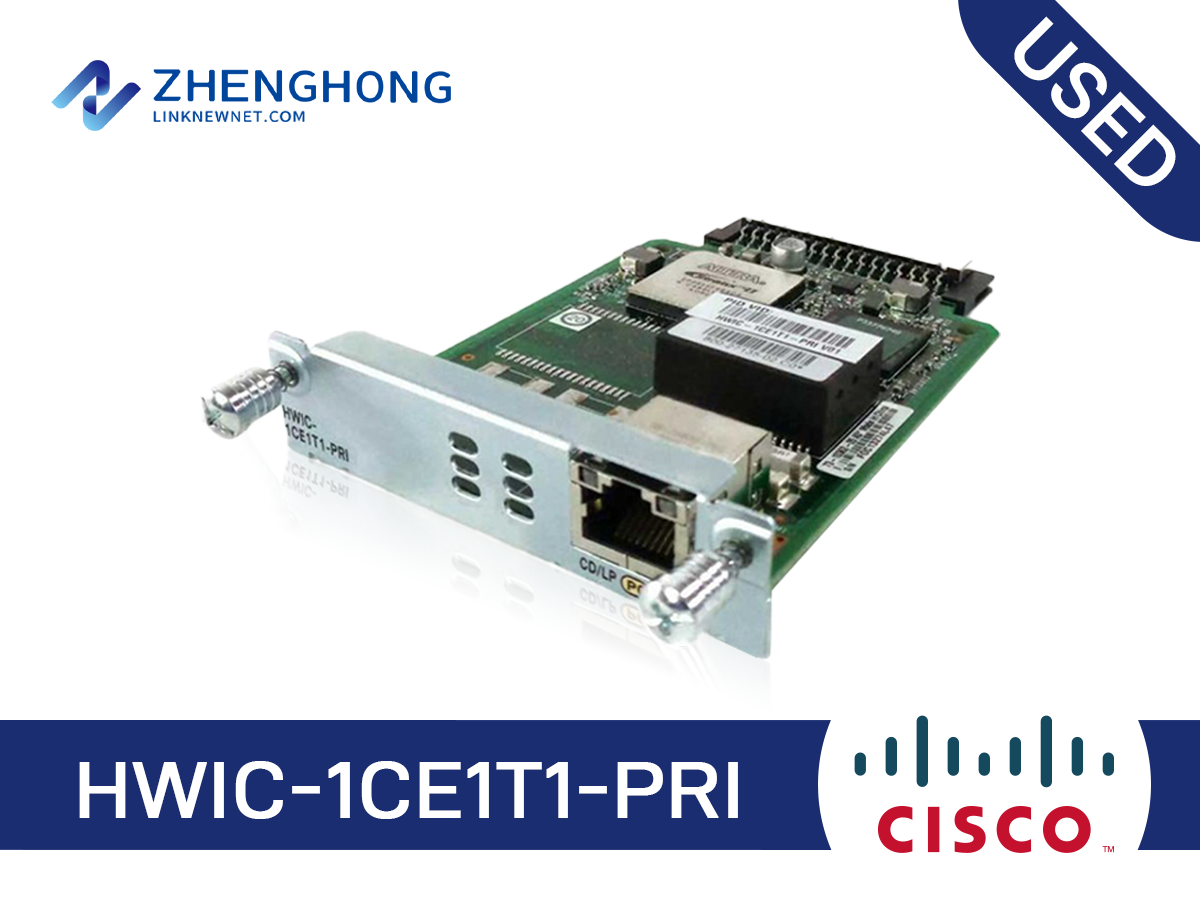

HWIC-1CE1T1-PRI Specification | |
Description | 1 port channelized T1/E1 and PRI HWIC (data only) Cisco Router High-Speed WAN Interface card |
Diagnostic Loopback Support | • E1 loopback modes: • Controller local loopback • Interface local loopback • T1 loopback modes: • Interface local loopback • Interface remote loopback • Controller local loopback • Controller remote loopback • CSU loopback modes for T1 CSU: • Data terminal equipment (DTE) loopback • Network loopback • Payload loopback |
Alarm Detection | • Yellow Alarm-Receive/Send from/to network • Blue Alarm-Receive alarm indication signal (AIS) from network • Red Alarm-Loss of network signal |
Relevant MIB Support | • T1 MIB (RFC1406-MIB) • Cisco Integrated DSU/CSU MIB (CISCO-ICSUDSU-MIB) |
Remote Management | • Cisco CNS 2100 Series Intelligence Engine (IE2100) • CiscoWorks |
Signaling Debugging | • ISDN Q.921 and Q.931 decode • All other previously existing applicable Cisco IOS Software debugs |
Dimensions (H x W x D) | • HWIC-1CE1T1-PRI: 0.75 x 3.08 x 4.74 in. • (1.91 x 7.82 x 12.04 cm) |
Weight | • HWIC-1CE1T1-PRI: 0.18 lb (0.08 kg) |
LEDs | LEDs per port • Carrier Detect/Loopback (CD/LP): • Off = No carrier detect • Green On = Carrier detect • Yellow On = Port in loopback mode • Alarm (AL): • Off = No alarms • Yellow On = Port in alarm mode LEDs per module (on NM-8CE1T1-PRI only): • EN: • Off = Card not available • On = Card enabled |
Ports | • 1, 2, or 8 T1/E1 ports on RJ-48C connectors |
Line Bit Rate (per Port) | • E1: (2.048 Mbps) • T1: (1.544 Mbps) |
Line Coding | • E1: High-density bipolar three (HDB3 ) • T1: Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS |
Framing Formats | • E1: CRC4 • T1: Super Frame (SF) and Extended Super Frame (ESF) |
Output Levels | • E1: short-haul/long-haul • T1 (line build-out [LBO]): 0, -7.5, or -15 dB |
