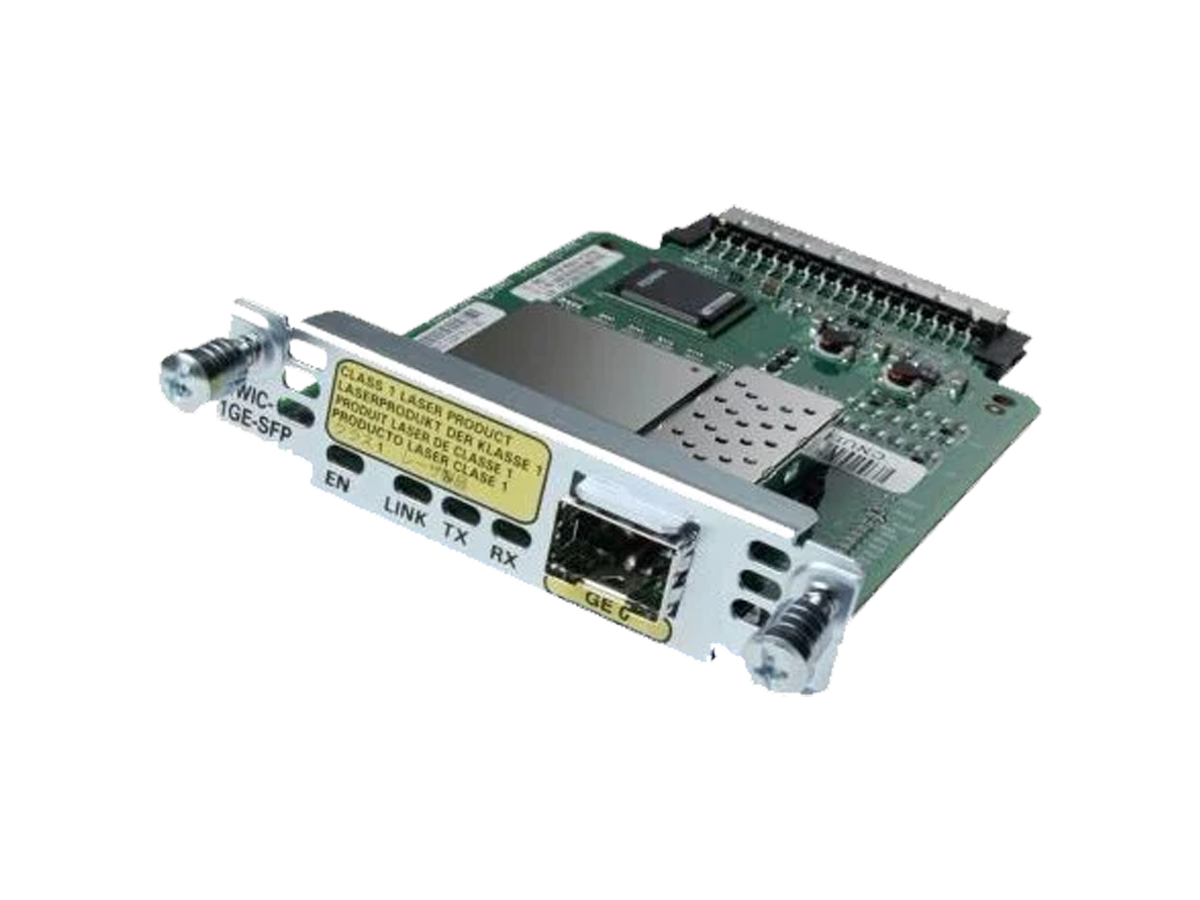

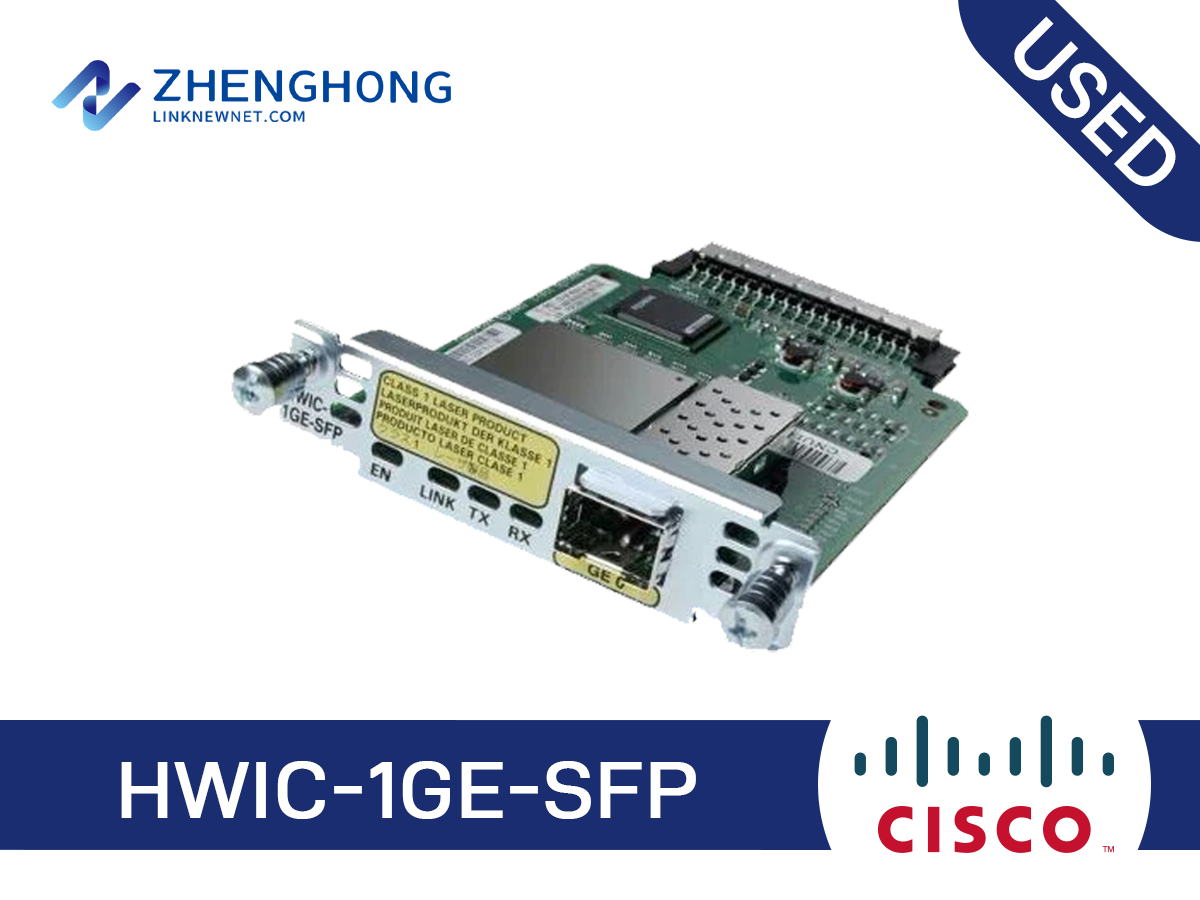

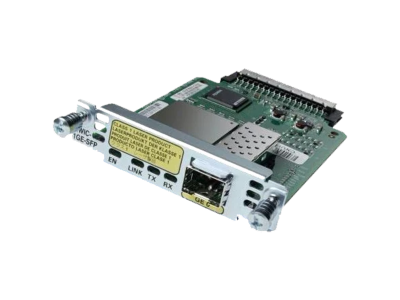

HWIC-1GE-SFP - Cisco High-Speed WAN Interface Cards Overview
HWIC-1GE-SFP - Cisco High-Speed WAN Interface Cards is a genuine modular capacity expansion product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco family, the HWIC-1GE-SFP unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is installed into a compatible chassis slot, where it works alongside the supervisor and line cards to extend the platform’s capabilities.
This unit follows the original factory specification for the Cisco family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include short-reach data-center interconnects, campus backbone fiber links, and carrier access and metro networks. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Gigabit Ethernet HWIC with One SFP Slot”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the HWIC-1GE-SFP. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Capacity Expansion
Add ports and performance to existing chassis.
Upgrade Path
Modernize aging platforms with compatible modules.
Flexible I/O
Mix copper, fiber and high-speed uplinks.
Buying a Pre-Owned HWIC-1GE-SFP
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
HWIC-1GE-SFP Specifications | |
General Information | |
Manufacturer: | Cisco |
Product ID: | HWIC-1GE-SFP |
Product Description: | Cisco GigE High Speed WIC With One SFP Slot |
Product Type: | HWIC |
Technical Information | Wide Area Network |
Media & Performance | |
Data Transfer Rate: | 1 Gbps Gigabit Ethernet |
I/O Expansions | |
Expansion Slots: | 1 x SFP (mini-GBIC) |
Daughter Cards: | No |
Management & Protocols | |
Management: | · CiscoWorks · Simple Network Management Protocol (SNMP) support · Remote Monitoring (RMON) support · Cisco NetFlow accounting · VLAN |
Protocols: | VRRP, HSRP, RMON, SNMP, MPLS, IPSec, IGMP, CGMP, GLBP |
Security Features: | IPSec |
Physical Characteristics | |
Dimensions: | 0.8" Height x 3.1" Width x 4.8" Depth |
Miscellaneous | |
Additional Information: | · Jumbo frame support up to 9576 bytes · Hot insertion and removal for SFPs on all platforms · Media or SFP type display through a command-line interface (CLI) · Gigabit EtherChannel for link redundancy · Layer 3 VPN support |
System Requirements: | Minimum IOS Software Requirement: Cisco IOS Software Release 12.3(8)T4 |
Certifications & Standards: | · IEEE 802.3 with 802.2 SAP · IEEE 802.3 with 802.2 and SNAP · IEEE 802.1p · IEEE 802.1q VLAN · Gigabit Ethernet IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab Agency Approvals: · UL 1950 (United States) · CSA-C22.2 #950 (Canada) · EN60950 (Europe) · TUV GS (Germany) · IEC 950 (International) Immunity: · EN300386 · EN55024/CISPR24 · EN50082-1 Emissions: · FCC Part 15 Class A · ICES-003 Class A · EN55022 Class A · CISPR22 Class A · AS/NZS 3548 Class A · VCCI Class A · EN 300386 · EN61000-3-3 · EN61000-3-2 |
HWIC-1GE-SFP - Compatibility Notes
This HWIC-1GE-SFP transceiver/module variant is specified for the reach, wavelength, and form factor indicated in the specifications above. Confirm compatibility with your switch or router platform, including the required coding (Cisco, Juniper, Huawei, H3C) and supported data rate, before ordering.
When building out or refreshing links, match the transceiver variant to the optics budget and distance of each run. Our team can confirm compatibility with specific platforms and provide bulk pricing.
Each HWIC-1GE-SFP unit is tested for correct operation and performance before dispatch, ensuring reliable link establishment on arrival.
HWIC-1GE-SFP - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco module/line card expands the capability of a chassis platform, adding interface density, forwarding capacity, or service features. It is installed in a matching chassis slot and managed as part of the parent platform.
Deployment guidance: When planning this HWIC-1GE-SFP unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: HWIC-ADSLI-B/ST, HWIC-1FE, HWIC-CABLE-D-2, HWIC-1ADSLI, HWIC-4ESW. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: P = PoE (Power over Ethernet) support - this suffix indicates the feature set, power, or regulatory variant of the HWIC-1GE-SFP, which affects software licensing and regional compliance.
