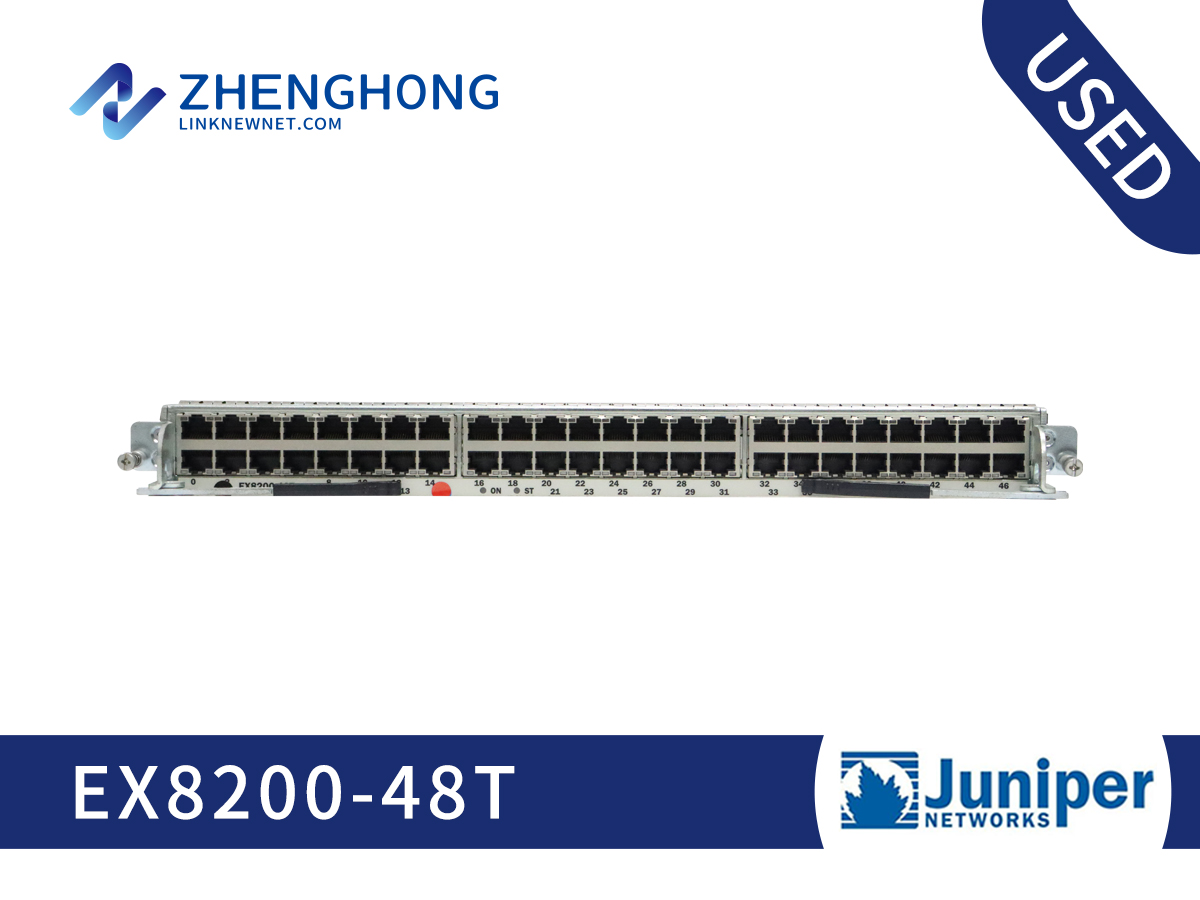

Juniper EX8200 Series Expansion Module EX8200-48T Overview
Juniper EX8200 Series Expansion Module EX8200-48T is a genuine modular capacity expansion product from Juniper, a vendor known for scalable, high-performance networking platforms from the campus edge to the core. Belonging to the Juniper EX8200 Series family, the EX8200-48T unit is built to the original factory specification, so it integrates with existing Juniper deployments predictably and behaves exactly as the platform documentation describes. In the network, it is installed into a compatible chassis slot, where it works alongside the supervisor and line cards to extend the platform’s capabilities.
From a specification standpoint, it offers 48 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Juniper hardware already running in the environment.
Typical deployments include general network infrastructure support, general network infrastructure support, and general network infrastructure support. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Juniper EX8200 Series Expansion Module EX8200-48T 48-port 10/100/1000BASE-T RJ-45 line card”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the EX8200-48T. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Capacity Expansion
Add ports and performance to existing chassis.
Upgrade Path
Modernize aging platforms with compatible modules.
Flexible I/O
Mix copper, fiber and high-speed uplinks.
Buying a Pre-Owned EX8200-48T
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| EX8200-48T | |
| Product list | |
| Product code | EX8200-48T |
| Power cable | No |
| Button | No |
| Product parameters | |
| Application | Data Networking |
| Data Transfer Rate | 100 |
| Ports | 48 |
| Ports Type | RJ-45 |
| Ports Details | 48 x RJ-45 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |

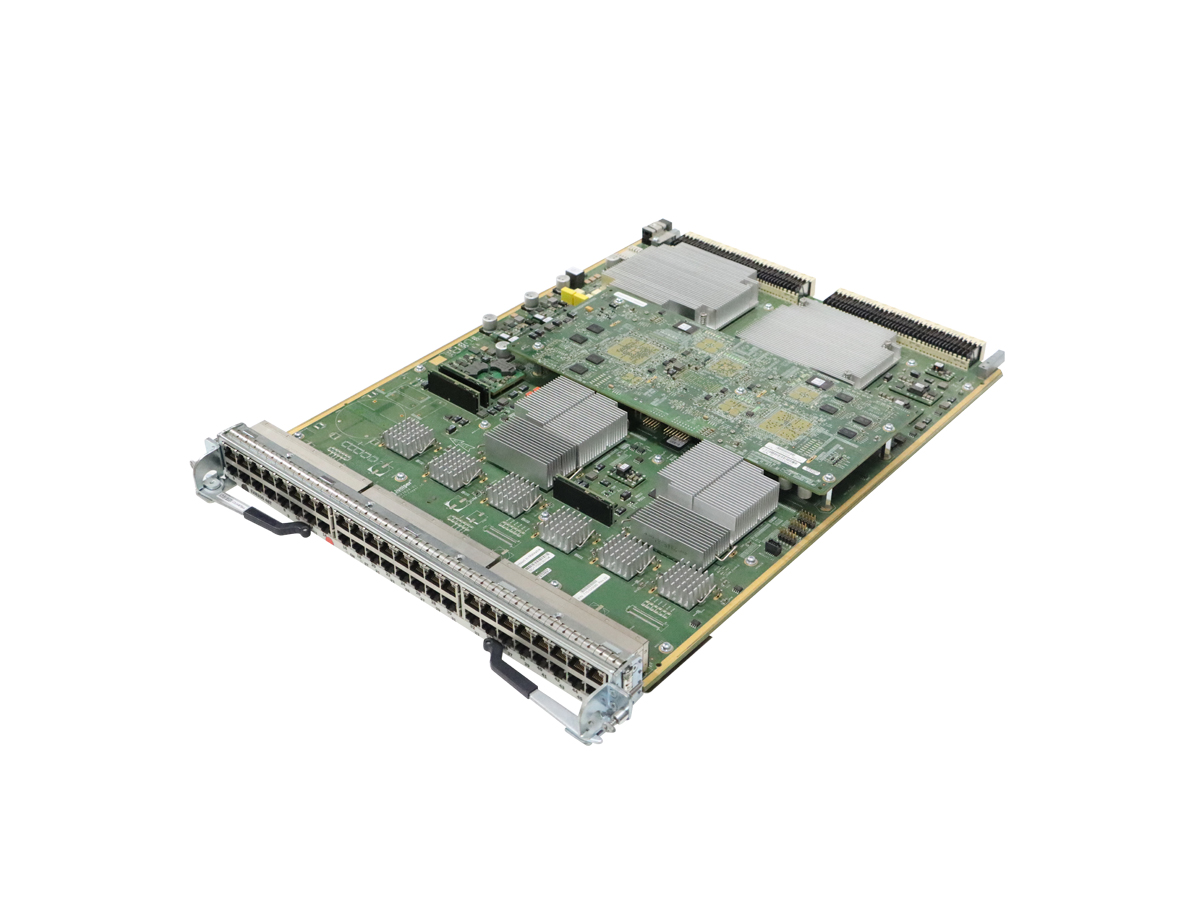

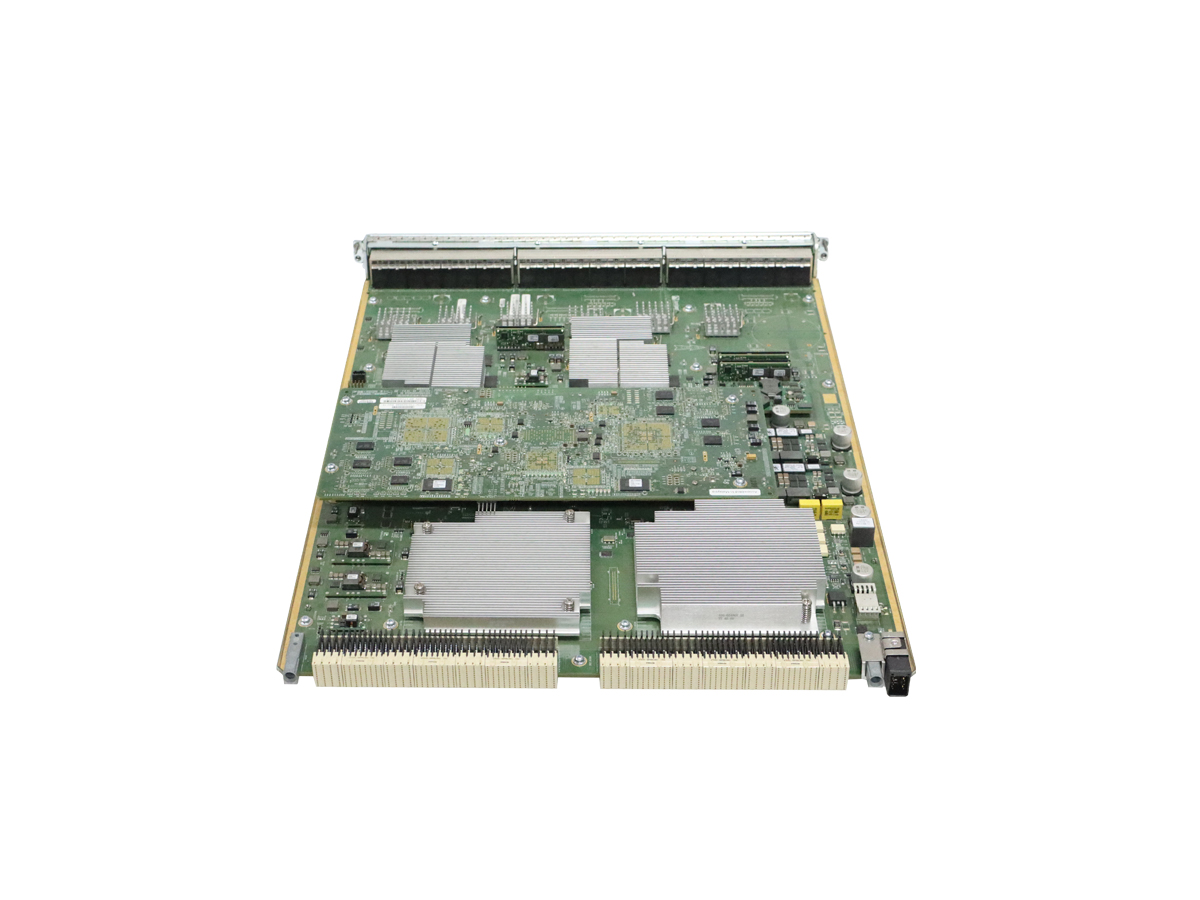

| Introduction | The EX8200-48T Ethernet line card offers 48 10/100/1000BASE-T ports with RJ-45 copper connectors. Designed for data center end-of-row server access, or campus applications where high densities, high performance, and high availability copper links up to 100 m are required, the EX8200-48T enables up to 384 line-rate ports in a single EX8208 chassis, or 768 ports in an EX8216 chassis. |
| Physical specifications | |
| Width | 14.4 in |
| Height | 1.6 in |
| Depth | 20.5 in |
| Weight | 11.27 lbs |
EX8200-48T - Module Notes
This EX8200-48T line card/module variant is designed for the chassis slot type and fabric requirements of its platform family. Verify the slot compatibility, supported forwarding modes, and firmware version required for this specific SKU before ordering.
For capacity expansion, confirm the port density, uplink type, and any software feature dependencies of this module. Our team can verify revision levels and platform compatibility before dispatch.
Each EX8200-48T module is inspected, tested and verified for correct operation before leaving our facility, including port status, management access and firmware state.
EX8200-48T - Module Notes
This EX8200-48T line card/module variant is designed for the chassis slot type and fabric requirements of its platform family. Verify the slot compatibility, supported forwarding modes, and firmware version required for this specific SKU before ordering.
For capacity expansion, confirm the port density, uplink type, and any software feature dependencies of this module. Our team can verify revision levels and platform compatibility before dispatch.
Each EX8200-48T module is inspected, tested and verified for correct operation before leaving our facility, including port status, management access and firmware state.
EX8200-48T - Juniper Series Notes
This listing is part of the Juniper enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Juniper product is deployed in enterprise network infrastructure roles, providing reliable connectivity, management, and integration with the broader Juniper ecosystem.
Deployment guidance: When planning this EX8200-48T unit into a network, confirm the Junos OS version required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Juniper reconditioning process: Every pre-owned Juniper unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Juniper management tools.
Related models in this family: EX8200-8XS, EX8208-SRE320, EX8208, EX4500-40F-VC1-BF, EX4200-48T. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: T = 10/100/1000BASE-T copper (RJ45) ports - this suffix indicates the feature set, power, or port type of the EX8200-48T, which affects software licensing and regional compliance.
