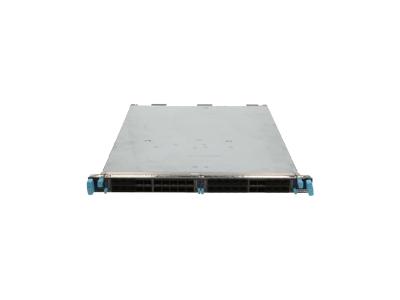

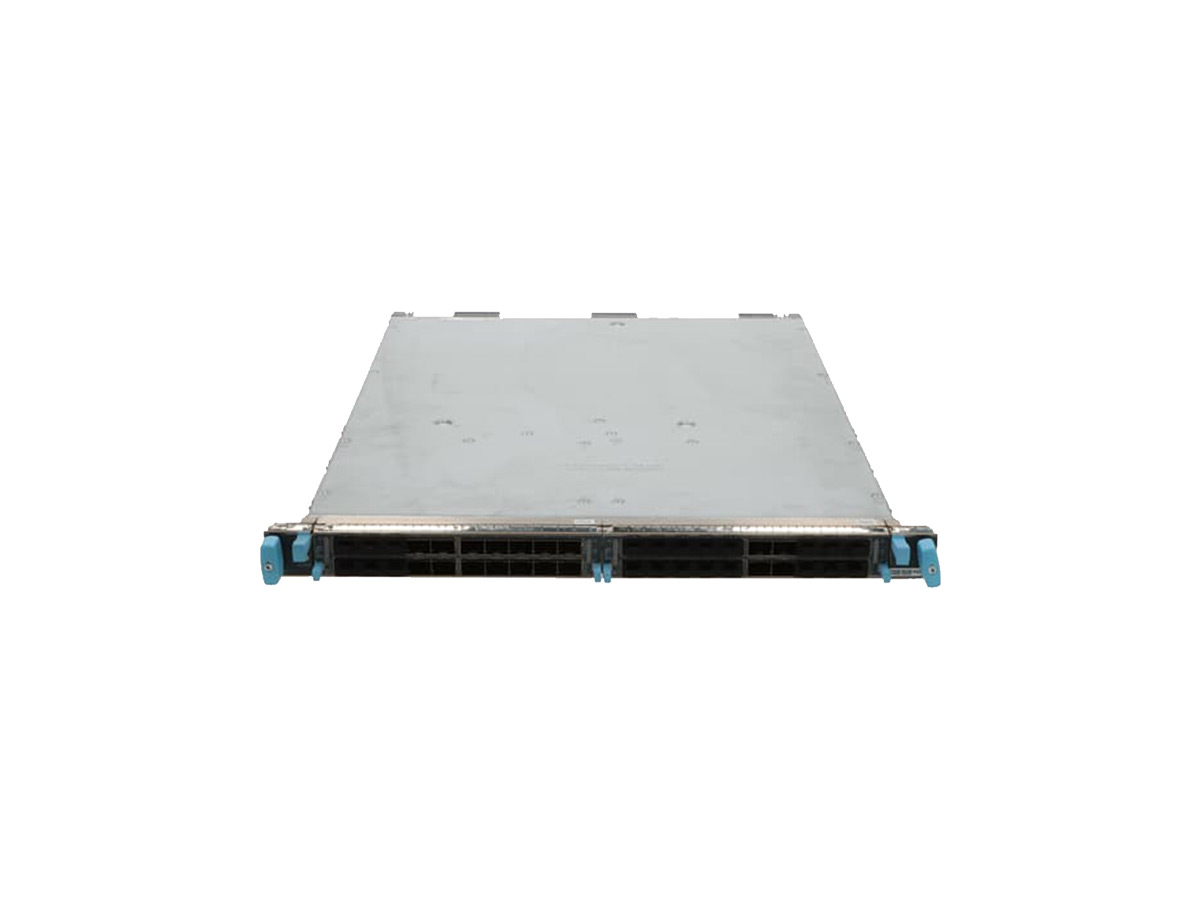

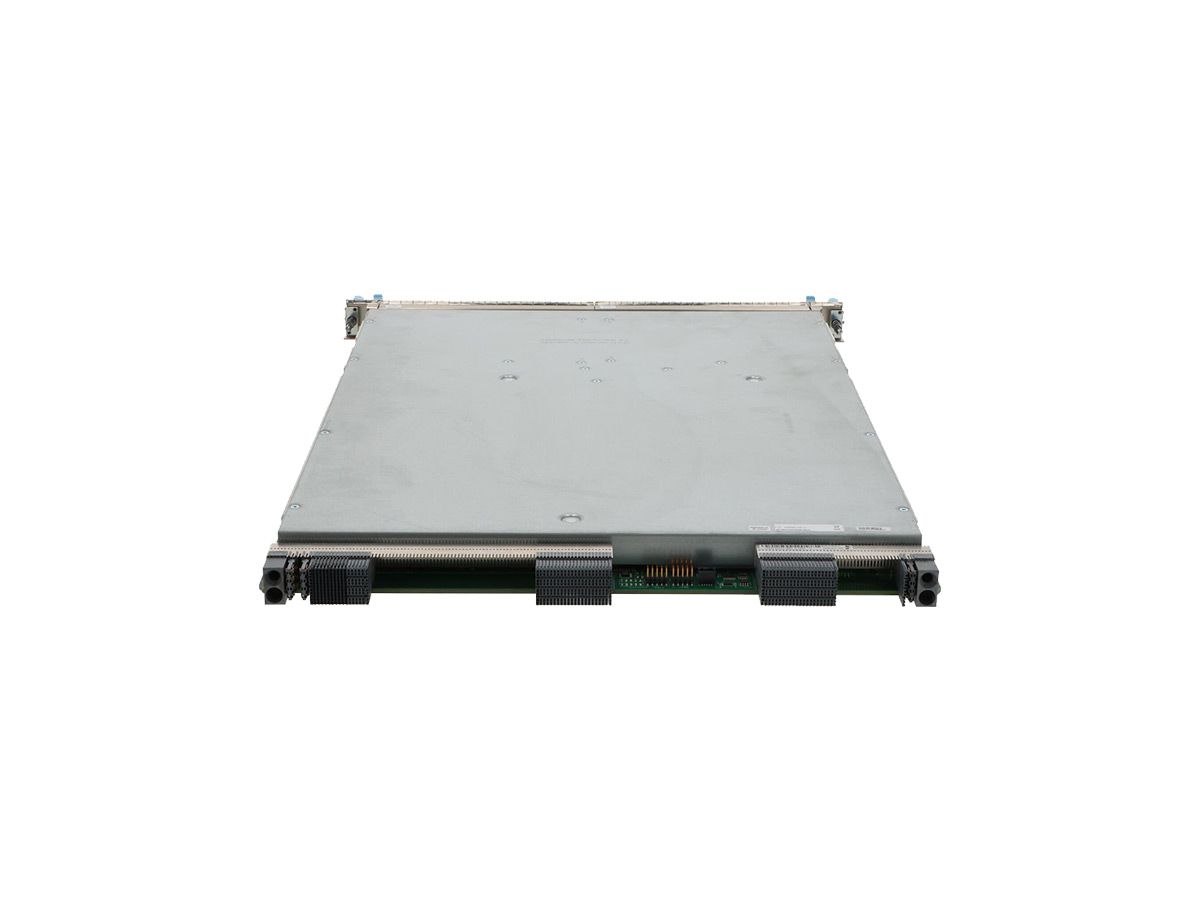

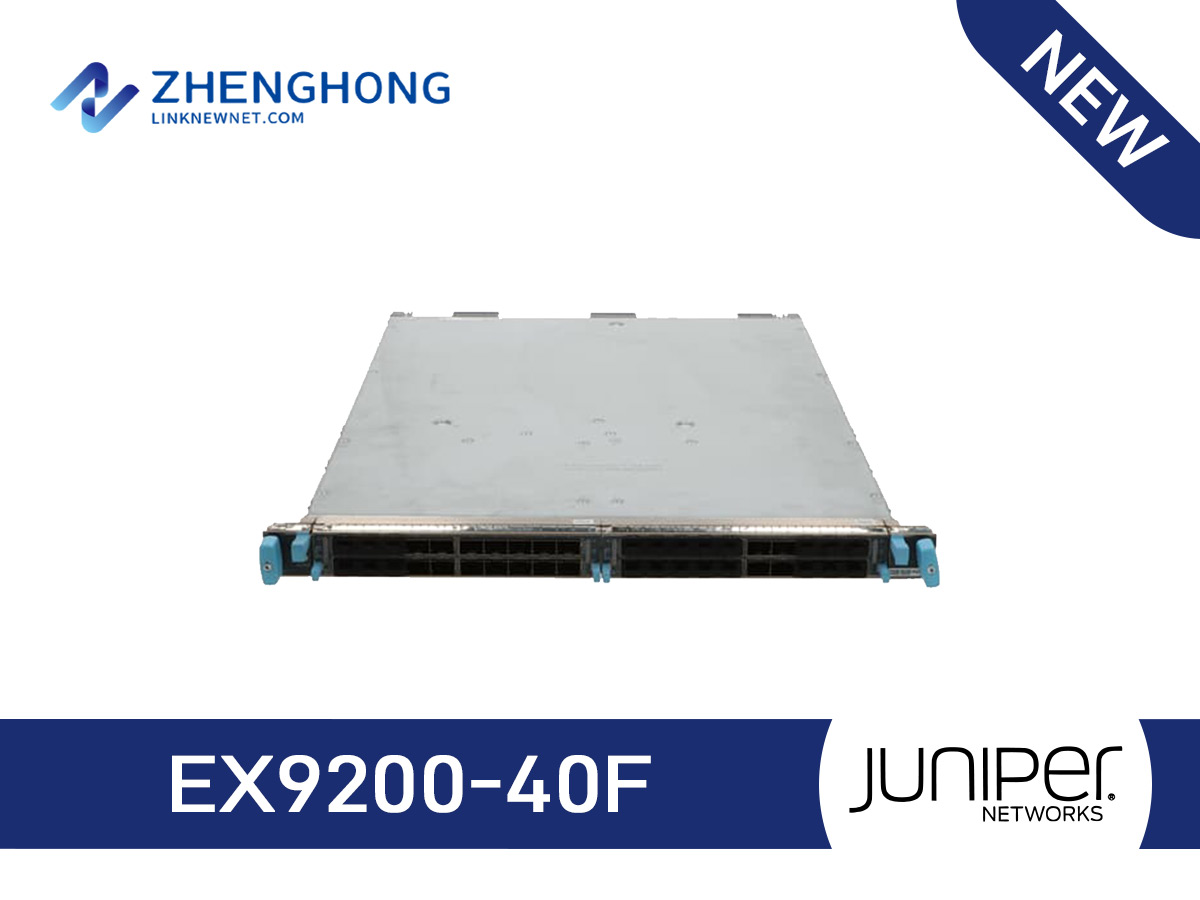

Juniper EX9200-40F Specifications | |
| Brand | Juniper |
| Model | EX9200-40F |
| Type | Line Card |
| Interface Ports | 40-Port 100FX/1000BASE-X SFP |
| Transceiver Type | SFP (Optics Sold Separately) |
| Compatibility | EX9200 Series Switches |
| Data Transfer Rate | Up to 1 Gbps |
| Port Speed | 100 Mbps / 1 Gbps |
| Power Consumption | Varies based on transceiver |
| Hot-swappable | Yes |
| Dimensions (WxDxH) | 13.8 x 1.2 x 8.5 inches |
| Operating Temperature | 0��C to 40��C (32��F to 104��F) |
| Storage Temperature | -40��C to 70��C (-40��F to 158��F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Mean Time Between Failures (MTBF) | Over 1,000,000 hours |
| Warranty | 1 Year Limited |
| Compliance | RoHS-6, CE, FCC Part 15 Class A |
| Cooling | Front-to-back airflow |
| LED Indicators | Link, Activity |
| Security Features | MACsec, Port Security |
| Management Features | CLI, SNMP, RMON, Web-Based Management |
